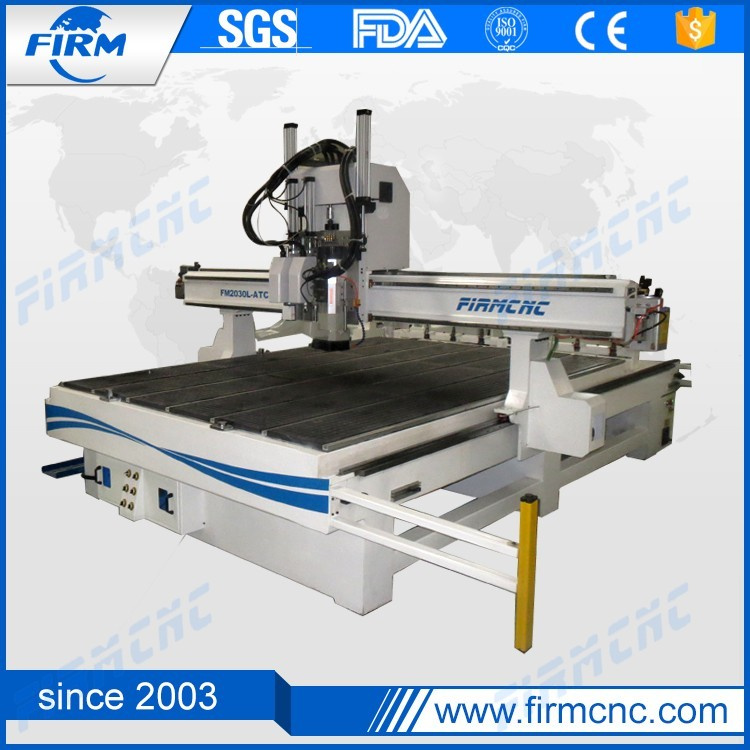

Hot Sale 1325 Woodworking Machinery Wood CNC Router Machine
| Price: |
US $ 1-5500/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
Product Specifications
| Prod Model: |
FM1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Size(mm): |
Machine Size |
| Table Size(mm): |
1600*3100 |
| Engraving Area: |
1300*2500*200mm |
| Spindle: |
3.0kw Changsheng Water Cooling Spindle |
| Inverter: |
China Fuling Inverter |
| Motor And Drive: |
Stepper Motor & Leadshine Driver |
| Transmission: |
Helical Rack and Pinion |
| Rail: |
Taiwan Hiwin Linear Square Guide Rail |
| Ball Screw: |
Taiwan Tbi Ball Screw on Z Axis |
| Control System: |
Beijing Richauto DSP Control System |
| Spindle Layout: |
Horizontal |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
Product Description
Hot Sale 1325 woodworking machinery Wood CNC Router MachineAdvantages:
1. Free samples(I can help you process samples for free.)
2.Advertising/artwork/woodworking
3.CE, SGS,ISO
4.High precision
5.High sensitivity
6.High efficiency
7. Warranty: 1 year
8.Door-to-door technical service and 24 hours technology online support
Technical Parameters:| No. | Description | Parameter |
| 1 | Working Area | 1300mmx2500mmx200mm |
| 2 | Dimension(L*W*H) | 1620mm×3300mm×1500mm |
| 3 | X,Y,Z Traveling Positioning
Accuracy | ±0.02/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.02mm |
| 5 | Table Surface | T-slot and vacuum combined table |
| 6 | Table Size | 1420mm×3000mm |
| 7 | Inverter: | Chinese Fuling Inverter/Taiwan Delta Inverter |
| 8 | Spindle | 3KW Chinese Hanqi water colling spindle |
| 9 | Limit switch | Japan Omron limit switch |
| 10 | Oil LubricationSystem | Manual |
| 11 | X, Y,Z Transmission | Taiwan Hiwin Square Rail and TBI Ball Screw |
| 12 | Max. Power Consumption | 6KW |
| 13 | Max. Rapid Travel Rate | 33000mm/min |
| 14 | Max. Working Speed | 25000mm/min |
| 15 | Spindle Power | 3KW(optional:2.2KW/3KW) |
| 16 | Spindle Speed | 0-24000RPM |
| 17 | Motors | 450B stepper |
| 18 | Working Voltage | 220V/380V |
| 19 | Command Language | G Code |
| 20 | Operating System | DSP System/NC-studio |
| 21 | Computer Interface | USB |
| 22 | Collet | ER25 |
| 23 | X,Y Resolution | <0.03mm |
| 24 | Software Compatibility | Artcam Software/Type3 Software |
| 25 | Running Environment
Temperature | 0 - 45 Centigrade |
| 26 | Relative Humidity | 30% - 75% |
| 27 | Packing Size | 2120mmX3700mmX1900mm |
| 28 | N.W. | 1500KG |
| 29 | G.W. | 1600KG |

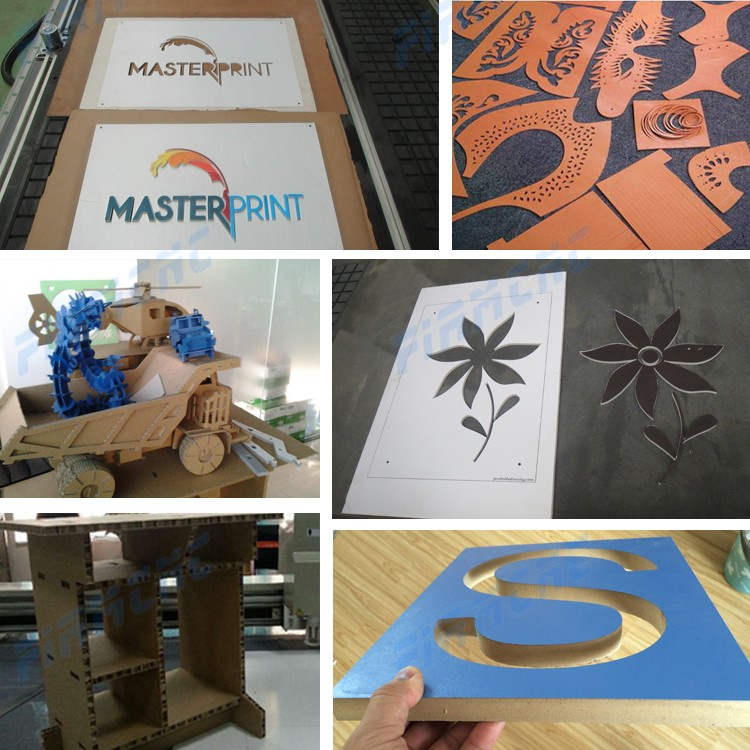

Application Industry and Materials:
Advertising industury:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
Packing & shipment :
Save space as much as possible for container loading.
Inside:Water-proof Plastic Film Package With Foam Protection
Outside:Solid Seaworthy Wood Box Package
Below: Steel Tube
Our partners:
FAQ:
1.How long about the machine's guarantee?
1 year
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
JINAN FIRM CNC EQUIPMENT CO.,LTD
A-505Jingliu Road, Huaiyin District, Jinan City, Shandong Province, China.
Tel: 0086-0531-69986330 Fax : 0086-0531-69986330
Website: http://firmcnc.en.alibaba.com/, http://firmcnc.en.made-in-china.com
www.firmcnc.com
Cell phone: +86-13954117091
Jinan Firm CNC Equipment Co., Ltd is located in Jinan city, Shandong province. We are one of the most professional and good reputation manufacturers of CNC router (router CNC, CNC wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China

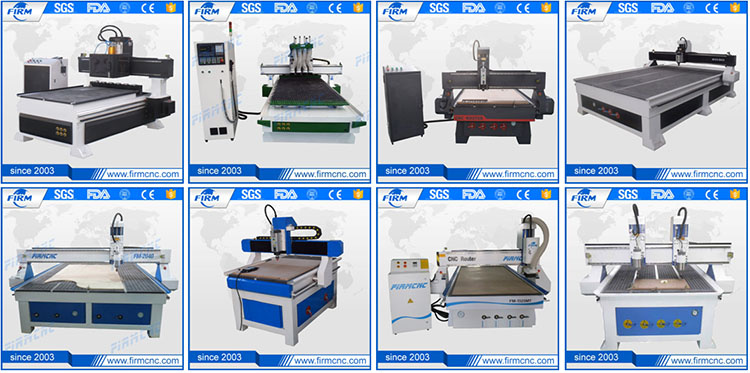

Our main products are CNC router and laser machine, 5 axis machineing center, 4 axis machining center, 3 axis ATCcnc router, General 3 axis CNC router, CNC laser engraving and cutting machine, CNC plasma cutting machine. The application covers woodworking, advertising, Marble, Metal, Non-metal, MDF, plastic, etc. Our machines are widely sold in many countryes, European, American, Africa, Canada, England, and so on.
The aim of Jinan Firm CNC Equipment is to continuously upgrade the technique, to help our customers produce the best quality and high precision products, and offer the best after sale service.
Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service.
