| Price: | US $ 3999-6999set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

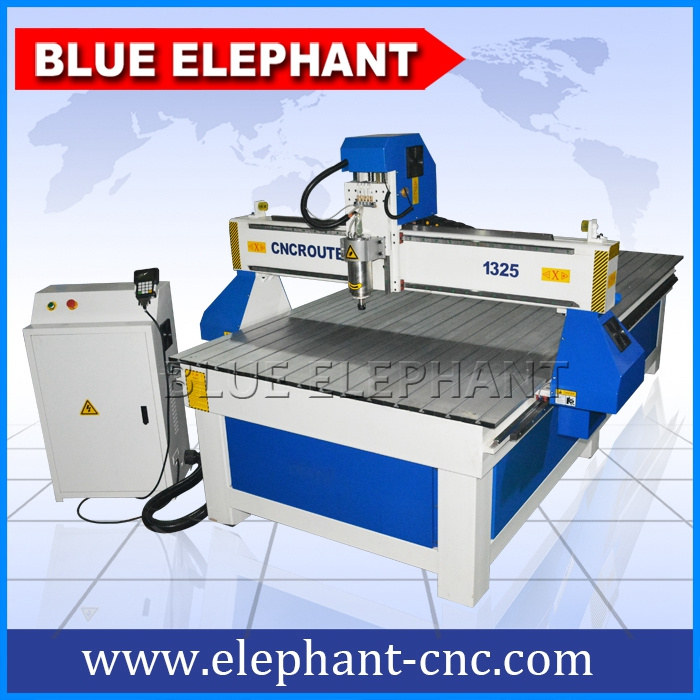

| Prod Model: | ELE 1325 |
|---|---|
| Dimension(L*W*H): | 3200*1840*1900mm |
| After-Sales Service Provided: | Engineers Available to Service Machinery Overseas |
| X,Y,Z Working Area: | 1300X2500*200mm |
| Spindle Power: | 3kw Water Cooling Spindle |
| Control System: | DSP A11 |
| Inverter: | 3.7kw Fuling Inverter |
| Transmission: | Taiwan Tbi Ball Screw |
| Guide Rail: | #20 Hiwin Square Guide Rail |
| Spindle Speed: | 0-24000rpm |
| Type: | Engraving Router |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Customized: | Customized |
| Color: | Customized |
Features:
1. Working area: 1300mm*2500mm*200mm
2. Steel gantry , strong structure
3. 3kw Changsheng water cooling spindle
4. 3.7kw Fuling inverter
5. Z axis with Taiwan TBI Ball screw transmission
6. X,Y axis with high precision helical rack gear transmission
7. X,Y,Z axis with Taiwan TBI/PMI/HIWIN Linear Guide
8. DSP A11 control ststem
9. FL118 stepper motor , Leadshine 860H driver
10. Artcam /Type 3 software
11. Separate control box
12. Voltage:380V, 3phase, 50/60HZ(220v for optional)

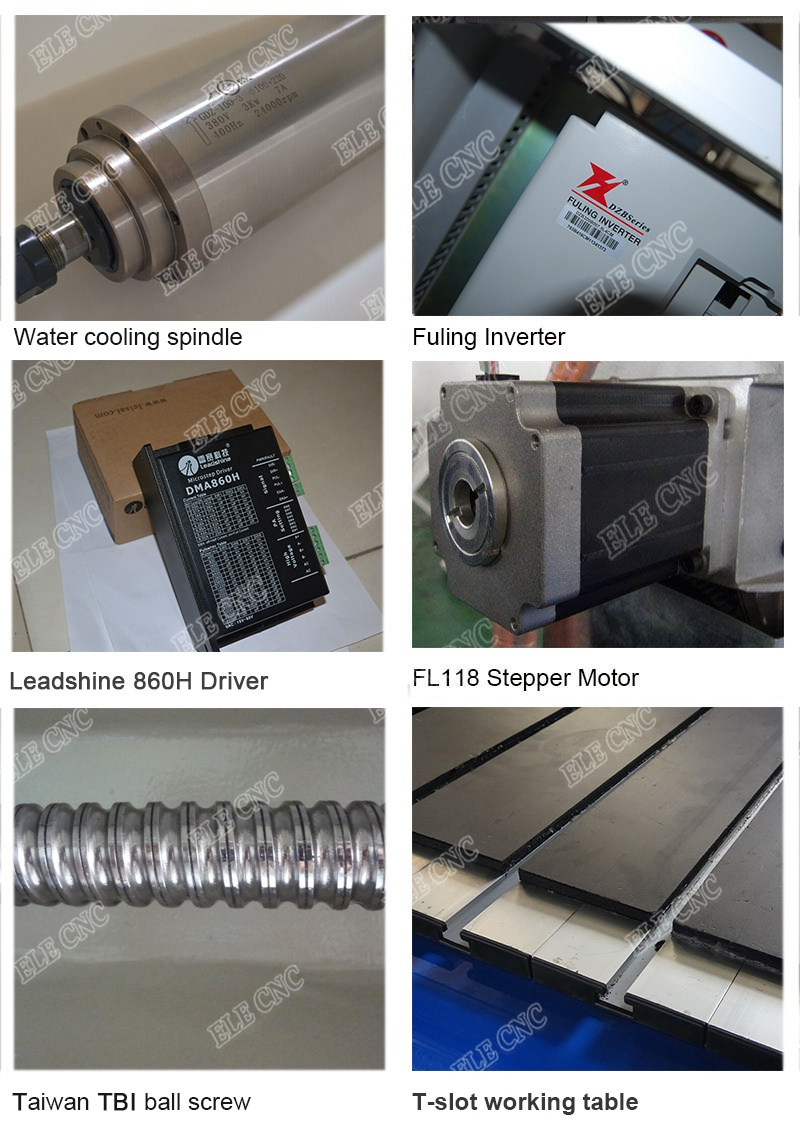

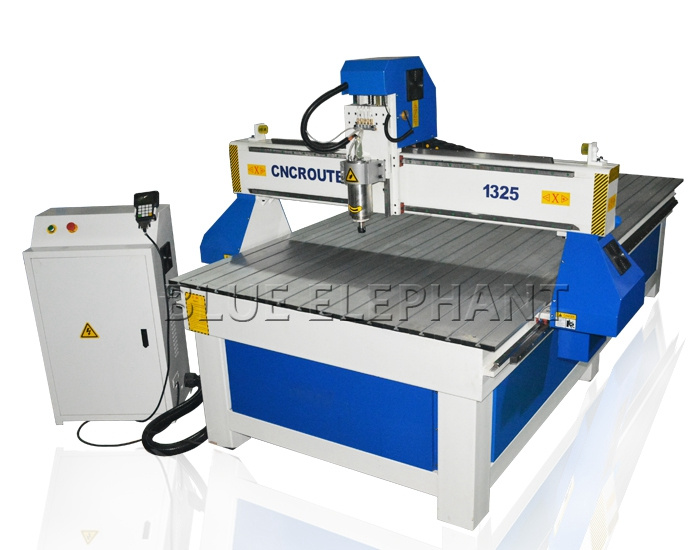

Product details:
Technical Parameters:
| X,Y,Z Working Area | 1300x2500x200mm |
| Table Surface | T-slot vertical Table |
| Spindle | 3kw water cooling spindle |
| X, Y Structure | #20 Taiwan HIWIN Linear guide and helical rack |
| Z Structure | TBI Ball screw and #20 Taiwan HIWIN Linear guide |
| Driver and Motor | Stepper |
| Software | Artcam /Type 3 software |
| Spindle Speed | 0-24000RPM |
| Lubrication system | Manual |
| Inverter | 3.7kw Fuling Inverter |
| Command Language | G Code |
| Control System | DSP A11 |
| Computer Interface | USB |
| Collect | ER20 |
| Software Compatibility | Type3 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
Application:
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,
craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,
crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as
artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4. relief sculpture and 3D engraving
Sample show:
Packaging and shipping:
1.Outside Package:Standard export wooden case .
2.Inner package:strech film .
For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.
For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.
Our Services
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
