High Tech High Z Travel 1212 Atc CNC Mini Wood Mold Wooden Box Making Cutter Machine with Factory Price

Name: High Tech High Z Travel 1212 Atc CNC Mini Wood Mold Wooden Box Making Cutter Machine with Factory Price
Brand: china-crystals.com
SKU: 727625862
Availability: InStock
Rating: 4.9 (60 reviews)

Price:	US $ 15999-35000/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Prod Model:

ELE 1212

Spindle Power:

9kw Italy Hsd Air Cooling Spindle

Drive Motors:

1kw Germany Siemens 828d Servo Motors and Drivers

Operating System:

Germany Siemens 828d Control System

Linear Rail:

Double 25# Hiwin Linear Guide for Y Axis

Transmission:

X/Y Rack and Pinion

Inverter:

11kw Delta Inverter

Table Surface:

T-Slot Working Table

Working Area:

1200*1200*500mm

Type:

Engraving Router

Spindle Layout:

Spindle Over

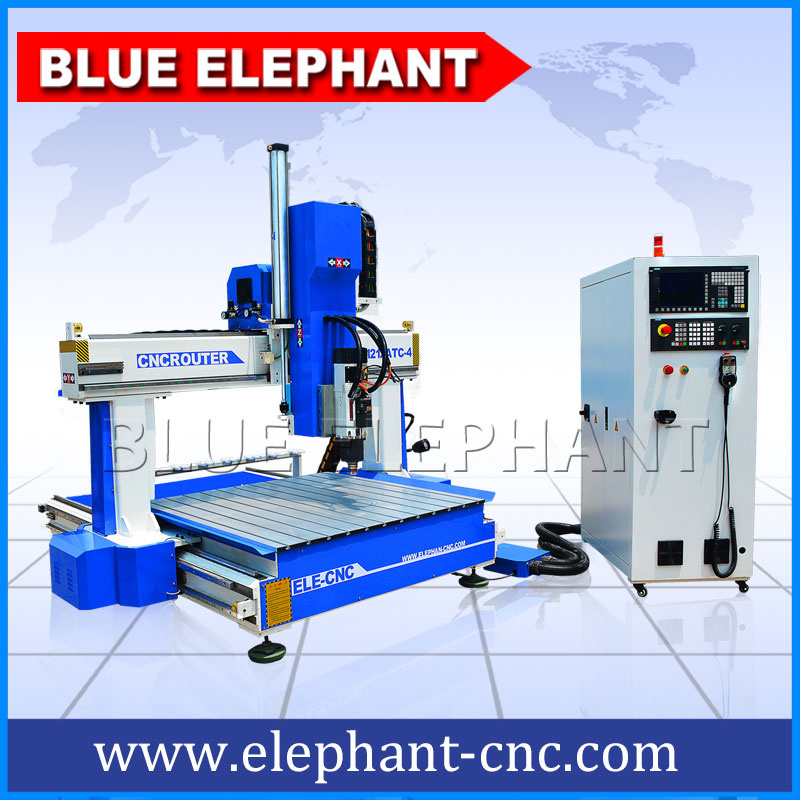

Hightech High Z Travel 1212 ATC CNC Mini Wood Mold Wooden Box Making Cutter Machine with Factory Price

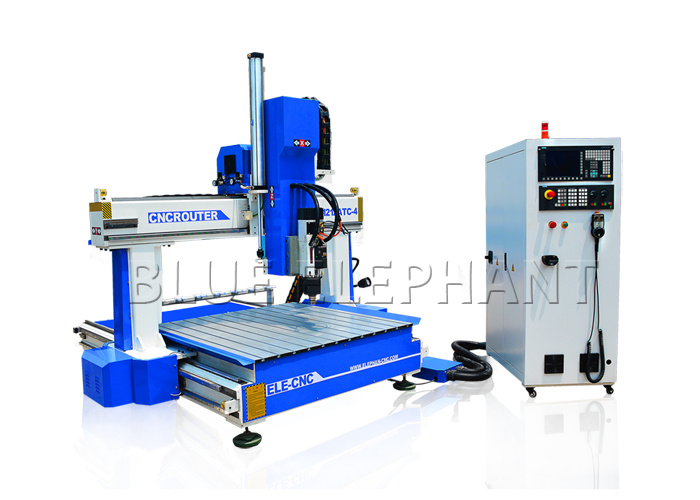

Introduction of BLUE ELEPHANT CNC 1212 ATC 4 axis router:

---Siemens 828D control system, powerful to support 4 axis
---Spindle can swing for 180 degree

---Smart size, can customize as your need

The cnc router engraver machine is suitble for wooden Industry, furniture industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router marble engraver machine is designed for large area engraving work such as wooden Industrial, mdf industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

In addition, it can be upgraded to be installed a rotational axis.

Feature of 1212 4 axis atc wooden engraving machine:

Effective working area: 1200*1200*500mm

Heavy duty thicker structure as Kang's design

Linear type automatic tool changer with 8 tool storage

German Siemens 828D control system

Siemens 1000w servo motor and 1000w servo driver

Helical rack & Gear

Taiwan TBI ball screw

Taiwan HIWIN square linear guide way 25mm for X,Y,Z axis

Double pieces for each Y axis, total 4 pieces for Y axis

Automatic Tool sensor calibration

Automatic oil lubrication system

T-slot working table

Japan Omron limit switch

France Schneider safety switch

Shanghai Cadiff cable

Working voltage:380v 3phase 50HZ

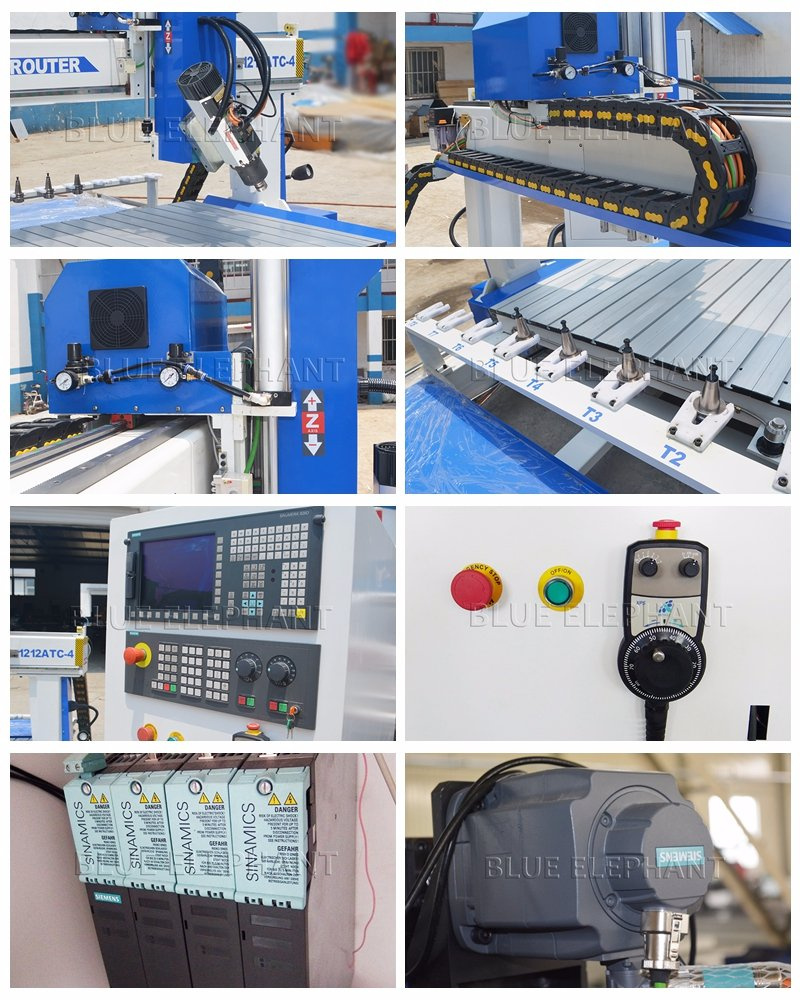

Details about our 1212 4 axis atc wooden engraving machine:

Our Advantage of 1212 4 axis atc wooden engraving machine:

Machine parts	Advantages
12001200500mm working area	(can be customized.)
welded steel	More stable and stronger, even you use for many years, it won't change shape.
9kw Italy HSD air cooling spindle	Worldwide brand, high quality, global warranty
11kw Taiwan Delta inverter	The best brand in Asia
Germany SIEMENS 828D control system	A large number of high-grade CNC functions and rich programming methods, making it flexible workpiece machining occasions can be freely used around the world.
Taiwan HIWIN or PMI or ABBA 25mm square linear guide rail for X,Y,Z axis	Very famous brand, can improve high precision, smooth transmission, fast speed, low noise, and it has 10 times longer life than common rail way.
Helical rack and gear 1.25M transmission for X,Y axis	Bigger loading capacity, stronger biting force, makes sure the machine is stable, with long lifetime.
Taiwan TBI ball screw 2510 transmission for Z axis	Famous brand, high quality, can make sure very accurate precision.
T-slot working table	T-slot table can help fix small materials by clamps.
Germany SIEMENS 828D servo motor and driver	Famous brand. 4 sets in total, double motors for Y axis, very powerful, also very popular among customers.
Automatic lubrication system	Help lubricate the rail way, maintaining machine.
Automatic tool sensor calibration	Help find working home position.
Japan OMRON limit switch	3 pieces for X, Y, Z axis, helping each axis go back to working home position.
rubber bumpers	2 pieces for X axis and 4 pieces for Y axis, helping stop axis in case the machine axis is out of control.
Highly flexible towline, fire-resitant	Shanghai CARDIFF brand, China best brand. Long life, could be bent
double-sheathed cable	300000 times. Also can prevent the interference of static electricity.
Artcam software	We will give you in the CD.

Accessory:

9kw HSD spindle ---------- 1 piece
SIEMENS 828D control box ---- 1 set
SIEMENS 828D MPG handle wheel - 1 set
11kw Taiwan Delta inverter ---- 1 piece
1kw SIEMENS servo motor ---- 5 pieces
1kw SIEMENS servo driver ---- 5 pieces
T-slot working table -------- 1 set
Automatic lubrication system ---- 1 piece
Automatic tool sensor calibration -- 1 piece
auto oil mist cooling sprayer ---- 1 piece

Tool Box Parts:

Tool Box ----------- 1 piece
Tool, bit, cutter, mill ------ 21 pieces
collet: ISO 30 --------- 8 pieces
Allen wrench M6 -------- 1 piece
Open-end wrench 27-30 45-52 -- 2 pieces
clamp ------------ 8 pieces
CD with software and Manuel --- 1 piece
Adjustment screw ------- 4 pieces
Spanner ----------- 4 pieces
Fuse core: 20A --------- 2 pieces
Box key ----------- 1 pieces
Instructions ---------- 1 pieces

Applications of wood router:

WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks,and other non-metallic mold.
Relief sculpture and 3D engraving
Cylindrical object

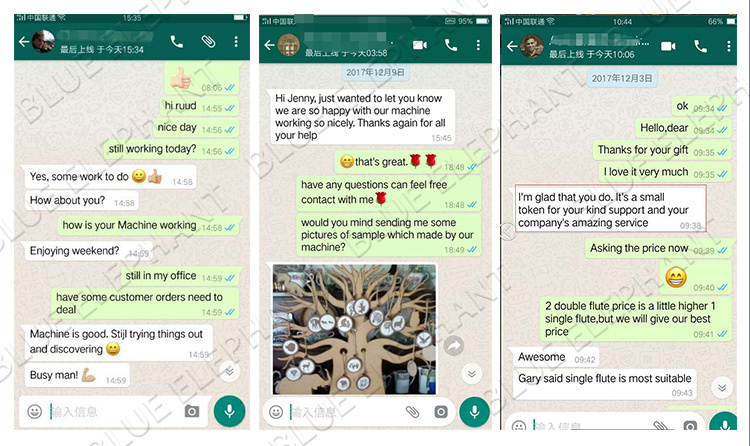

Customers Feedback:

After sale service:

Within 7 days since your local customs clearance: if the cnc machine's any parts has any problems, we will change it free.
Exceed 7 days since your local customs clearance but within warranty period: if the cnc machine parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
Exceed warranty period: if the cnc machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
We offer 24 hours technical support by call, email
Our technician can give you remote guide online (Skype or WhatsApp) if you have any question
We can record videos of operating the cnc router machine
Free training course in our factory
Machine will be adjusted before it is delivered , operation disk/CD was included.

Packing & Shipping:

Packaging: 1.Outside package: Standard marine export plywood cases

2.Inner package: Stretch film and plastic film for humidity

Shipping: Maritime transport, air transport, land transport and the logistics transport

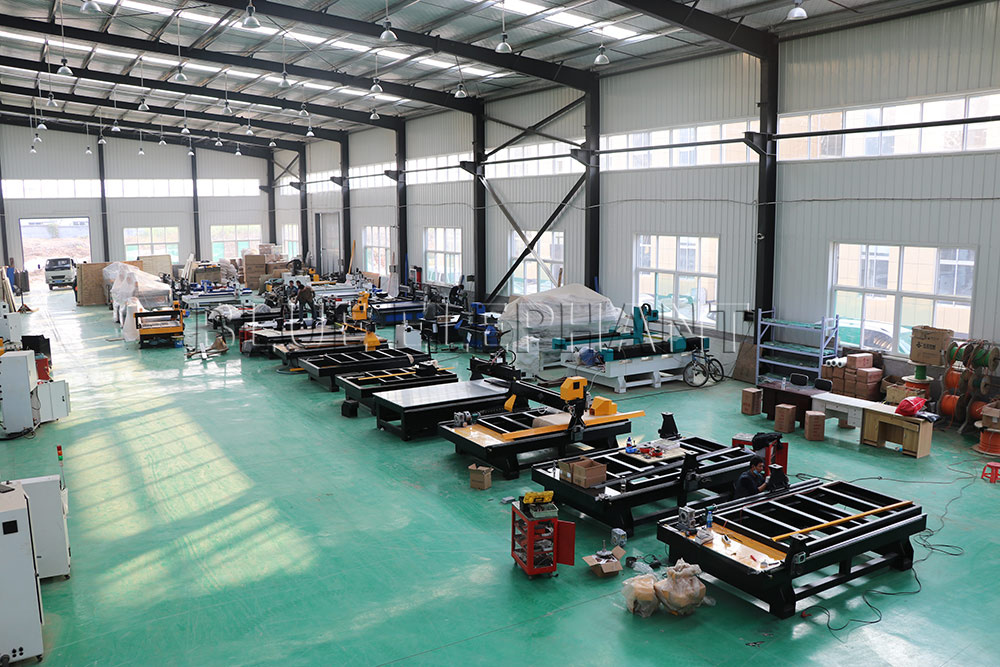

Welcome to our factory:

Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
We have our R & D department, Quality control department, and after sale & service department.
Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
We had got CE and ISO9001 certification always offer best quality machine.
Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!

Just looking forward to service every customer, like you.
