High Speed Ele1325 CNC Engraving Machine Wood Working 3D CNC Router with Ce
| Price: |
US $ 5000-10000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
ELE1325 |
| Voltage: |
AC380V/50/60Hz, 3pH (Option: 220V) |
| Power(W): |
3kw |
| Dimension(L*W*H): |
3200*2140*2450 |
| Weight: |
1700kgs |
| Warranty: |
12 Months |
| Spindle Speed: |
0-18000rpm |
| Command Language: |
G Code |
| Computer Interface: |
USB |
| Software Compatibility: |
Type 3/Artcam |
| Running Environment Temperature: |
0 - 45 Centigrade |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS BV TUV |
Product Description

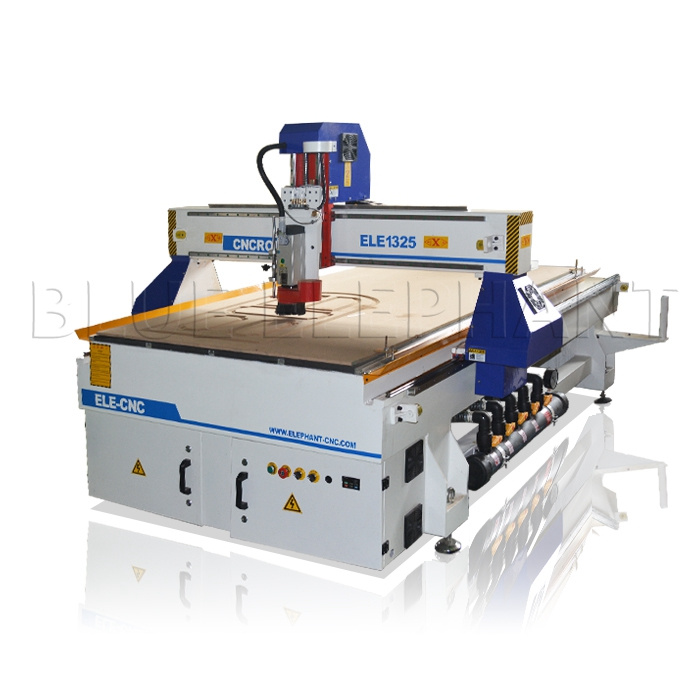

ELE1325 CNC Engraving Machine High Speed Wood Working 3D CNC Router with CE
- The Woodworking CNC Machine is suitble for wooden Industry, furniture industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
- The cnc router machine is designed for large area engraving work such as wooden Industrial, mdf industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
- In addition, it can be upgraded to be installed a rotational axis.
Features for cnc router 1325 woodworking:
- T-slot working table. Mechanical fixing small processing materials
- 3kw air cooling spindle(top brand in China), It's big strength and higher efficiency,
- Dust collection system, it can keep a clean, less-dust working surrounding which is helpful to your healthy; also, it can reduce the surface dust of linear guide, ball screw and gear transmission, reducing the maintaining cost.

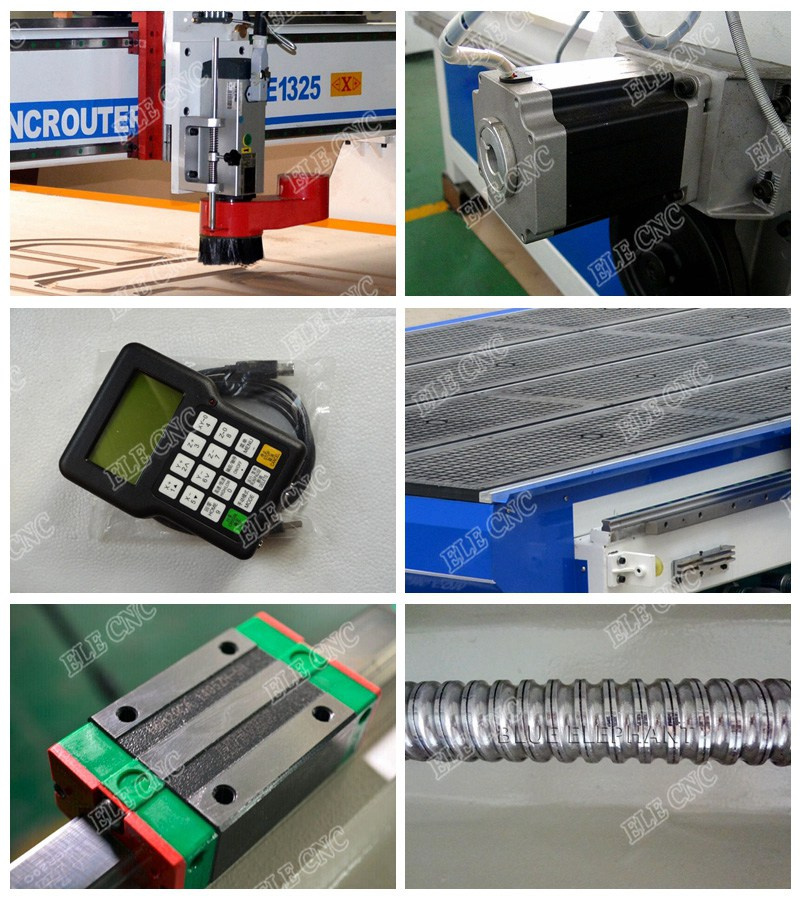

Product details of cnc router 1325 woodworking:
Parameters of cnc router 1325 woodworking:
Description | Parameter |
X,Y,Z Working Area | 1300x2500x200mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
Table Surface | Vacuum & T-slot Table |
Frame | Welded Structure,heavy duty T-structure |
X, Y Structure | Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings |
Z Structure | Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings |
Max. Power Consumption | 2.0KW |
Max. Rapid Travel Rate | 45000mm/min |
Max. Working Speed | 30000mm/min |
Spindle Power | 3KW HSD air cooling spindle(optional) |
Spindle Speed | 0-24000RPM |
Drive Motors | FL118 stepper motor & Leadshine 860H driver |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
Operating System | DSP (Options: Ncstudio /Mach3 Software) |
PS:All the working area and specifications can be customized according to your requests.
Application:
- WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
- Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
- Die Industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
- Relief Sculpture and 3D Engraving & Cylindrical object

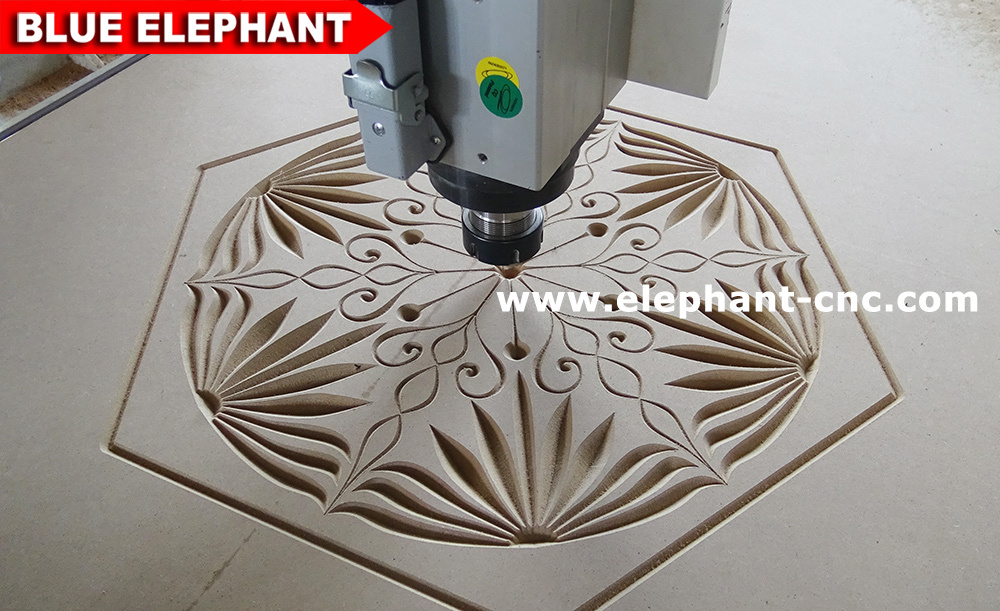

Samples:

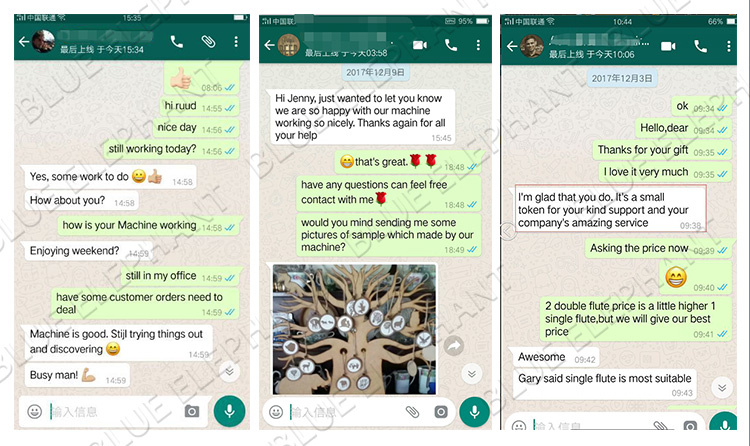

Feedback:
Welcome to our factory:
- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
- We have our R & D department, Quality control department, and after sale & service department.
- Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
- We had got CE and ISO9001 certification always offer best quality machine.
- Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
- Just looking forward to service every customer, like you.
