| Price: | US $ 2999-6999/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE 1325 |
|---|---|
| Working Area: | 3200*2140*1850mm |
| Warranty Period: | 12 Months |
| Power(W): | 9.5kw |
| Weight: | 1400kg |
| Control System: | Ncstudio 53b Control System W |
| Spindle: | 6kw Italy Hsd Air Cooling Spindle |
| Spindle Speed: | 0-18000rpm |
| Motor And Driver: | Japan Yaskawa 850W Servo Motor and Driver |
| Inverter: | 7.5kw E Type Taiwan Delta Inverter |
| Reducer: | Japan Shimpo Reducer for X, Y Axis |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | SGS BV TUV |

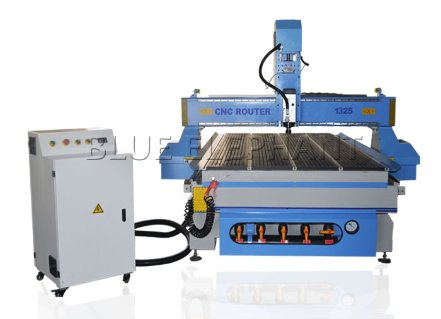

Features of cnc balsa wood cutting machine:
---Adopt Italy HSD air cooling spindle, top brand in the world.
---NCstudio control system, more stable, easy to operate.
---Japan YASKAWA servo motor and driver, high quality, long using life.
---Japan OMRON Limit switch, protection of spindle and machine, and prevent accidents.
Parameters of cnc balsa wood cutting machine:
| Descriptions | Parameters |
| Modle | ELE1325 |
| Working area | 1300*2500*200mm |
| Voltage | 380V, 3phase, 60Hz |
| Control system | NCstudio 53B control system with wireless handle |
| Spindle | 6kw Italy HSD air cooling spindle |
| Spindle speed | 0-18000RPM |
| Inverter | 7.5kw E type Taiwan DELTA inverter |
| Motor and Driver | Japan YASKAWA 850w servo motor and driver |
| Reducer | Japan SHIMPO reducer for X,Y axis |
| Linear rail | Taiwan #20 HIWIN linear guide |
| X,Y axis transmission | X,Y axis rack and pinion drive |
| Z axis transmission | Z axis Taiwan TBI ball screw |
| Table surface | T-slot and vacuum working table |
| Table structure | New type thicker and bigger heavy duty welded frame and gantry |
| Options | Japan OMRON Limit switch, French Schneider electrical parts, Shanghai Cardiff cable |
PS:All the working area and specifications can be customized according to your requests.

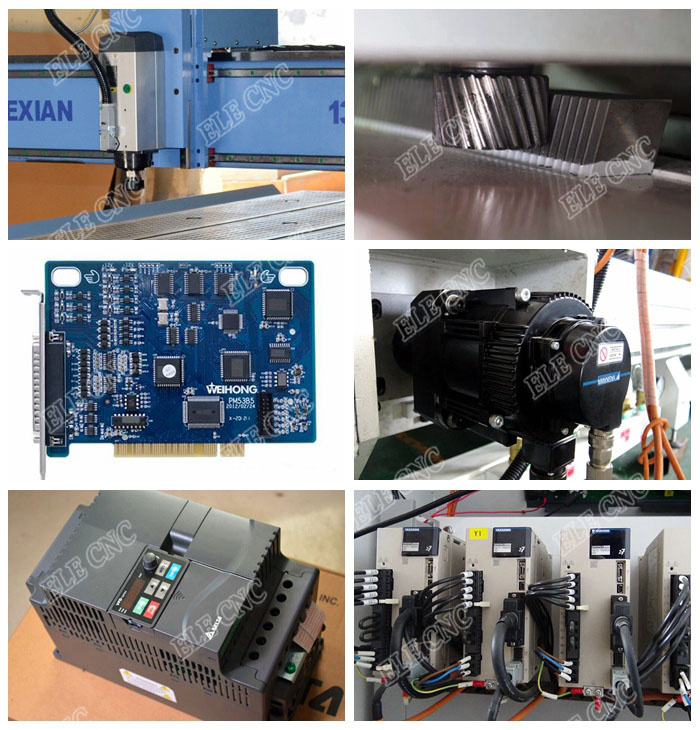

Product Details of cnc balsa wood cutting machine:
Applications:
Samples:
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 20 working days after payment.
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8, Machine will be adjusted before it is delivered, operation disk/CD was included.
