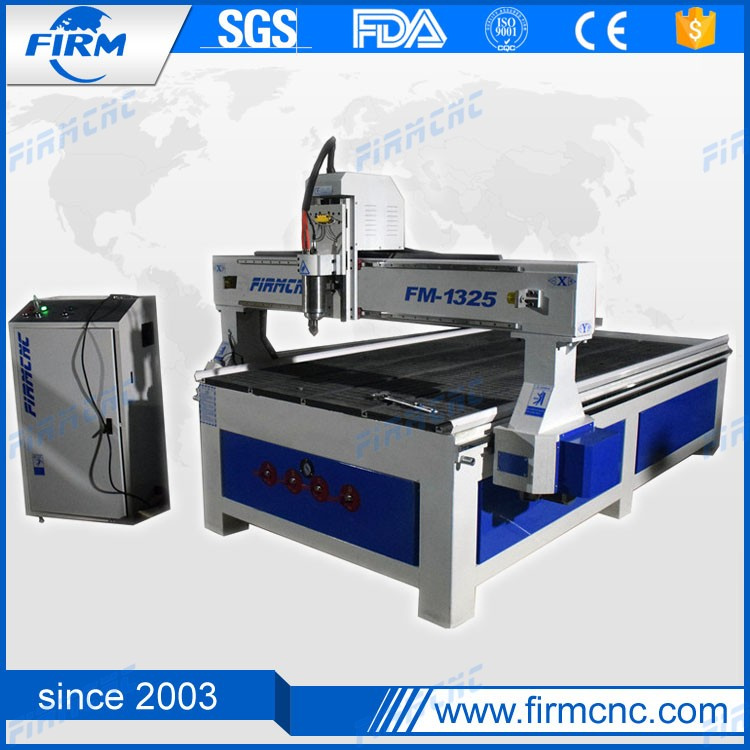

High Speed and Precision Wood Advertising CNC Router
| Price: |
US $ 6000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
FM-1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control: |
CNC |
| Current: |
AC |
| Usage: |
Advertising |
| Working Area: |
1300*2500mm |
| Spindle Rate: |
1.5kw/2.2kw/3.5kw/4.5kw |
| Table Structure: |
Section Aluminum(Vacuum Suction or Bar Suction) |
| Working Voltage: |
AC380V/50Hz AV220/50Hz |
| Operating System: |
DSP or Nc Studio System |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
CE |
Product Description
High Speed and Precision Wood Advertising CNC Router
Features1. Fuselage strong deformation, good rigidity, high precision, reliable performance, Durable in use.
2. The z axis adopts imported high precision ball screw, the smooth movement, ensure high
Precision machine tools.
3. X, Y axis adopt rack driving, running speed is three times more than screw machine.
4. Main configuration or chooses import, joint venture brand components, stable performance.
5. Table overall thickening, USES the whole cast iron large gantry.
6. Using domestic well-known brand water-cooled spindle, low noise, large cutting force,
Can ensure bulk processing for a long time.
7. The whole machine structure design, good to ensure long service life.
8. The application of high performance subdivision driver ensure machine high speed and p
Recision.
9. Compatible with Type3 / Artcam/Castmate/Proe/CAXA/soft wen tai, etc.
10. Have breakpoints, power failure continued carving function.Application IndustryAdvertising signs, PVC board, chevron board, double color boards, logo production, acrylic cutting,
Plastic molding, characters, crystal cutting, plate making, cutting PVC board, acrylic, blister light
Boxes, LED/neon groove mould

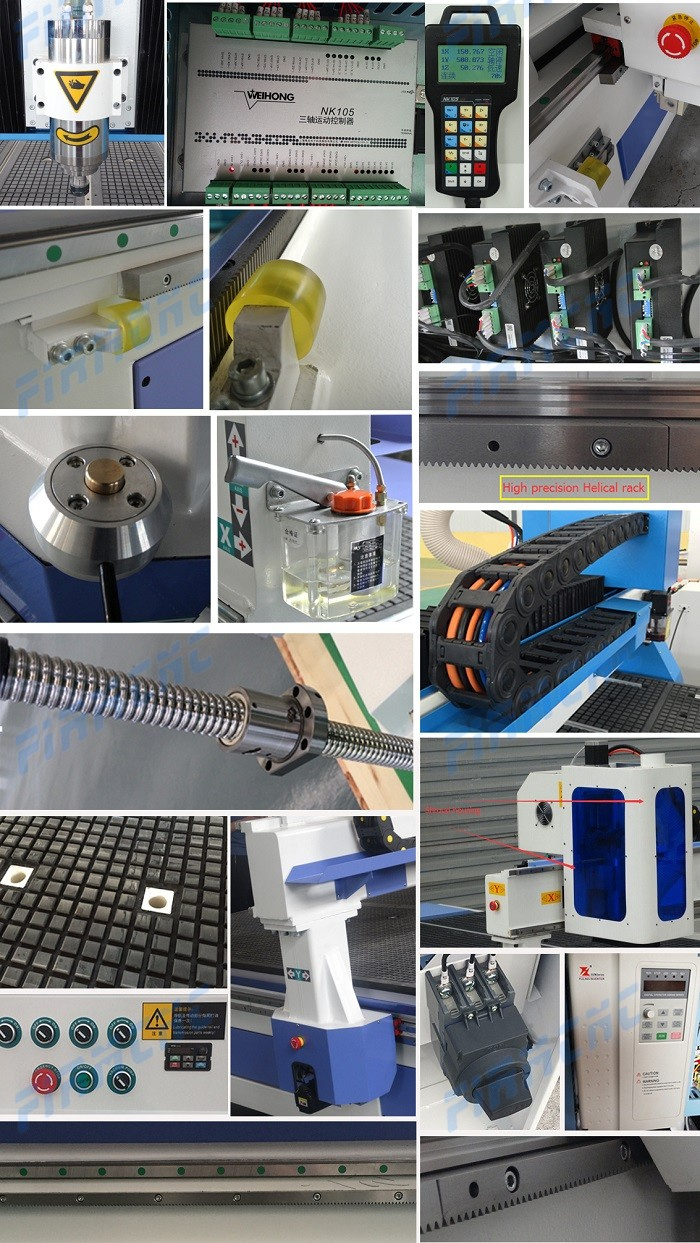

Main configuration
Number |
Description |
Parameter |
1 |
X,Y,Z Working Area |
1300mmx2500mmx200mm |
2 |
Table Size |
1450mm×2940mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
4 |
X,Y,Z Repositioning Accuracy |
±0.03mm |
5 |
Table Surface |
Vacuum and T-slot Combined (Option: T-slot Table) |
6 |
Frame |
Welded Structure |
7 |
X, Y Structure |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 |
Z Structure |
Hiwin Rail Linear Bearings and Ball Screw |
9 |
Max. Power Consumption |
3KW(Without Spindle) |
10 |
Max. Rapid Travel Rate |
33000mm/min |
11 |
Max. Working Speed |
25000mm/min |
12 |
Spindle Power |
3.0/4.5/6/7KW |
13 |
Spindle Speed |
0-18000RPM |
14 |
Drive Motors |
Stepper System |
15 |
Working Voltage |
AC380V/50/60Hz,3Phs (Option: 220V) |
16 |
Command Language |
G Code |
17 |
Operating System |
DSP System(Options: Ncstudio/Syntec Software) |
18 |
Computer Interface |
USB |
19 |
Flash Memory |
128M(U Disk) |
20 |
Collet |
ER25/ER32 |
21 |
X,Y Resolution |
<0.03mm |
22 |
Software Compatibility |
Type3 Software, (Option: Artcam Software) |
23 |
Running Environment Temperature |
0 - 45 Centigrade |
24 |
Relative Humidity |
30% - 75% |
25 |
Packing Size |
3300mmX2100mmX2300mm |
26 |
N.W. |
1750KG |
27 |
G.W. |
1980KG |
28 |
Optional Parts |
Air Cooling Spindle or Water Cooling Spindle |
Syntec Control System |
Dust Collector |
Vacuum Pump |
Rotary System |
Mist-cooling System |
850W Yaskawa/750W Panasonic Servo Motors |
Main configuration
Package: 1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.3) fumigation-free4)With shipping mark if you like.5)Outside: Marked packing size, model, weight and other informationAfter sale service1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.
Company information:FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of laser marking machine appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on laser marking machine appliances.
Customers often ask1.Can you recommend a plasma machine to me ?
Yes, In order to give you a suitable plasma machine,pls tell me the max working area, materials for processing and the thickness
for materials processing engraving or cutting. Then perfect suitable plasma machine will be recommended
2.Do you have operation manual and working video?
Yes, after we confirm order, operation manual will be send to you.
3.Does your company can processing my samples?
Yes, we can
4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
6.Does your engineer do aftersale service at abroad? how much cost?
