| Price: | US $ 3800-7000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE1325 |
|---|---|
| Voltage: | 380V, 3 Phase, 50/60Hz(220V for Optional) |
| Dimension(L*W*H): | 3700*2140*1950mm |
| Spindle: | 4.5kw Italy Hsd Air Cooling Spindle |
| Control System: | DSP A18 |
| Drive Motor: | Stepper |
| Inverter: | 5.5kw Taiwan Delta Inverter |
| Frame: | Welded Structure |
| Transmission: | Taiwan Tbi Ball Screw, #20 Hinwin Linear Guide |
| Working Table: | T-Slot & Vacuum Working Table |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | SGS BV TUV |

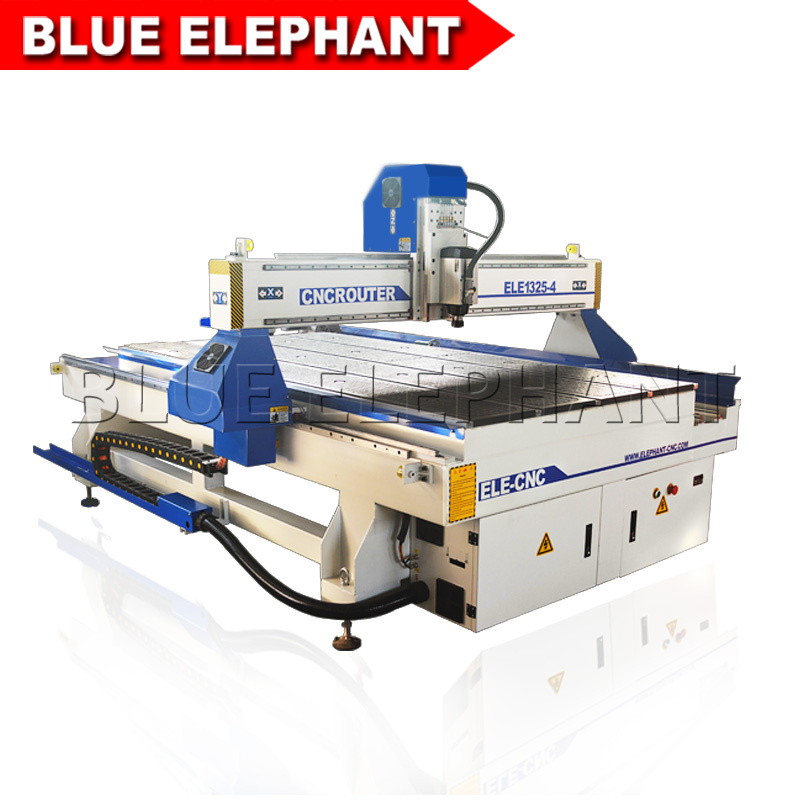

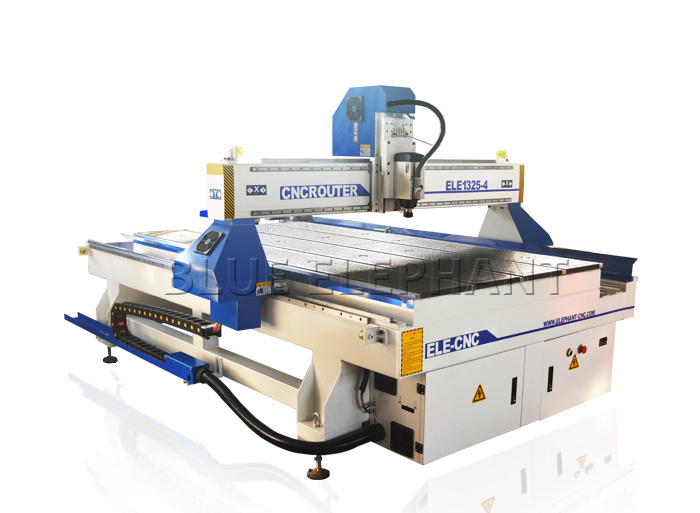

High Quality Rotary Cnc Router 1325, 4 Axis Wood Router for Soft Metal, Aluminum MDF
Advantages:
1. Heavy duty thicker and bigger welded steel tube frame--more stronger
2. 4.5kw Italy HSD air cooling spindle--best brand in the world, best quality for cutting and carving. Having a fan in the spindle, with good cooling effect.
3. One 200mm rotary on one side of machine, suitable for making cylinder.
4. DSP A18 control system, can support 4 axis cnc router machine, with one independent handle, very convenient for operation.
5. Vacuum & T-slot working table, match one vacuum pump, can fix the material more stable.
Features:
Parameters:
Description | Parameter |
X,Y,Z Working Area | 1300x2500x200mm |
Table Surface | Vacuum and T-slot working table,4 zones |
Frame | New style heavy duty Welded Structure |
X, Y Structure | Rack and Pinion Drive, #20 Hiwin Rail Linear Bearings |
Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
Spindle Power | 4.5kw Italy HSD air cooling spindle |
Spindle Speed | 0-18000RPM |
Inverter | 5.5kw Delta inverter |
Drive Motors | Stepper |
Working Voltage | 380v, 3 phase, 50/60HZ(Option: AC220V/50/60Hz,3PH) |
Command Language | G Code |
Operating System | DSP A18 |
Computer Interface | USB |
Rotary device | 200mm diameter*2200mm length |
Collet | ER32 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |

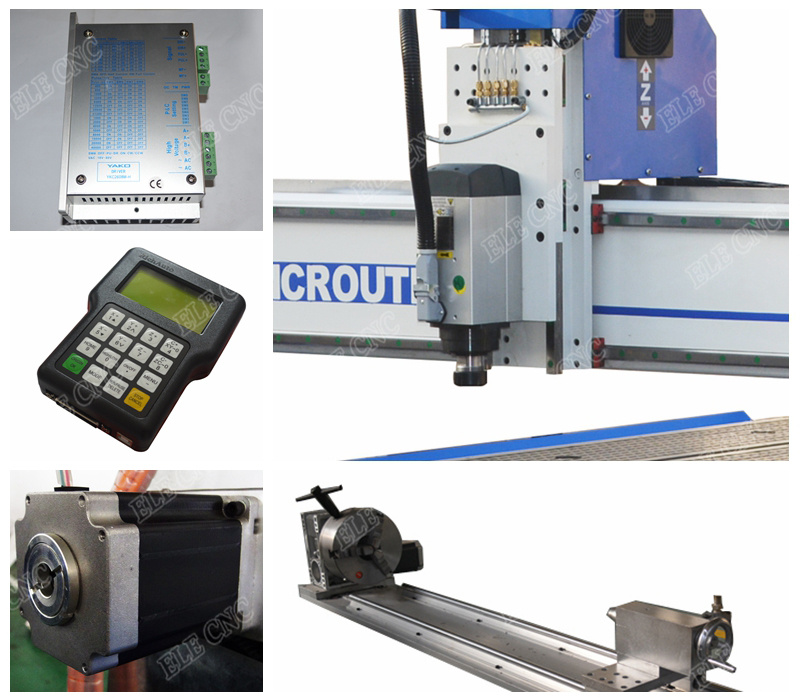

Main parts:
Applicantions:
Application: for wood, MDF, plywood, acrylic, soft metal etc.Mainly for making furniture, cabinet.
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
5.Cylindrical object
Samples show:

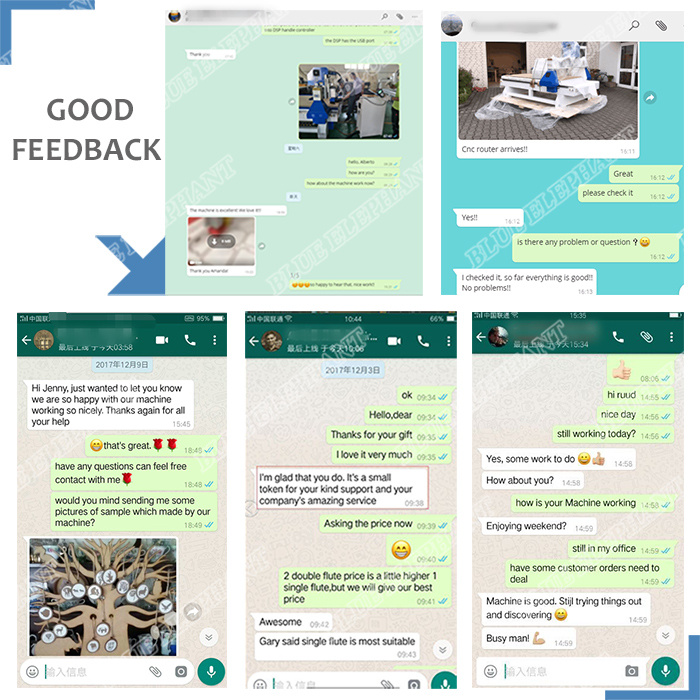

Customers Feedback
Our Services
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
Delivery port:
delivery date: in 15 working days after receiving the deposit
Payment: 50% T/T in advance and 50% T/T before delivery
Guarantee: 12months for the whole machine.
Within 18 months under normal use and maintenance,
if something is wrong with machine, you will get spare part for free.;
Out of 18 months, you will get spare part at cost price.
You will also get technical support and service all the lifetime.
Technical support:
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
4, the factory will supply the videos and pictures to teach the client to install the gantry
After sales services:
Normal machine is properly adjusted before dispatch.
You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory. You
will also get free suggestion and consulting, technical support and service by
email/fax/Tel and lifetime technical support.
