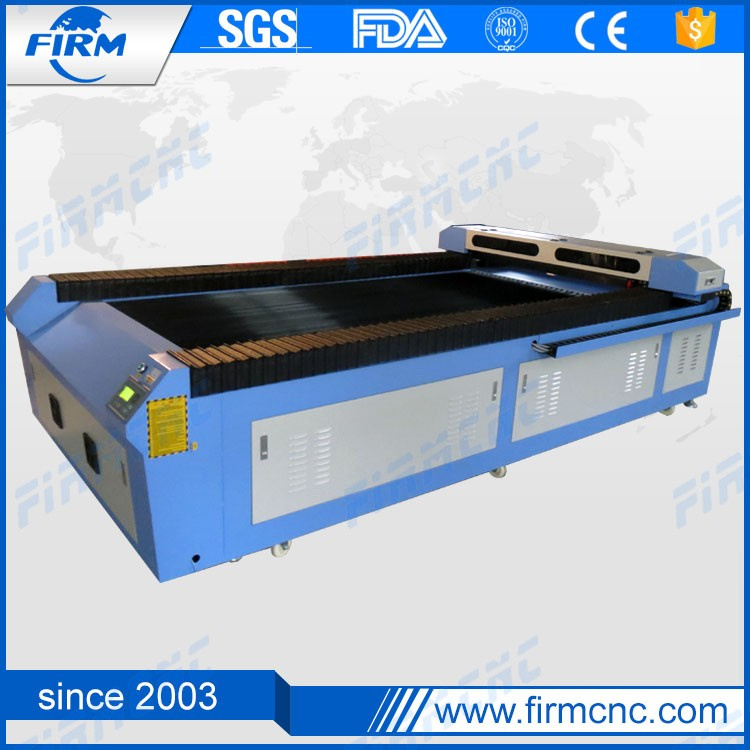

High Accuracy CO2 CNC Laser Engraving and Cutting Machine

High Accuracy CO2 CNC Laser Engraving and Cutting Machine
Price: US $ 4500-5000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

Product Specifications

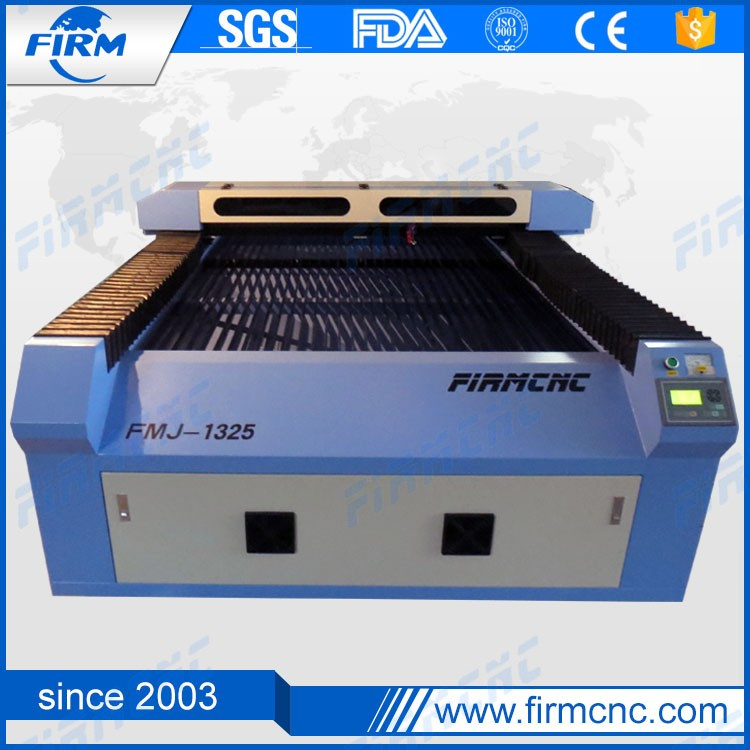

Prod Model: FMJ1325
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engraving Machine Type: Laser Engraving Machine
Working Area: 1300*2500mm
Motor: Stepper Motor or Servo Motor
Laser Type: CO2
Laser Tube: 60W, 90W, 100W, 130W Reci
Engraving Speed: 0-64000mm/Min
Control System: Leetro or Ruida
Motor And Driver: Leadshine Stepper Motor and Driver
Guide Rail: Taiwan Hiwin Square Rail
Belt: Shanghai Fulong Belt

Product Description

High Accuracy CO2 CNC Laser Engraving and Cutting Machine

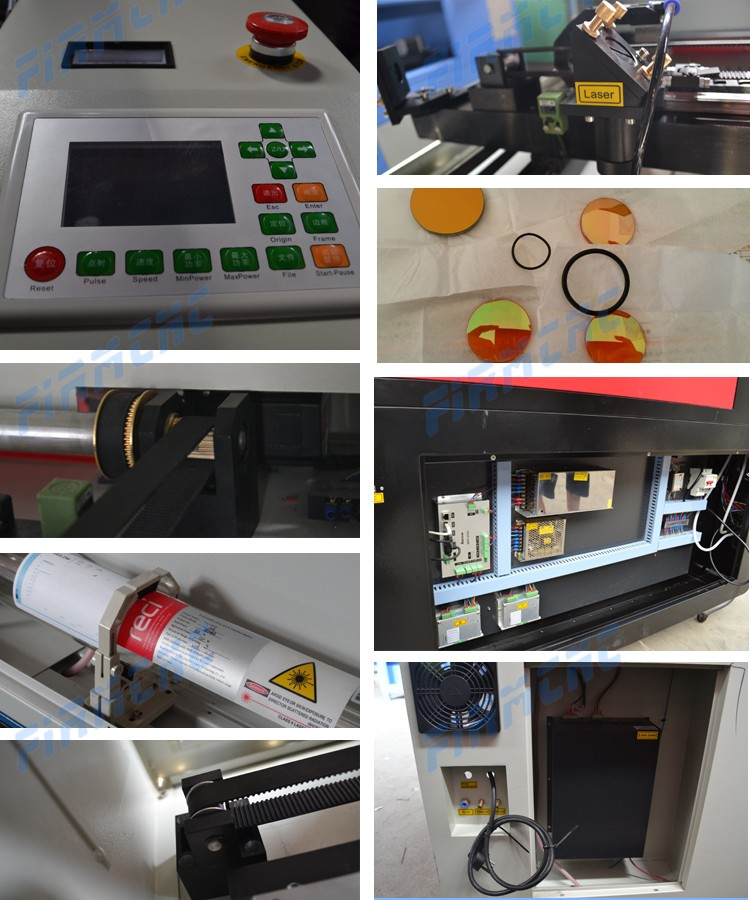

laser cutting machine standard configuration:

#Working Area: 1300*2500mm
#Leetro 6585 control system
#90W,100W,130W Reci laser tube(or other brand)
#Leadshine stepper motor and driver
#Taiwan Hiwin square guide rail
#Shanghai Fulong belt
#Singapore lens and mirrors
#Blade table/ honeycomb table
#water protection switch
#Water pump/water chiller, air pump, dust collector
#Standard tool box



Performance parameter

Laser power90W, 100W,130W,150W
Laser typeCo2 sealed laser tube, water-cooled
Cutting speed0-2000mm/min
Smallest Character EngravingEnglish: 1.0*1.0mm
Working voltageAC 220V,60hz
Support file formatDST, PLT, BMP, DXF, AI
Locating Precision<=0.01mm
Software supportedPhotoshop , AutoCAD, TAJIMA, CorelDraw
Driving systemStepper motor
Optional spare partsUp-down worktable, Rotary system, Honeycomb table


Features of  laser cutting machine

1. The imported linear guide way ensures the high precision and the long service. We adapt the Taiwan HIWIN line guide.
2. The stepper motor guarantees cutting and engraving smooth. We aslo have servo motor, customer can choice.
3. The structure is strong enough to ensure the moving stable.
4. High quality laser tube provides the strong beam and long service life. USing Beijing RECI.
5. Focus lens and reflect molybdenum mirrors guarantee the powerful cutting strength.
6. The anti-pollution design improves the stability of the whole machine greatly.
7. Configure higher power laser tube.



Application of laser cutting machine

Applicable Industries, Garments sampling, large format.tailoring, leather industry, shoemaking, decoration, furniture, advertisement, printing, molding and art-crafts industries, etc.
Applicable materials, Fabrics, leather, paper, bamboo ware, acrylic, glass, thin film and canvas, etc.


Packaging and Shipping

Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.

Our Service

Before sale:

We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;

During sale:

We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;

After sale:

1. We would provide English Version working manual.
2. If you have any questions during using and maintaining,our engineers who could speak very good English would answer you online or by calls.
3. Machine warranty is one year. So if your machine has any unintentional damages,we would provide parts for free.
4. If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
5. Could be remote control if needed.



Our company

Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router (router cnc, cnc wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate
The aim of Jinan Firm CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.




FAQ

Question 1:How long about the machine's guarantee ?
Answer :1 year

Question 2:How about your after service ?
Answer :Technical support by phone, e-mail or MSN around the clock.

Question 3: How can we install the machine?
Answer :Friendly English version manual and operation video CD disk.

Question 4: How about the payment terms?
Answer:30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal

Question 5: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.


Working size can be customized as your requirement

If you want to know more information about our products ,

please feel free to contact us and welcome to visit our factory !

Jinan Firm CNC Equipment Co., Ltd is located in Jinan city, Shandong province. We are one of the most professional and good reputation manufacturers of CNC router (router CNC, CNC wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China

Our main products are CNC router and laser machine, 5 axis machineing center, 4 axis machining center, 3 axis ATCcnc router, General 3 axis CNC router, CNC laser engraving and cutting machine, CNC plasma cutting machine. The application covers woodworking, advertising, Marble, Metal, Non-metal, MDF, plastic, etc. Our machines are widely sold in many countryes, European, American, Africa, Canada, England, and so on.

The aim of Jinan Firm CNC Equipment is to continuously upgrade the technique, to help our customers produce the best quality and high precision products, and offer the best after sale service.

Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service.
