| Price: | US $ 3000-7000SET |
|---|---|
| Min Order: | 1SET |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE1324 |
|---|---|
| Product: | Wood CNC Router Machine |
| Frame Size: | 3200*2140*1850mm |
| Working Size: | 1300X2500X200mm |
| X,Y,Z Repositioning Accuracy: | ±0.03mm |
| Max. Rapid Travel Rate: | 32000mm/Min |
| Spindle Power: | 3.0kw Air Cooling Spindle |
| Spindle Speed: | 0-18000rpm |
| Drive Motors: | Yako or Leadshine Driver |
| Operating System: | DSP System (Options: Ncstudio/Mach3 PC Soft |
| Table Surface: | Vacuum and T-Slot Working Table |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | SGS BV TUV |

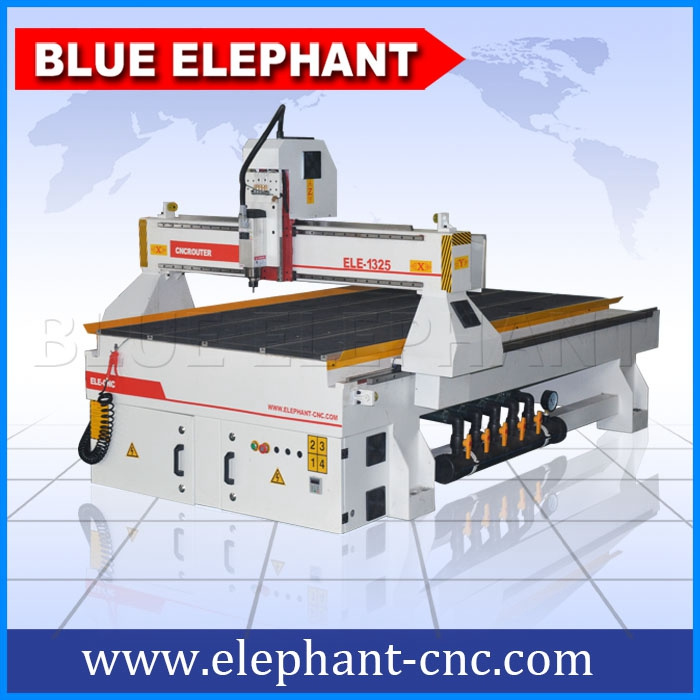

Good Cnc Wood Routers Engravers ELE1325 3 Axis Cnc Machine Price Router
Features:
1.high efficiency: the vacuum adsorption table with the strong power vacuum pump , 4 partition design could absorb different area of the material and improve work efficiency highly.
2.rapid running speed: two axes are rack gear, fast speed and high efficience, The highest speed is 35mpm.
3.fast carving speed: high-speed stepper motor and drive, high-precision helical rack drive, with the high power engraving spindle cutting faster.
4.Stable operation: adopting imported linear guide rail, Large bearing capacity , smooth running, high precision, long life, carving precisely.
5.Intelligent control:adopting DSP control system.It is very easy to master.
6.Sturdy and durable: Thicker and bigger welded Steel Square Tube Structure, Gantry moving, strengthen table makes positioning accuracy more accurate.
Parameter:
Items | Parameters | |
Working area(mm) | X | 1300 |
Y | 2500 | |
Z | 200 | |
Table Structure | Table Surface | T-slot with PVC covers |
Transmission system | X | Gear Rack from Taiwan |
Y | Gear Rack from Taiwan | |
Z | Ballscrew from Taiwan but with German technology | |
Lead rail system | X | Linear round guide rail |
Y | Linear round guide rail | |
Z | Linear round guide rail | |
Spindle | Power | 3 kw |
Rotating Speed | 0-24000 rpm (Optional air-cooling spindle with 18000 rpm) | |
Cooling Type | Water-cooling | |
Collet diameter | 3.175/4/6/12.7mm | |
About drive systems | X | stepper |
Y | stepper | |
Z | stepper | |
Servo motor and driver | Panasonic/Yaskawa (optional) | |
Vacuum adsorption system | For your option | |
Dust collector system | For your option | |
Tool sensor | Option | |
Software environmant | Windows 98/2000/XP | |
Control System | Ncstudio control system [DSP is optional] | |
Compatible file formats | G code ; *.u00 ; *.mmg ; *.plt . | |
Compatible CAD/CAM Softwares | Ucancam V8 / Type3 / Artcam / | |
Working Voltage | AC380V,3ph, 50Hz | |
Precision | 0.005mm | |
Max speed | 26.0m/min | |
Max engraving speed | 18.0m/min | |
Max feeding height | 200mm | |
Work-holding devices | by fixture | |
Interface type | USB | |
Warranty guarantee | One-year after-sale services | |
The wood products: wave board processing, wood door, folding screen, window, etc.various kinds of furniture products, wood door making.
Advertising industry: ad signs, Logo making, acrylic cutting, HPL panels, the production of advertising decorative products.
Furniture: wooden doors, cabinets, office and wood furniture, computer table, panel furniture, office furniture, wooden speakers, other furniture processing, etc.
Other industries: Non-metallic mold industry, Poly dragon auto mould industry processing.
Processing materials: MDF board, wood, organic glass, PVC board, metal, copper, aluminum, marble, crystal.

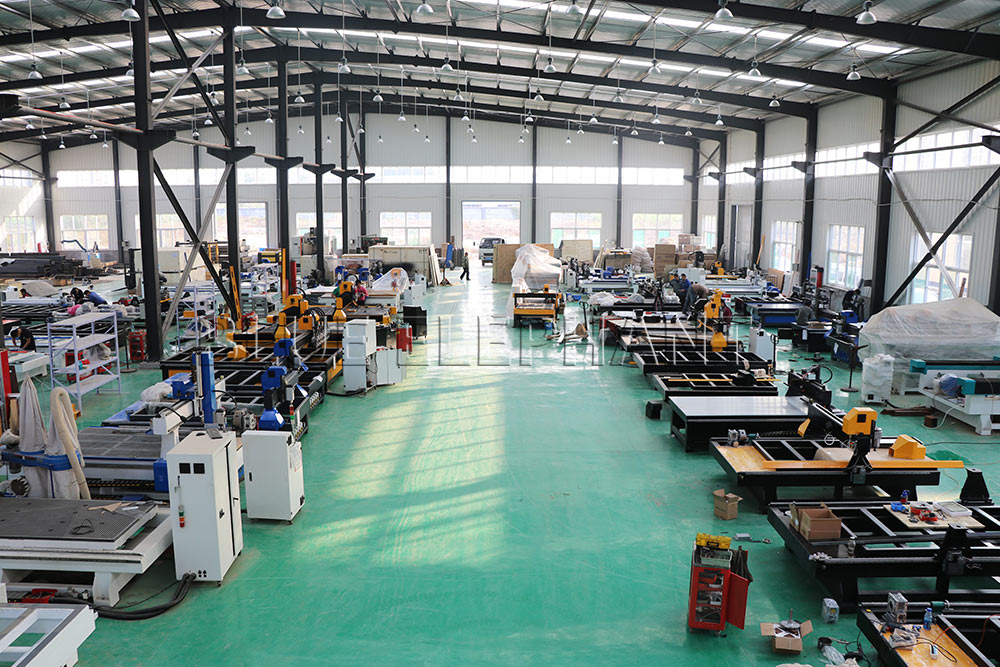

Company information:
We have always been devoting to the research and manufacture of CNC engraving machines. We have R&D Production Department, Quality Control Department, and Sales & Service Department. We can offer you the high quality products with the competitive price. Our products have got CE certificate. Our main products are as follows: CNC router, laser engraving and cutting machine, laser cutting machine, marble CNC router, cutting plotter, plasma metal cutting machine, advertising CNC router and so on.
We are looking for agents from all over the world
Welcome to contact us~
