Price: | US $ 5800/Set |
---|---|
Min Order: | 1/Set |
Pay Type: | L/C,T/T,Western Union |
Prod Model: | ELE1325 |
---|---|
Power(W): | 9kw |
Working Area: | 1300*2500*200mm |
Control System: | Ncstudio Pm53c Controller |
Spindle: | Italy Hsd Air Cooling Spindle |
Spindle Power: | 6kw |
Spindle Speed: | 0-18000rpm |
Motor: | 750W Japan Yaskawa Servo Motor |
Driver: | Japan Yakaswa Servo Driver |
Inverter: | 7.5kw Taiwan Delta Inverter |
Table Surface: | T-Slot and Vacuum Working Table |
Spindle Layout: | Spindle Over |
Spindle Number: | Single-Spindle |
Feed Mode: | Mechanical |
Controlling Mode: | CNC |
Certification: | FDA |

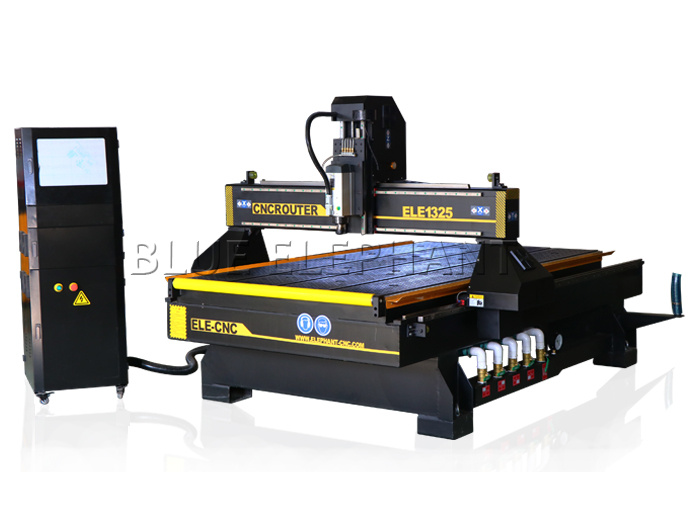

Advantages of carving machine 3d:
Technical Parameters of carving machine 3d:
Description | Parameter |
X,Y,Z Working Area | 1300x2500x200mm |
Table Surface | T-slot & vacuum working table |
Spindle | 6kw HSD air cooling spindle |
X, Y Structure | 20#Taiwan HIWIN Linear guide and helical rack |
Z Structure | Ball screw and#20 Taiwan HIWIN Linear guide |
Motor and driver | 750w YASKAWA servo system |
Spindle Speed | 0-18000RPM |
Inverter | 7.5kw Taiwan Delta Inverter |
Command Language | G Code |
Control System | NCStudio 53C control system |
Computer Interface | USB |
Collet | ER32 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3 Software, (Option: Artcam Software) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Optional | 5.5kw water cycle vacuum pump 1.5kw New type dust collector |
PS:All the working area and specifications can be customized according to your requests.

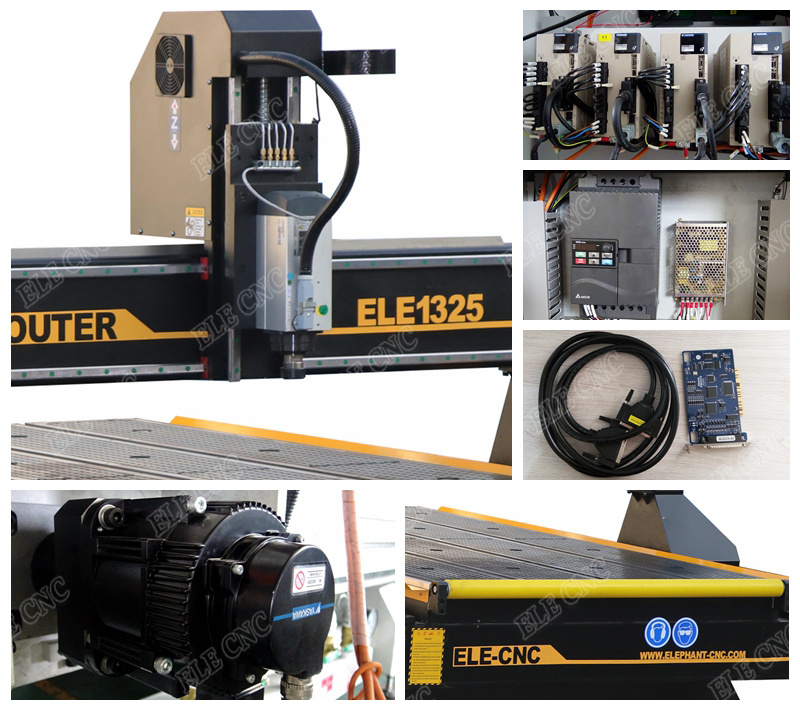

Product Details of carving machine 3d:
Features of carving machine 3d:
T-slot and vacuum working table
Seperated control box
Applications:
1.Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.

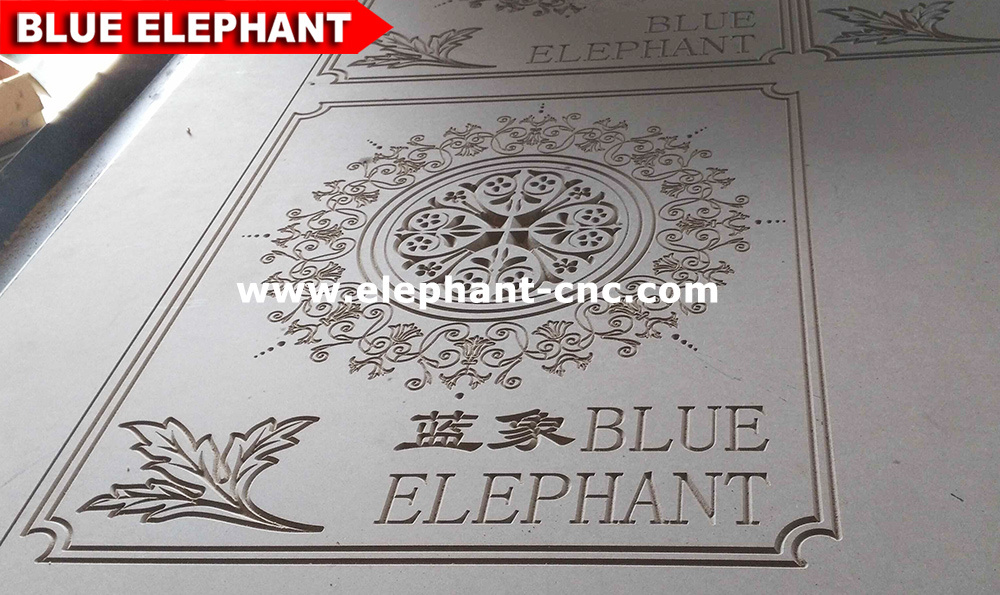

Samples:
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
Guarantee and After-sale service:
12 months for the whole machine .
1, Technical support by phone , email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas

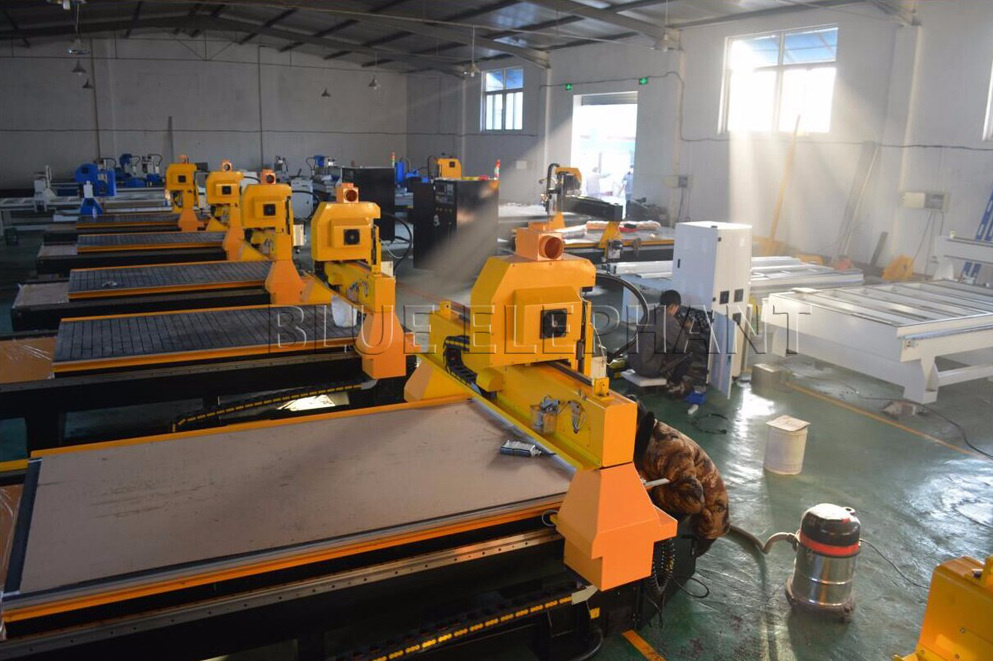

Welcome to our factory:
