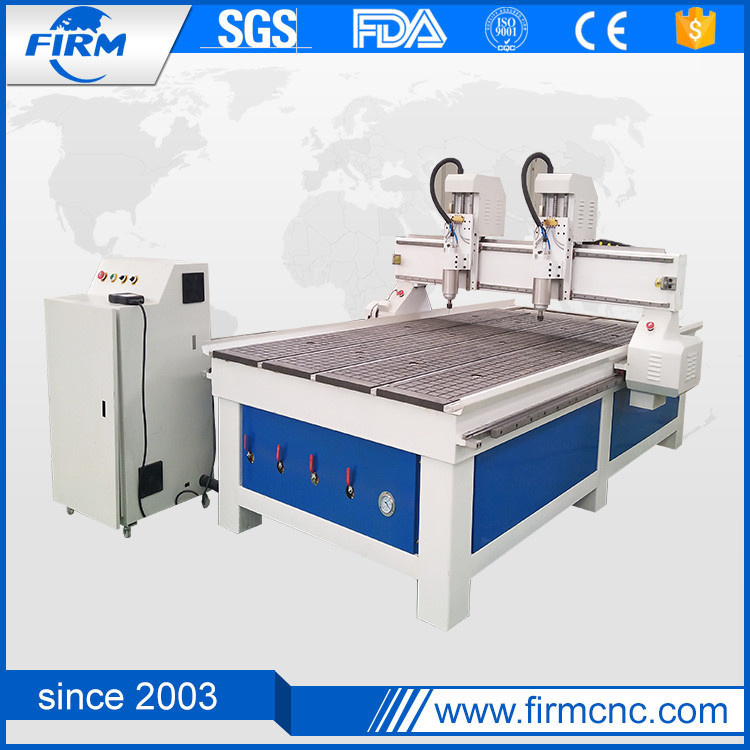

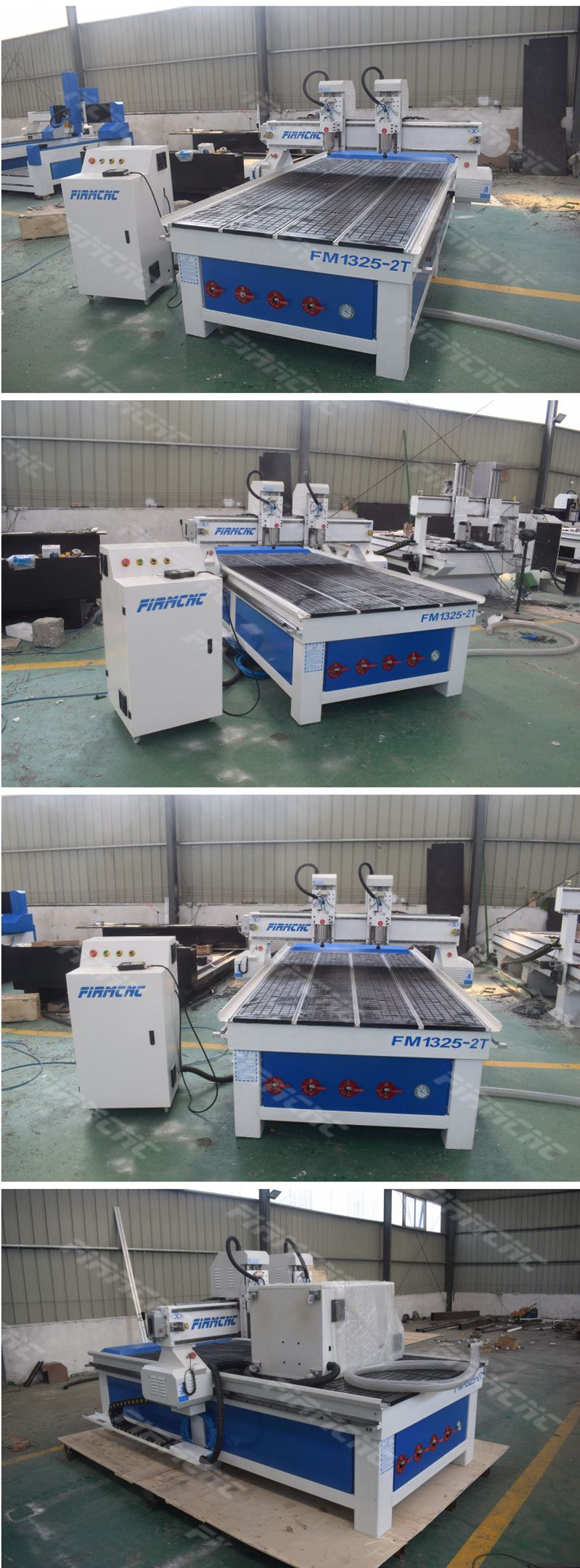

FM1325 Double Spoindle Woodworking CNC Router
| Price: |
US $ 6600/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram |
Product Specifications
| Prod Model: |
FM1325S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area: |
1300*2500mm |
| Control System: |
Nc-Studio/Mach3/Syntec |
| Repeatability: |
0.03mm |
| Table Surface: |
T-Slot and Vacuumtable |
| Structure: |
Welding Steel Structure |
| X,Y Structure: |
Rack Pinion, Hiwin Linear Rails |
| Z Structure: |
Ball Screw, Hiwin Square Rails |
| Max. Rapid: |
33000mm/Min |
| Max. Working Speed: |
25000mm/Min |
| Spindle Power: |
3.0kw Water Cooling Spindle |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Double-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
| Color: |
as Your Requirements |
Product Description

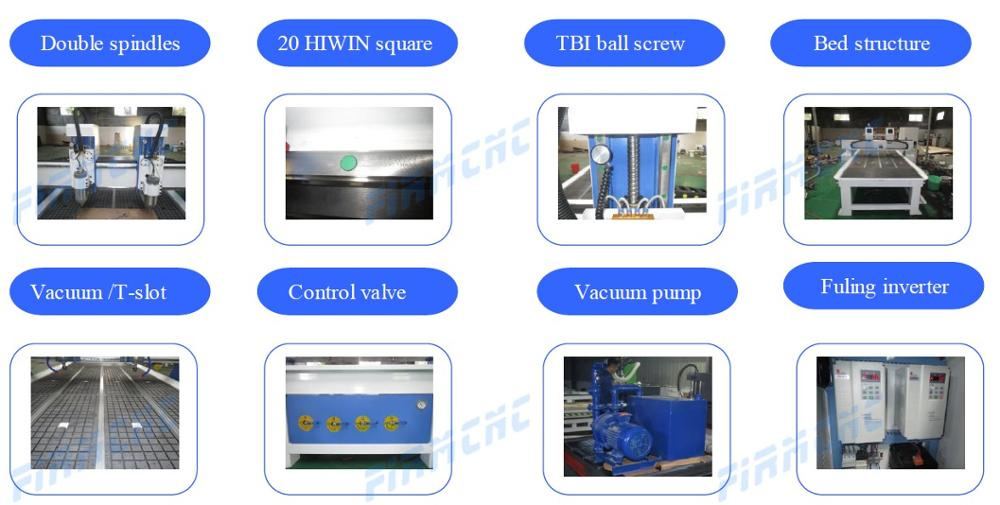

FM1325 Double spoindle Woodworking CNC RouterTechnical Parameters:| No. | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300mmx2500mmx200mm |
| 2 | Table Size | 1450mm×2940mm |
| 3 | X,Y,Z Traveling Positioning
Accuracy | ±0.02/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.02mm |
| 5 | Table Surface | Vacuum and T-slot table |
| 6 | Frame | Welded steel tube structure |
| 7 | Inverter: | Chinese Fuling Inverter/Taiwan Delta Inverter |
| 8 | Spindle | CS water colling spindle/
Italy HSD air cooling spindle |
| 9 | Limit switch | Japan Omron limit switch |
| 10 | Oil LubricationSystem | Manual |
| 11 | X, Y Structure | Rack and Pinion Drive, Hiwin Square Rail |
| 12 | Z Structure | Hiwin Square Rail and Ball Screw |
| 13 | Max. Power Consumption | 5~7KW |
| 14 | Max. Rapid Travel Rate | 33000mm/min |
| 15 | Max. Working Speed | 25000mm/min |
| 16 | Spindle Power | 3.5/4.5/5.5/6 KW |
| 17 | Spindle Speed | 0-18000RPM |
| 18 | Motors | 450B stepper/Yaskawa servo |
| 19 | Working Voltage | 380V/220V |
| 20 | Command Language | G Code |
| 21 | Operating System | Mach3/Nc-studio/Syntec Software |
| 22 | Computer Interface | USB |
| 23 | Flash Memory | 128M(U Disk) |
| 24 | Collet | ER16/ER20 |
| 25 | X,Y Resolution | <0.03mm |
| 26 | Software Compatibility | Artcam Software
(Option: Type3 Software) |
| 27 | Running Environment
Temperature | 0 - 45 Centigrade |
| 28 | Relative Humidity | 30% - 75% |
| 29 | Packing Size | 3150mmX2100mmX1900mm |
| 30 | N.W. | 1600KG |
| 31 | G.W. | 1800KG |
| 32 | Optional Parts | Air Cooling Spindle or Water Cooling Spindle |
| Syntec Control System |
| Dust Collector |
| Vacuum Pump |
| Rotary System |
| Mist-cooling System |
| 850W Yaskawa/750W Panasonic Servo Motor |

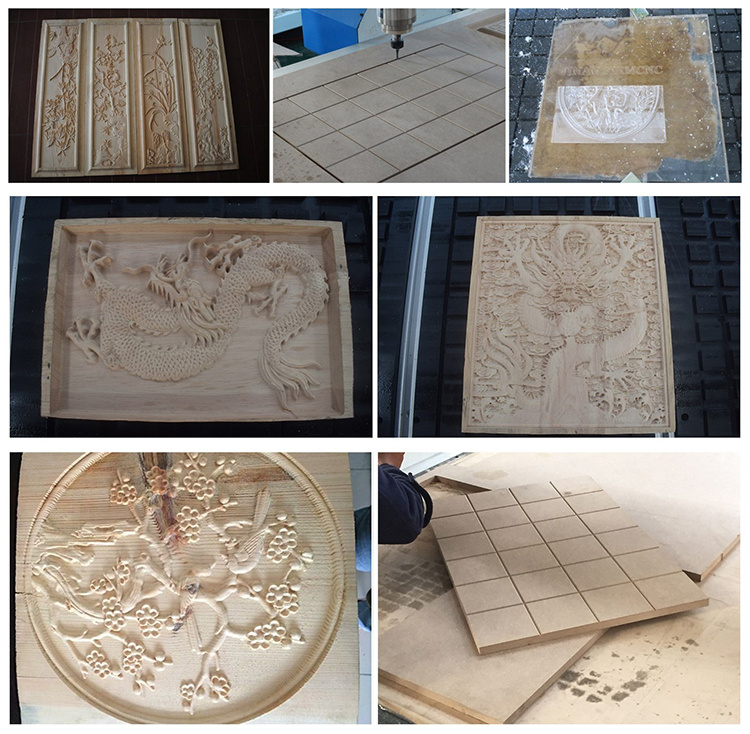

Application Industry and Materials:
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
The advertising Industry:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Artwork Industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
Exhibition Industry: Showcases, etc
Packing & shipment :
Save space as much as possible for container loading.
Inside:Water-proof Plastic Film Package With Foam Protection
Outside:Solid Seaworthy Wood Box Package
Below: Steel Tube
Our service:
We would provide English Version working manual.
If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is one year.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
our professional after sale service team which are selected by very strict examinations,would pay their 100% time and energy to solve your problems!
FAQ
1.How long about the machine's guarantee?
1 year
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.

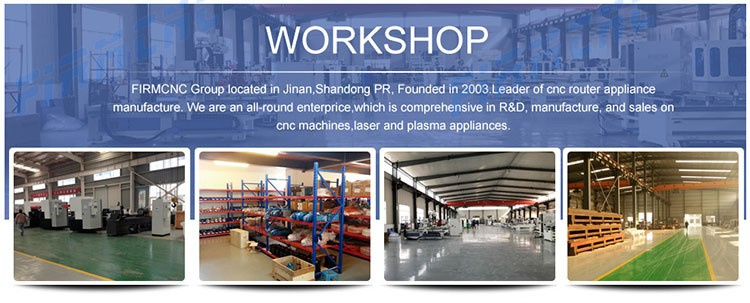

Our Company:
