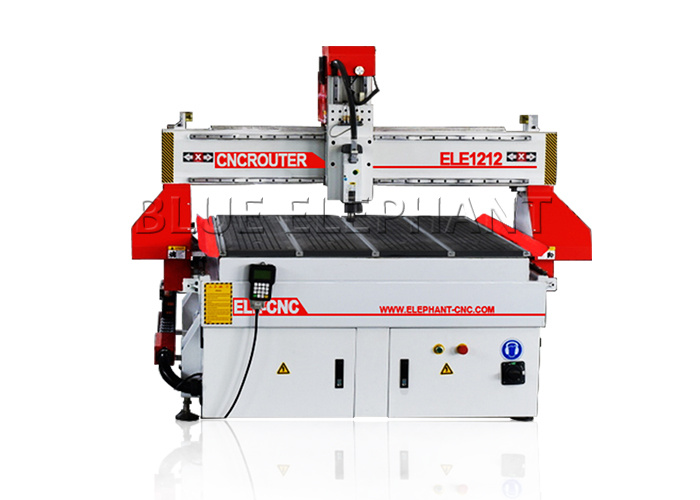

Product Specifications
| Prod Model: |
ELE 1212 |
| Markets: |
North America,Eastern Europe,Mid East,Western Europe |
| Power(W): |
4.5kw |
| Dimension: |
1200*1200*200mm |
| Weight: |
800kg |
| Warranty: |
12 Months |
| Control System: |
DSP A11 Control System |
| Spindle: |
Italy Hsd Air Cooling Spindle |
| Spindle Power: |
3kw |
| Spindle Speed: |
0-18000rpm |
| Motor: |
FL118 Stepper Motors |
| Driver: |
Yako 2608 Drivers |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Manual |
| Controlling Mode: |
CNC |
| Certification: |
SGS BV TUV |
Product Description

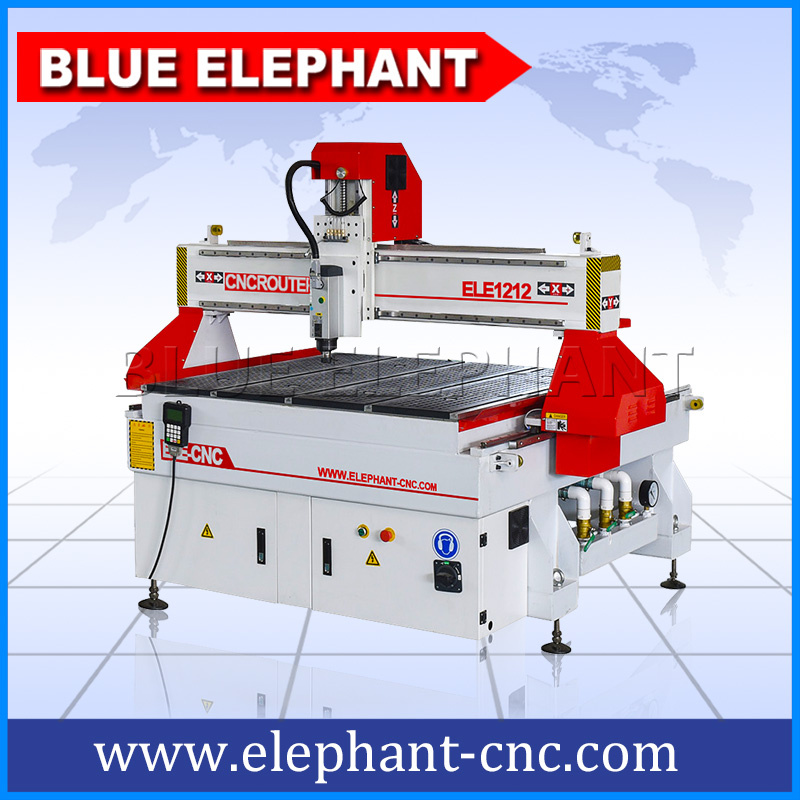

Factory Supply Wood CNC Router Wood Cutting Carving Machine for Aluminum
Advantages of cnc wood cutting machine:
- heavy duty frame, stronger and stable
- Vacuum table, can suck the material with vacuum pump automatic
- HSD air cooling spindle, world famous brand
Technical Parameters of cnc wood cutting machine:
Description | Parameter |
X,Y,Z Working Area | 1200x1200x200mm |
Structure | New type thicker and bigger heavy duty welded frame and gantry |
Working voltage | 400V, 3PH, 50HZ (220V, 380V for optional) |
Table Surface | T-slot & vacuum working table |
Spindle | 3kw HSD air cooling spindle |
Spindle speed | 0-18000rpm |
X, Y Structure | 20# Sweden ABBA Linear guide and helical rack |
Z Structure | Taiwan TBI Ball screw and 20# Sweden ABBA Linear guide |
Motor and driver | FL118 stepper motors and YAKO 2608 stepper drivers |
Inverter | 3.7kw Taiwan Delta Inverter |
Command Language | G Code |
Control System | DSP A11 control system |
Control box | Inner box |
Lubrication system | Automatic lubrication system |
Tool sensor | Manual tool sensor calibration |
Vacuum pump | 5.5kw water circlulation vacuum pump |
Collet | ER25 |
X,Y Resolution | <0.01mm |
Software Compatibility | Artcam Software |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Optional | High flexible towline, fire-proof double-sheathed cable. Japan Omron limit switch. France Schneider safe handle |
PS:All the working area and specifications can be customized according to your requests.

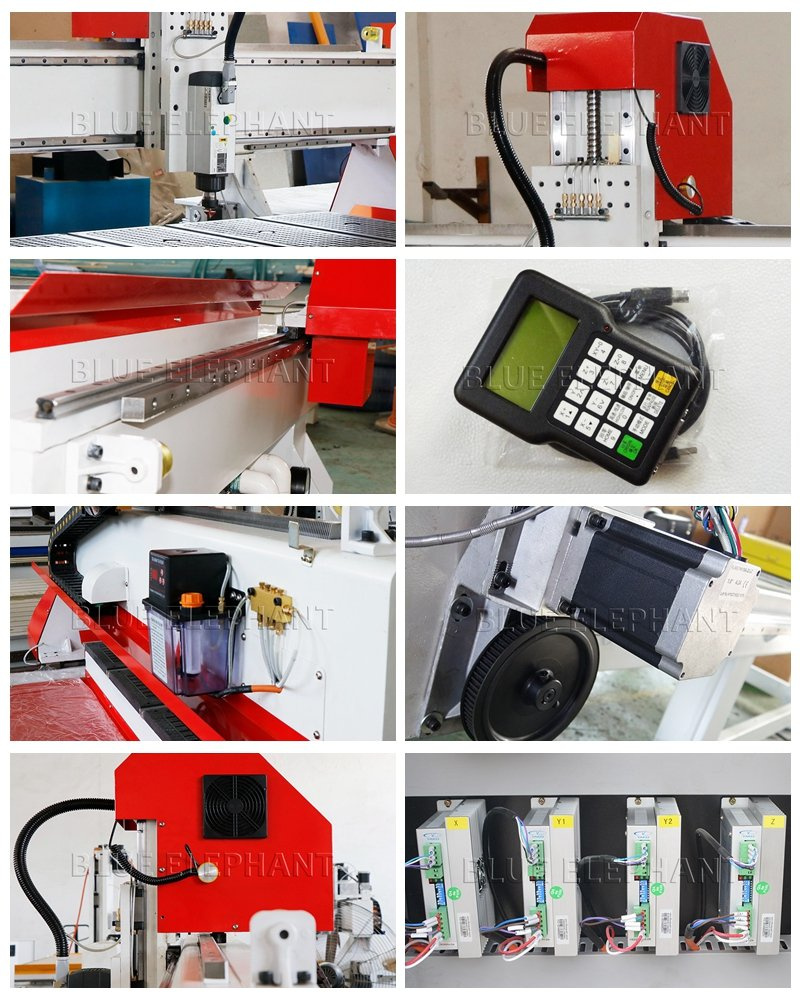

Product Details of cnc wood cutting machine:
Features of cnc wood cutting machine:
- 1200*1200*200mm working area
- 3kw Italy HSD air cooling spindle (ER25 collet)
- 3.7kw Delta inverter
- DSP A11 control system
- Stepper 118 motor and Yako 2608
- #20 Sweden ABBA square linear guide on X.Y, Z axis
- Helical rack on X, Y axis and Taiwan TBI ballscrew on Z axis
- T-slot & vacuum table
- 10~12mm thickness heavy duty frame
- 5.5kw air vacuum pump
- Japan Omron limited switch on X, Y, Z axis
- The machine oversize is 1900*1900*1700mm.
- AC400v /3PH/50HZ
- WITHOUT dust collector
- White without any sticker
- 400V, 3phase, 50Hz
Applications:
- Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
- Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
- Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.

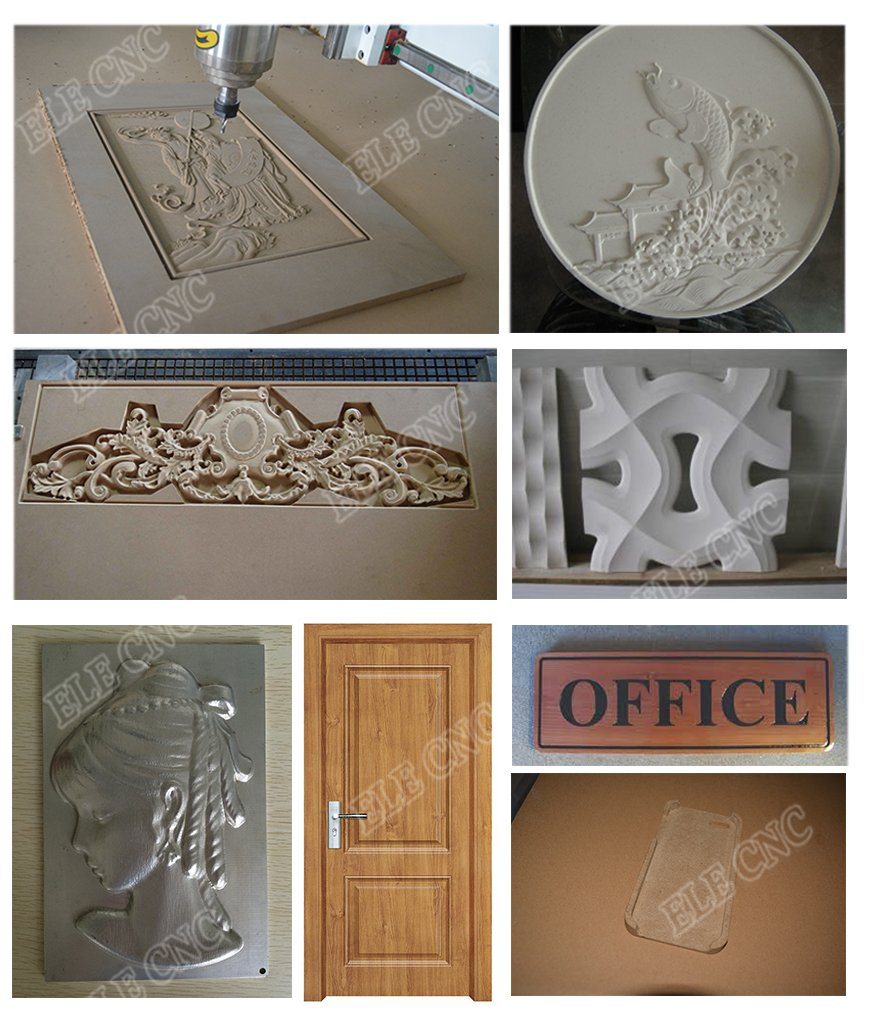

Samples:
Customers Feedback:
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
Guarantee and After-sale service:
12 months for the whole machine .
1, Technical support by phone , email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas

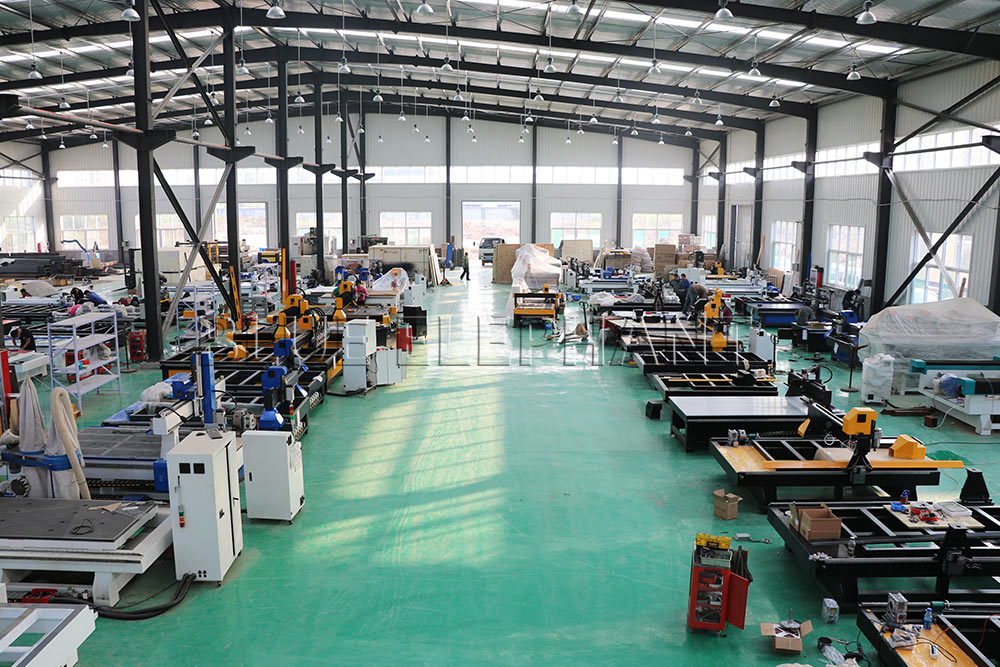

Welcome to our factory:
