Product Specifications
| Prod Model: |
Hofic-H0204 |
| Quality Warranty: |
12 Months |
| Motor Choice: |
German Sew / China Sej |
| Control Panel: |
Japan Mitsubishi |
| Command System: |
Radar Sensor, Magnetic Loop , Remote Control, |
| Normal Working: |
-35 to 65 Celsius Degree |
| Standard Motor Position: |
Left or Right |
| Installation Base: |
Concrete,Panel, Brick,Steel Structure. |
| Safety Device: |
Photocell Sensor(Korea Autonics) |
| Door Frame Structure: |
2.0 mm Galvanized Steel / 304 Stainless Sheet |
| Wind Resistance: |
Class 12 |
| Opening Type: |
With Remote Control |
| Certification: |
SGS |
| Position: |
Interior |
| Surface Finishing: |
Finished |
| Material: |
Aluminum Alloy + PVC Fabric |
| Type: |
Stacking |
| Open Style: |
Stacking |
| Special Function: |
Insect Prevention+Dust Prevention |
| Color: |
Yellow Orange Red Grey Blue Green |
Product Description

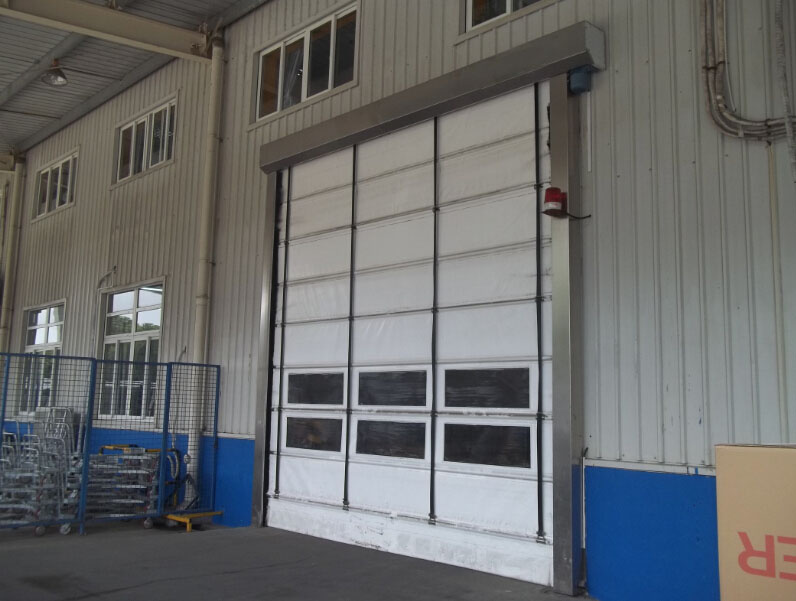

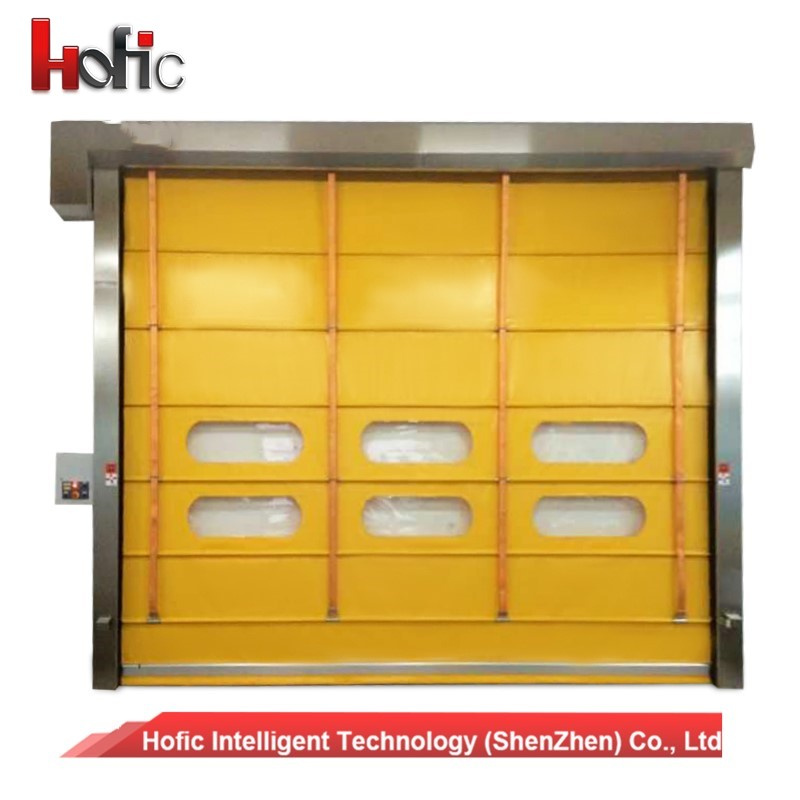

Automatic High Speed Stacking Door
Product Use :Internal/External rapid rolling door, used in high-frequency logistics channel. The door curtain wind resistant pole was formed by the wind resistant steel tube( wind resistant pole: it is on the request about the door opening's wind pressure to deploy), strong wind resistant, suitable for large-scale external doors and in request wind resistant's internal doors, sealing, vermins-proof and dust-proof, protecting the
working environment.
Applications:*Indoor, outdoor which requests resistant the wind/ temperature .
*Heavy industry, Light industry, food industry, electronics, pharmaceutical, warehousing, packaging, printing, chemical industry, automobile, manufacturing.
*The Industries In high request in environmental health.
Material Selection :1. Frame: 2MM thicknesses cold-roll Stainless steel.
2. Motor: Germany SEW brake motor (outer), power 0.75KW, power supply 220V.
3. Control system: Imported Japan Mitsubishi converter and PLC to control of electric box (150%1HZ)
4. Opening & closing speed: 0.6-1.5m/s (adjustable).
5. Safety Device: Korea Photocell Sensor, emergency stopping reaction when sensing obstacles.
6. Curtain: France high-density polyester fiber and the surface coating processing, thickness 0.8MM, variety colors can be chose: Red, yellow, blue, green, orange, gray, white, transparent, etc. Tensile strength: 4000/3500N/5cm, tear strength 600/600N. Fire-proofing level: German standard DIN75200 Usage temperature:
7. Wind resistant: The Aluminium alloy Reinforce Girder to increase wind resistant effect.
8. Curtain replacement function: Aluminium alloy Reinforce Girder is loaded between 2 pieces Curtain, can be replaced easily if any curtain broken, save your cost.
9. Transparent window: 1.2MM thickness transparent PVC window, size and location is up to your request, more safer.
10. Seal: Seal brush are Installed inside the guides, and the special bottom design, to fit any uneven ground.
11. Controlling way: Push button + radar sensor, very convenient.
12. Limiting Switch: Mechanical limiting switch, easily and exactly.
13. Emergency STOP: With emergency stop button on control panel, can stop easily by
Hand once disconnect or accident
14 Fault recovery function: All Hofic's production is with fault recovery function, system will self-recovery after power cut off.
15. Delivery time: About 7 business days with contract and deposit confirmed.
16. Payment item: 50% before production, and the other 50% before shipment.
