Product Specifications
| Prod Model: |
Hofic-H0360 |
| Quality Warranty: |
12 Months |
| Motor Choice: |
1.German Sew 2.China Sej / Snma |
| Control Panel: |
Japan Mitsubishi |
| Command System: |
Radar Sensor, Magnetic Loop , Remote Control, |
| Working Temperatur: |
-35 to 65 Celsius Degree |
| Standard Motor Position: |
Left or Right |
| Installation Base: |
Concrete,Panel, Brick,Steel Structure. |
| Safety Device: |
Photocell Sensor(Korea Autonics) |
| Type: |
Rolling |
| Open Style: |
Rolling |
| Certification: |
SGS |
| Position: |
Industrial |
| Surface Finishing: |
Finished |
| Material: |
Aluminum+PVC |
| Opening Type: |
Power Driven/with Remote Control |
| Special Function: |
Insect Prevention+Dust Prevention |
| Color: |
Yellow Orange Red Grey Blue Green |
Product Description

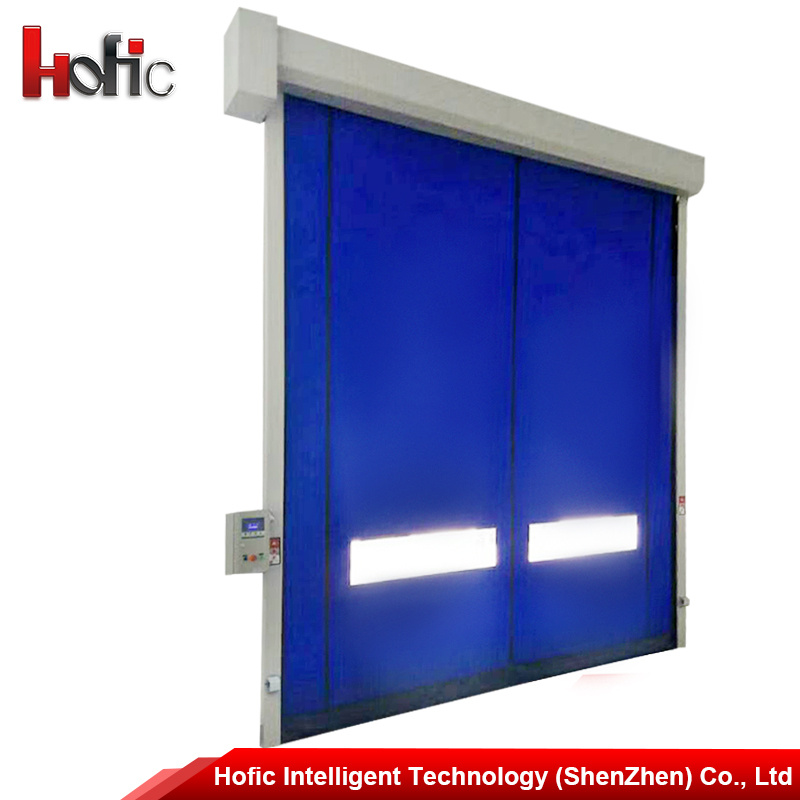

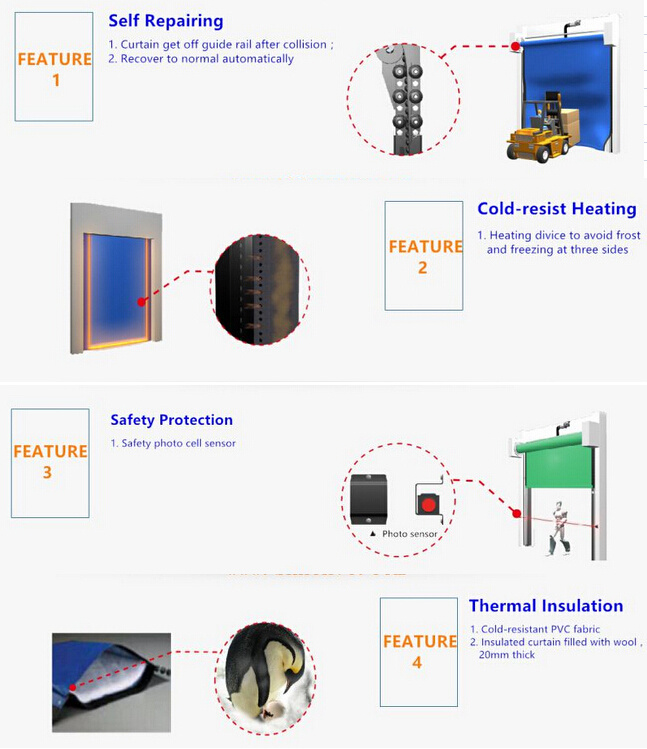

Advantages:The advantage of Self Reparing High Speed Doors are self-reparing,easy to clean,complete safe,energy saving and so on.
If the door curtain comes out of its guides(for example in the event of impact with a forklift),the system will reset the cutrain back intp the guide during the next opening cycle autimatically
Motor System:Germany Famous Brand-SEW
Power Supply: 0.75kw, 1.5kw, 2.2kw
The incremental encoder mounted is attached to the end of the drum shaft.
Self-Repairing Door Curtain:Made of reinforced PVC, with flexible weighted soft bottom edge.
The edge of curtain has continuous injection molded teeth that then move up and down in a self-lubricating polyethylene track attached to structural galvanized side frames.
Product Description| PVC Curtain | Grey,Yellow grid,Purple,Green,Light green,Black,Perforated Yellow grid,White,Blue,White grid,Sky Blue,Yellow,Orange,Red
Color curtain:0.8mmthickness.
Transparent curtain:1.2mm.
Function:insect prevention |
| Door Size | Max Door Size: 8M Wide x 6M Height |
| Bottom Bar | Aluminum alloy 95mm width
Function:reinforce the crutain to keep the door opening without a hitch |
| Radar Sensor | The place on the cover box. Can detect 3 meters area!
Function: detect the moving thing and open the door.
For the place which has more people through. |
| Photocell Sensor | Function:It's stop the door when the door is closing and someone through the door. |
| Drive System | High speed door motor: Germany brand(SEW)and Our own brand Hofic.
Germany SEW motor(380V/220V 50Hz 0.75KW,1.5KW,2.2kw.)
Our own brand Hofic(380V/220V 50Hz 0.75KW,1.5KW,2.2KW) |
| Control System | Control box:Include control system+PLC+transducer+encoder+airbag system.
Brand:Japan Mitsubishi and Our own Hofic
Function: all the control system are inside in it. |
| Cover Box | Material: Stainless steel201#or304#
To avoid corrosive thing corrode the roll and dustproof |
| Running Speed | Opening Speed:0.8m/s - 1.2m/s(Adjustable)
Closing Speed:0.6m/s - 1.0m/s(Adjustable) |
| Opening Way | Radar sensor+push button for People through
Magnetic loop+push button for forklift through |
Opening Way Forklift cross --Magnetic loop with push button
People cross --Radar sensor with push button
Photocell sensor/Airbag to avoid hurt people when the door closing and someone cross.
Company Information Hofic Intelligent Technology Co.,ltd. is a high-tech company that engages in the development of world-class advanced automatic doors. Our main products include quick rolling door, industrial accumulation door, industrial rolling door, PVC rolling door, rapid rolling door, fire-resisting rolling door, industrial lift door, automatic induction door, automatic vertical hinged door, medical automatic door, stainless steel automatic door, electric folding gate, crystal rolling door, electric roller shutter of various materials, and parking lot series.
F A Q1. What's the payment details?
Deposit before production, and balance before shipment.
2. What's the delivery time?
For common order, about 7 days only.
3. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.When the product quality appear.
4. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
5. What's the MOQ?
We accept 1 set as sample order.
6. How about the package?
Plywood case or Cardboard, suitable for sea freight or air freight, as your request.
Hofic Intelligent Technology(Shenzhen)Co., Ltd is a high-tech company that engages in the development of world-class advanced automatic doors. Our main products include quick rolling door, industrial accumulation door, industrial rolling door, PVC rolling door, rapid rolling door, fire-resisting rolling door, industrial lift door, automatic induction door, automatic vertical hinged door, medical automatic door, stainless steel automatic door, electric folding gate, crystal rolling door, electric roller shutter of various materials, and parking lot series.
Our company introduces and absorbs the state-of-the-art technologies of the automatic door industry of the world whilst accumulating rich experience in design, production and engineering installation. The overall appearance, quality, performance and service life of our products are comparable to world-famous brands, whereas our prices are much lower than those of similar imports. All these are aimed at offering our customers excellent, low-priced products in the real sense.
Adhering to the principle of "proceeding from details and trivial matters", we try to embody our meticulous effort in all the links and shall spare no effort in bringing about the best products and perfect service.
Over the years, we have been guided by the principle and concept of "guarantee by brand, breakthrough by technology, supported by service". In the future, we shall do our utmost to provide our customers with related engineering consultation, scheme design, technical guidance, installation and debugging, after-sales repair and other service.
