Hofic Intelligent Technology (Shenzhen) Co., Ltd. >> Flexible PVC High Speed Roller Shutter Rapid Self Recovery Door

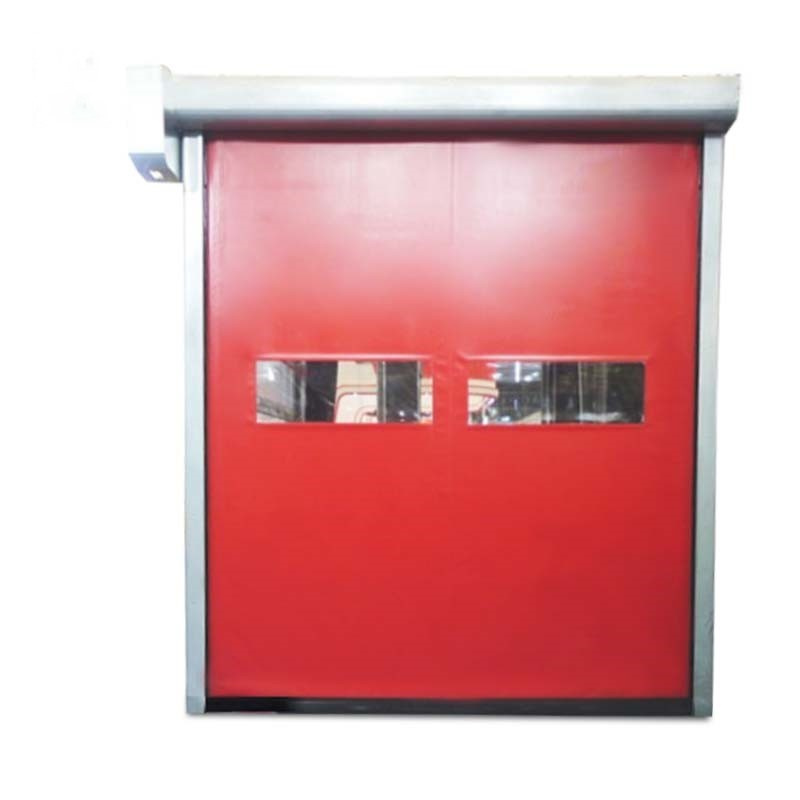

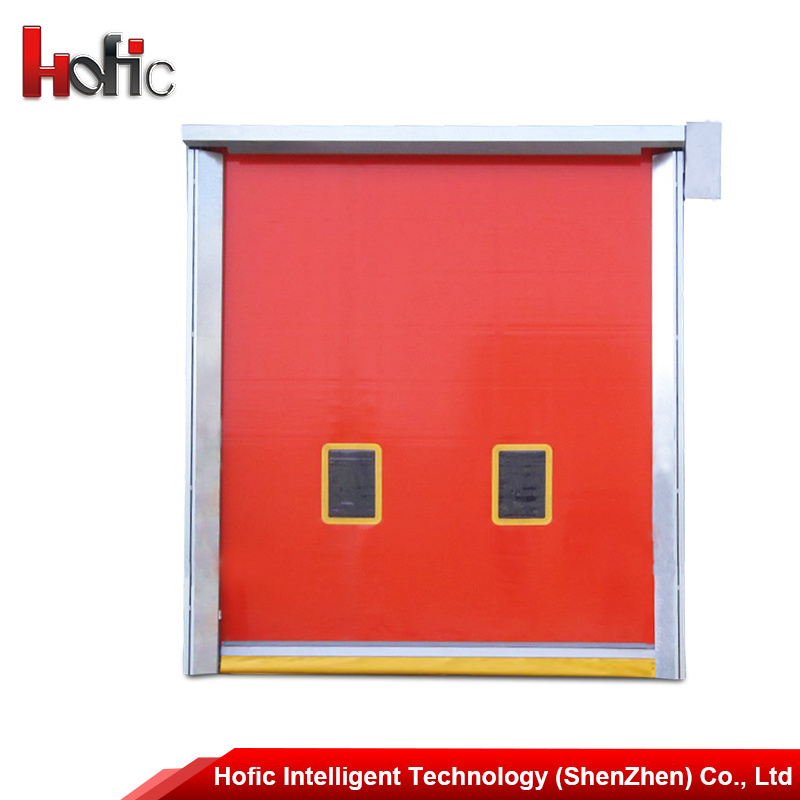

Flexible PVC High Speed Roller Shutter Rapid Self Recovery Door

Flexible PVC High Speed Roller Shutter Rapid Self Recovery Door
Price: US $ 1200-1600/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Product Specifications


Prod Model: Hofic-0225
Quality Warranty: 12 Months
Motor Choice: 1.German Sew 2.China Sej / Snma
Control Panel: Japan Mitsubishi
Command System: Radar Sensor, Magnetic Loop , Remote Control,
Normal Working: -35 to 65 Celsius Degree
Standard Motor Position: Left or Right
Installation Base: Concrete,Panel, Brick,Steel Structure.
Safety Device: Photocell Sensor(Korea Autonics)
Type: Rolling
Open Style: Rolling
Opening Type: Power Driven
Certification: SGS
Position: Industrial
Surface Finishing: Finished
Material: Aluminum+PVC
Special Function: Insect Prevention+Dust Prevention
Color: Yellow Orange Red Grey Blue Green

Product Description


Automatic High Speed Self-Recoverable Door/ Fast PVC Roller Shutter Door

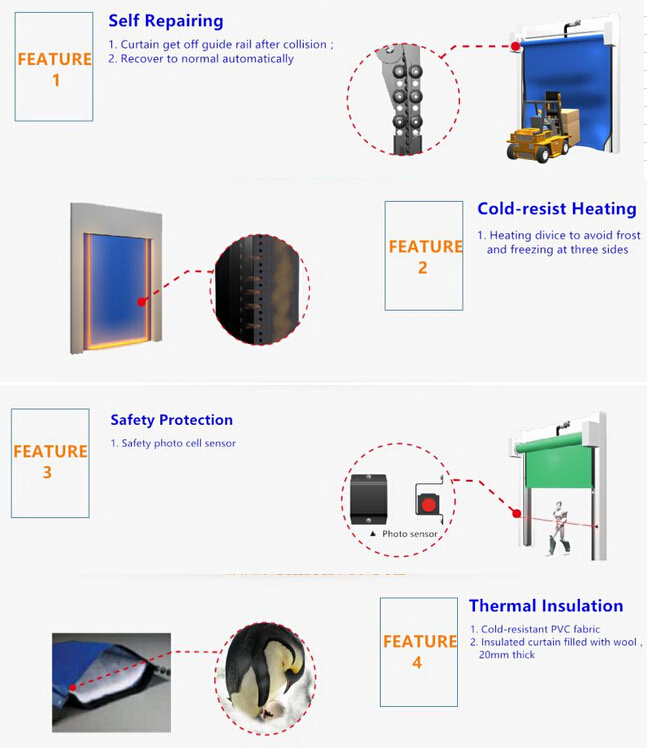

Advantages:
The advantage of Self Reparing High Speed Doors are self-reparing,easy to clean,complete safe,energy
saving and so on.
If the door curtain comes out of its guides(for example in the event of impact with a forklift),the system will
reset the cutrain back intp the guide during the next opening cycle autimatically



Motor System:
Germany Famous Brand-SEW
Power Supply: 0.75kw, 1.5kw, 2.2kw
The incremental encoder mounted is attached to the end of the drum shaft.


Self-Repairing Door Curtain:
Made of reinforced PVC, with flexible weighted soft bottom edge.
The edge of curtain has continuous injection molded teeth that then move up and down in a self-lubricating
polyethylene track attached to structural galvanized side frames.

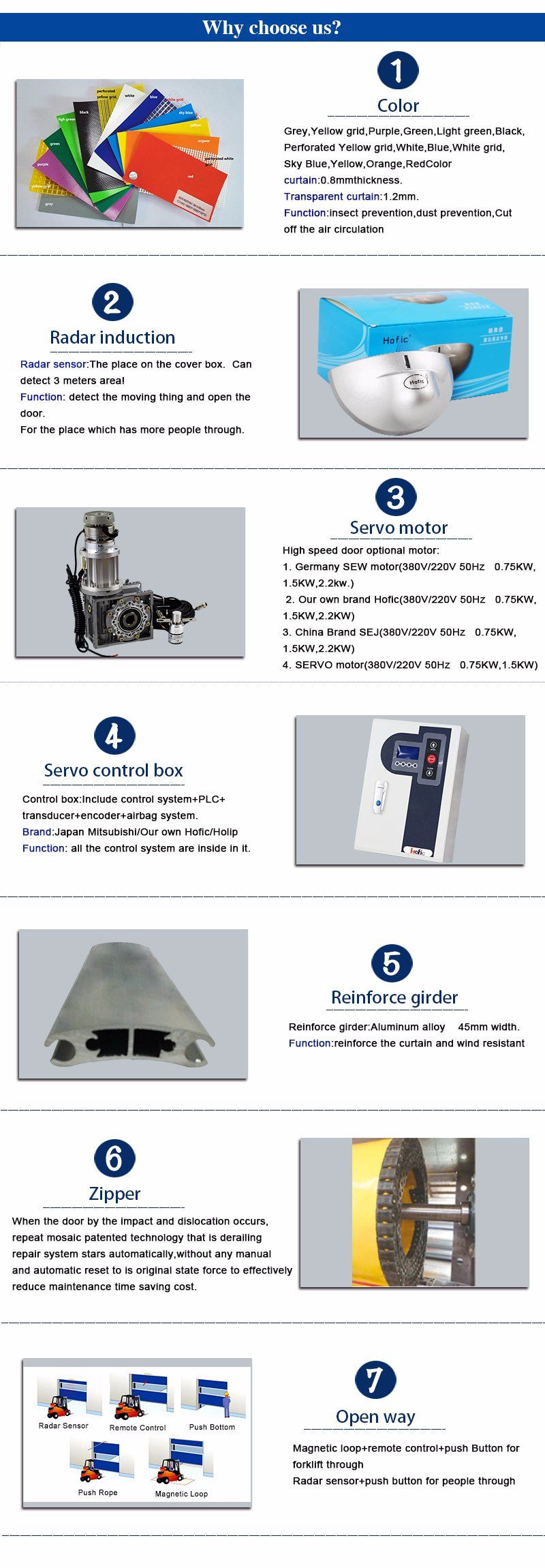

Product Description

PVC Curtain

Grey,Yellow grid,Purple,Green,Light green,Black,Perforated Yellow grid,White,Blue,White grid,Sky Blue,Yellow,Orange,Red

Color curtain:0.8mmthickness.

Transparent curtain:1.2mm.

Function:insect prevention

Door Size

Max Door Size: 8M Wide x 6M Height

Bottom Bar

Aluminum alloy  95mm width

Function:reinforce the crutain to keep the door opening without a hitch

Radar Sensor

The place on the cover box.  Can detect 3 meters area!

Function: detect the moving thing and open the door.

For the place which has more people through.

Photocell SensorFunction:It's stop the door when the door is closing and someone through the door.
Drive System

High speed door motor: Germany brand(SEW)and Our own brand Hofic.

Germany SEW motor(380V/220V 50Hz   0.75KW,1.5KW,2.2kw.)

Our own brand Hofic(380V/220V 50Hz   0.75KW,1.5KW,2.2KW)

Control System

Control box:Include control system+PLC+transducer+encoder+airbag system.

Brand:Japan Mitsubishi and Our own Hofic

Function: all the control system are inside in it.

Cover Box

Material: Stainless steel201#or304#
To avoid corrosive thing corrode the roll and dustproof

Running SpeedOpening Speed:0.8m/s - 1.2m/s(Adjustable)

Closing Speed:0.6m/s - 1.0m/s(Adjustable)
Opening WayRadar sensor+push button for People through

Magnetic loop+push button for forklift through

Main Accessories




Company Information

 Hofic Intelligent Technology Co.,ltd. is a high-tech company that engages in the development of world-class advanced
automatic doors. Our main products include quick rolling door, industrial accumulation door, industrial rolling door, PVC
rolling door, rapid rolling door, fire-resisting rolling door, industrial lift door, automatic induction door, automatic vertical
hinged door, medical automatic door, stainless steel automatic door, electric folding gate, crystal rolling door, electric roller
shutter of various materials, and parking lot series.


F A Q
1. What's the payment details?
Deposit before production, and balance before shipment.

2. What's the delivery time?
For common order, about 7 days only.

3. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.When the product quality appear.

4. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.

5. What's the MOQ?
We accept 1 set as sample order.

6. How about the package?
Plywood case or Cardboard, suitable for sea freight or air freight, as your request.

Hofic Intelligent Technology(Shenzhen)Co., Ltd is a high-tech company that engages in the development of world-class advanced automatic doors. Our main products include quick rolling door, industrial accumulation door, industrial rolling door, PVC rolling door, rapid rolling door, fire-resisting rolling door, industrial lift door, automatic induction door, automatic vertical hinged door, medical automatic door, stainless steel automatic door, electric folding gate, crystal rolling door, electric roller shutter of various materials, and parking lot series.

Our company introduces and absorbs the state-of-the-art technologies of the automatic door industry of the world whilst accumulating rich experience in design, production and engineering installation. The overall appearance, quality, performance and service life of our products are comparable to world-famous brands, whereas our prices are much lower than those of similar imports. All these are aimed at offering our customers excellent, low-priced products in the real sense.

Adhering to the principle of "proceeding from details and trivial matters", we try to embody our meticulous effort in all the links and shall spare no effort in bringing about the best products and perfect service.

Over the years, we have been guided by the principle and concept of "guarantee by brand, breakthrough by technology, supported by service". In the future, we shall do our utmost to provide our customers with related engineering consultation, scheme design, technical guidance, installation and debugging, after-sales repair and other service.
