| Price: | US $ 800-1500/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | Hofic-08462 |
|---|---|
| Quality Warranty: | 12 Months |
| Motor Choice: | 1.German Sew 2.China Sej / Snma |
| Control Panel: | Japan Mitsubishi |
| Command System: | Radar Sensor, Magnetic Loop , Remote Control, |
| Normal Working: | -35 to 65 Celsius Degree |
| Standard Motor Position: | Left or Right |
| Installation Base: | Concrete,Panel, Brick,Steel Structure. |
| Safety Device: | Photocell Sensor(Korea Autonics) |
| Type: | Rolling |
| Open Style: | Rolling |
| Opening Type: | Power Driven |
| Certification: | SGS |
| Position: | Industrial |
| Surface Finishing: | Finished |
| Material: | PVC |
| Special Function: | Insect Prevention+Dust Prevention |
| Color: | Yellow Orange Red Grey Blue Green |

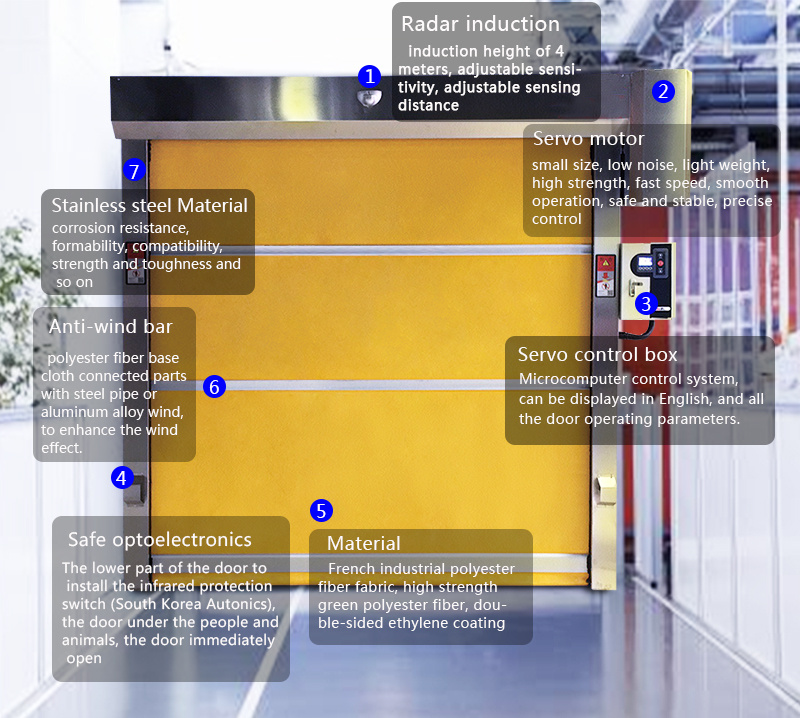

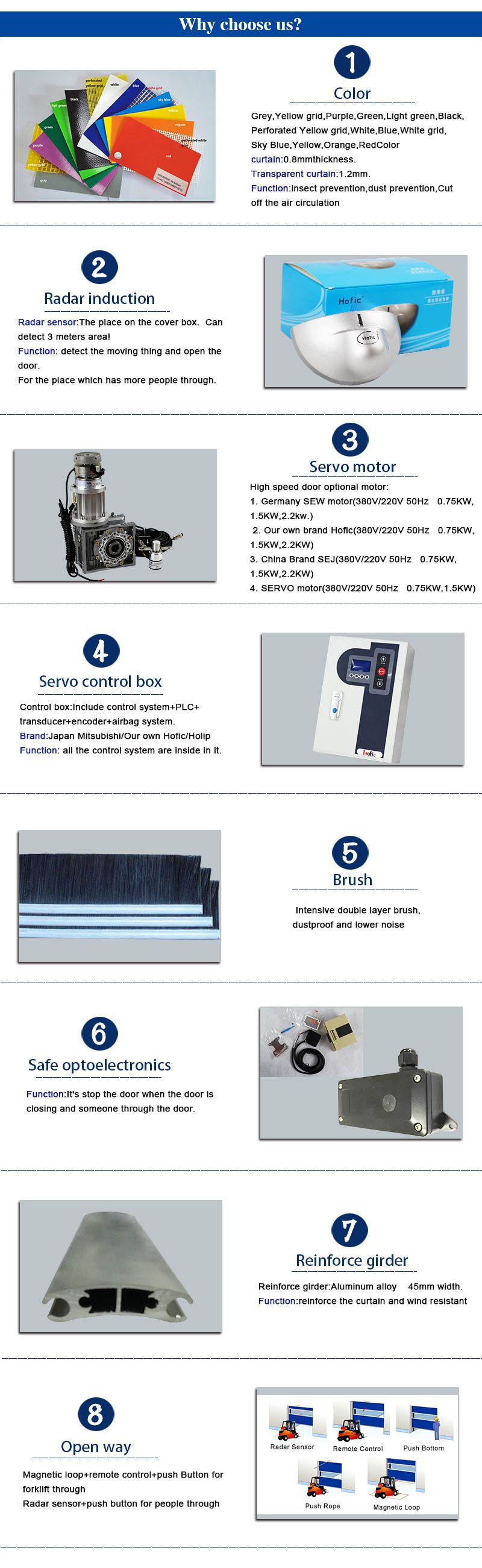

| Rapid PVC door | Grey,Yellow grid,Purple,Green,Light green,Black,Perforated Yellow grid,White,Blue,White grid,Sky Blue,Yellow,Orange,Red Color curtain:0.8-1.0mmthickness. Transparent curtain:1.2mm. Function:insect prevention | ||||
Reinforce girder | Aluminum alloy 45mm width. Function:reinforce the curtain and wind resistant | ||||
Bottom bar | Aluminum alloy 95mm width Function:reinforce the crutain to keep the door opening without a hitch | ||||
Radar sensor | The place on the cover box. Can detect 3 meters area! Function: detect the moving thing and open the door. For the place which has more people through. | ||||
Photocell sensor | Function:It's stop the door when the door is closing and someone through the door. | ||||
Drive system | High speed door motor: Germany brand(SEW)and Our own brand Hofic. Germany SEW motor(380V/220V 50Hz 0.75KW,1.5KW,2.2kw.) Our own brand Hofic(380V/220V 50Hz 0.75KW,1.5KW,2.2KW) | ||||
Control system | Control box:Include control system+PLC+transducer+encoder+airbag system. Brand:Japan Mitsubishi and Our own Hofic Function: all the control system are inside in it. | ||||
Cover box | Material: Stainless steel201#or304# | ||||
Opening way: | Radar sensor+push button for People through Magnetic loop+push button for forklift through | ||||

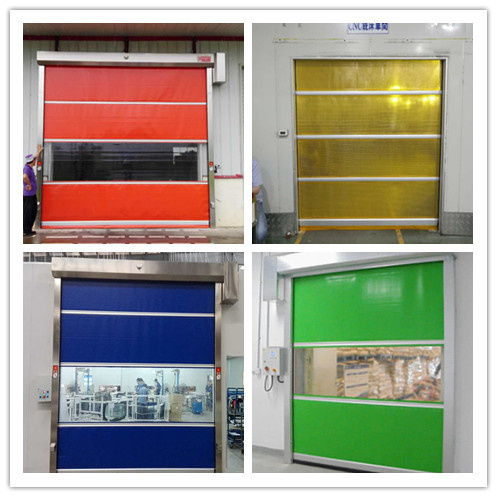

High Speed Access. We offer a comprehensive range of high speed roller and high speed insulated doors for internal and external installations. High speed doors are ideal for high traffic areas where controlled access is required.
Save Energy & Reduce Contamination. Air leakage in industrial premises is a costly expense and ensuring you have the correct doors in operation is critical to reduce energy costs. The High speed automatic opening and closing of these rapid roll doors will provide valuable energy saving by maintaining the internal room temperature and also reduce contamination from airborne pollution and ingress of insects and vermin, essential in controlled warehouses and buildings. With a travel speed of up to 3 meters a second with some doors the operation cycle can be completed in a very short time, keeping the inside atmosphere as stable as possible all year round.
Access Control. Access control can be with remote control, radar sensors, ground loops, push button, key cards, digital code pads, finger readers and other devices to suit your individual needs in the warehouse or factory.
Main Accessories
Hofic Intelligent Technology Co.,ltd. is a high-tech company that engages in the development of world-class advanced
automatic doors. Our main products include quick rolling door, industrial accumulation door, industrial rolling door, PVC
rolling door, rapid rolling door, fire-resisting rolling door, industrial lift door, automatic induction door, automatic vertical hinged
door, medical automatic door, stainless steel automatic door, electric folding gate, crystal rolling door, electric roller shutter of
various materials, and parking lot series.
F A Q
1. What's the payment details?
Deposit before production, and balance before shipment.
2. What's the delivery time?
For common order, about 7 days only.
3. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.When the product quality appear.
4. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
5. What's the MOQ?
We accept 1 set as sample order.
6. How about the package?
Plywood case or Cardboard, suitable for sea freight or air freight, as your request.
