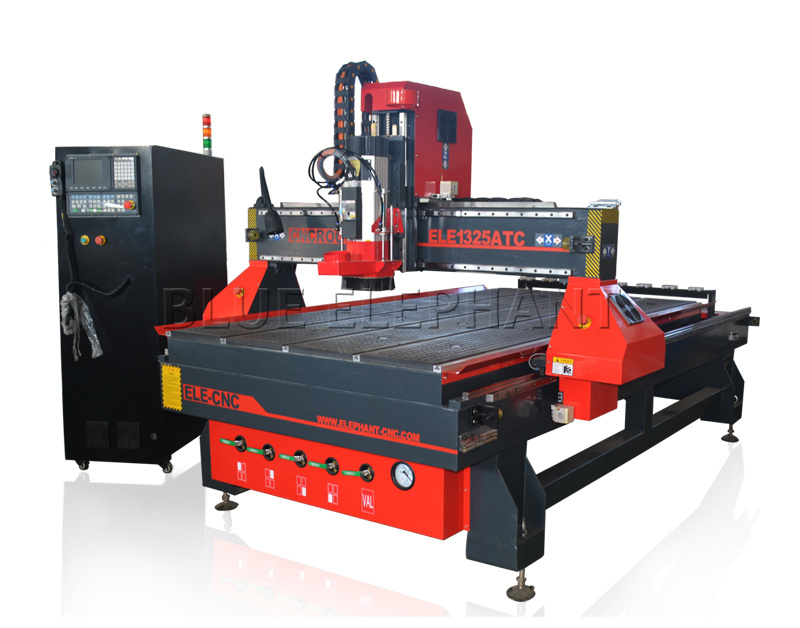

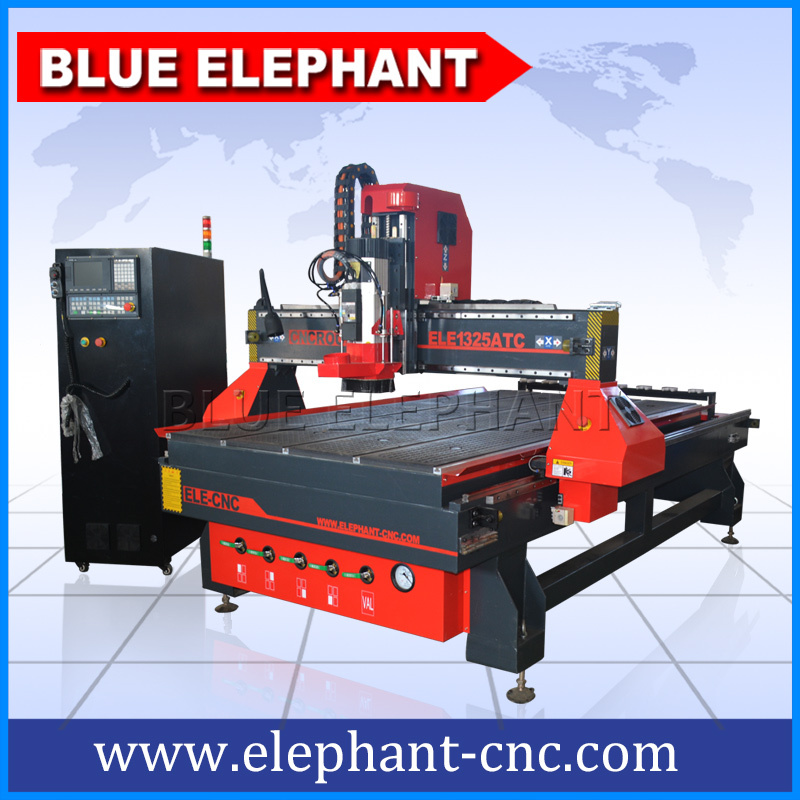

European Quality 1500*3000mm Working Size Atc CNC Router
| Price: |
US $ 16999-25999set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
ELE 1530 |
| Voltage: |
380V, 3 Phase, 50/60Hz(Optional:220V) |
| Dimension(L*W*H): |
3200X2200X1850mm |
| Control System: |
Taiwan Syntec Controller with Hand Wheel |
| Spindle Power: |
9000W |
| Inverter: |
11kw Delta Inverter |
| Motor: |
Yaskawa Servo Motor |
| Table: |
Vacuum & T-Slot Table |
| Transmission: |
Helical Rack and Tbi Ball Screw |
| Software: |
Type3 and Artcam |
| Orbit: |
Sweden Abba 25# Linear Square Guide |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS BV TUV |
Product Description
European quality 1500*3000mm working size atc cnc router , 4 axis cnc , wood carving cnc router
Features: - The working size is 1300mm*2500mm*200mm,for the Z axis can be increased.
- 9kw Italy HSD ATC air cooling spindle with 11kw Taiwan DELTA inverter.
- 850w Japan YASKAWA servo system.
- Taiwan SYNTEC 6MB control system.
- SYNTEC 2m height big control box
- With linear tool changer, the Linear tool storage with 8 pieces.
- Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down power and also enables you to clamp the workpiece in place.
- Taiwan Original TBI ball screw for Z travel.
- Taiwan HIWIN Linear guide.
Working Size | 1300*2500*200mm(Can be customized) |
Spindle Power | 9KW Italy HSD ATC air cooling spindle |
Spindle Speed | 24000RPM |
X, Y axis | Helical rack, Hiwin 25# Rail Linear Bearing |
Z axis | Hiwin Rail 25# Linear Bearing & TBI Ball Screw |
Servo motor driver | 850w Japan YASKAWA servo system |
Control System | SYNTEC 6MB control system |
Table | T-slot & vacuum Table |
Frame | Welded Structure |
Collet | ISO30 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3/UcancameV9/Artcam Software |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |

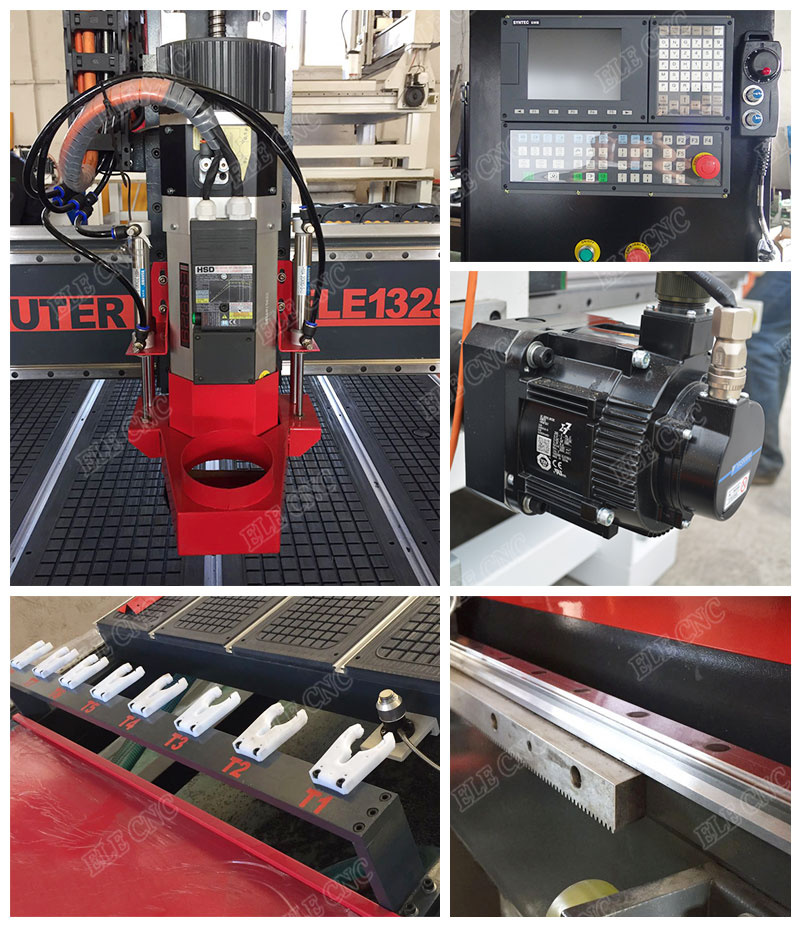

Details:
Applicantion:
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
5.Cylindrical object
We have any other models,and you can be customized it according to your processing material and working area.
3040(300*400*85)
6090(600*900*85)
1212(1200*1200*160)with rotation/sink/vacuum/vacuum clearer
1325(1300*2500*200) with ATC
1836(1800*3600*200)with 6 heads
separate double heads
one head with two spindles
and so on.

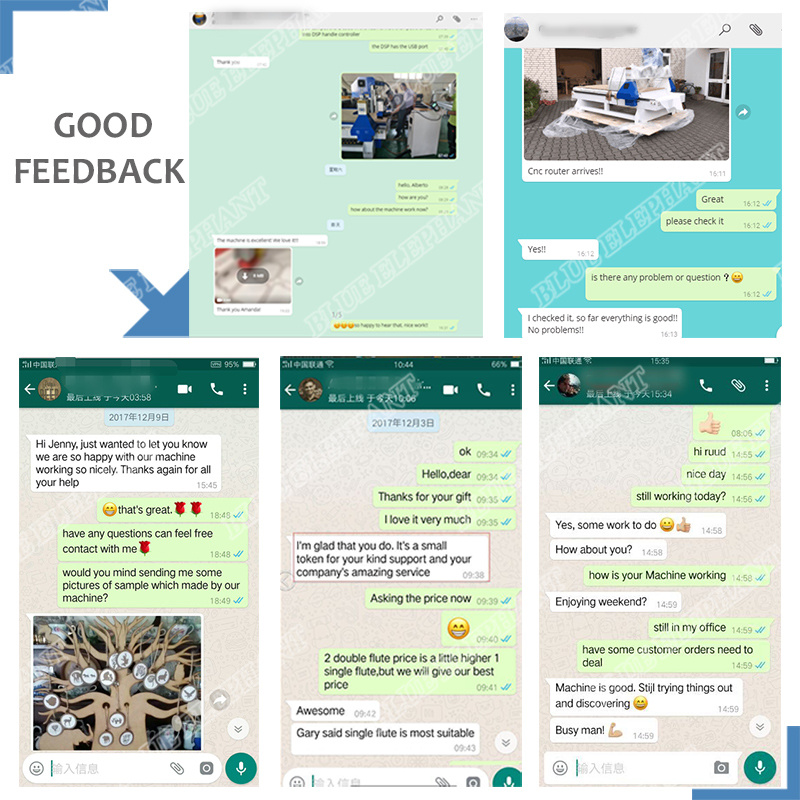

Its cutting or engraving material has wooden,stone,foam,glass,pcb,pvc and so on.Customers Feedback

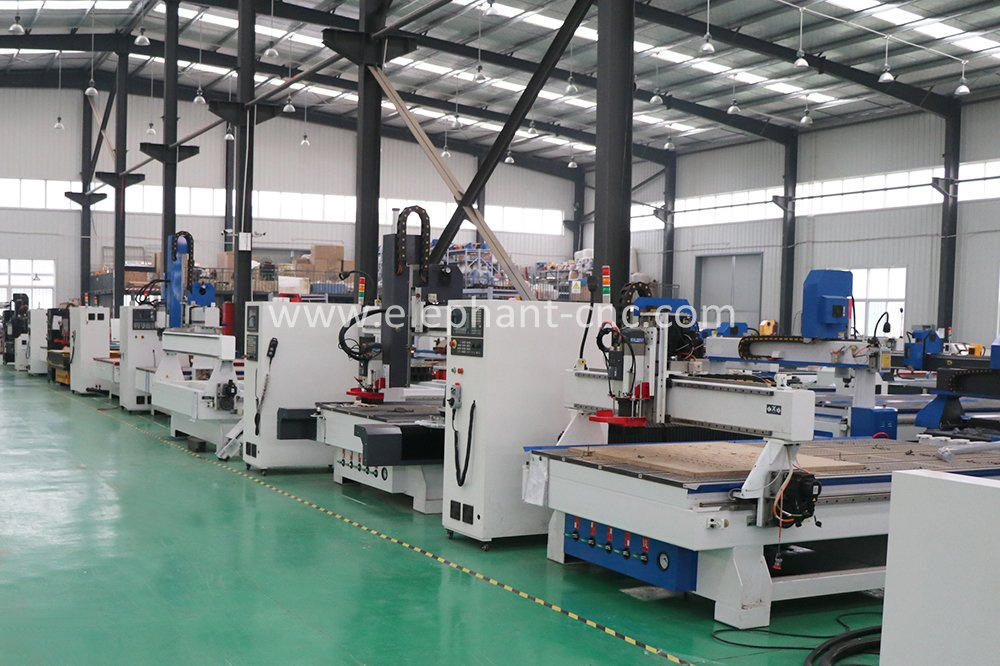

Our Factory
- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
- Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
- Just looking forward to service every customer, like you
Contact us
Manager: Jack
Web: www.elephant-cnc.com
Mobile : 0086-15064026772
Tel: 86-531-66564918
Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
We have always been devoting to the research and manufacture of CNC engraving machines. We have R&D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in woodworking, advertising, model, electric, CAD/CAM industry model, clothing, package printing, marking, laser sealing and so on.
We can offer you the high quality products with the competitive price. Our products have got CE certificate. Our main products are as follows: CNC router, laser engraving and cutting machine, laser cutting machine, marble CNC router, cutting plotter, plasma metal cutting machine, advertising CNC router and so on.
Business Type: Manufacturer, OEM, ODM
Main Products: Wood CNC router machine, laser engraving and cutting machine, stone CNC router, plasma cutting machine, laser machine
Location: Shandong, China (Mainland)
Year Established: 2013
Number of Employees: 11 - 50 People
Total Revenue: US$10 Million - US$50Million
Main Markets: Oceania, Western Europe, North America, Africa, Southeast Asia
