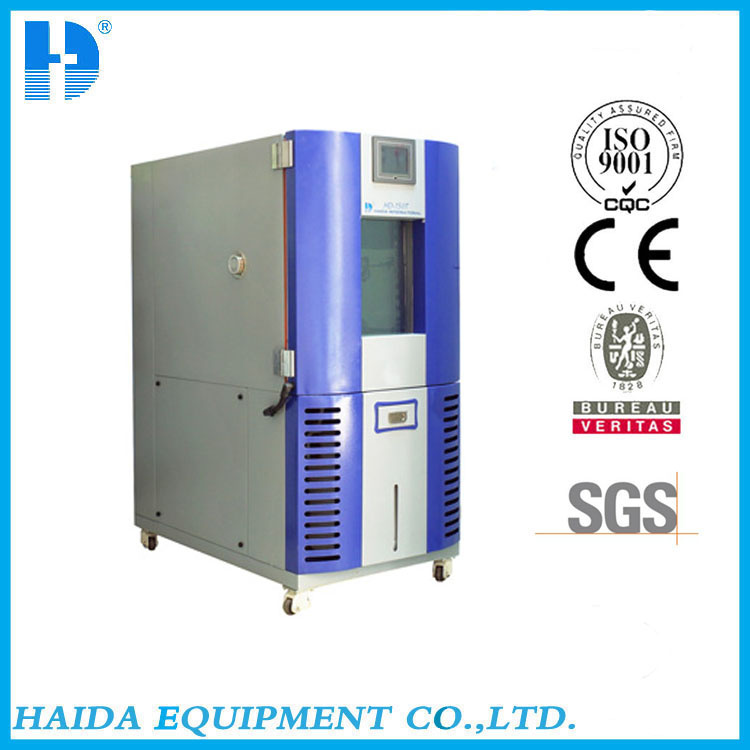

Electronic Stainless Steel Plate Temperature & Humidity Testing Chamber (HD-150T)

Product Specifications

Prod Model:	HD-E702-150T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	ISO9001: 2008 & CE
Warranty Period:	12 Months
Controller:	Temi 880 LCD Touch Screen
Delivery:	15 Days After Receiving Deposit
Model:	HD-150t
System:	Balanced Temperature & Humidity Control System
Temp. Range:	-70 Centigrade Degrees~150 Centigrade Degrees
Humid. Range:	20 ~ 98 Percent R. H.
Resolution:	0.1 Centigrade Degrees, 1 Percent, P. I. D Control
Insulation:	Rigid Foam
Weight:	500-1000Kg
Power Source:	AC220V
Type:	Temperature & Humidity Test Chamber

Product Description

Electronic Stainless Steel Plate Temperature & Humidity Testing Chamber (HD-150T)

Product description:
Temperature & Humidity Weathering Testing Chamber is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance.

Constant temperature and humidity testing chamber can simulate various of temperature and humidity environment, which is applicable to detecting electronic, automobile, rubber, plastic, metal and other products in a variety of adverse circumstances, such as parameters of reliability and stability. It will be made available to you to predict and improve the basis of product quality and reliability.

Function and features:

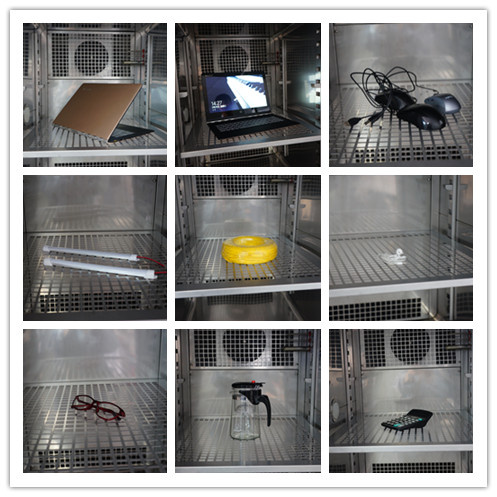

1, The test machine is mainly used in testing the adaptability of electronics, electrical appliances, food, automobile, rubber and plastic, metal and other products, parts and materials in the high and low temperature alternating hot and humid environment when storage, transport and using;

2, It is an reliable test equipment for all kinds of electronic, electrical, electronics, plastics raw materials and devices to do testing such as cold, heat, moisture, resistance to dry and the quality control;

3, Especially suitable for optical fiber, LCD, crystal, inductor, PCB, batteries, computers, mobile phones, rubber, plastics and other product.

4, It has the features of newly perfect design, appearance of high texture level, system extracts Japan, West Germany, the essence of design and manufacture adopt advanced technology.

5, Balanced temperature humidity control system (BTHC), to PID mode control SSR, so that heated humidification system was equal to heat loss capacity, it could be used long-term stability;

6, All-capillary, automatic load capacity adjustment system technology, more expansion valve system more stable and reliable, precise temperature and humidity control, heating and cooling rate of rapid, steady, uniform, saving valuable time for users.

7. Use more powerful wing-blower air supply cycle, to avoid any dead end, temperature and humidity are evenly distributed in the test region.

8. Wind-road cycle adopted the design of blowing side wind and return wind. Wind pressure and wind speed are in accord with test standards, and make the door instantaneous temperature and humidity open that is stabilized time soon.

9. Heating, cooling, humidification and dehumidification system is totally unaided to improve efficiency, reduce testing cost, increase life expectancy and lower failure rate.

Standard features

Item	Specification
Internal dimension	(W*D*H) 600*800*850mm
External dimension	(W*D*H) 1100*1370*1750mm
Temperature range	-70~+150ºC
Temperature Accuracy	±1ºC
Humidity range	20~98%R.H. (Refer Image below)
Humidity accuracy	±3%R.H
Cooling speed	1ºC/min in average (without loading)
Heating speed	3ºC/min in average (without loading)
Internal chamber material	SUS#304 stainless steel, mirror finished
External chamber material	Stainless steel with paint spray
Cooling method	Air cooling
Controller	Korea TEMI 880 controller LCD touch screen, programmable control temperature and humidity Can set different parameter for cyclic test
Insulation material	50mm high density rigid Polyurethane foam
Heater	Explosion-proof type SUS#304 stainless steel fins radiator pipe heater
Compressor	France Tecumseh compressor
Lighting	Heat resistance
Temperature sensor	PT-100 dry and wet bulb sensor
Observation window	Tempered glass
Testing hole	Diameter 50mm, for cable routing
Safety protection device	Protection for leakage Over-temperature Compressor overvoltage and overload Heater short circuit Water shortage

Operational control:
1, Display: Chinese and English touch / touch-screen
2, Test mode: High and low temperature operation and storage, temperature cycling, high temperature and high humidity, low temperature and humidity, condensation experiment.
3, Control panel: Humidity controller +Temperature Controller + lighting + power button + button + buzzer alarm.

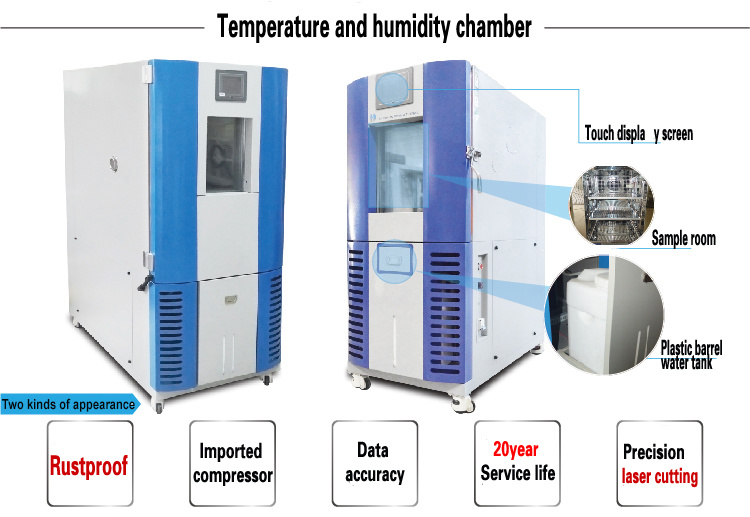

CHAMBER DESIGN FEATURES

1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Direct water supply connection for continuous operation
6. Accurate wet/dry-bulb humidity measurement system for easy mantain

Details:
