Lab Thermal Shock Test Chamber
| Price: |
US $ 7500-15000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
HD-E703 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001: 2008 |
| Warranty Period: |
12 Months |
| Cooling Method: |
Air or Water |
| Ambient Temperature: |
0 Centigrade Degrees to 30centigrade Degrees |
| Senor: |
T× 4 |
| Model: |
HD-216tst |
| Interal Dimension: |
(W* H* D) 60* 60* 60cm |
| Outside Dimension: |
170* 225* 182cm |
| Structure: |
Three Chambers Design(The Hot Chamber, The Cold CH |
| Damper Device: |
Forced Air Drived Damper |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
| Type: |
Thermal Shock Test Chamber |
Product Description

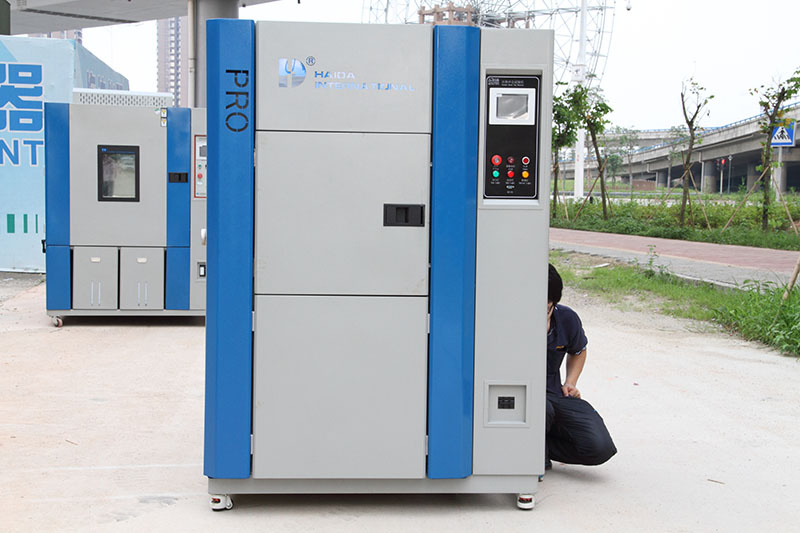

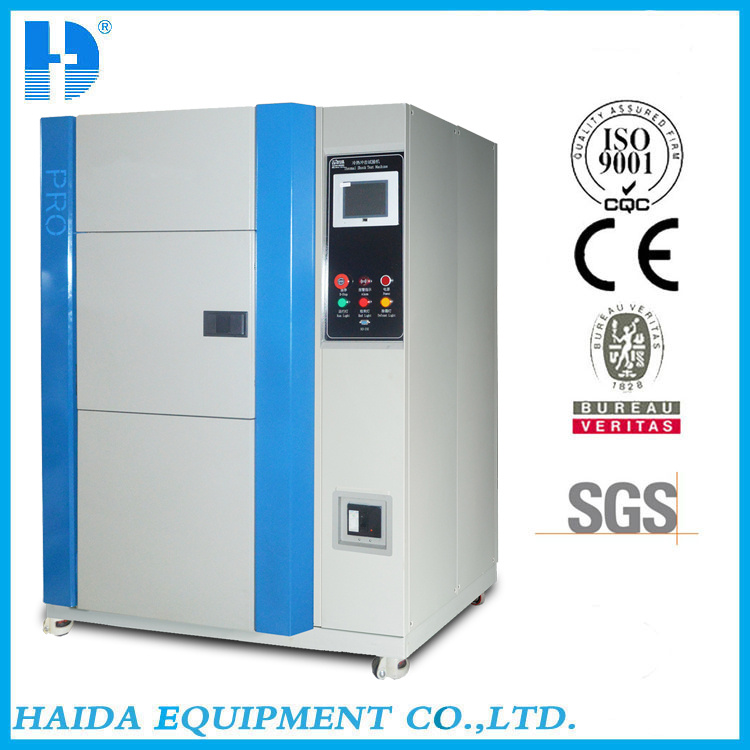

Lab Thermal Shock Test ChamberProduct images:Thermal shock test chamber is used to test most commercial products to see how they withstand drastic temperature changes. A thermal shock chamber will subject a product to the most extreme temperature conditions, instantly.
Usage:The purpose of testing a product under these circumstances by the Thermal shock test chamber is to observe changes in the products characteristics and check for failure occurrence of different materials and thermal expansion coefficients.
Standard Features| Model | HD-216TST |
| Interal Dimension | (W× H× D) 60× 60× 60cm |
| Outside dimension | 170× 225× 182cm |
| Structure | Three chambers design(the hot chamber, the cold chamber and the testing chamber) |
| Damper device | Forced air drived damper |
| Interior material | SUS#304 Stainless steel plate |
| Exterior material | SUS#304 Stainless steel plate |
| Basket material | SUS#304 Stainless steel plate |
| Refrigeration | Cascade refrigeration system |
| Cooling method | Air or Water |
| Ambient temperature | 0 centigrade degrees to 30centigrade degrees |
| Preheating temperature | +60.00centigrade degrees to +200.00centigrade degrees |
| Precooling temperature | -10.00centigrade degrees to -70.00centigrade degrees |
| H. T. Shocking | +60.00centigrade degrees to +150.00centigrade degrees |
| L. T. Shocking | -10.00centigrade degrees to -65.00centigrade degrees |
| Temperature uniformity | ± 2.00centigrade degrees |
| Simulated load ic | 5.0kg |
| HT IN-Zone | -65.00 centigrade degrees to +150.00centigrade degrees/5min |
| LT IN-Zone | +150.00centigrade degrees to -65.00centigrade degrees |
| Preheating time | 30MIN |
| Precooling time | 60MIN |
| Senor | T× 4 |
| Controller | OYO-8226 |
| Setting range | Temperature: -100.00centigrade degrees to +200.00centigrade degrees
TIME: OHIM to 999H/CYCLE: 0 to 9999 |
| Resolution | Temperature: 0.1centigrade degrees |
| Output mode | PID+SSR (control method) |
| Power(K. W) | AC380V 50HZ 30KW |

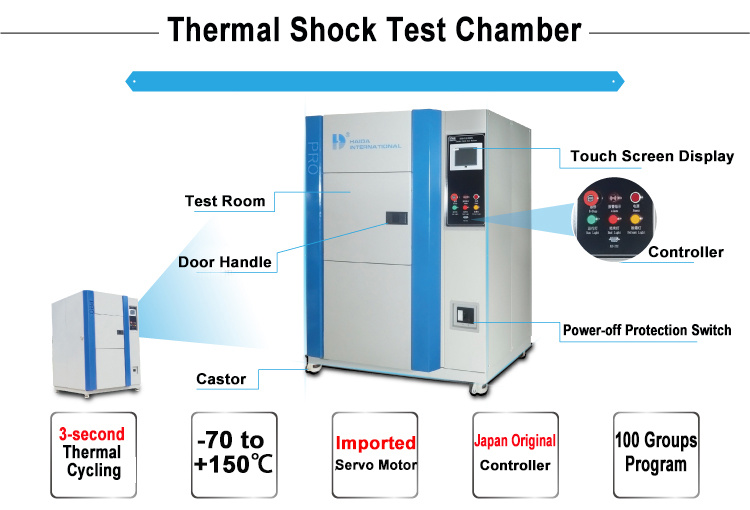

Feature:- The thermal shock tester is divided into three sections: the high temperature chamber, the low temperature chamber and the testing chamber.
- The color touch panel control system was made in Japan can display Chinese / English. The big size liquid-crystal LCD has been adopted.
- High formula memory capacity may be set to 120 patterns. The maximum cycle setting is 9999cycles. The maximum setting of each section is 999 Hrs 59 Mins.
- Provide with RS-232C communication interface device, capable of controlling / editing/ recording in the linkage with the computer and two set dynamic connection point and convenient application.
- Both 2 zone and 3 zone shocks can be chosen.
- All equipment is fully automatic, and all process are precisely controlled with P.L.C.'S.
- Of any part of the malfunctions, the machine will automatically shuts down and a warning light switches on.
- Machine can be shut down automatically in case of electrical power instabilities.
The hot chamber
Heater: nicochrome electric heater
Ventilator: centrifugal ventilator when exposed in high temperature or environment temperature, axial flow ventilator for preheating
The cold chamber
Heater, cooler; nicochrome electric heater, regenerator
Ventilator: centrifugal ventilatorImages:
The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
Packaging & Shipping:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
