Product Specifications
| Prod Model: |
HD-80TST |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Controller: |
Oyo-8226 LCD Touch Screen |
| Material Type: |
SUS# 304 Stainless Steel |
| Refrigeration: |
Cascade Refrigeration System |
| Interal Dimension: |
(W* H* D)40* 50* 40cm |
| Structures: |
Two Chambers Design(The Hot Chamber or The Cold CH |
| Damper Device: |
Forced Air Drived Damper |
| Cooling Method: |
Air |
| Simulated Load IC: |
5.0kg |
| Ht In-Zone: |
-65.00o C to +150.00o C/5min |
| Lt In-Zone: |
+150.00o C to - 65.00o C/5 Min |
| Type: |
Thermal Shock Tester |
Product Description

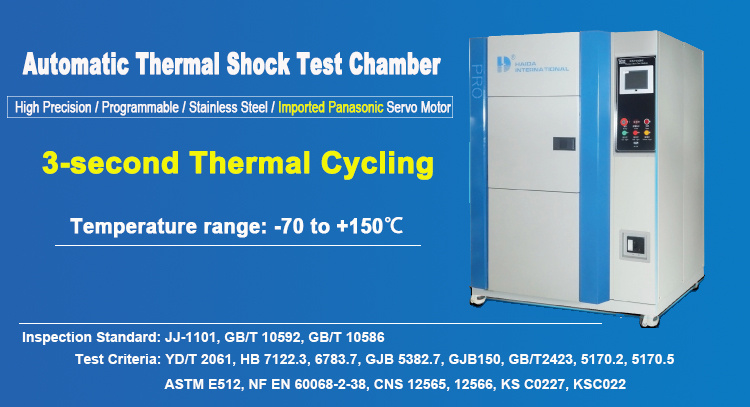

High-low Temperature Shock Test Box Machine/Thermal Shock Tester
Introduction:Programmable High Temperature shock tester, used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, that is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm. Application objects, including metal, plastic, rubber, electronics. And other materials can be used as a basis to improve their products or reference.
Feature:1. The machine is divided into three sections: The high temperature chamber, the low temperature chamber and the testing chamber.
2. The color touch panel control system was made in Japan can display Chinese / English. The big size liquid-crystal LCD has been adopted.
3. High formula memory capacity may be set to 120 patterns. The maximum cycle setting is 9999cycles. The maximum setting of each section is 999 Hrs 59 Mins.
4. Provide with RS-232C communication interface device, capable of controlling / editing/ recording in the linkage with the computer and two set dynamic connection point and convenient application.
5. Both 2 zone and 3 zone shocks can be chosen.
6. All equipment is fully automatic, and all process are precisely controlled with P. L. C. 'S.
7. Of any part of the malfunctions, the machine will automatically shuts down and a warning light switches on.
8. Machine can be shut down automatically in case of electrical power instabilities.
Main Technical Parameter| Interal Dimension | (W× H× D)40× 50× 40cm |
| Structure | Two chambers design(the hot chamber or the cold chamber) |
| Damper device | Forced air drived damper |
| Interior material | SUS# Stainless steel plate |
| Exterior material | SUS# Stainless steel plate |
| Basket material | SUS# Stainless steel plate |
| Refrigeration | Cascade refrigeration system |
| Cooling method | Air |
| Ambient temperature | 0° to 30° |
| Preheating temperature | +60.00º C to +200.00º C |
| Precooling temperature | -10.00º C to -70.00º C |
| H. T. Shocking | +60.00º C to ++50.00º C |
| L. T. Shocking | -10.00º C to -65.00º C |
| Temperature range(optional) | A: -40º C to 150º C B: -55º C to 150º C C: - 65º C to 150º C |
| Temperature uniformity | ± 2.00º C |
| Simulated load ic | 5.0kg |
| HT IN-Zone | -65.00º C to +150.00º C/5min |
| LT IN-Zone | +150.00º C to - 65.00º C/5 min |
| Preheating time | 30MIN |
| Precooling time | 60MIN |
| Senor | T× 4 |
| Controller | OYO-8226 |
| Setting range | Temperature: -100.00º C to +200.00º C/TIME: OHIM to 999H/CYCLE: 0 to 9999 |
| Resolution | Temperature: 0.1º C |
| Output mode | PID SSR(control method) |
| Power(K. W) | AC380V 50Hz 18K. W |
Features:- Perfect appearance and easy to operate.
- Imported LCD English microcomputer temperature controller, with high memory capacity, can save 100 programs, max 9999 cycles, each cycle max time 999hrs.
- Two chamber structures, high temperature chamber and low temperature chamber, control automatically, stay and switch time adjustable.
- Perfect protection alarm functions: short-circuits, Leakage, over temperature of work chamber; compressor over pressure, over load, short water…
- Control interface will display alarm reason and provide check methods, machine has emergency stop button.
- Cold and hot shock temperature recover within1 minute, which complies with MTL, IEC, JIS, GJB and other international standards.
High temperature chamber:
1, Including three parts: heater, draught fan and air duct valve
2, Draught fan cyclically stirs hot air through heater
3, The basket with testing product drive to high temperature range when doing high temperature impact test.
Low temperature chamber:
1, Including four parts: evaporator, energy storage piece, draught fan and air duct valve
2, Draught fan cyclically stirs cold air through evaporator and energy storage piece.

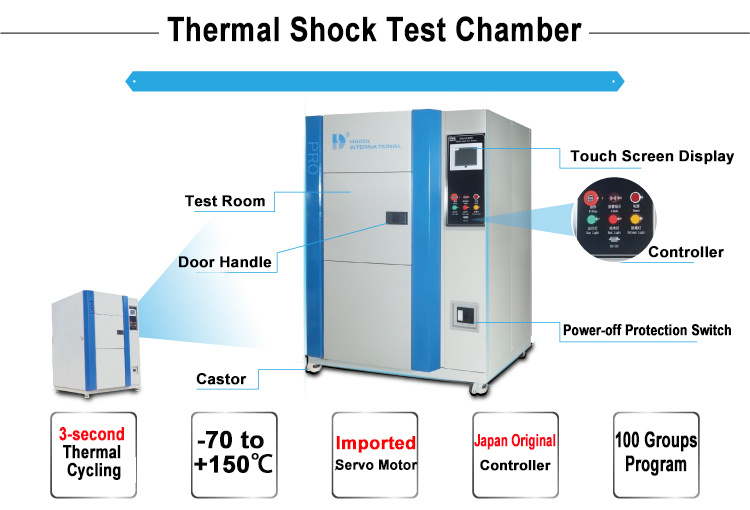

3, The basket with testing product drive to low temperature range when doing low temperature impact test.Product images:
The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.

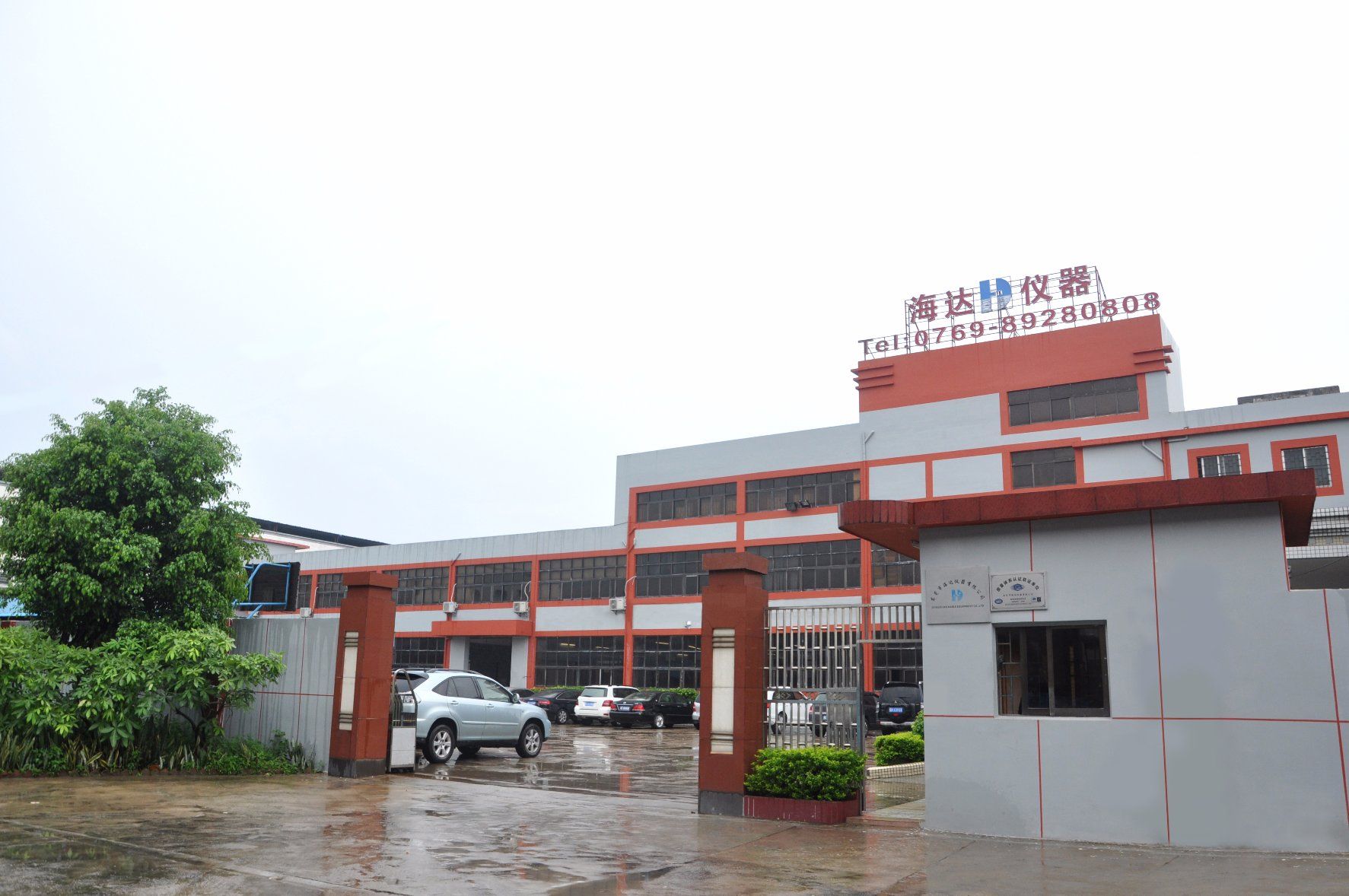

Factory:
After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
