Product Specifications
| Prod Model: |
ELE2036-6S |
| Voltage: |
380V/220V, 3phase, 50/60Hz |
| Dimension(L*W*H): |
3200*2140*1850mm |
| Spindle: |
6 Sets 2.2kw Water Cooling Spindle with 6 Pieces |
| Inverter: |
6 Sets 2.2kw Fuling Inverter |
| Motor: |
6 Sets 2.2kw Fuling Inverter |
| Driver: |
FL118 Bigger Stepper Motor and Yako2811 Driver |
| Collet: |
Er20 |
| X, Y Structure: |
20#Taiwan Hiwin Linear Guide and Helical Rack |
| Spindle Layout: |
Spindle Over |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS BV TUV |
| Spindle Number: |
One Head with Six Spindles |
Product Description

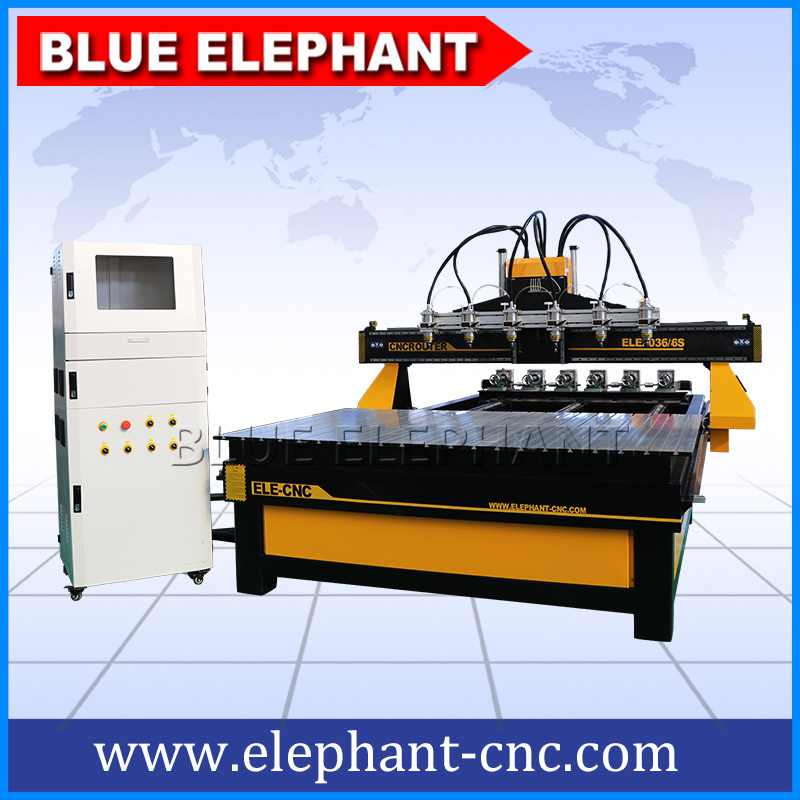

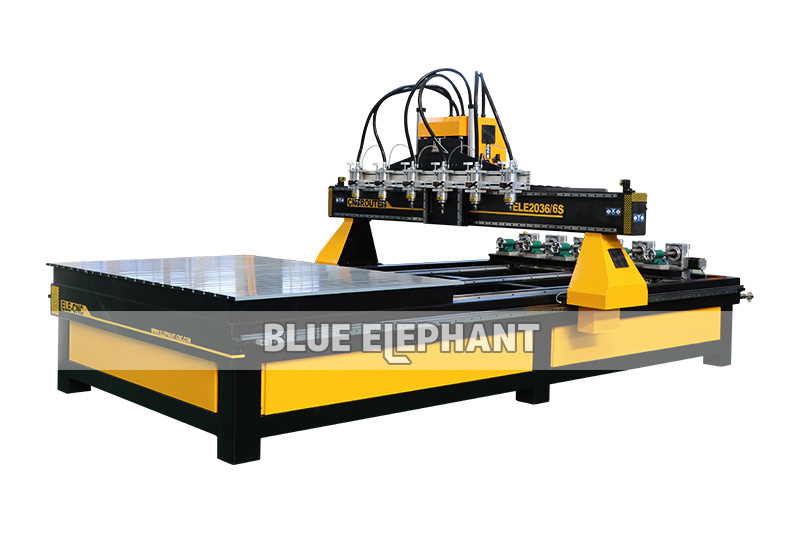

Ele2036-6S CNC Router Wood Cutting Machine 3D for Violin Making

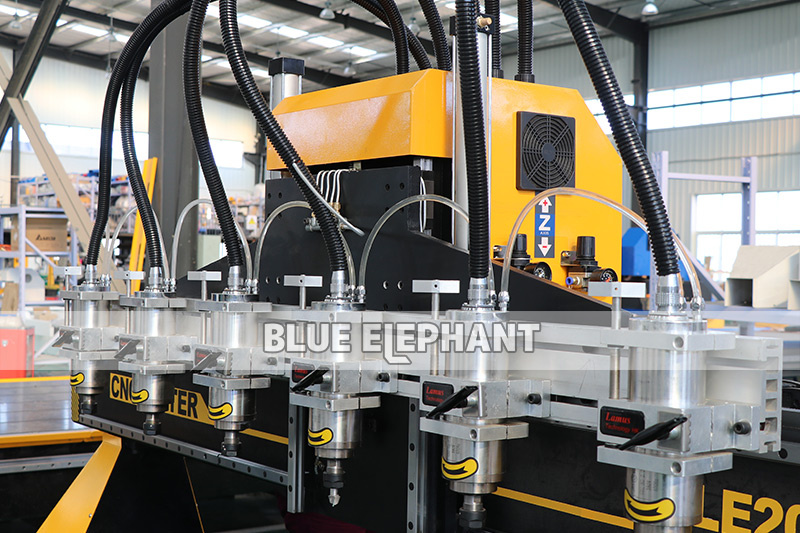

Advantages: 1.2.2kw*6 water cooling spindle with 6 pieces spindle clamp,high efficiency

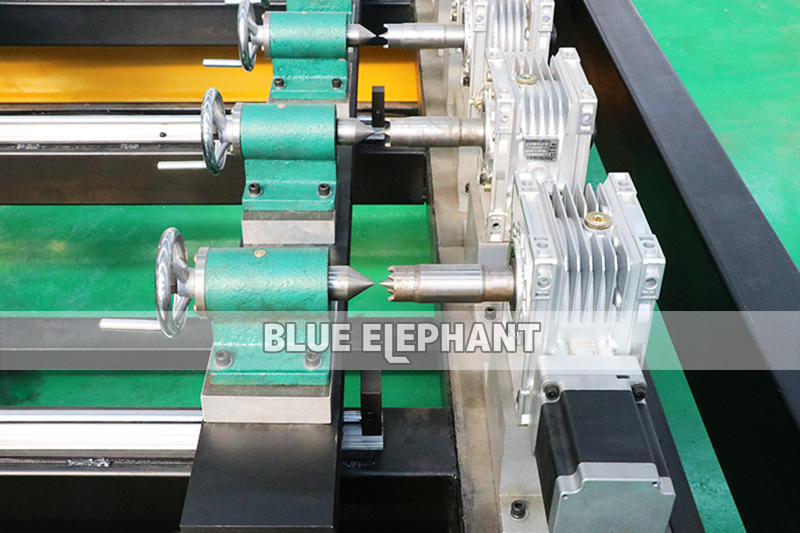

2.NC PM95A control system with computer control box,support 4 axis working at the same time
3.Multi-function working
Configuration
| Descriptions | Parameters |
| Product name | 2036 one head with six spindles cnc router |
| Modle | 2036/6 |
| Working area | 2000*3600*200mm |
| Control system | NC PM95A control system with computer control box |
| Spindle | 6 sets 2.2kw water cooling spindle with 6 pieces spindle clamp |
| Spindle speed | 0-24000RPM |
| Inverter | 6 sets 2.2kw fuling inverter |
| Motor and driver | FL 118 stepper motor and YAKO 2811 bigger and stronger driver |
| Voltage | 380V, 3ph, 50Hz |
| Linear rail | Sweden ABBA #25 linear guide for all axis |
| Table structure | New type thicker and bigger heavy duty welded frame and gantry |
| Table surface | T-slot work table,1400mm length |
| X,Y axis transmission | Helical rack and pinion drive for X,Y axis |
| Z axis transmission | Taiwan TBI 2510 ball screw for z axis |
| lubrication system | Manual lubrication system |
Applications:
1.Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
Packaging and shipping:
1.Outside Package:Standard export wooden case .
2.Inner package:strech film .
For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.
For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.Samples:
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 20 working days after payment.
Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.

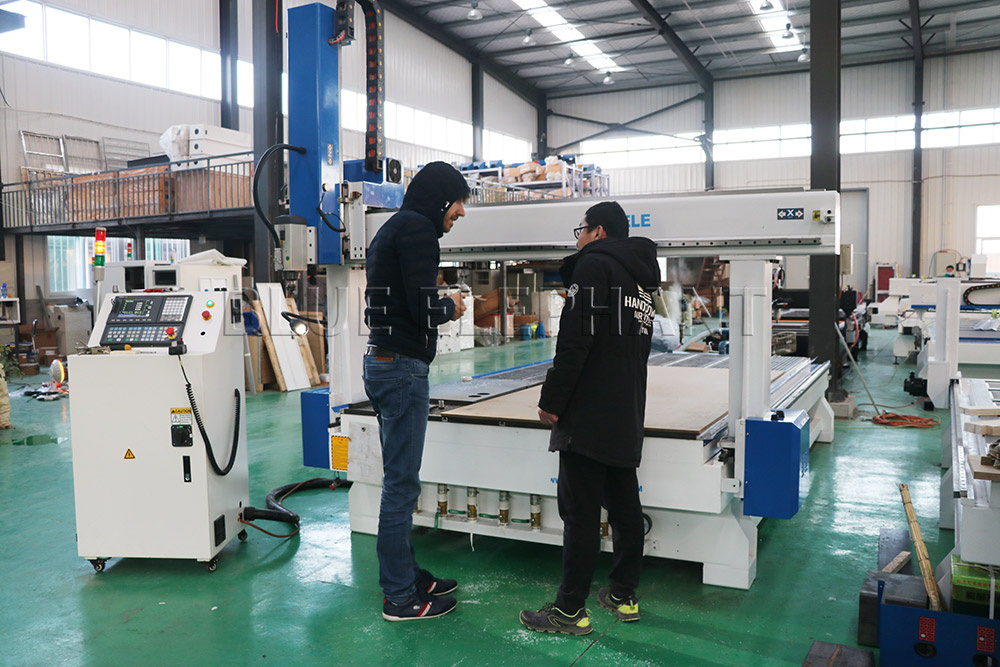

7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

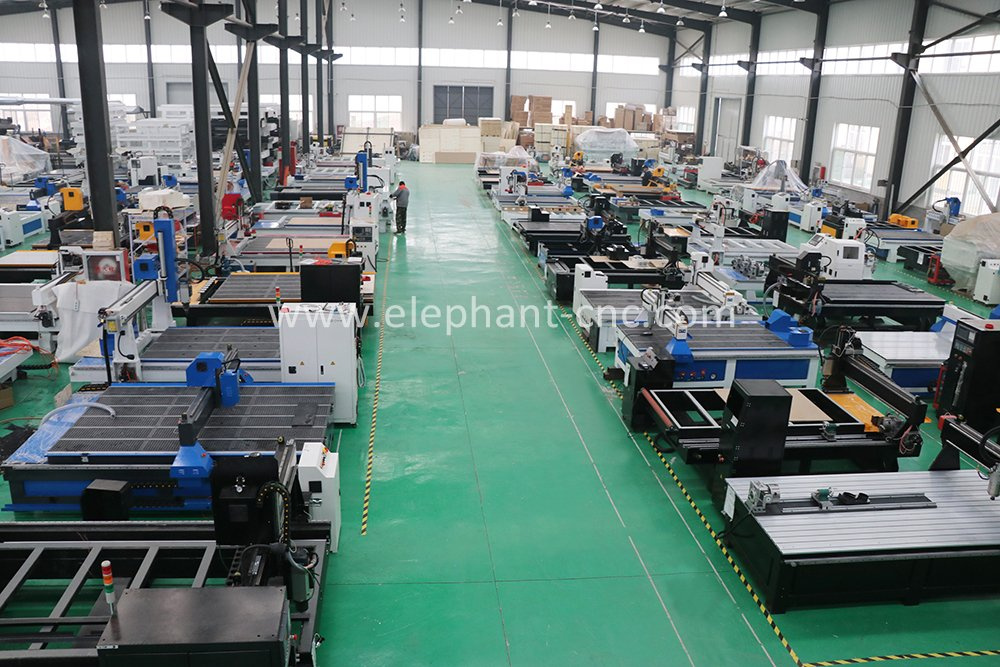

Our Factory
- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
- We have our R & D department, Quality control department, and after sale & service department.
- Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
- We had got CE and ISO9001 certification always offer best quality machine.
- Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
- Just looking forward to service every customer, like you.
Welcome to contact us.
Manager : Jack
mobile : 0086-15064026772
Web: www.elephant-cnc.com
Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
We have always been devoting to the research and manufacture of CNC engraving machines. We have R&D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in woodworking, advertising, model, electric, CAD/CAM industry model, clothing, package printing, marking, laser sealing and so on.
We can offer you the high quality products with the competitive price. Our products have got CE certificate. Our main products are as follows: CNC router, laser engraving and cutting machine, laser cutting machine, marble CNC router, cutting plotter, plasma metal cutting machine, advertising CNC router and so on.
Business Type: Manufacturer, OEM, ODM
Main Products: Wood CNC router machine, laser engraving and cutting machine, stone CNC router, plasma cutting machine, laser machine
Location: Shandong, China (Mainland)
Year Established: 2013
Number of Employees: 11 - 50 People
Total Revenue: US$10 Million - US$50Million
Main Markets: Oceania, Western Europe, North America, Africa, Southeast Asia
