| Price: | US $ 4000-12000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE2015 |
|---|---|
| Voltage: | 380V/220V, 3 Phase, 50/60Hz |
| Power(W): | 2.2kw (4 Sets) |
| Dimension: | 2100X2300X1500mm |
| Weight: | 1500kg |
| Inverter: | Fuling 2.2kw Inverter |
| Transmission: | Helical Rack Drive |
| Orbit: | Taiwan Hiwin Linear Guide |
| Collets: | Er25 |
| Color: | for Your Choice |
| Table: | Vacuum Adsorption Table |

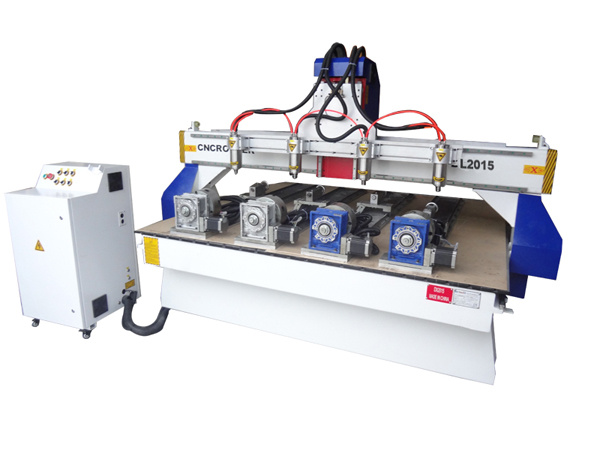

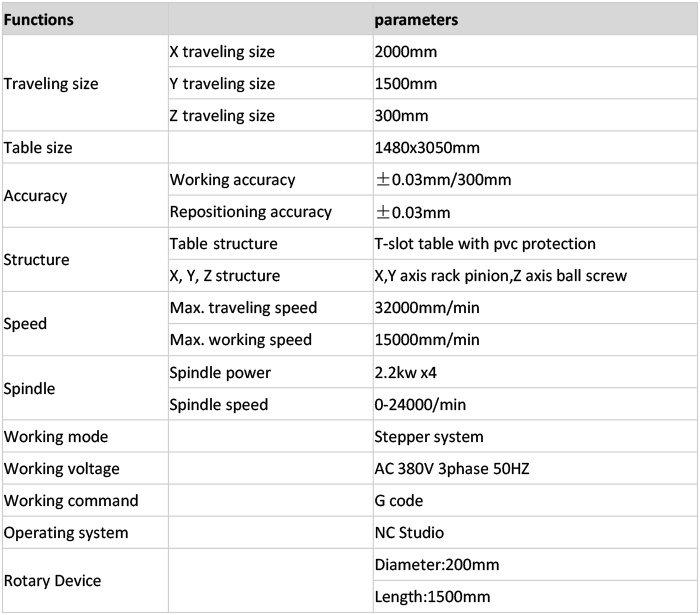

Standard configuration:
•Working area: X : 2000mm , Y : 1500 mm, Z : 300 mm
• Max. feeding height: 300mm
• One head with 4 spindles( 2.2 kw water cooling spindle
• 4 rotaries:200mm Diameter and 1500mm length
• NC-Studio control system
• Linear Rail: HIWIN Linear Guide way made in Taiwan
• Ball screw: TBI ball screw from Taiwan
• Stepper motor
• YAKO driver
• Inverter: 2.2kw Delta inverter import from Taiwan
• Big Steel Beam with 8mm thickness steel
• Switch: Japanese OMRON Switch
• T slot working table
• Cable: Highly flexible towline-only Cable Imported fire-resistant double-sheathed. Could be bent 300 000 times
• Separate control cabinet: assemble machinery and electrical components in accordance with the European CE standard
• Voltage: 3PH 380V 50HZ
• Package: plywood case

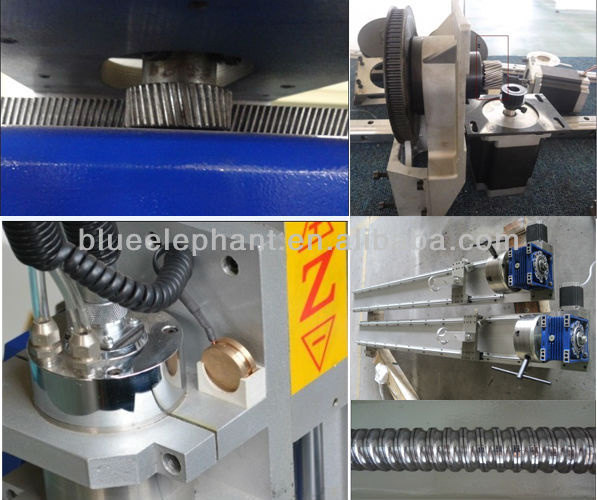

Details:
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,MDF, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
5,cylinders engraving such as wood table legs etc.
Now show youtube video of our cnc router machine
http://www.youtube.com/watch?v=3KK-wgFzwnQ&feature=youtu.be
http://www.youtube.com/watch?v=ExygeN057B4&feature=youtu.be
http://www.youtube.com/watch?v=LD3toUlIcCU&feature=youtu.be
Our service
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
