Product Specifications
| Prod Model: |
ELE-1533 |
| Voltage: |
AC220V/380V, 50Hz/60Hz |
| Power(W): |
9kw |
| Tools Number: |
8 Positions Atc |
| Dimension(L*W*H): |
3800*2300*1900 |
| Weight: |
1700kg |
| Warranty: |
12 Months |
| Table Surface: |
Vacuum and T-Slot Combined |
| Tool Collet: |
ISO30 |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
FDA |
Product Description

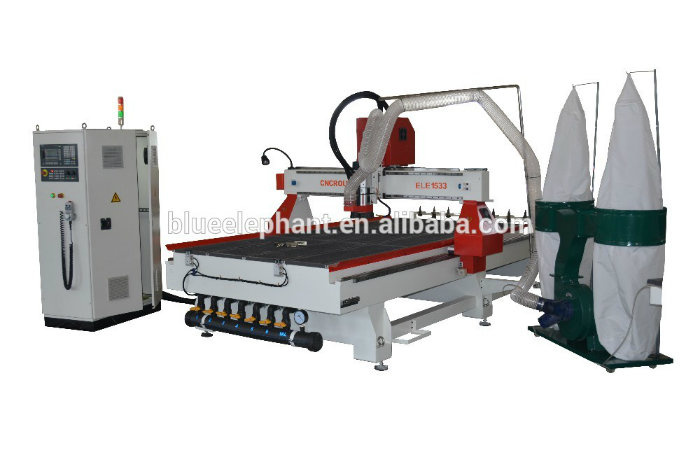

3axis spindle cnc 1533 atc /cnc router
auto tool changer for woodworking
Safety Level of atc cnc
1, Soft limit switch (Shock absorption pad)
2, Japanese Omron limit switch
3, French Schneider electronics
4, French Schneider rotary safety switch on the control box
5, Wires, high soft shielding twisted-pair cable, fire-resistant and with low failure rate, could be bent min 30,000,000 times
world top quality and global service components
1300mm*2500mm*200mm, 9kw Italy HSD ATC spindle,
11kw Taiwan DELTA inverter, Japan YASKAWA servo system ,
Germany SIEMENS control system , Taiwan Original TBI ball screw for Z travel,
the Linear tool storage with 8 pieces , Taiwan HIWIN Linear guide,

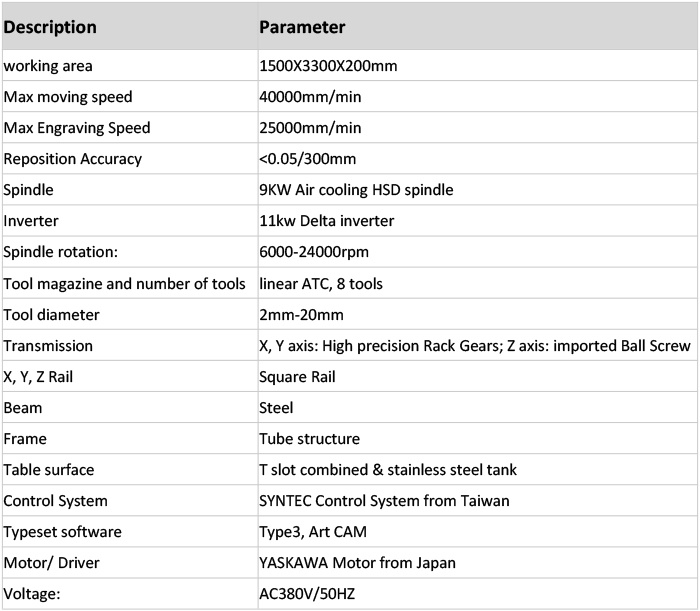

Parameters
The features
1. This is an economic tool changer CNC router; it can change 8 tools automatically
2. This model chooses Italian 9KW HSD ATC air cooling spindle, Delta servo system and Delta 11 KW inverter
3. We use spray and 4mm thickness stainless steel tank for stone processing.
4. SYNTEC control system to avoid the mistake of the software. It can protect the table and the machine. This is a simple auto-tool changer CNC router for wood working. It can save the time to change the tools.
Product Details:
9.0KW Italy HSD atc air cooling spinlde and 11.0KW Taiwan DELTA inverter

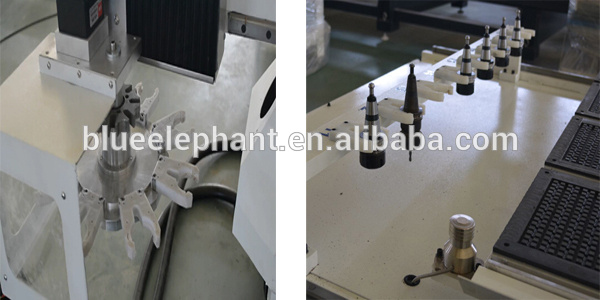

both type atc spindle ,the carousel and linear atc spindle
Japan YASKAWA servo motor and driver
The applicants
1.WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
5.Cylindrical object
Samples:
Packaging & Delivery
Packaging Details:Free fumigation wooden box
Delivery Detail:7-10 working days after payment
Our Service:1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.FAQ:Question 1:
I want to buy this machine,what suggestion can you give?Answer: Please tell me:what material do you process? What's the size of your material?(Better show me your product picture)
Question 2:
What's the delivery cost & time?Answer: Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.
Question 3:
This is the first time I use this kind of machine, is it easy to operate?There are english manual or guide video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
Question 4:
If machine have any problem after I receive it, how can I do ?Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
MOQ ?1 set machine, mixed order is also welcomed.
