Ele1530 Wood Working Machine Atc CNC Router Machine Price
| Price: |
US $ 20000-35000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
ELE1530 |
| Voltage: |
220V/380V |
| Weight: |
2000kg |
| Control System: |
Taiwan Syntec 21mA Control System |
| Spindle: |
9.6kw Italy Hsd Spindle |
| Working Area: |
1500*3000*500 mm |
| Motor: |
1kw Japan Yaskawa Servo Motor |
| Driver: |
1kw Japan Yaskawa Servo Driver |
| Inverter: |
11kw Delta Inverter |
| Table Surface: |
Vacuum&T-Slot Working Table |
| Frame: |
Big Steel Tube Welded Structure |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS BV TUV |
Product Description

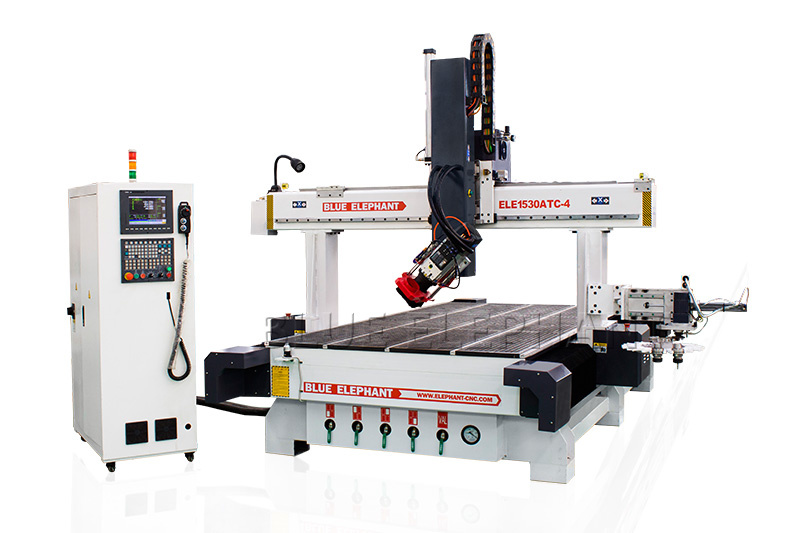

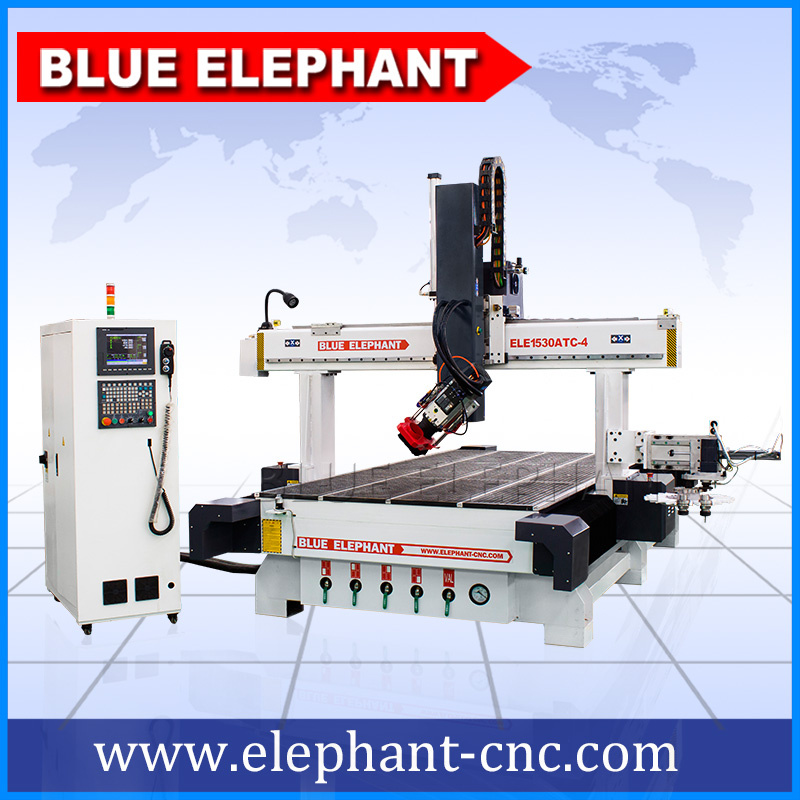

ELE1530 Wood Working Machine ATC Cnc Router Machine Price
Features :
9.6 kw HSD ATC air cooling spindle from Italy
11kw DELTA inverter from Taiwan
Original Taiwan SYNTEC control system
1Kw Japan YASKAWA servo motor
Two set 7.5kw Tongyou vacuum pump
Vacuum and T-slot working table
30# ABBA square linear guide.
Automatic lubrication system.
Advantages :
Heavy duty frame and gantry, 8-10mm thickness.
Z axis is 500mm.
Original Italy HSD 9.6KW, world top brand, it can rotate 180 degree.
Taiwan SYNTEC 21MA control system with computer panel.

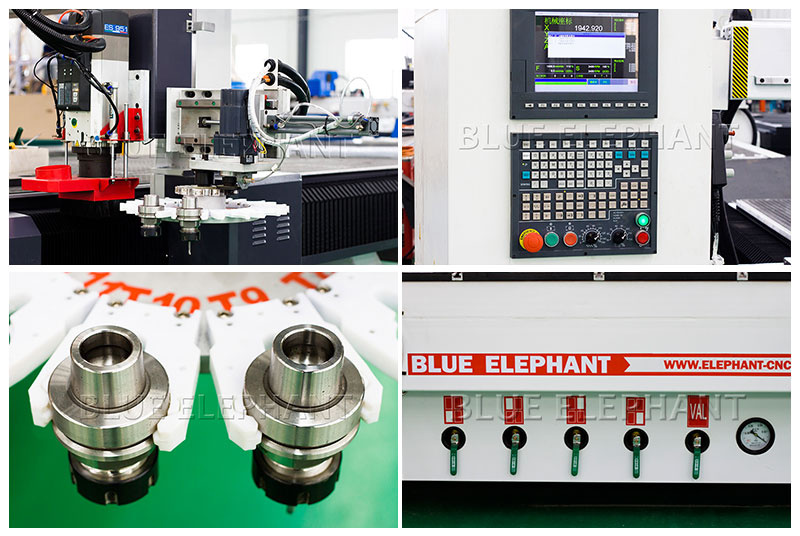

Product Details :
Parameters Description | Parameter |
X,Y,Z Working Area | 1500x3000x500mm |
Table Size | 1500×3000mm |
Table Surface | Vacuum and T-slot working table |
Frame | Welded Structure |
X, Y Structure | Rack and Pinion Drive, # 30 ABBA Rail Linear Bearings |
Z Structure | ABBA Rail Linear Bearings and TBI Ball Screw |
Max. Power Consumption | (Without Spindle) 4Kw |
Max. Rapid Travel Rate | 33000mm/min |
Max. Working Speed | 25000mm/min |
Spindle Power | 9.6kw Italy HSD ATC air cooling spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | 1KW Japan YASKAWA servo motor |
Working Voltage | 220v, 3 phase, 60HZ (Option: AC380V/50/60Hz,3PH) |
Command Language | G Code |
Operating System | Taiwan SYNTEC 21MA Control System |
Computer Interface | USB |
Collet | ISO30 |
X,Y Resolution | <0.01mm |
Software Compatibility | Artcam |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
PS:All the working area and specifications can be customized according to your requests.

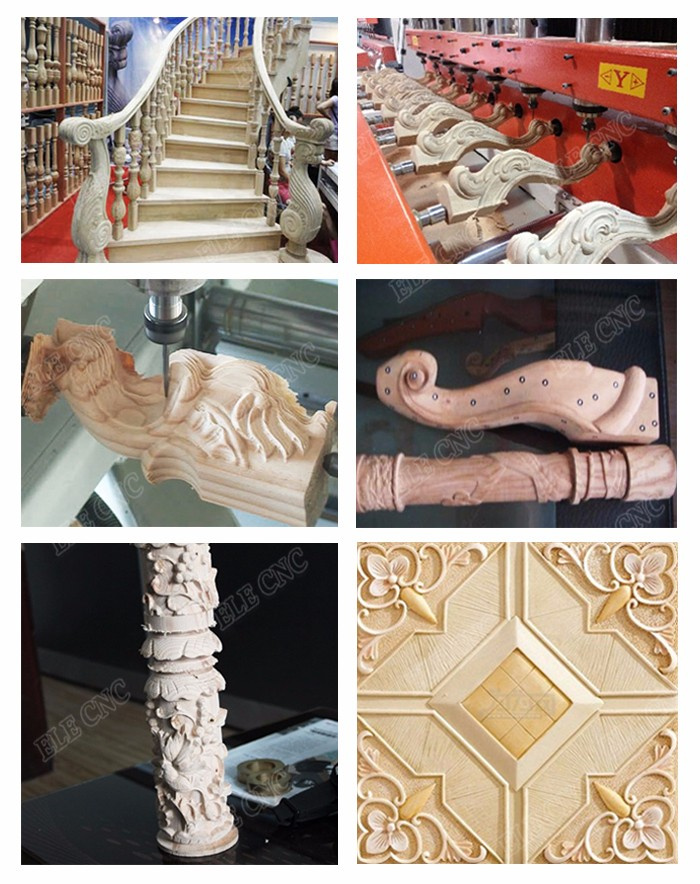

Application :
1.Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
4.Relief sculpture and 3D engraving.
5.Cylindrical object.

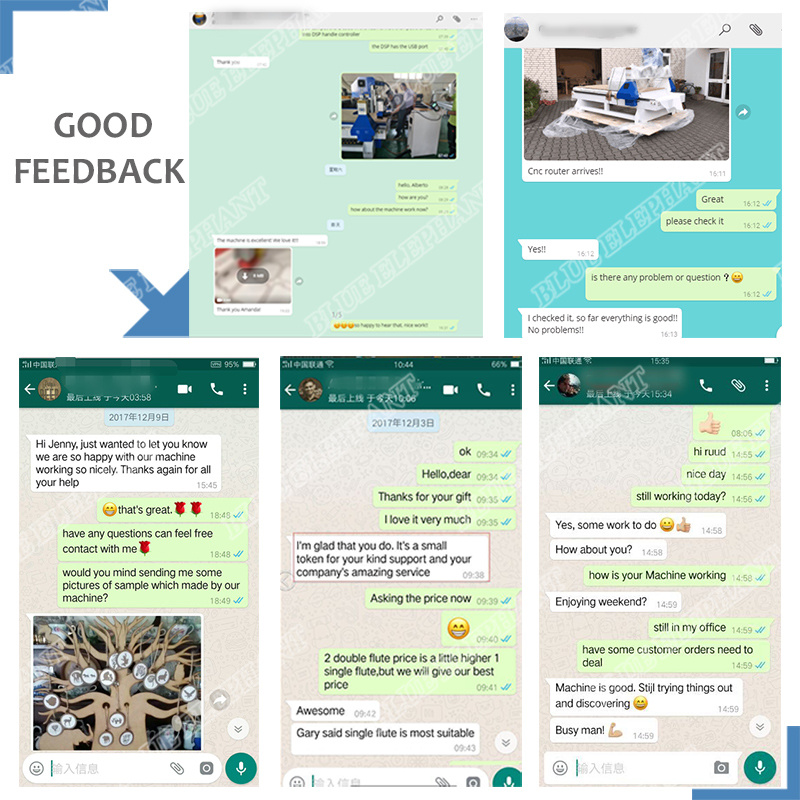

Customers Feedback:

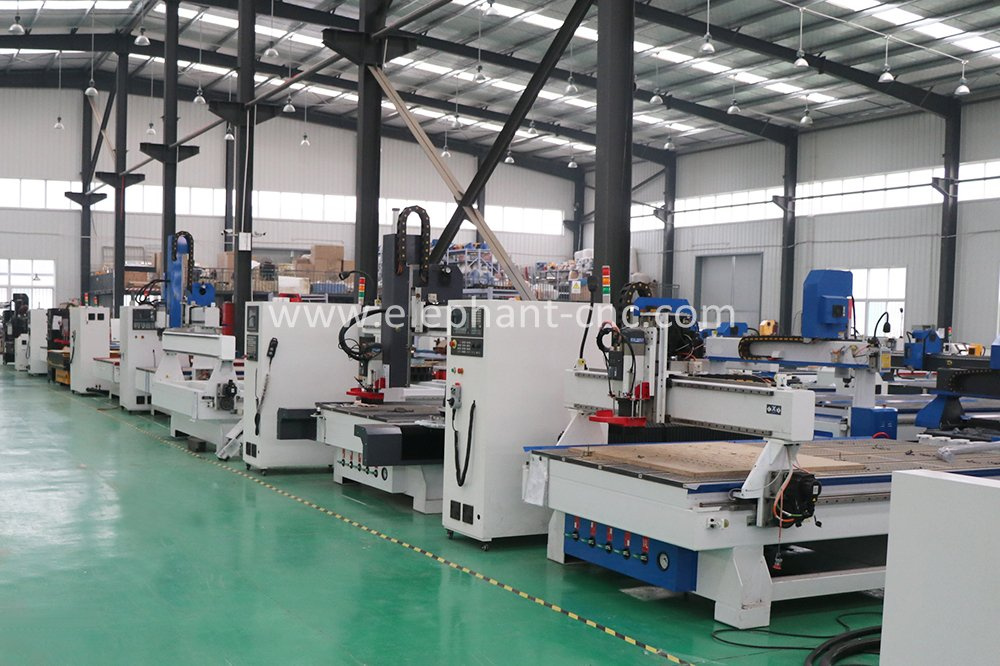

Packaging&DeliveryPackaging Details: 1.Outside package:Standard marine export plywood case. 2.inner package:Stretch film and plastic film for humidity. We can package according to your requests.Delivery Detail: Shipped in 15 working days after payment.Our Services:1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.4, We offer 24 hours technical support by call, and email.5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.6, We can record videos of operating the laser machine.7, Free training course in our factory. 8.Machine will be adjusted before it is delivered, operation disk/CD was included.Welcome to our factory:
