| Price: | US $ 6999-25999/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE1325 |
|---|---|
| Table Surface: | Vacuum&T-Slot |
| Dimension(L*W*H): | 3700*2140*1850mm |
| Weight: | 1500kg |
| Computer Interface: | USB Interface |
| Type: | Vertical Uniaxial Wood Router |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Customized: | Customized |
Video on Youtube:
https://www.youtube.com/watch?v=n5MK333cyak&feature=youtu.be
Features:

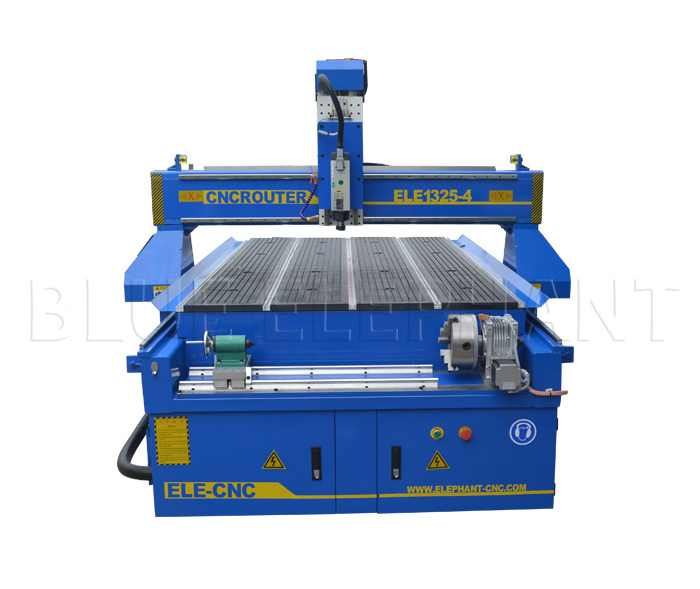

1. 1300*2500mm working area.
2. with rotary device for cylinder object.
3. Vacuum working table. Mechanical fixing small processing materials
4. 3kw Italy HSD ait cooling spindle, It's big strength and higher efficiency,
5. Dust collection system, it can keep a clean, less-dust working surrounding which
is helpful to your healthy; also, it can reduce the surface dust of linear guide, ball
screw and gear transmission, reducing the maintaining cost.
Parameters:
Description | Parameter |
X,Y,Z Working Area | 1300x2500x200mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |
Table Surface | Vacuum and T-slot Table |
Frame | Welded Structure |
X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
Max. Rapid Travel Rate | 33000mm/min |
Max. Working Speed | 25000mm/min |
Spindle Power | 3KW |
Spindle Speed | 0-18000RPM |
Drive Motors | Stepper System |
Working Voltage | AC380V/220v,50/60Hz,1ph/3PH |
Command Language | G Code |
Operating System | DSP System(Options: Ncstudio/Mach3 PC Software) |
Computer Interface | USB |
Flash Memory | 128M(U Disk) |
Collet | ER25 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
PS:All the working area and specifications can be customized according to your requests.
PS:All the working area and specifications can be customized according to your requests.

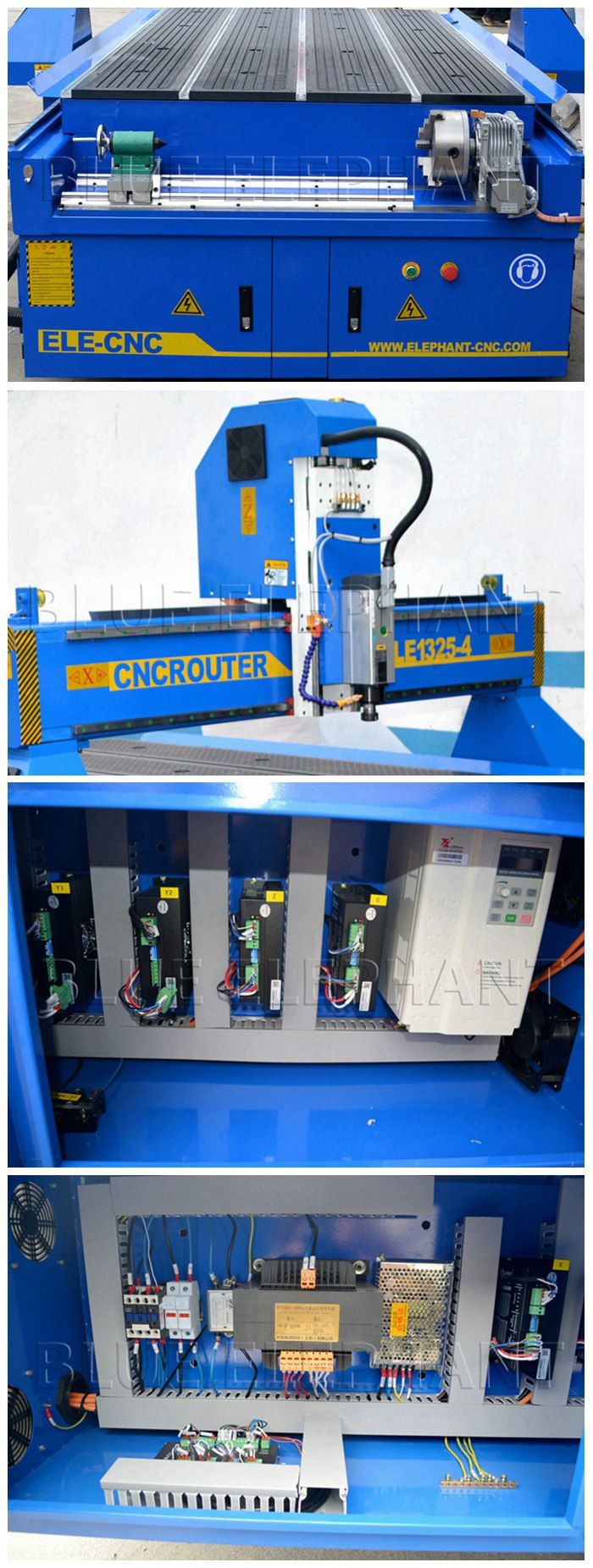

Machinery Parts:
Application
1.Wood furnitur industry: Wave plate,fine pattern,antique furniture,wooden door,screen,craft
sash,composite gates,cupboard doors,interior doors,sofa legs,headboards and so on.
2.Advertising industry: Advertising indentification,sign making,acrylic engraving and cutting,crystal word making,blaster molding,and other advertising materials derivatives making.
3.Die industry: A sculpture of copper,aluminum,iron and other metal molds,as well as artificial marble,sand,plastic sheeting,PVC pipe,wooden planjs and other non-metallic mold.
4.Relief sculpture and 3D engraving
5.Cylindrical object
Packaging & Delivery
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail:Shipped in 15-20 days after payment
Our Service
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will
change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any
problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost
price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.

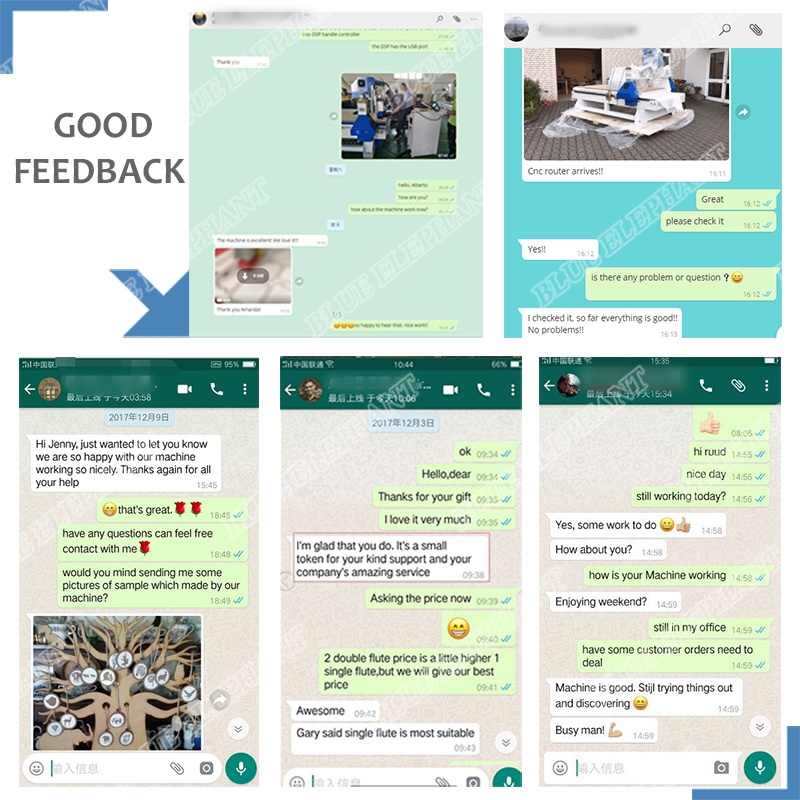

Customers Feedback
Company Information
Jinan Blue Elephant CNC Equipment Co., Ltd is located in Jinan City , Shandong Province.
We have always been developing to the research and manufacturer of CNC router machine and laser cutting engraving machine.
We have our R & D department , Quality control department , and after sale &service department .
Our products are widely used in Woodworking ,Advertising , Model ,Electric , CAD/CAM Industry model , Clothing , Package Printing , Marking , Laser sealing and so on .
We had got CE and FDA certification always offer best quality machine .
Our Philosophy : To Be First Brand -- CNC Manufacturer & wholesaler Platform !
Just looking forward to service every customer, like you .
