Product Specifications
| Prod Model: |
ELE-1325 |
| Power(W): |
2.2kw (Two Sets) |
| Voltage: |
AC380V/50/60Hz, 3pH (Option: 220V) |
| Dimension(L*W*H): |
3200X2140X1850mm |
| Warranty: |
12 Months |
| Weight: |
1400kg |
| Control System: |
DSP Nk105 |
| Reducer: |
Germany Brand |
Product Description

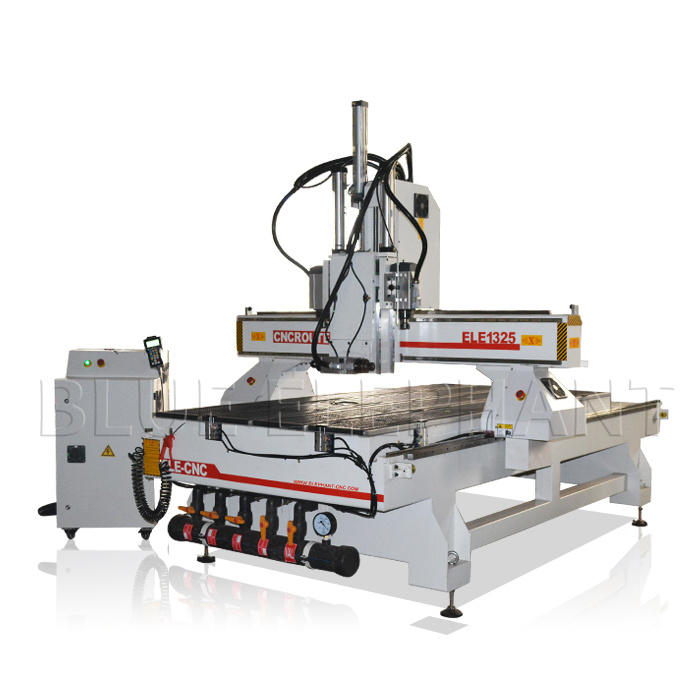

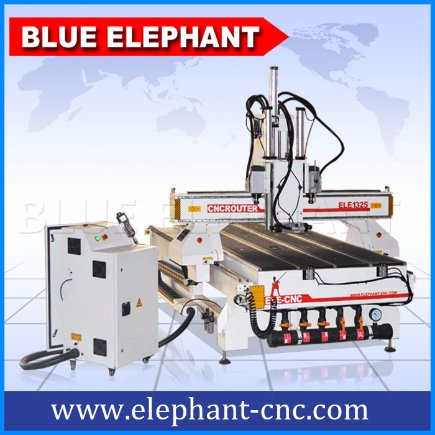

Ele1325 3 Axis atc CNC Wood Carving Machinery with 3 Spindles for wood engraving
Brief Introduction
The cnc router machine is specially designed for woodworking industrial, with multiple spindles auto-changing.
Can be choosen a spindle rotated 90 degree for lock slot . All components used are top quality in the world.
3kw HSD and 4.5kw HSD spindles can be changed automatically with the commands from control system.
Thicken and bigger steel pipe structure after special treatment, well welded, no distortion for whole structure, high precision and long using life.
Safety Level :
1, Soft limit switch (Shock absorption pad)
2, Japanese Omron limit switch
3, French Schneider electronics
4, French Schneider rotary safety switch on the control box
5, Wires, high soft shielding twisted-pair cable, fire-resistant and with low failure rate, could be bent min 30,000,000 times
Parameters:| Description | Parameter |
| X,Y,Z Working Area | 1300x2500x160mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| Table Surface | T-slot Table |
| Frame | Welded Structure |
| X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| Max. Power Consumption | (Without Spindle) 2. kw~2.2Kw |
| Max. Rapid Travel Rate | 33000mm/min |
| Max. Working Speed | 25000mm/min |
| Spindle Power | 3KW HSD air cooling spindle for both heads |
| Spindle Speed | 0-18000RPM |
| Drive Motors | Stepper System |
| Working Voltage | AC220V/50/60Hz,3PH (Option: 380V) |
| Command Language | G Code |
| Operating System | DSP control system(options: NCstudio/Mach3 PC Software) |
| Collet | ER20 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3/UcancameV9 Software |
| Running Environment Temperature | 0 - 45 Centigrade |
PS:All the working area and specifications can be customized according to your requests. Application
Strong functions, easy operation, durable, reliable performance, high efficiency, applicable to batch
process any wooden products, antique furniture, crafts gifts, relief processing.
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,MDF,
craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,
crystal word making, blaster molding, and other advertising materials derivatives making.
3.The machine is specially designed for woodworking industrial, with multiple spindles auto-changing.

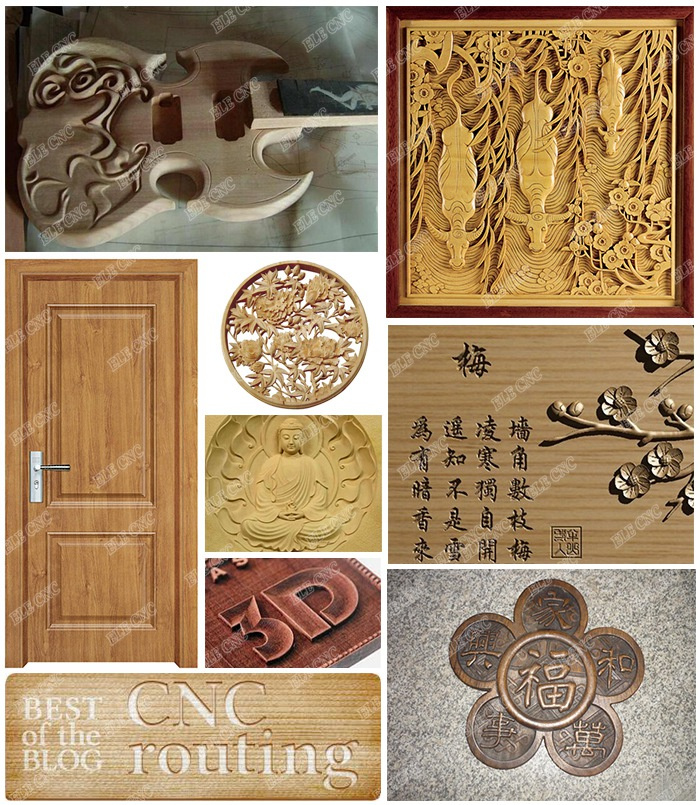

Samples:
Packaging & Delivery:Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 days after payment
Our Service:1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
Company Information: Jinan Blue Elephant CNC Equipment Co., Ltd is located in Jinan City , Shandong Province . We have always been developing to the research and manufacturer of CNC router machine and laser cutting engraving machine .
We have our R & D department , Quality control department , and after sale &service department .
Our products are widely used in Woodworking ,Advertising , Model ,Electric , CAD/CAM Industry model , Clothing , Package Printing , Marking , Laser sealing and so on .
We had got CE and FDA certification always offer best quality machine .
Our Philosophy : To Be First Brand -- CNC Manufacturer & wholesaler Platform !
Just looking forward to service every customer, like you .
Welcome to our factory!
Please don't hesitate to contact me.
Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
We have always been devoting to the research and manufacture of CNC engraving machines. We have R&D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in woodworking, advertising, model, electric, CAD/CAM industry model, clothing, package printing, marking, laser sealing and so on.
We can offer you the high quality products with the competitive price. Our products have got CE certificate. Our main products are as follows: CNC router, laser engraving and cutting machine, laser cutting machine, marble CNC router, cutting plotter, plasma metal cutting machine, advertising CNC router and so on.
Business Type: Manufacturer, OEM, ODM
Main Products: Wood CNC router machine, laser engraving and cutting machine, stone CNC router, plasma cutting machine, laser machine
Location: Shandong, China (Mainland)
Year Established: 2013
Number of Employees: 11 - 50 People
Total Revenue: US$10 Million - US$50Million
Main Markets: Oceania, Western Europe, North America, Africa, Southeast Asia
