| Price: | US $ 1299-3999/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE6015 |
|---|---|
| Power(W): | 1.5kw |
| Voltage: | 220/110V, 1phase, 50/60Hz |
| Weight: | 400kg |
| Warranty: | 12 Months |
| Dimension(L*W*H): | 1600mmx1300mmx1700mm |
| Working Area: | 600*1500*120mm |
| Motor System: | Stepper Motor System(Option:Servo Motor) |
| Control System: | DSP with USB Interface |
| Driver: | Yako 2608 Driver(Top Brand in China) |
| Inverter: | 1.5kw Fuling Inverter |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | FDA |

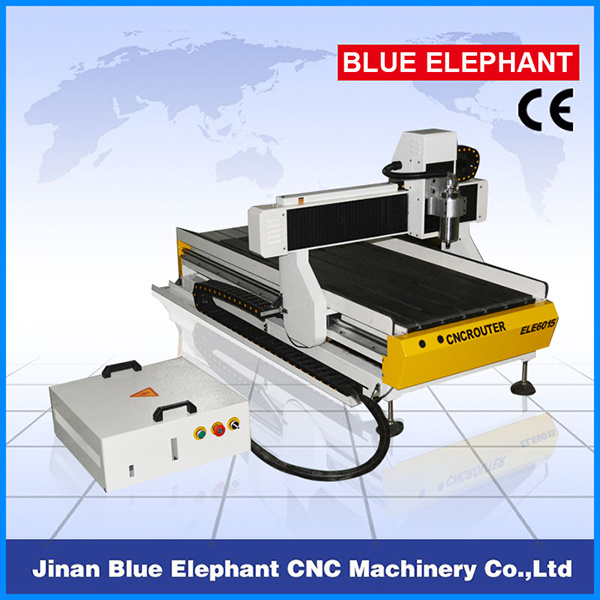

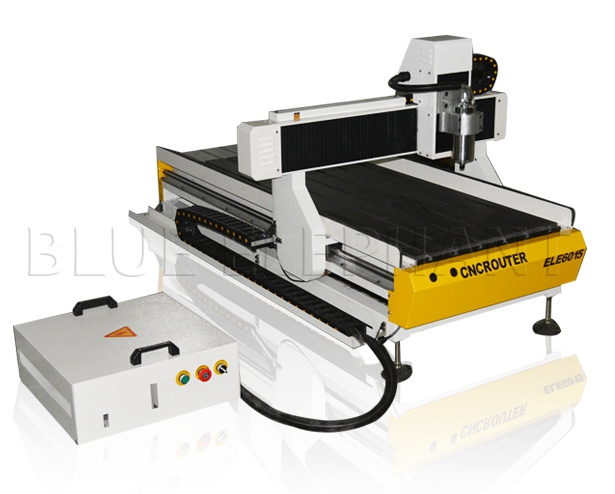

Main features of 6015 mini desktop cnc router machine
1). Adopt constant power water-cooled frequency spindle, great cooling effect, high speed, low noise and long life.
2). It is very suitable for CNC hobby friends, small engraving shop and factories as well.
3). Popular DSP control system is very easy for every buyer and beginner, and no need to be connected with a computer, very convenient; easy to operate.
4). Ball screw gives it good resolution and less noise. We use Taiwan TBI brand, more stable and precise.
5). We use accurate LM linear (HIWIN) for Y axis, more stable,higher precision, longer lifetime and lower noise.
6). We use YAKO 2608 driver, very powerful, ensuring the machine is stable and long lifetime.
7). We use Highly flexible towline; fire-resistant double-sheathed cable, Prevent electrostatic interference; also with cable carrier outside to protect the cable.

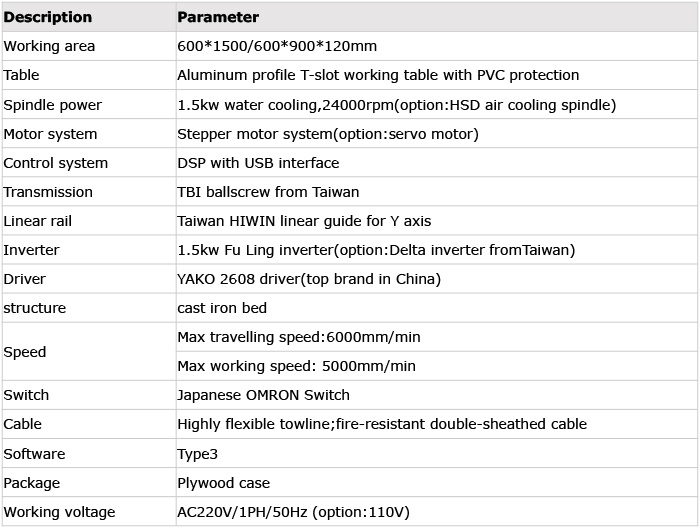

Specifications of 6015 mini desktop cnc router machine

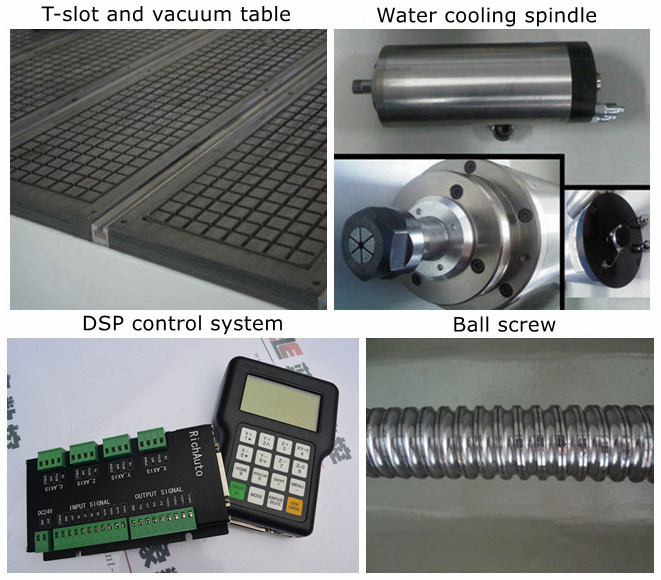

Main Parts of 6015 mini desktop cnc router machine
Applications
1).Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2).Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding,and other advertising materials derivatives making.
3).Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4).Relief sculpture and 3D engraving.
5).Cylindrical object.
Samples
Packaging & Delivery
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 10 working days after payment.
Guarantee and After-sale service
12 months for the whole machine.
1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
Certificates
Company Information
Jinan Blue Elephant CNC Equipment Co., Ltd is located in Jinan City, Shandong Province. We have always been developing to the research and manufacturer of CNC router machine and laser cutting engraving machine.
We have our R & D department, Quality control department, and after sale & service department.
Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
We had got CE and FDA certification always offer best quality machine.
Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
Just looking forward to service every customer, like you.
