| Price: | US $ 1999-2999Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE 6040 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

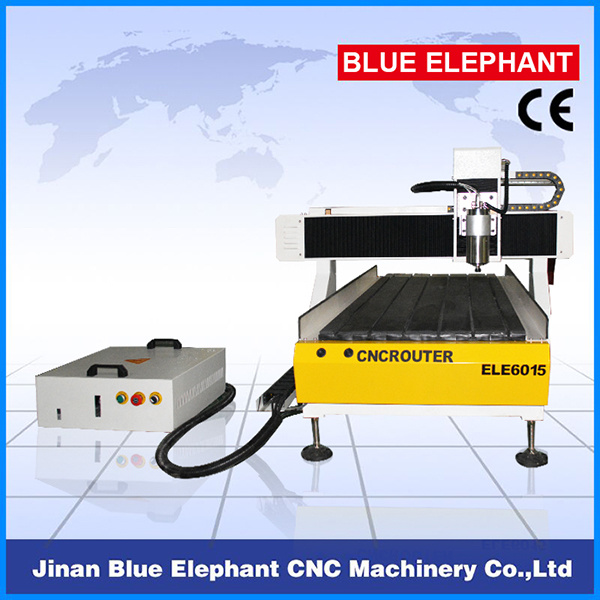

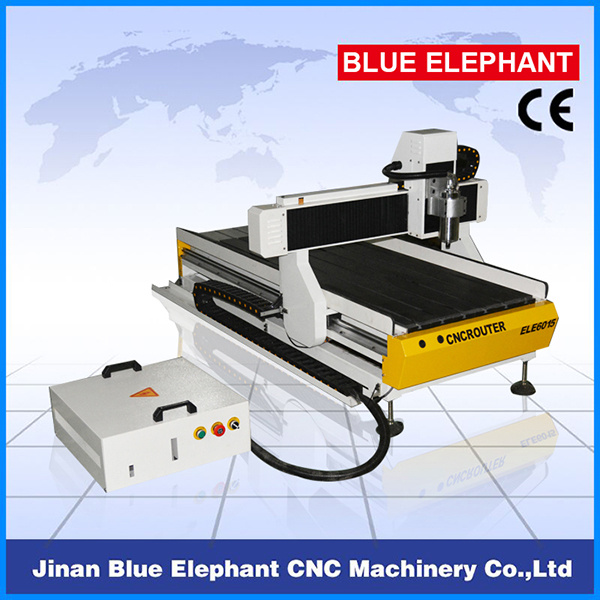

| Product: | Mini CNC Router |
| Working Area: | 600mmx400mmx85mm |
| Spindle Power: | 1.5 Kw Water Cooling Spindle |
| Max. Working Speed: | 10000mm/Min |
| Spindle Rotation Speed: | 0-24000rpm |
| Inverter: | Fuling Brand ( Taiwan Delta for Option) |
| Control System: | DSP /Mach3/Ncstudio |
| X,Y,Z Axis Structure: | Ball Screw Imported From Taiwan |
| Driver Motors: | Stepper |
| Table Surface: | T-Slot Working Table |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | SGS |
1.600*400*85mm effective working area.

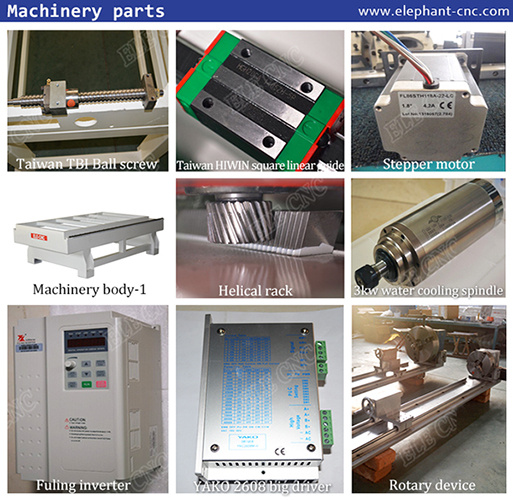

2.1.5kw China Top brand water cooling spindle, Best quality in china, high precision and less noise.
3.Mach3 control system with USB interface.
4.Taiwan TBI ball screw for Z axis, high precision, smooth transmission.
5.High speed gantry moving type.
6.Cast iron structure,high precision.
Specification:
Description | Parameter |
X,Y,Z Working Area | 600mmx400mmx85mm |
Table Size | 720mmX1140mm |
X,Y,Z Traveling Positioning Accuracy | ±0.01mm/300mm |
X,Y,Z Repositioning Accuracy | ±0.01mm |
Table Surface | T-slot Table |
Frame | Welded Structure |
X, Z Structure | TBI Ball Screw |
Y Structure | TBI Ball Screw |
Max. Power Consumption | 0.8Kw |
Max. Rapid Travel Rate | 10000mm/min |
Max. Working Speed | 6000mm/min |
Spindle Power | 1.5kw water Cooling Spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | Servo System |
Working Voltage | AC220V/50/60HZ,1Phs |
Command Language | G code |
Operating System | DSP System(options: Ncstudio/Mach3 PC Software) |
Computer Interface | USB |
Flash Memory | 128M(U Disk) |
Collet | ER16 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3/UcancameV9 softwar(Option: Artcam software) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Packing Size | 1050*810*700 mm |
G.W. | 90kgs |

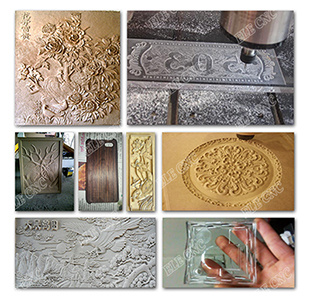

Application
1.WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding,and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.Relief sculpture and 3D engraving
5.Cylindrical object
