Jinan Blue Elephant CNC Machinery Co., Ltd. >> Ele-2040 Atc CNC Wood Router, Milling Machines CNC Wood Router with Ce, CIQ, FDA Certification

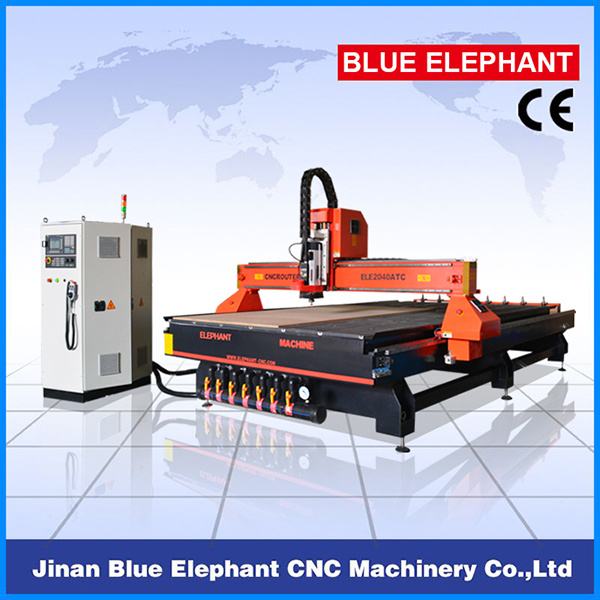

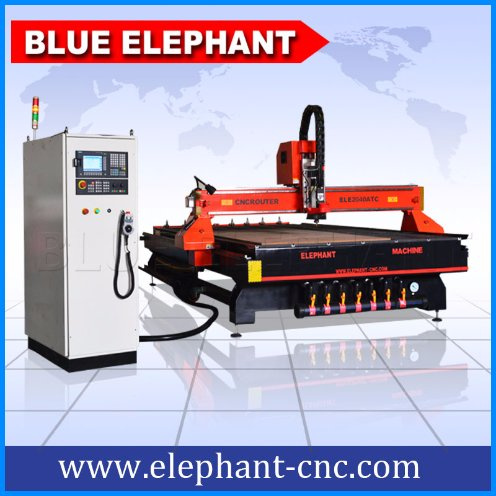

Ele-2040 Atc CNC Wood Router, Milling Machines CNC Wood Router with Ce, CIQ, FDA Certification

Ele-2040 Atc CNC Wood Router, Milling Machines CNC Wood Router with Ce, CIQ, FDA Certification
Price: US $ 15999-25999/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Product Specifications


Prod Model: ELE-2040
Power(W): 4.5kw
Frame: Welded Structure
Warranty: 12 Months
Weight: 2200kgs
Table Surface: Vacuum and T-Slot Working Table
Voltage: AC380V/50/60Hz, 3pH (Option: 220V)
Certification: SGS

Product Description

China ELE-2040 milling machines cnc wood router

                       with CE,CIQ,FDA certification



Parameters:

Description

Parameter

X,Y,Z Working Area

2000x4000x200mm

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

X,Y,Z Repositioning Accuracy

±0.03mm

Table Surface

Vacuum &T-slot Table

Frame

steel tube frame

X, Y Structure

Rack and Pinion Drive, HIWIN Rail Linear Bearings

Z Structure

Ball screw and Hiwin Rail Linear Bearings

Max. Power Consumption

2.0KW

Max. Rapid Travel Rate

45000mm/min

Max. Working Speed

30000mm/min

Spindle Power

3KW air cooling spindle(optional)

Spindle Speed

0-24000RPM

Drive Motors

Yako Stepper Motor (optional)

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V)

Command Language

G Code

Operating System

DSP System (Options: Ncstudio /SYETEC Software)

Computer Interface

USB

Flash Memory

128M(U Disk)

Collet

ER25

X,Y Resolution

<0.01mm

Software Compatibility

Type3 Software, (Option: Artcam Software)

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

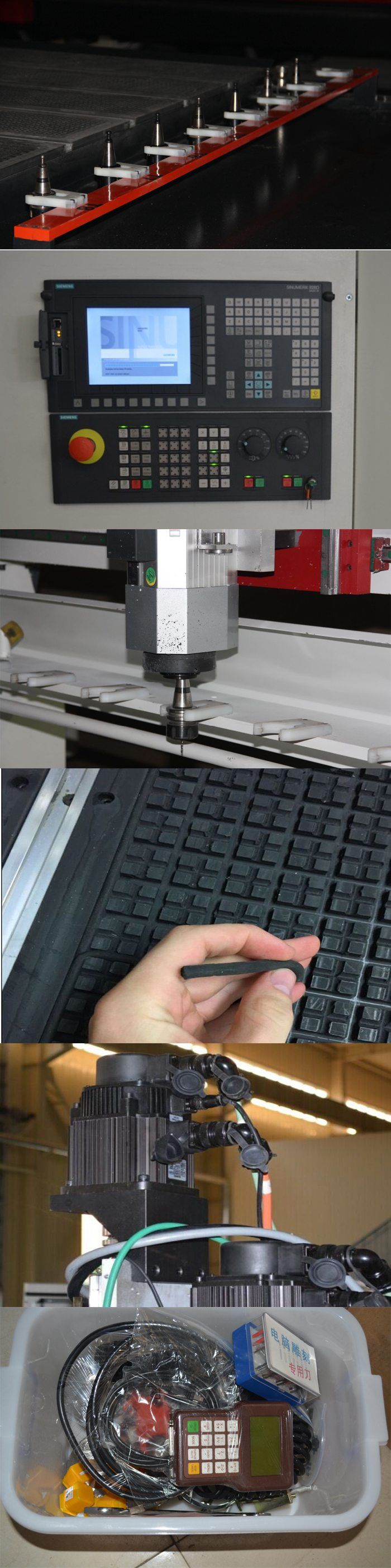

Product Details:


Applications:


1.WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.



2.Advertising industry: advertising identification, sigh making, Acrylic engraving and

 cutting, crystal word making, blaster molding, and other advertising materials deriva

-tives making.


3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well

 as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-

-metallic mold.



4.Relief sculpture and 3D engraving



5.Cylindrical object


Samples:



Our Service:

1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems,

    we will change it free.

2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts

    have any problems, we can change the old machine parts to new ones free, but you should pay all

    the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts

    with cost price and you also should pay all the shipping cost.

4, We offer 24 hours technical support by call, email

5, Our technician can give you remote guide online(Skype or MSN) if you have any question

6, We can record videos of operating the laser machine

7, Free training course in our factory

8.Machine will be adjusted before it is delivered , operation disk/CD was included.


Packaging Details:Free fumigation wooden box for cnc router 2040.
Delivery Detail:7 working days after payment




                                 Welcome to our factory!

Mail to me!

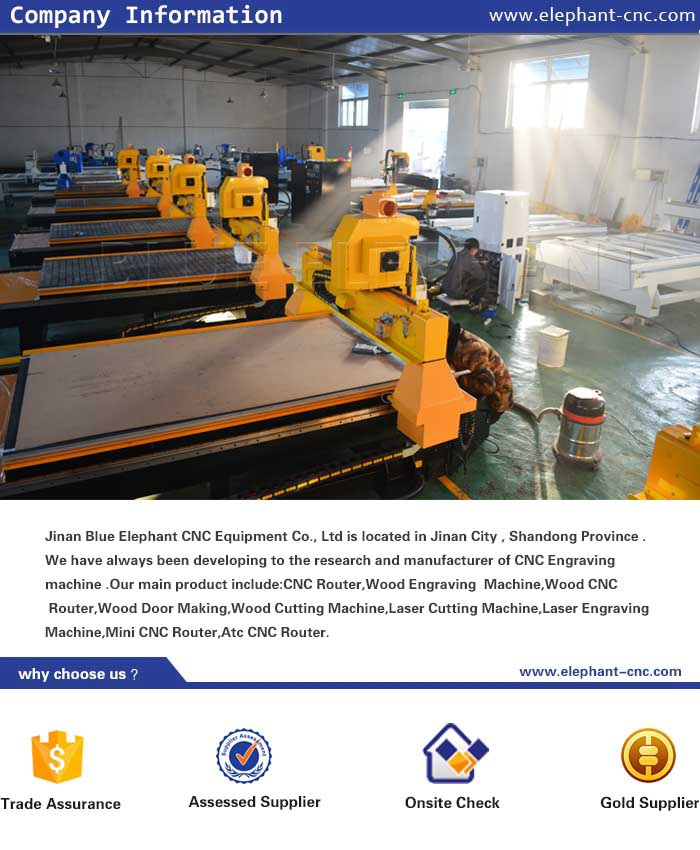

Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!

We have always been devoting to the research and manufacture of CNC engraving machines. We have R&D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in woodworking, advertising, model, electric, CAD/CAM industry model, clothing, package printing, marking, laser sealing and so on.

We can offer you the high quality products with the competitive price. Our products have got CE certificate. Our main products are as follows: CNC router, laser engraving and cutting machine, laser cutting machine, marble CNC router, cutting plotter, plasma metal cutting machine, advertising CNC router and so on.

Business Type: Manufacturer, OEM, ODM

Main Products: Wood CNC router machine, laser engraving and cutting machine, stone CNC router, plasma cutting machine, laser machine

Location: Shandong, China (Mainland)

Year Established: 2013

Number of Employees: 11 - 50 People

Total Revenue: US$10 Million - US$50Million

Main Markets: Oceania, Western Europe, North America, Africa, Southeast Asia
