Jinan Blue Elephant CNC Machinery Co., Ltd. >> Ele 2030 Rotary 4 Axis Wood Carving Machine, 3 Spindles CNC Cutting Machine for Wood Stairs

Ele 2030 Rotary 4 Axis Wood Carving Machine, 3 Spindles CNC Cutting Machine for Wood Stairs

Ele 2030 Rotary 4 Axis Wood Carving Machine, 3 Spindles CNC Cutting Machine for Wood Stairs
Price: US $ 6999-12999set
Min Order: 1set
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Product Specifications


Prod Model: ELE 2030
Voltage: AC380V/3pH/50Hz(Option:220V)
Dimension(L*W*H): 3050*1940*2200mm
Spindle Power: 6kw Hqd Air Cooling Spindle *3
Control System: DSP A123 Control System
Spindle Speed: 0-18000rpm
Inverter: 7.5kw Fuling Inverter
Working Area: 2000*3000*200mm
Linear Rail: 20# Taiwan Hinwin/PMI Linear Guide
Motor And Driver: Stepper
Spindle Layout: Spindle Over
Feed Mode: Mechanical
Controlling Mode: CNC
Certification: FDA
Spindle Number: Three Spindles

Product Description

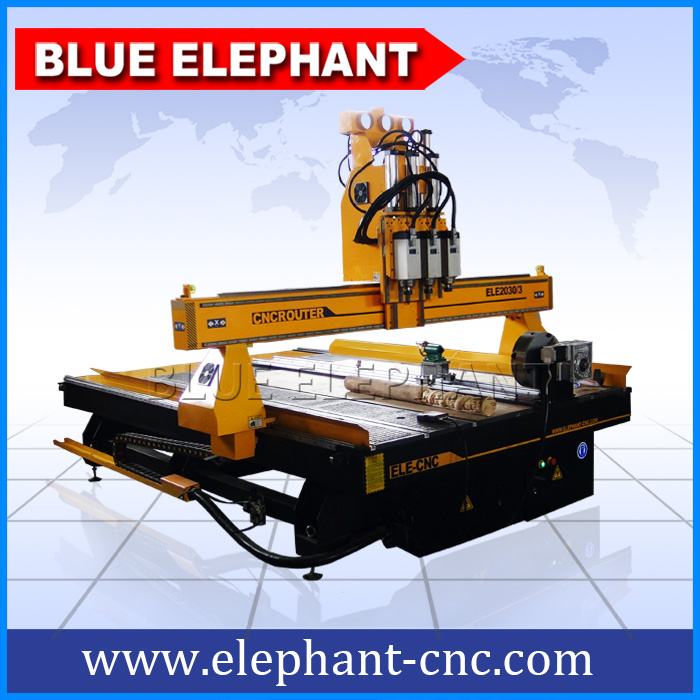

ELE 2030 rotary 4 axis wood carving machine , 3 spindles cnc cutting machine for wood stairs



Product Description

Advantages:

  • It can engrave the material with 3 different tools. No need to change tools.
  • It is very suitable for the clients who have limited budget for auto tool change (ATC) cnc router.
  • There is a removable rotary. So the machine can engrave both plate and cylinder.
  • It can be used in the furniture industry, decorate industry.




Features:



  • 2000*3000*200mm working size
  • 6kw HQD air cooling spindle 3 heads
  • 7.5kw Fuling inverter
  • T slot &Vacuum table
  • Taiwan HIWIN Square Rail for X, Y, Z axis #20
  • stepper motor FL118 YAKO2811 driver
  • DSP control system
  • dust colleation brush, pipe and frame
  • Ucancam 2012 software
  • 8mm Heavy duty Body construction
  • 24 pieces router bits
  • 300mm rotary device

Parameters:



DescriptionsParameters
ModleELE 2030
Working area2000*3000*200mm
Control systemDSP A123 control system
Spindle6kw HQD air cooling spindle * 3
Spindle speed0-18000RPM
Inverter7.5kw Fuling Inverter
Motor and driverStepper
Voltage380V, 3ph, 50Hz(220v for optional)
Linear railTaiwan PMI 20# linear guide
Table structureNew type thicker and bigger heavy duty welded frame and gantry
Table surfaceVacuum working table
X,Y axis transmissionHelical rack and pinion drive for X,Y axis
Z axis transmissionTaiwan TBI 2510 ball screw for z axis
SoftwareUcancam2012

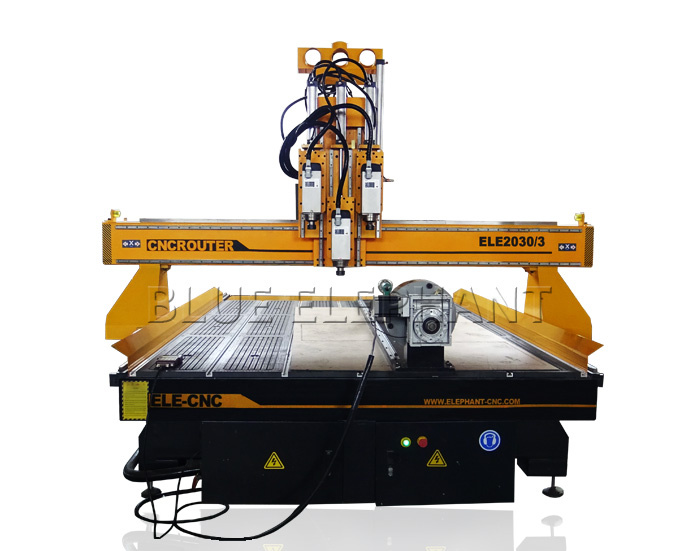

Product details:

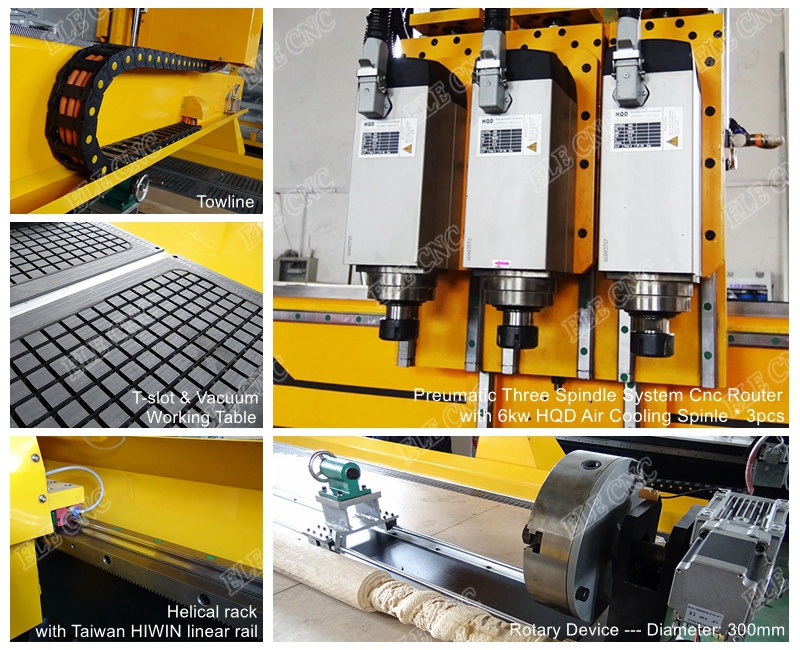

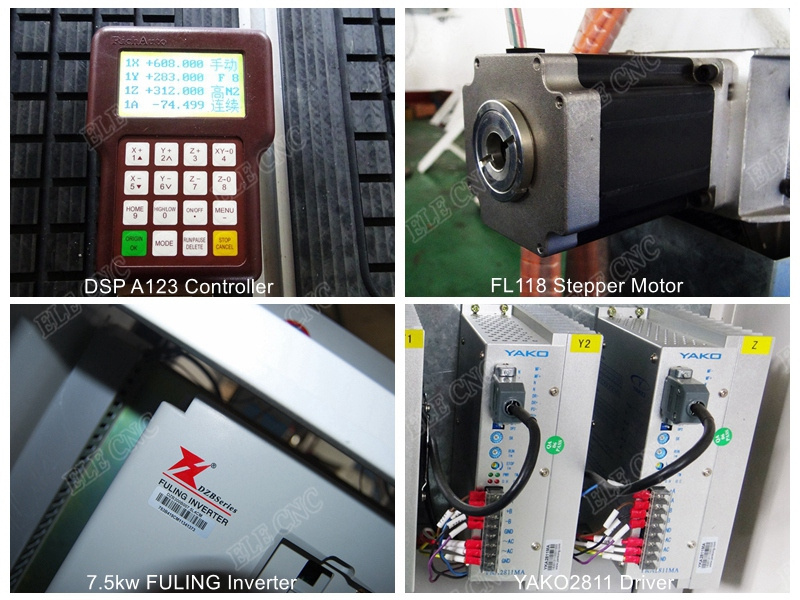

Machinery parts:



Applications:



Strong functions, easy operation, durable, reliable performance, high efficiency, applicable to batch process any wooden products, antique furniture, crafts gifts, relief processing.

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, MDF, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.



Samples show:
Packaging & Shipping

Our Services



1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.


Welcome to contact us.
Manager : Jack
Whats app/mobile : 0086-15064026772
Web: www.elephant-cnc.com


Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!

We have always been devoting to the research and manufacture of CNC engraving machines. We have R&D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in woodworking, advertising, model, electric, CAD/CAM industry model, clothing, package printing, marking, laser sealing and so on.

We can offer you the high quality products with the competitive price. Our products have got CE certificate. Our main products are as follows: CNC router, laser engraving and cutting machine, laser cutting machine, marble CNC router, cutting plotter, plasma metal cutting machine, advertising CNC router and so on.

Business Type: Manufacturer, OEM, ODM

Main Products: Wood CNC router machine, laser engraving and cutting machine, stone CNC router, plasma cutting machine, laser machine

Location: Shandong, China (Mainland)

Year Established: 2013

Number of Employees: 11 - 50 People

Total Revenue: US$10 Million - US$50Million

Main Markets: Oceania, Western Europe, North America, Africa, Southeast Asia
