Ele 2030 Hot Sale CNC Router Machine, Wood Cutting Machinery for Wood Furniture Making
| Price: |
US $ 3800-8700set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
ELE 2030 |
| Voltage: |
AC 220V/1pH/50Hz(380V/3pH Optional) |
| Dimension(L*W*H): |
3700*2140*1850mm |
| Power(W): |
7kw |
| Spindle Power: |
6kw Changsheng Water Cooling Spindle |
| Table Surface: |
Vacuum&T-Slot Working Table |
| Driver Mortors: |
Stepper System |
| Operating System: |
DSP A18 for 4 Axis |
| Spindle Speed: |
0-24000rpm |
| Inverter: |
7.5kw Fuling Inverter |
| Working Area: |
2000*3000mm |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
FDA |
Product Description
ELE 2030 hot sale cnc router machine , wood cutting machinery for wood furniture making
Features:
Effective working area:2000*3000mm , Z axis 300mm
6Kw water cooling spindle,24000rpm
7.5kw Fuling inverter
Stepper motor and drivers
Rotary device:Integrated infront equipment 200*1400mm
Control system DSP A18 with USB interface
HIWIN#20 linear square guide way for X,Y,Z axis
Taiwan TBI ball screw for Zaxis
Vacuum and T-slot table
Japan OMRON limit switch for X,Y,Z axis
Tool sensor calibrate
Oil Lubrication System
Water mist cooling sprayer system
7.5KW water circulation vacuum pump
1.5KW newty pedust collector with two bags

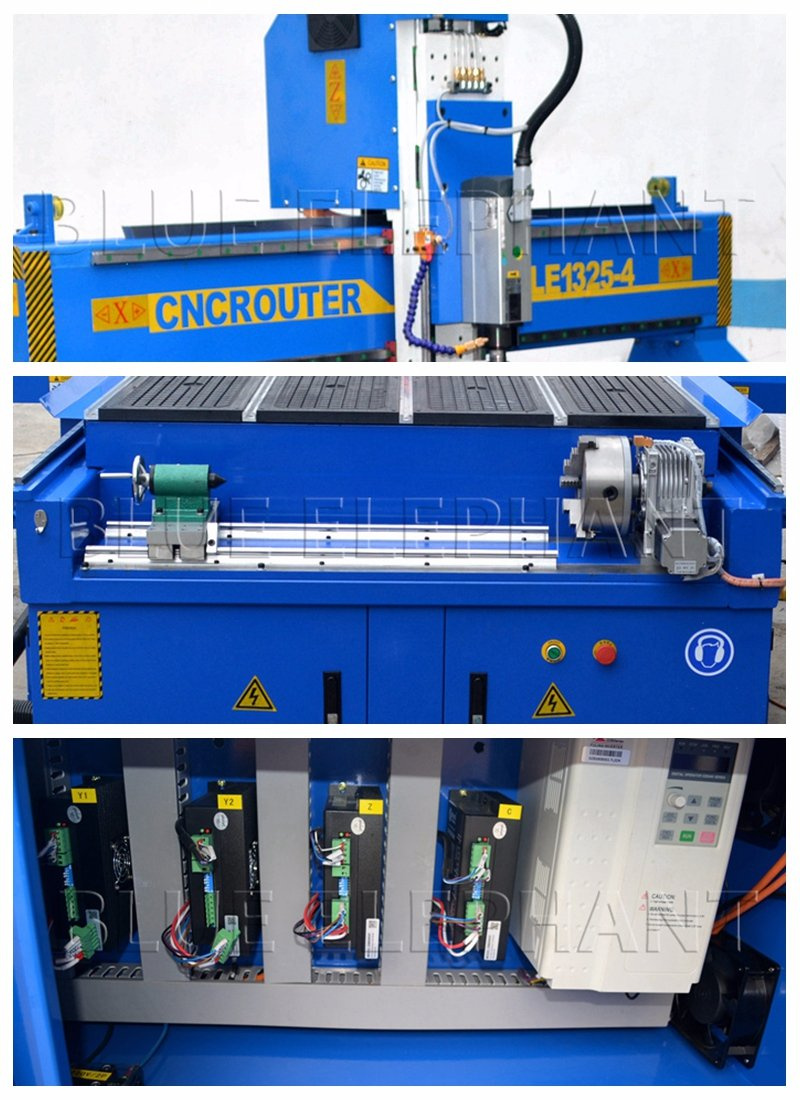

Voltage:380V,3phase,50HZ Details:
Technical Parameters:| Description | Parameter |
| X,Y,Z Working Area | 2000x3000x200mm |
| Table Surface | Vacuum and T-slot Table |
| Frame | Welded Structure |
| X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| Z Structure | Hiwin Rail Linear Bearings and TBI Ball Screw |
| Spindle Power | 6KW Changsheng water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Motors | FL118 stepper motor |
| Driver | YAKO 2608 |
| Inverter | 7.5kw Fuling inverter |
| Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| Command Language | G Code |
| Operating System | DSP A18 |
| Computer Interface | USB |
| Collet | ER25 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
Application1.Wood furniture industry:Wave plate,fine pattern,antique furniture,wooden door,screen,craft sash,composite gates,cupboard doors,interior doors,sofa legs,headboards and so on.
2.Advertising industry:Advertising indentification,sign making,acrylic engraving and cutting,crystal word making,blaster molding,and other advertising materials derivatives making.
3.Die industry:A sculpture of copper,aluminum,iron and other metal molds,as well as artificial marble,sand,plastic sheeting,PVC pipe,wooden planjs and other non-metallic mold.
4.Relief sculpture and 3D engraving
5.Cylindrical objectSamples

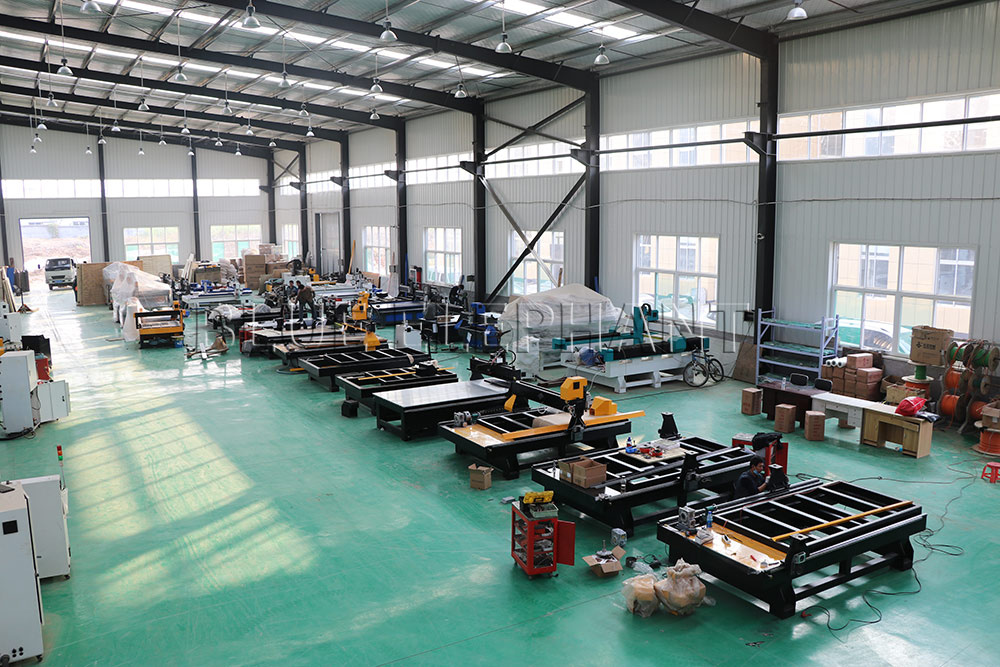

Our Factory
Jinan Blue Elephant CNC Equipment Co., Ltd is located in Jinan City , Shandong Province .
We have always been developing to the research and manufacturer of CNC router machine and plasma cutting machine .
We have our R & D department , Quality control department , and after sale & service department .
Our products are widely used in Woodworking , Advertising , Model , Electric , CAD / CAM Industry model , Clothing , Package Printing , Marking , Laser sealing and so on .
We had got CE and SGS certification , always offer best quality machine .
Welcome to visit our factory!
Welcome to contact us.Manager : Jack
mobile : 0086-15064026772
Web: www.elephant-cnc.com
Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
We have always been devoting to the research and manufacture of CNC engraving machines. We have R&D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in woodworking, advertising, model, electric, CAD/CAM industry model, clothing, package printing, marking, laser sealing and so on.
We can offer you the high quality products with the competitive price. Our products have got CE certificate. Our main products are as follows: CNC router, laser engraving and cutting machine, laser cutting machine, marble CNC router, cutting plotter, plasma metal cutting machine, advertising CNC router and so on.
