| Price: | US $ 4299-12999set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE 1533 |
|---|---|
| Voltage: | AC220V/380V, 50Hz/60Hz |
| Dimension(L*W*H): | 3800*2300*1900 |
| After-Sales Service Provided: | Engineers Available to Service Machinery Overseas |
| Spindle Power: | Italy 9kw Air Cooling Spindle |
| Spindle Rotation Speed: | 0-24000rpm |
| Tool Collet: | ISO30 |
| Tools Number: | 8 Positions Atc |
| Max. Working Speed: | 25000mm/Min |
| Table Surface: | Vacuum and T-Slot Combined |
| Z Structure: | Taiwan Tbi Ball Screw, Taiwan Hiwin Linear Rail |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | FDA |
Safety Level of atc cnc:
1, Soft limit switch (Shock absorption pad)
2, Japanese Omron limit switch
3, French Schneider electronics
4, French Schneider rotary safety switch on the control box
5, Wires, high soft shielding twisted-pair cable, fire-resistant and with low failure rate, could be bent min 30,000,000 times

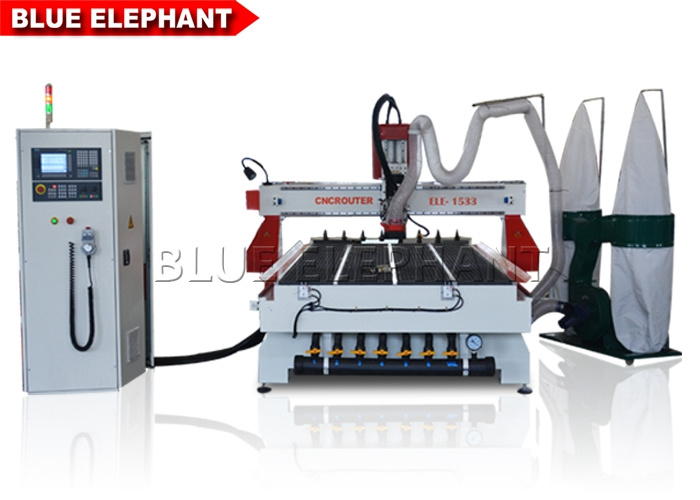

Our Linear ATC is with world top quality and global service components
1300mm*2500mm*200mm, 9kw Italy HSD ATC spindle, 11kw Taiwan DELTA inverter, Japan YASKAWA servo system , Germany SIEMENS control system , Taiwan Original TBI ball screw for Z travel, the Linear tool storage with 8 pieces , Taiwan HIWIN Linear guide,
The applicants
1.WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
5.Cylindrical object
The features
1. This is an economic tool changer CNC router; it can change 8 tools automatically
2. This model chooses Italian 9KW HSD ATC air cooling spindle, Delta servo system and Delta 11 KW inverter
3. We use spray and 4mm thickness stainless steel tank for stone processing.
4. SYNTEC control system to avoid the mistake of the software. It can protect the table and the machine. This is a simple auto-tool changer CNC router for wood working. It can save the time to change the tools.
After-sale service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, email
5, Our technician can give you remote guide online(Skype or MSN) if you have any question
6, We can record videos of operating the laser machine
7, Free training course in our factory
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
