| Price: | US $ 9999-29999/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE-1530 |
|---|---|
| Control System: | Syntec Control System From Taiwan |
| Motor/ Driver: | Yaskawa Motor From Japan |
| Working Area: | 1500X3000X500mm |
| Spindle: | 9kw Air Cooling Hsd Spindle |
| Inverter: | 11kw Delta Inverter |
| Voltage: | AC380V/50/60Hz, 3pH (Option: 220V) |
| Typeset Software: | Type3, Art Cam |
| Frame: | Tube Structure |
| Table Surface: | T-Slot Combined & Stainless Steel Tank |
| Tool Magazine And Number Of Tools: | Linear Atc, 8 Tools |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | FDA |

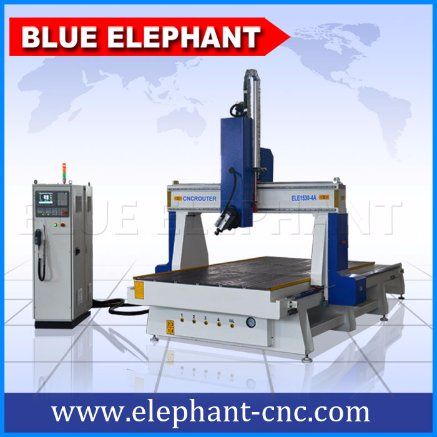

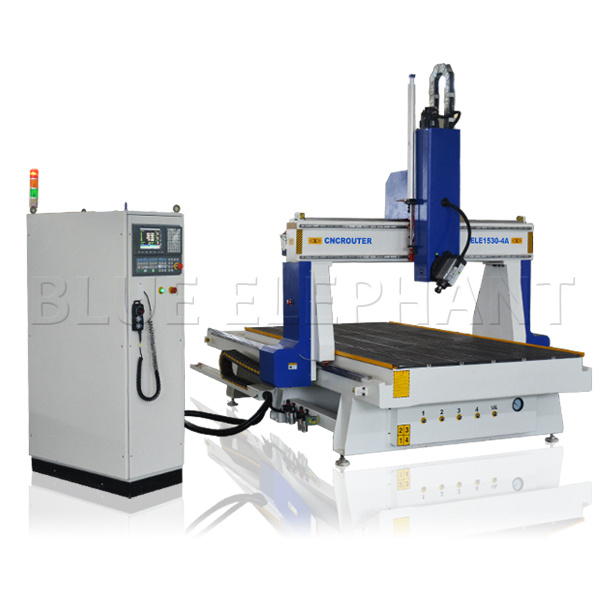

Features of 1530 4 axis 3d carving cnc router
1)Welded structure by thick profiled steel.
2) Assembled with precise parts.
3)Automatic lifting device for vacuum suckers allows the easy operation for the job on the side of working pieces. Vacuum working table is with double cavities and bakelite material with high absorption power.
4) Imported Syntec high performance control system, separated keyboard control, color LCD display.
5)With Italian combination drills, the machine can finish various processes one time including drilling, edge cutting, engraving, slotting, and lock hole making and expanding for the wooden door panels with complicated processing requirement.
The specifications of 4 axis cnc router

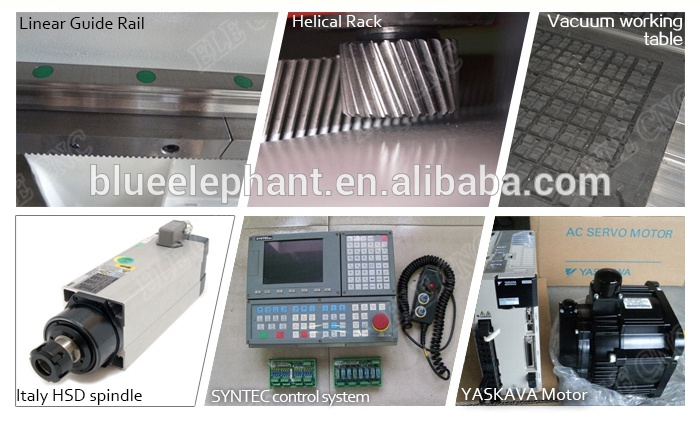

Product Parts
Applications
1). WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2).Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3).Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4). Relief sculpture and 3D engraving.

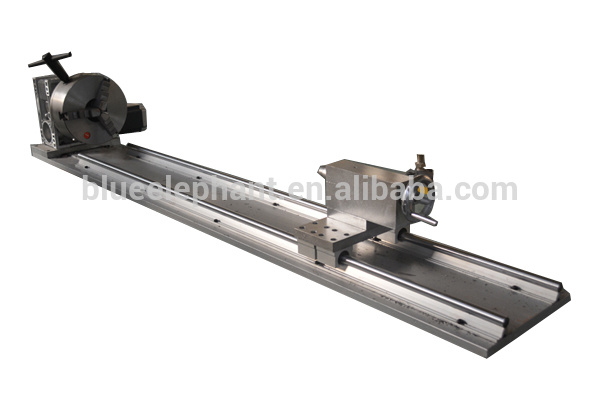

5).Cylindrical object.
Sample
Packaging & Delivery
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 20 working days after payment.
Our Service
Guarantee:
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with machine, you will get spare part for free.
Out of 12 months, you will get spare part at cost price. You will also get technical support and service all the lifetime.
Technical support:
1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch.
You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
Company Information
Jinan Blue Elephant CNC Equipment Co., Ltd is located in Jinan City, Shandong Province. We have always been developing to the research and manufacturer of CNC router machine and laser cutting engraving machine.
We have our R & D department, Quality control department, and after sale & service department.
Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
We had got CE and FDA certification always offer best quality machine.
Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
Just looking forward to service every customer, like you.
Please don't hesitate to contact me.
