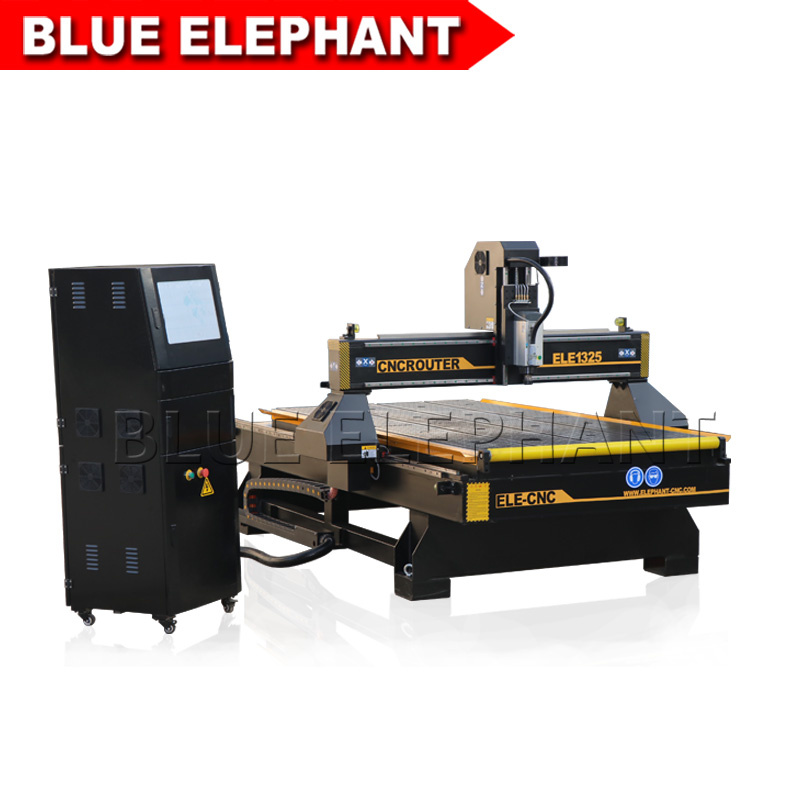

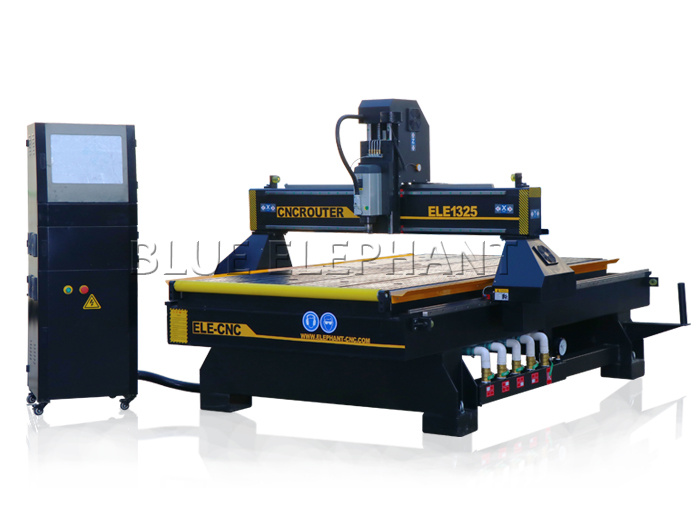

Easy Feeding 3D Sculpture Machine, CNC Router 1325 for Wood, Aluminum, PVC
| Price: |
US $ 5800-8700/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
ELE 1325 |
| Voltage: |
380V/220V, 3phase, 50/60Hz |
| Dimension(L*W*H): |
3200*2140*1850mm |
| Spindle: |
6kw Italy Hsd Air Cooling Spindle |
| Motor And Driver: |
750W Yaskawa Servo System |
| Inverter: |
7.5kw Taiwan Delta Inverter |
| Working Area: |
1300*2500*200 mm |
| Controll System: |
Ncstudio Control System |
| Transmission: |
X, Y Taiwan Hiwin Linear Guide, Z Tbi Ball Screw |
| Structure: |
Big Steel Welded Structure |
| Working Table: |
Vacuum & T-Slot Table |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS BV TUV |
Product Description
Easy feeding 3d sculpture machine , cnc router 1325 for wood , aluminum , pvc
Advantages: 1. Heavy duty structure.
2.Original 6kw Italy HSD air cooling spindle.
3.Original Ncstudio PM53C control system with computer control box .
4.The fixed roller is more convenient to load the panel.
Features:
- 1300x2500x200 working area
- 6kw Italy HSD air cooling spindle,18000rpm
- 7.5 kw Taiwan Delta inverter
- NCStudio 53C control system
- 750w YASKAWA servo system
- Imported Taiwan HIWIN 20# Square Linear Guide
- Z axis Original Taiwan TBI ball screw Transmission
- T-slot and vacuum working table
- Japan Ormon Limit Switch
- France Schneider safety switch
- Seperated control box
- 1.5kw water cycle vacuum pump
- 1.5kw New type dust colleator
- Voltage 380V 3phase 60HZ/50HZ (option:220v)
- Plywood case Package
- Type3/Artcam software
Details:
Technical Parameters: | Description | Parameter |
| X,Y,Z Working Area | 1300x2500x200mm |
| Table Surface | T-slot & vacuum working table |
| Spindle | 6kw HSD air cooling spindle |
| X, Y Structure | 20#Taiwan HIWIN Linear guide and helical rack |
| Z Structure | Ball screw and#20 Taiwan HIWIN Linear guide |
| Motor and driver | 750w YASKAWA servo system |
| Spindle Speed | 0-18000RPM |
| Inverter | 7.5kw Taiwan Delta Inverter |
| Command Language | G Code |
| Control System | NCStudio 53C control system |
| Computer Interface | USB |
| Collet | ER32 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
| Optional | 5.5kw water cycle vacuum pump
1.5kw New type dust collector |

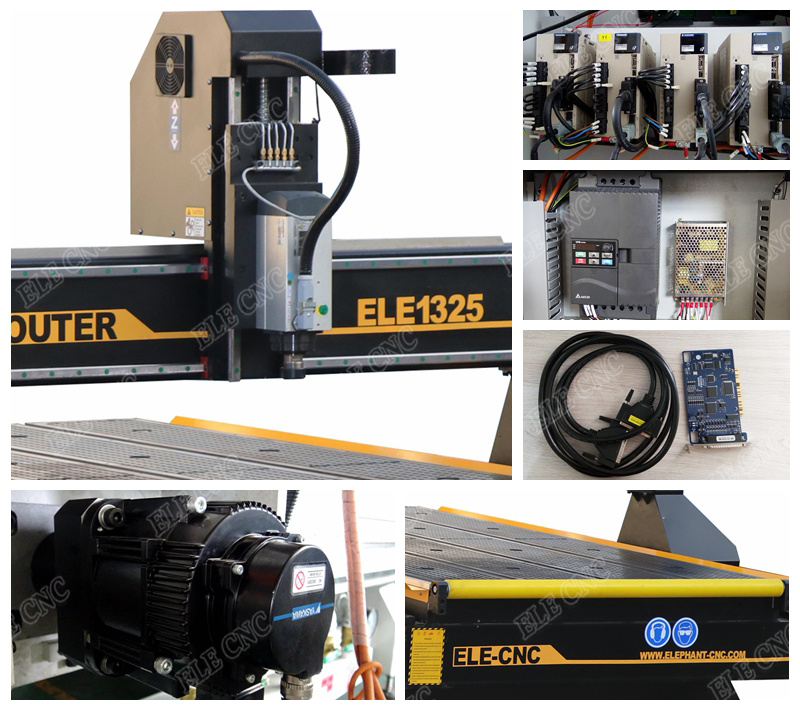

Main Parts:
Applications:1.Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold
Delivery port:delivery date: in 15 working days after receiving the deposit
Payment: 50% T/T in advance and 50% T/T before delivery
Guarantee: 12months for the whole machine.
Within 18 months under normal use and maintenance,
if something is wrong with machine, you will get spare part for free.;
Out of 18 months, you will get spare part at cost price.
You will also get technical support and service all the lifetime. Technical support:1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
4, the factory will supply the videos and pictures to teach the client to install the gantry After sales services:Normal machine is properly adjusted before dispatch.
You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory. You
will also get free suggestion and consulting, technical support and service by

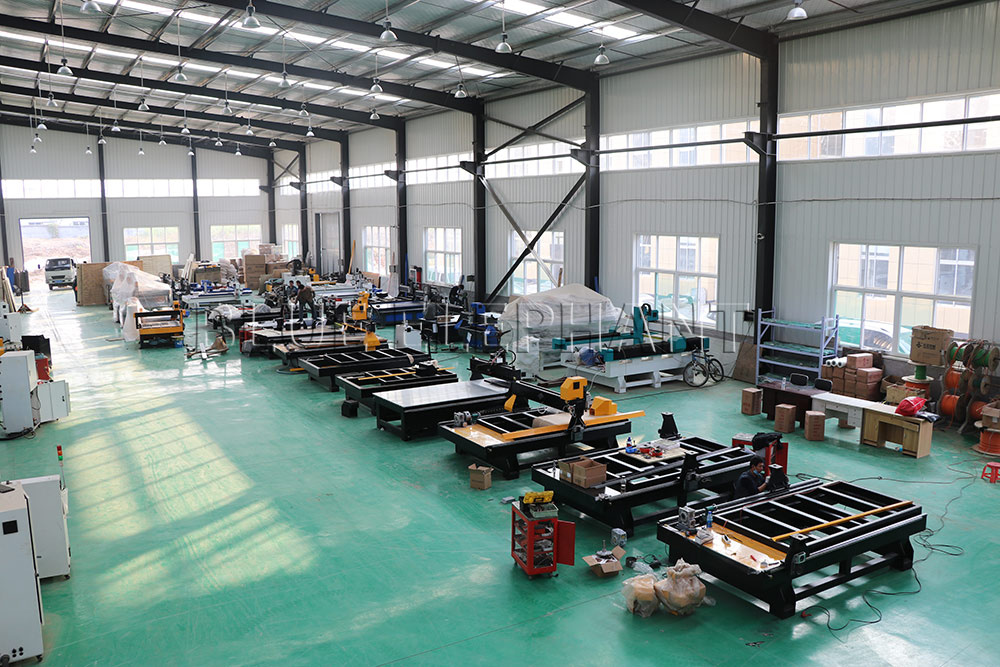

email/fax/Tel and lifetime technical support.Our Factory:
