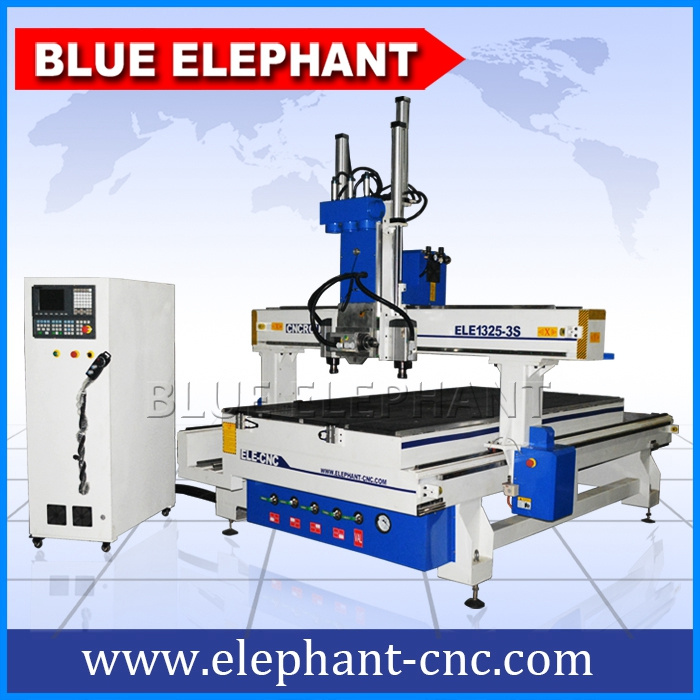

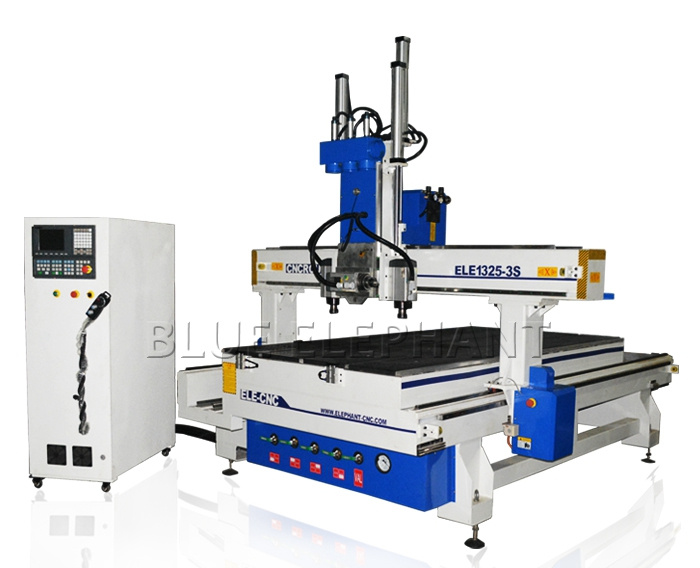

Ele 1325 Pneumatic System 3 Spindle, Multi Head CNC Atc 1325, 3D Wood Carving Router Machine 4 Axis with Balance Cylinder

Product  Description

• The cnc router machine is specially designed for woodworking industrial, with pneumatic system multiple spindles auto-changing.

• The middle spindle can rotated 90 degree for lock slot . All components used are top quality in the world.

• 3 sets 4.5kw HSD spindles can be changed automatically with the commands from control system.

• Thicken and bigger steel pipe structure after special treatment, well welded, no distortion for whole structure, high precision and long using life.

• High Z axis travel , up to 300mm , can be costomized.

Features:

1.Working area:1300*2500*300mm,high Z axis travel

2.Control system:Taiwan SYNTEC 6MB control system

3.Spindle:Three 4.5kw HSD spindle work one by one,The middle spindle can rotate 90°, used for making lock hole and hinges.

4.Inverter:5.5kw Taiwan Delta inverter

5.Motor and driver:850w Japan YASKAWA servo driver

6.Transmission:X,Y axis #20 HINWIN square linear guide,Helical rack gear.Z axis #20 HINWIN linear guide,Taiwan TBI ball screw.

7.Working surface:T-slot & vacuum working table

8.Optional parts:5.5kw Swirl vacuum pump,1.5kw New type double bag dust collector.200*200mm rotary device for cylinder object.

Parameters:

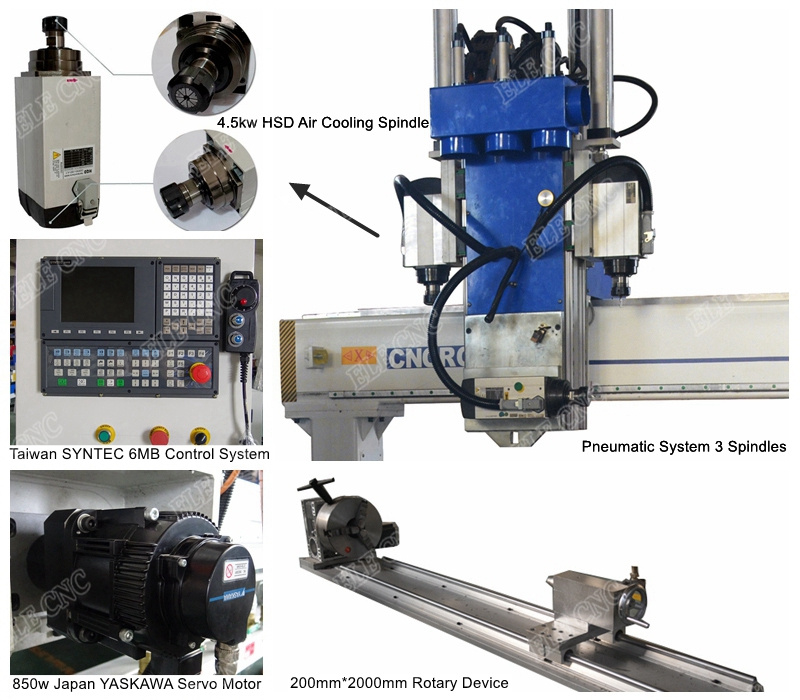

Details:


Application:

Strong functions, easy operation, durable, reliable performance, high efficiency, applicable to batch

process any wooden products, antique furniture, crafts gifts, relief processing.

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,MDF,

craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,

crystal word making, blaster molding, and other advertising materials derivatives making.

3.The machine is specially designed for woodworking industrial, with multiple spindles auto-changing.

Samples show:


Packaging & Shipping


Our Services


1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.

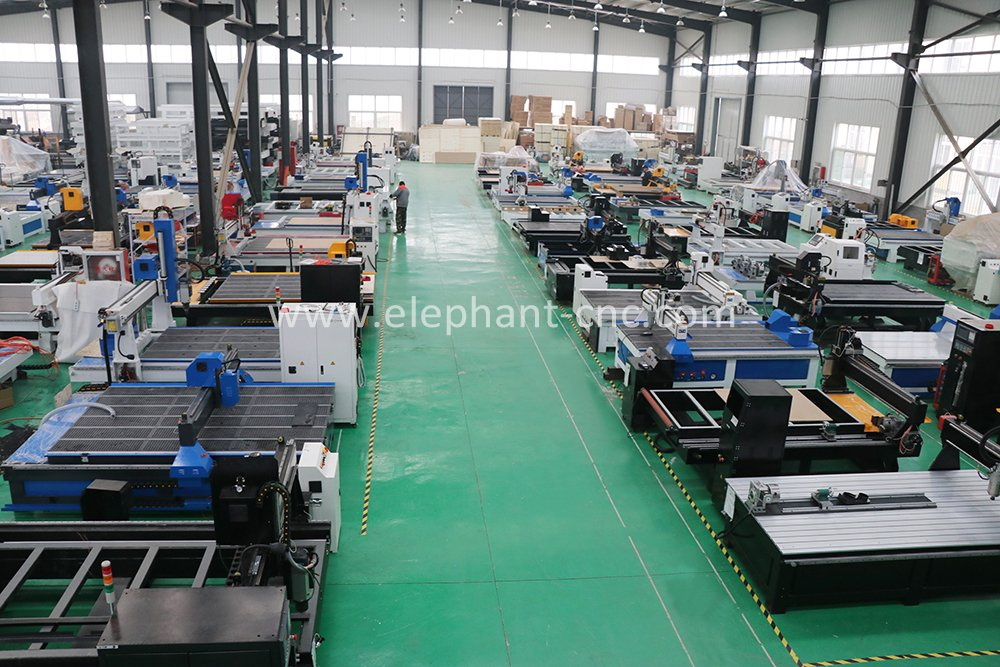

Welcome to our factory:

• Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
• Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!

• Just looking forward to service every customer, like you.
