| Price: | US $ 3599-9999set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE 1325 |
|---|---|
| Voltage: | 380V/220V, 3phase, 50/60Hz |
| Dimension(L*W*H): | 3200*2140*1850mm |
| Spindle: | Italy 4.5kw Air Cooling Spindle |
| Inverter: | 5.5kw Taiwan Delta Inverter |
| Motor: | FL118 Stepper Motor |
| Driver: | Leadshine 860h |
| Table: | Vacuum Adsorption Table |
| Controll System: | off-Line DSP Controll with USP Port |
| Thansmission: | Helical Rack and Gear and Taiwan Hiwin Linear Gui |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | FDA |

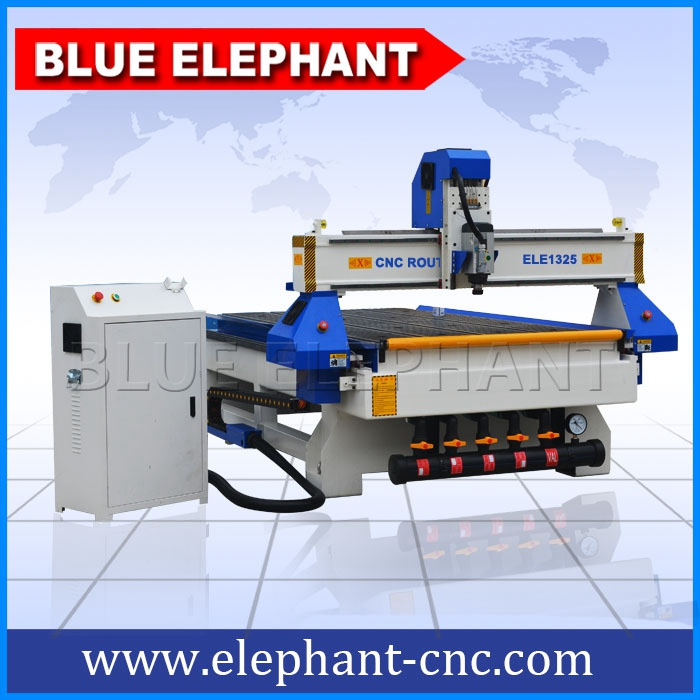

ELE 1325 CNC Router with 3D CNC Wood Carving Machine for Aluminum, Acrylic, PVC
Advantages:
---The roller in front, for easy uploading.
---Taiwan #20 HIWIN linear guide, import from Taiwan, top brand in the world, with long life.
---Adopt Italy HSD air cooling spindle, top brand in the world.
Features:
T-slot and vacuum working table
Seperated control box

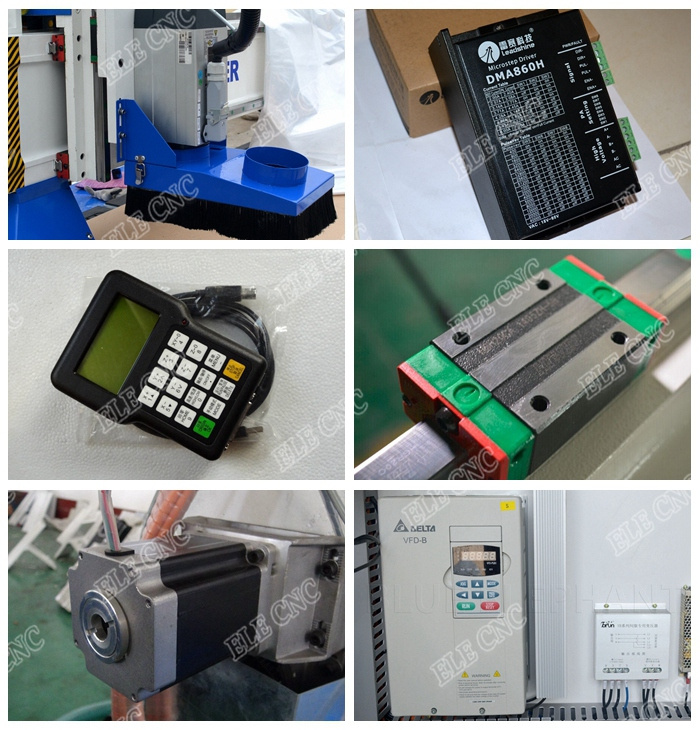

Main parts:
Technical Parameters:
Number | Description | Parameter |
1 | X,Y,Z Working Area | 2000x3000x200mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
5 | Table Surface | T-slot Table |
6 | Spindle | 4.5kw HSD air cooling spindle |
7 | X, Y Structure | 20#Taiwan HIWIN Linear guide and helical rack |
8 | Z Structure | Ball screw and#20 Taiwan HIWIN Linear guide |
9 | Stepper Motor | FL118 |
10 | Max. Rapid Travel Rate | 45000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Stepper driver | YAKO 2811 Driver |
13 | Spindle Speed | 0-18000RPM |
14 | Lubrication system | Manual or auto |
15 | Inverter | 5.5kw Taiwan Delta Inverter |
16 | Command Language | G Code |
17 | Control System | DSP A11 |
18 | Computer Interface | USB |
19 | Flash Memory | 512M(U Disk) |
20 | Collet | ER25 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | Type3 Software, (Option: Artcam Software) |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
Applications:
1.Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
Packaging and shipping:
1.Outside Package:Standard export wooden case .
