Ele 1325 3D Wooden CNC Carving Machine / Engraving Bits Router CNC
| Price: |
US $ 2800-6999set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
ELE1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Woodworking CNC Router Machine in Factory Price |
| Working Area: |
1300X2500X200mm |
| Spindle: |
Water Cooling Spindle |
| Table: |
Vacuum and T-Slot Combined Table |
| Control System: |
DSP with USB Interface |
| Drive Motors: |
Stepper Motor Fl118 (Servo Motor for Option) |
| Frame: |
Welded Structure |
| Drivers: |
Yako 2811, Big Driver |
| Rail Way: |
Taiwan 20# Hiwin/PMI Linear Guide for 3 Axes |
| Transmission: |
Helical Rack Gears |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS BV TUV |
Product Description

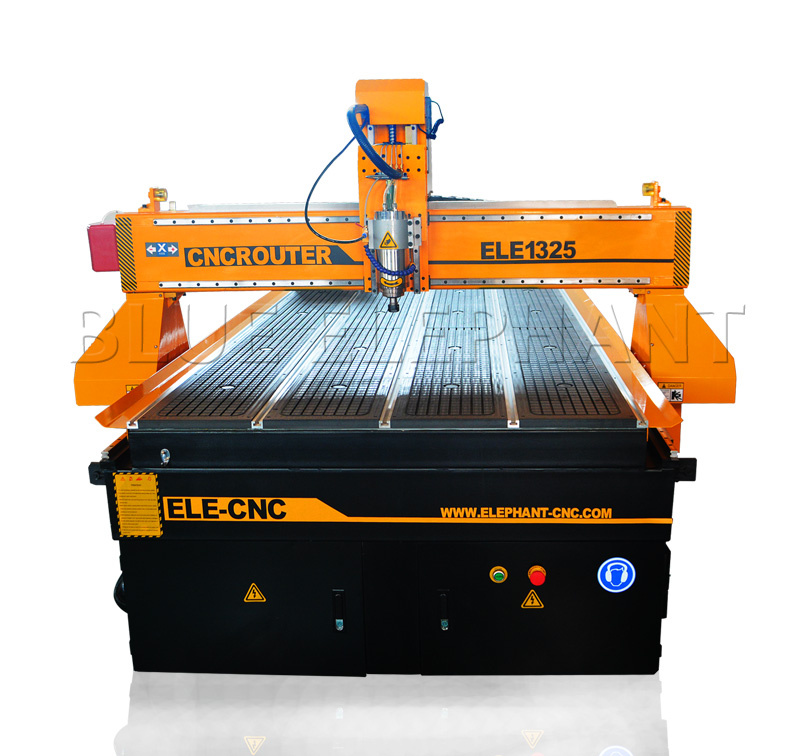

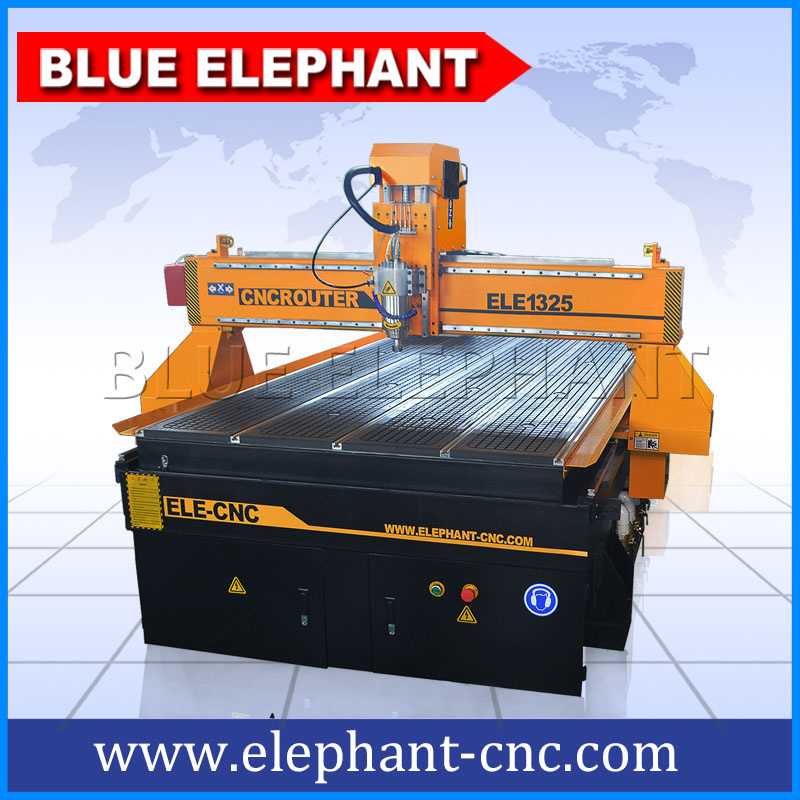

ELE 1325 3d wooden cnc carving machine/engraving bits router cnc
Parameter of 3d wooden cnc carving machine| Descriptions | Parameters | |
| Modle | ELE1325 | |
| Working area | 1300*2500*200mm | |
| Control system | DSP A11 control system | |
| Control box | Inner box | |
| Spindle | 3kw Changsheng water cooling spindle | |
| Motor | FL118 stepper motors | |
| Driver | YAKO 2608 stepper drivers | |
| Inverter | 3.7kw Fuling inverter | |
| X,Y transmission | X,Y axis helical rack and pinion drive | |
| Z transmission | Z axis Taiwan TBI ball screw | |
| Rail | Sweden ABBA #20 Linear Square Rail | |
| Table Surface | T-slot and vacuum working table with 4 zones | |
| Structure | New type thicker and bigger heavy duty welded frame and gantry | |
| Lubrication system | Manual lubrication system | |
| Tool sensor | Manual tool sensor calibration | |
| Mist cooling sprayer | Water mist cooling sprayer | |
| Vacuum pump | 5.5kw water circulation vacuum pump, 380V, 3PH, 50HZ (Optional: 220V) | |
| Dust Collector | 1.5 new type double pecket dust collector, 380V, 3PH, 50HZ (Optional: 220V) | |
| | | |
| | | |
| | | |
| | | |
The feature of 3d wooden cnc carving machine- Effective working area: 1300*2500*200mm
- 3kw Changsheng water cooling spindle
- 3.7kw Fuling inverter
- DSP A11 control system
- Stepper FL118 motor and YAKO driver
- Taiwan TBI ball screw
- Square linear guide way for 20mm
- Artcam software
- Tool sensor calibration
- Vacuum & T-slot working table
- Japan Omron limit switch
- Working voltage: 380v 3phase 50HZ
- Helical rack
- Water mist cooling sprayer
- 1.5kw New type dust collector system
- 5.5kw water circulation vacuum pump

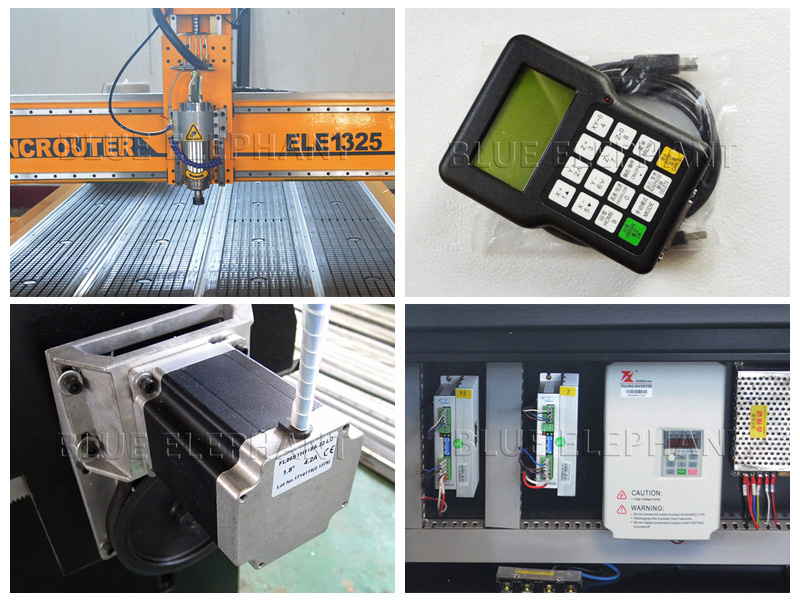

Details
Applicant of 3d wooden cnc carving machine
1.WoodFurniture Industry stepper motor cnc machine e, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.Relief sculpture and 3D engraving

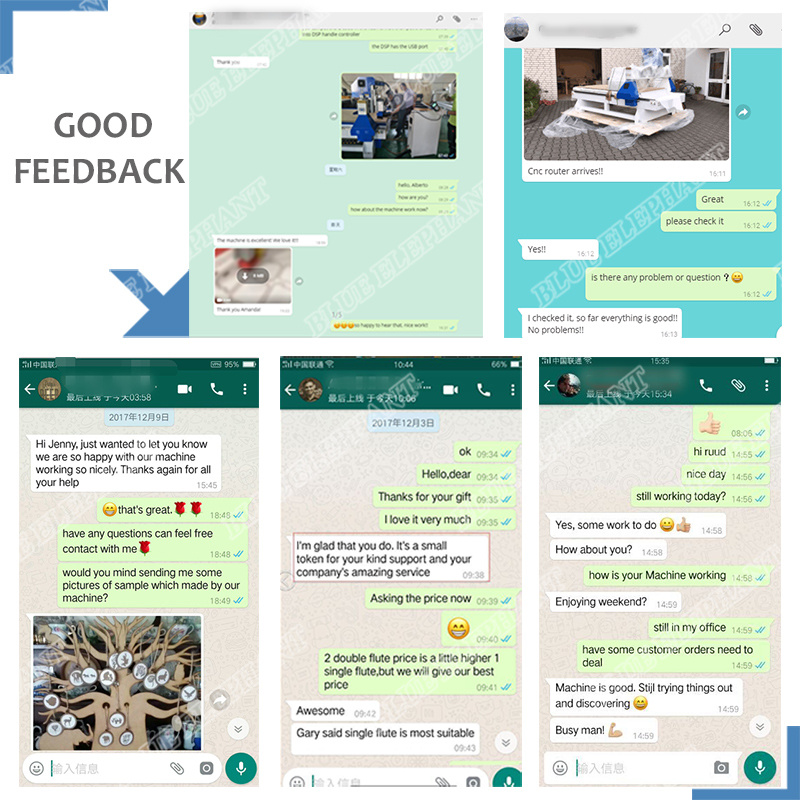

5.Cylindrical objectFeedback

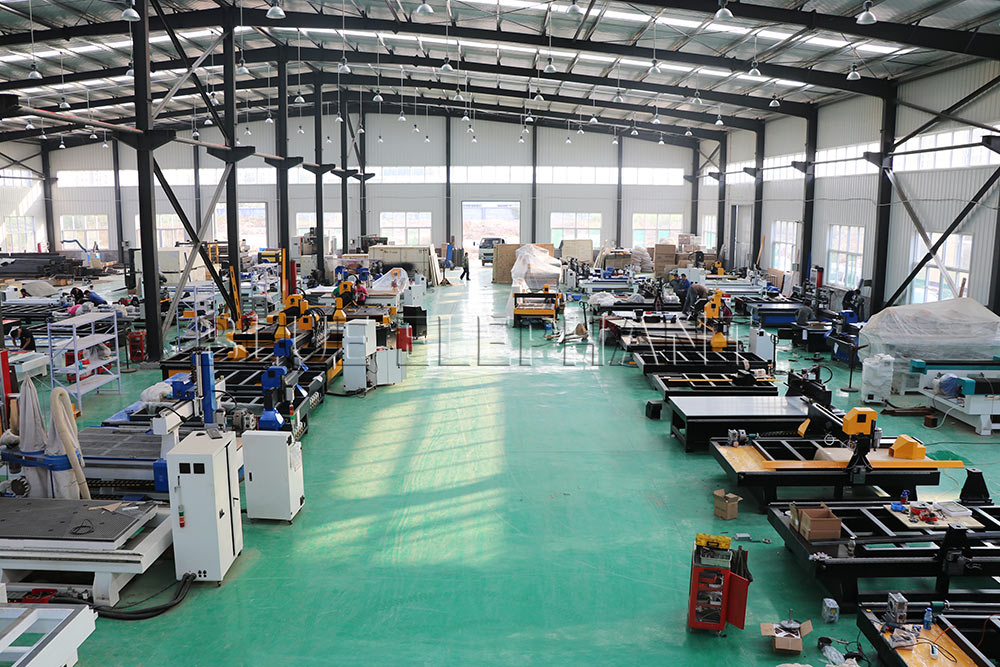

Our company
- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
- Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
- Just looking forward to service every customer, like you.
Contact us:
Mobile: 0086-15064026772
Web: www.elephant-cnc.com
Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
We have always been devoting to the research and manufacture of CNC engraving machines. We have R&D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in woodworking, advertising, model, electric, CAD/CAM industry model, clothing, package printing, marking, laser sealing and so on.
We can offer you the high quality products with the competitive price. Our products have got CE certificate. Our main products are as follows: CNC router, laser engraving and cutting machine, laser cutting machine, marble CNC router, cutting plotter, plasma metal cutting machine, advertising CNC router and so on.
