| Price: | US $ 6999-19999/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE-1325 |
|---|
| Packaging Details: | Standard cnc router plywood case. |
|---|---|
| Delivery Detail: | Shipped in 20 days after payment |

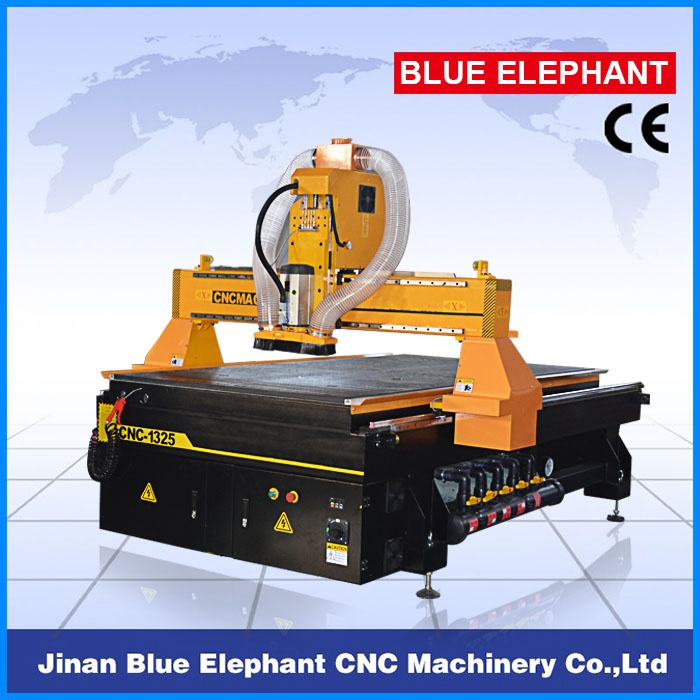

3D Wood cnc router 1325/ 3D CNC plywood cutter/cnc engraving cutter
1.high efficiency: the vacuum adsorption table with the strong power vacuum pump , whole table absorption.
2.rapid running speed: two axes are rack gear, fast speed and high efficience, The highest speed is 45mpm.
3.fast carving speed: high-speed 1kw YASKAWA servo motor and drive, high-precision helical rack drive, with the high power engraving spindle cutting faster.
4.Stable operation: adopting imported linear guide rail, Large bearing capacity , smooth running, high precision, long life, carving precisely.
5.Intelligent control:adopting DSP control system.It is very easy to master.
6.Sturdy and durable: Thicker and bigger welded Steel Square Tube Structure, Gantry moving, strengthen table makes positioning accuracy more accurate.
Description | Parameter |
model | ELE-1325 |
Working area(X*Y*Z) | 1300*2500*200mm |
Max rapid moving speed | 33000mm/min |
Max carving speed | 25000mm/min |
Cutting accuracy | ±0.01/300mm |
Repositioning Accuracy | ±0.01mm |
Table Surface | Vacuum Table |
Frame | Welded Steel Square Tube Structure |
X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
Spindle Power | 6 kw HSD air cooling spindle |
Spindle Speed | 18000 rpm |
Inveter | Imported DELTA |
Drive Motors | 1kw YASKAWA servo system |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
Command Language | G Code |
Operating System | DSP A11 control System |
Collet | ER32 |
Software Compatibility | Type3/UcancameV9 Software |
The wood products: wave board processing, wood door, folding screen, window, etc.various kinds of furniture products, wood door making.
Advertising industry: ad signs, Logo making, acrylic cutting, HPL panels, the production of advertising decorative products.
Furniture: wooden doors, cabinets, office and wood furniture, computer table, panel furniture, office furniture, wooden speakers, other furniture processing, etc.
Other industries: Non-metallic mold industry, Poly dragon auto mould industry processing.
Processing materials: MDF board, wood, organic glass, PVC board, metal, copper, aluminum, marble, crystal.
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
