| Price: | US $ 7000-15000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE 1325 |
|---|---|
| Voltage: | 380V, 3pH, 50Hz |
| Power(W): | 17kw |
| Dimension(L*W*H): | 3050*1940*2200mm |
| Weight: | 1500kg |
| Working Area: | 1300*2500*200mm |
| Control System: | DSP A15 Control System |
| Spindle: | Hsd Air Cooling Spindle |
| Spindle Speed: | 0-18000rpm |
| Inverter: | 5.5kw Taiwan Delta Inverter |
| 5.5kw Taiwan Delta Inverter: | Yako 2811 Bigger and Stronger |

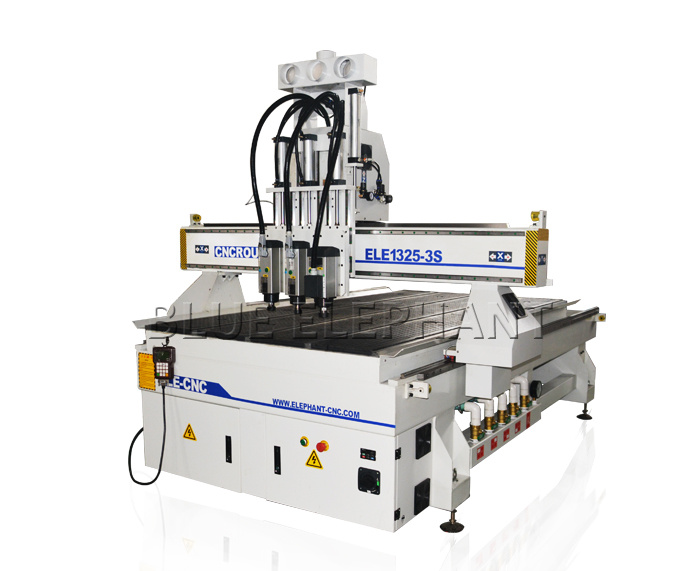

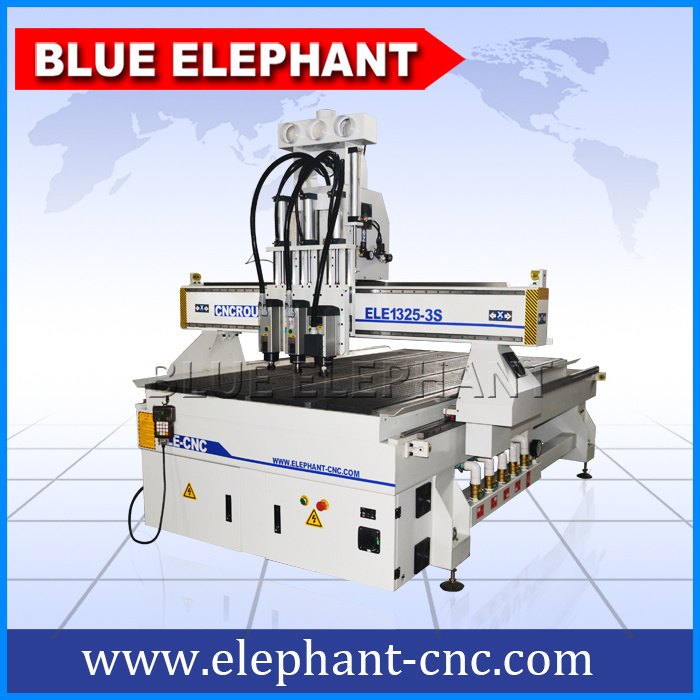

Features :
---Three spindles, alternating work, equivalent to a simple automatic tool change
---Some tools are used for carving, and some are used for cutting. Compared with the automatic tool changer, it'scheaper, and the efficiency is higher than the manual tool changer.
---The cnc router machine is specially designed for woodworking industrial, with multiple spindles auto-changing.
---Can be choosen a spindle rotated 90 degree for lock slot . All components used are top quality in the world.
---Thicken and bigger steel pipe structure after special treatment, well welded, no distortion for whole structure, high precision and long using life.
Parameters :
| Descriptions | Parameters |
| Modle | ELE1325/3 |
| Working area | 1300*2500*200mm |

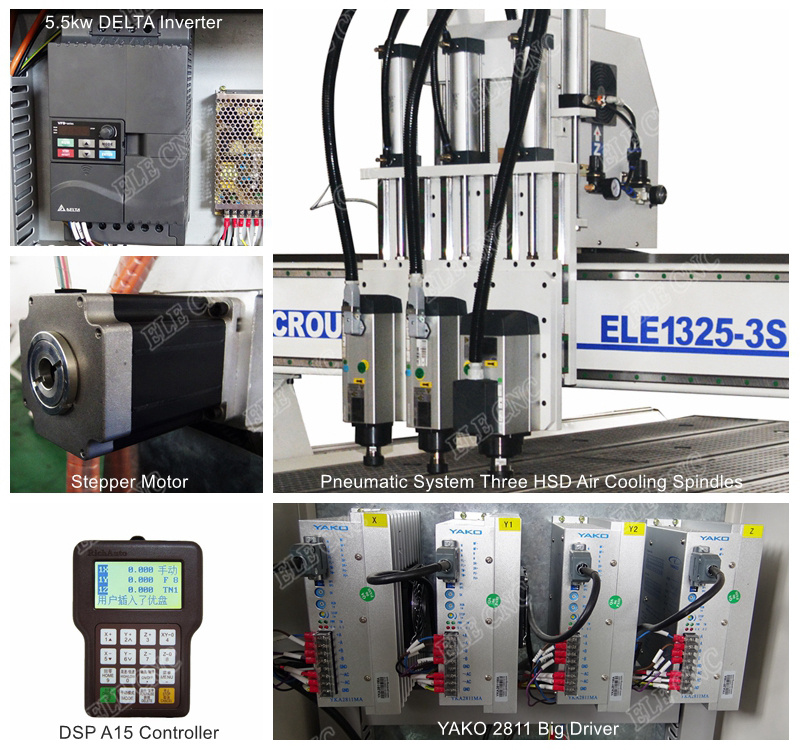

| Control system | DSP A15 control system |
| Spindle | 2* 3 KW HSD + 4.5 KW HSD air cooling spindle |
| Spindle speed | 0-18000RPM |
| Inverter | 5.5kw Taiwan DELTA Inverter |
| Motor and driver | YAKO 2811 bigger and stronger motor and driver |
| Voltage | 380V, 3ph, 50Hz |
| Linear rail | Taiwan PMI 25# linear guide |
| Table structure | New type thicker and bigger heavy duty welded frame and gantry |
| Table surface | Vacuum working table |
| X,Y axis transmission | Helical rack and pinion drive for X,Y axis |
| Z axis transmission | Taiwan TBI 2510 ball screw for z axis |
PS:All the working area and specifications can be customized according to your requests.
Applications:
Strong functions, easy operation, durable, reliable performance, high efficiency, applicable to batch process any wooden products, antique furniture, crafts gifts, relief processing.
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, MDF, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
Samples:
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 20 working days after payment.
Guarantee and After-sale service :
12 months for the whole machine .
1, Technical support by phone , email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
FAQ:
Q1: I need a cnc router, can you give me some suggestions?
Sure, but to suggest you the most suitable machine, I need to know further informations such as effective processing area , materials etc.
Q2: which kind of materials can be processed on this machine?
Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, copper, and almost all kinds of non-steel materials.
Q3: can I process round /cylinder workpiece such as chair legs?
Of course, Only need to add a set of rotary device, you can engrave all kinds of cylinder materials.
Q4: Are you a factory or trading company?

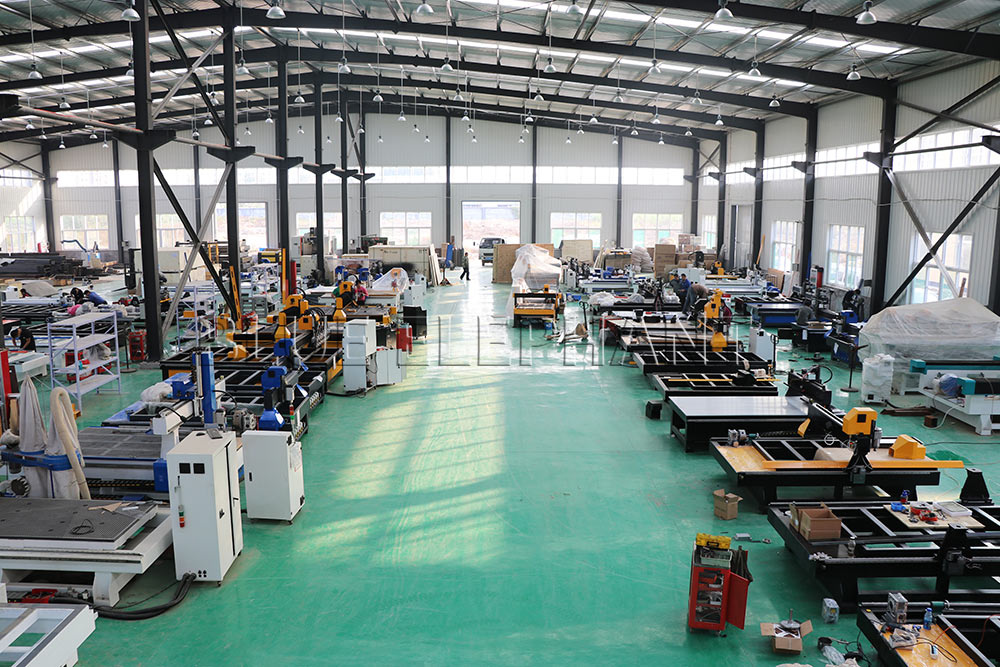

We are the manufacturer and we have 10 years factory experience .As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory
Q5: How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Q6: How should I pay for my order ? what is the procession of this purchase?
You can do 30% prepayment at first, then we will start to make production. When the machine is ready , we will take pictures to you, and then you can do the ballance.after we got your payment. We will send the machine to you.
