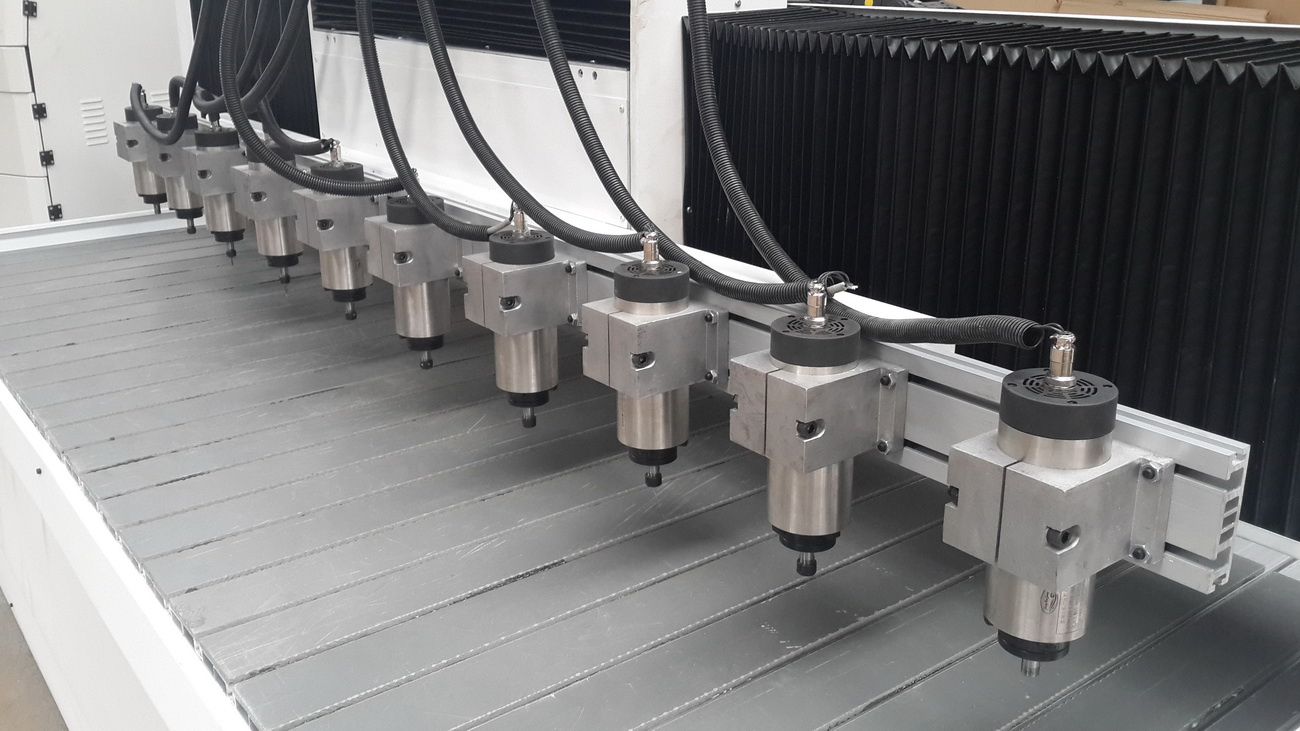

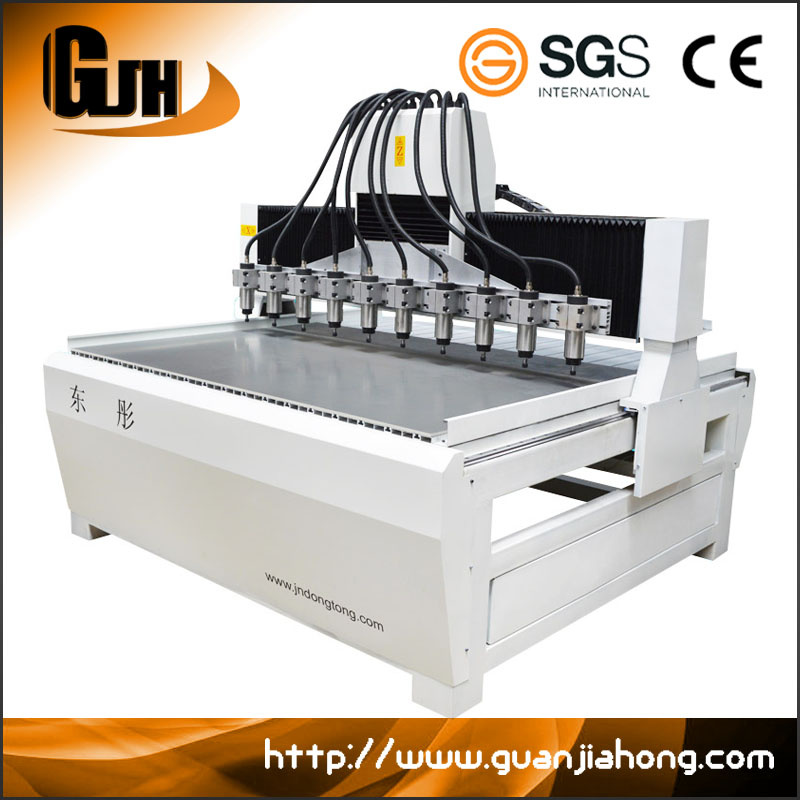

Dt1813-10 Wood Stone Acrylic Plastic Multi-Spindle CNC Router Machine
| Price: |
US $ 4500-8000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
Product Specifications
| Prod Model: |
DT1813-1-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Spindle: |
Water Cooling |
| Control System: |
Richauto / Nc Studio |
| Guild Rail: |
Hiwin Square Rail |
| Drive Mode: |
Servo |
| Servo Motor: |
Yaskawa, Panasonic, Estun |
| Function: |
Lettering |
| Automation: |
Automatic |
| Control: |
CNC |
| Current: |
AC |
| Application: |
Stone Industry |
| Application Material: |
Wood, Plastic, Acrylic |
Product Description
CNC router ,stone, wood engraving machine from professional cnc router manufacturer. Feature: 1. DT1813-10 engraving machine is our company specially developed and designed for small
workpiece but mass production, high precision, high speed and high cost performance.
2. The lathe bed is welded by steel structure seamlessly, has good stiffness
and non-deformation.
3. Using computer cabinet, the original Weihong control system has stable performance and high
reliability.
4. Automatic oil lubrication system, it is more convenient for maintenance.
5. With function about continued carving when it has breakpoint, power recovery and processing time
prediction

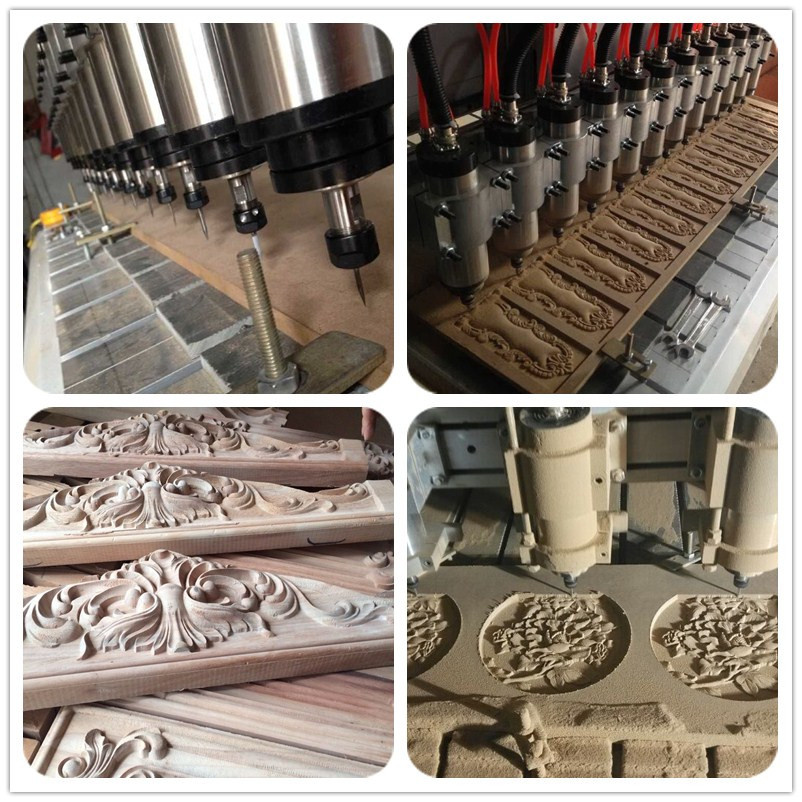

6. Imported ball screw rod and round rail, original screw nut, Imported linear square railApplication industry: 1. Woodworking industry: The furniture of door, window, cabinet, craft ,wood door, paint free door,
folding screen, process window, wave board processing, including the processing for wood art.
2. Stone industry: Natural marble, granite, artificial stone, tombstone,milestone, ceramic tile, glass and
other materials of 3D relief and line carving, cutting, edge, drilling and 2D carving.
3. Advertising industry: Suitable for processing various design and colorful mould, just like: signs,
architectural models, badges, badge, name plate,exhibition board, indicator, craft decoration, furniture
decoration, etc.
4. Handcraft industry: Can engrave in wood, bamboo, artificial marble, organic board, double color
boards, crystal and other material.
5. Also can carve and achieve all kind of effects for reliefs, movie, hollow and plate engraving, cutting
and valuable. such handiwork, graphic engraving, cutting, the bottom of milling, etc.
OEM Service Available:1. Usually, we will manufacturer the machine as our regular design.
2. X Y Z Working Area could be customer-oriented designing.
3. Special configuration could be customer-oriented designing.
Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.After-sale & guarantee service:1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. You will also get free suggestion and consulting, technical support and
service by email/fax/ tel and lifetime technical supportMore machine types:
DT1813 , DT1615. DT2018,DT1815, 4 axis DT2212 | NO | Performance index | | | Optional |
| 1 | Working area | X | 1000mm | |
| | | Y | 1300mm | |
| | | Z | 150mm | |
| 2 | Table size | | 1800mm*1300mm | |
| 3 | Precision | Working precision | 0.02mm | |
| | | Repositioning precision | 0.02mm | |
| 4 | Drive mode | | Servo | |
| 5 | Speed | Max motion speed | 10000mm/min | |
| | | Max engraving speed | 8000mm/min | |
| 6 | Spindle | Spindle power | 1.5KW | 0.8KW_3KW |
| | | Spindle speed | 0_24000r/min | |
| 7 | Drive mode | | Servo | |
| 8 | Operating voltage | | AC220V/50HZ | AC380v |
| 9 | Command code | | G code | |
| 10 | Operating system | | Nc studio | |
| 11 | Machine weight | | 1500KG | |
| Optional | Air cooling spindle or water cooling spindle |
| Servo motor (Yaskawa, panasonic, estun) |
| Vacuum table |
| Rotary system |
If you have specific requirement for CNC router engraving machine, customization is available.
