Product Specifications
| Prod Model: |
ELE1530 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
4 Axis CNC Router |
| Working Area: |
1500X3000X500mm |
| Spindle: |
Italy Hsd Air Cooling Spindle |
| Control System: |
Simens/Sytec Control System |
| X, Y Structure: |
Helical Rack, Taiwan Hiwin Rail Linear Bearings |
| Z Structure: |
Taiwan Hiwin Rail Linear Bearings and Ball Screw |
| Table Surface: |
Vacuum and T-Slot Working Table |
| Drive Motors: |
Japan Yaskawa Servo Motor and Driver |
| Frame: |
New Type Heavy Duty Welded Structure |
| Software Compatibility: |
Type3/Ucancam Software, (Option: Artcam Software) |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS BV TUV |
Product Description

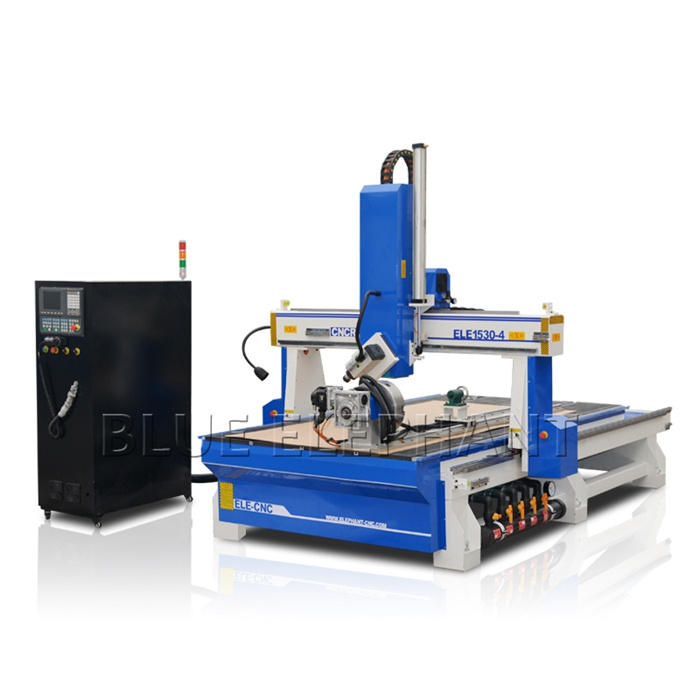

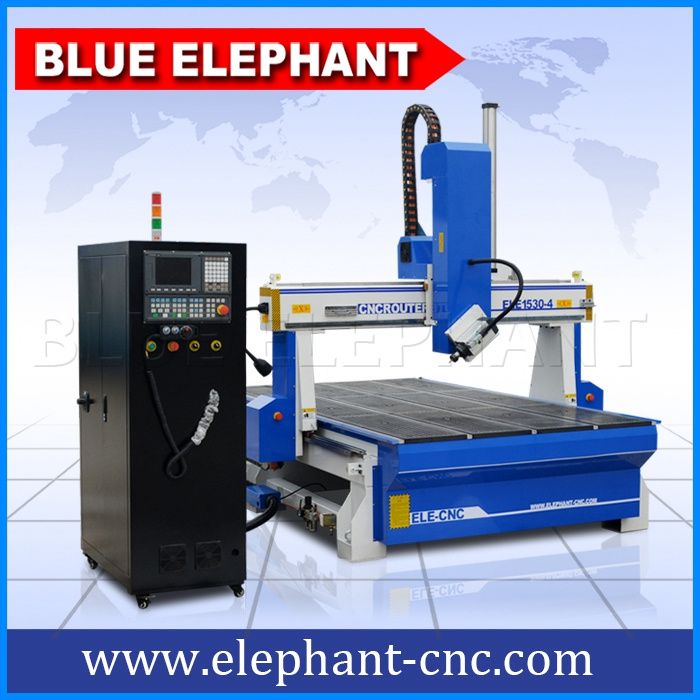

Discount Price 1530 wood carving 4 Axis CNC Router for Foam Mold
video on Youtube:https://youtu.be/I-7Z3YfPs5g(copy and watch)Features:1, High Z travel: 500mm
2, Italy HSD brand air cooling spindle
3, Japan YASKAWA servo
4, Germany Eisele Reducer
5, Rotary device with servo: 400mm diameter,1500mm length
6, Taiwan SYNTEC control system
7, Helical rack gear
8, Taiwan TBI ball screw with high precision
9, 4th axis can move ±100°
10, 4th axis + Rotary device Parameters:| 1 | X,Y,Z Working Area | 1500x3000x500mm*±100° |
| 2 | Table Size | 1500×3500mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
| 4 | X,Y,Z Repositioning Accuracy: | ±0.01mm |
| 5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
| 6 | Frame | Big Steel Tube Structure |
| 7 | X, Y Structure | Helical rack gear , HIWIN Linear guide |
| 8 | Z Structure | Imported Ball Screw , HIWIN Linear guide |
| 9 | Max. Power Consumption | (Without Spindle) 4.2Kw |
| 10 | Max. Rapid Travel Rate | 40000mm/min |
| 11 | Max. Working Speed | 30000mm/min |
| 12 | Spindle Power | HSD spindle 4.5kw( Italy ATC spindle for option) |
| 13 | Spindle Speed | 0-18000RPM |
| 14 | Drive Motors | Japan 850 W YASKAWA servo motor |
| 15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| 16 | Command Language | G Code |
| 17 | Operating System | SYNTEC Control System (model: EZ4M) |
| 18 | Computer Interface | USB |
| 19 | Flash Memory | 512M |
| 20 | Collet | ER25 |
| 21 | X,Y Resolution | <0.01mm |
| 22 | Software Compatibility | UG , Power mill |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
| 25 | Packing Size | 4.1*2.3*2.6m |
| 26 | N.W. | 2500KG |
| 27 | G.W. | 2800KG |
28 |
Optional Parts | Dust Collector/ Dust Hoods for three Axis |
| Vacuum Pump |
| Rotary System |
| Mist-cooling System |
| SIEMENS/DELTA/ Panasonic Servo Motors |
| Colombo Spindle |
| X:2.5m, Y:4m, Z:1.2m |

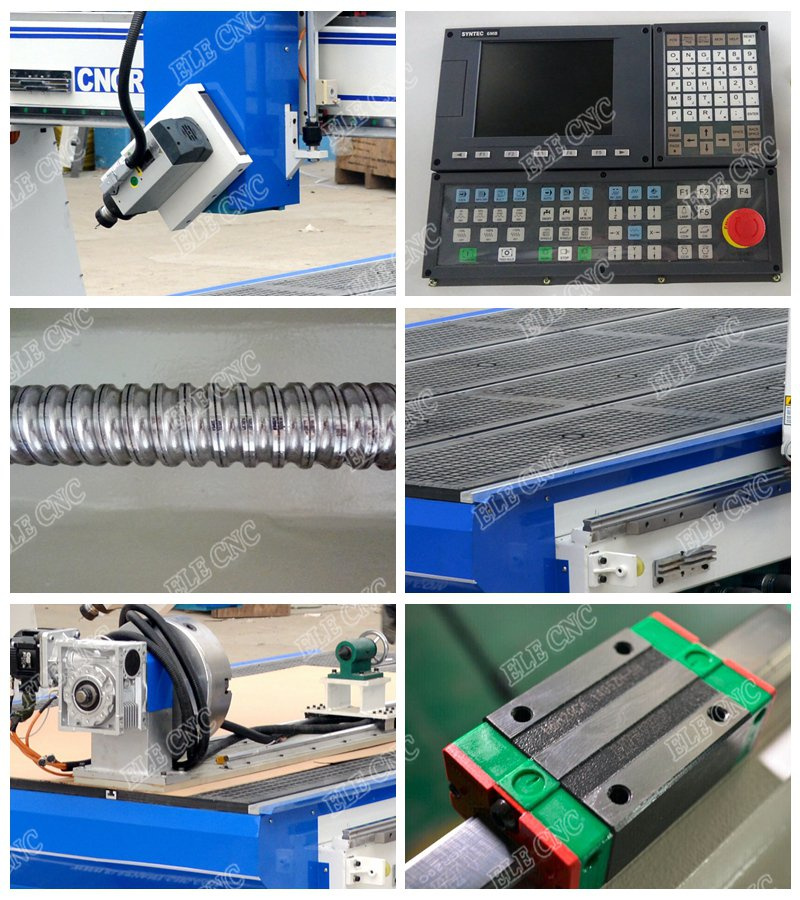

Details:
Application: Application: for wood, MDF, plywood, acrylic, soft metal etc.Mainly for making furniture, cabinet.
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
5.Cylindrical object
Samples:

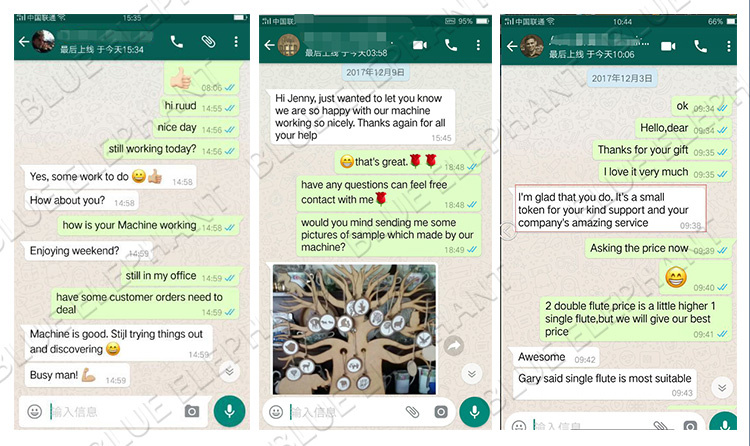

Feedback:
Our Service:1.Before-sale:we will try to know your requests about what work you will do
and help you choose the most suitable machine specification & give you the best solution.
2. During production: we will send photos of machines during production. so customers can know more details about the procession of making their machines. and give them suggestions.
3. Before shipping:we will confirm the specification of order to avoid the mistake and we will test & adjust the machine until it has the best performence.
4. After shipping: we will give you the tracking information of the sea vessel
so customers can know when it will arrive at your port and make enough preparation.
5. After arrival: we will confirm with you if machine is in good condition. and see if any spare parts were broken during sea shipping then help to solve the insurance
6. About training: there are some manual and video about how to install & use machine , if you have any questions
you can contact me any time, then i arrange our professional technicians to help you by video, pictures,call or email.
7. About warranty: we offer 2 years warranty for whole machine and half year warranty for spindle.
if any parts of our machine is broken. we will replace it for free.
8. Service in life-time: we hope our machine can bring perfect performance in life-time, of course no matter how many years passed, you always can contact me, we can give you any technical support in the future life-time. Why are our products so welcome among customers all over the world? 1.Our company has more than 10 years' experience in manufacturing cutting and engraving cnc router machine.
2.Our machine has achieved CE,FDA,CIQ,which ensures the quality and its longer life time makes customers feel at ease to use it.
3. Reinforced and thickened machine body makes transportation absolutely
