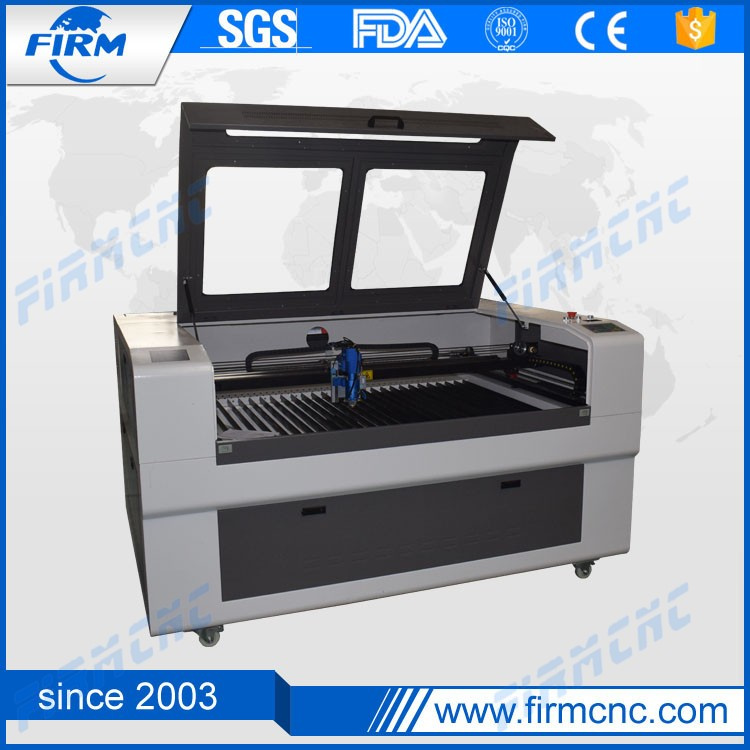

CO2 Laser Cutting Machine for Metal and Nonmetal Materials
| Price: |
US $ 7000-12000/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,D/P,Western Union,Paypal,Money Gram |
Product Specifications
| Prod Model: |
FMJ1390 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
CO2 Laser Cutting Machine for Metal and Nonmetal M |
| Control Software: |
Rd Control System |
| Driving System: |
Leadshine Stepper Motor |
| Guide System: |
Taiwan PMI Rail |
| Resetting Positioning Accuracy: |
0.01mm |
| Cooling Mode: |
Water-Cooling and Protection System |
| Working Table: |
Blade Table |
| Laser Head: |
with Ruida Follow up System |
| Suitable Materials: |
Metal Materials |
Product Description
Co2 Laser cutting machine for metal and nonmetal materialsMain features
1.Imported stepper motor and drive systems
2.Domestic reci lasers (150W/ 180W/ 200W) optional, Adopted imported linear guide rail
3.Large LCD display subtitles, humane button control panel
4.Optical system using the full import of laser lens system in Singapore
5.High strength stainless iron or aluminum honeycomb floor slats optional knife
6.Ruida controller system--6332 model
7.Water chiller --CW5000/CW5200/CW6000,is used to cool laser tube down during working
less than 100w laser power, it is better to choose water pump.
more than 100w laser power, it is better to choose water chiller
Technical specification| No | Model | FMJ1390 |
| 1 | Effective working size | 1300*900 mm |
| 2 | Laser power | W6/W8 150W/180W RECI laser tube |
| 3 | Laser type | CO2 laser tube |
| 4 | Cutting speed | 0-200mm/s |
| 5 | Working accuracy | ±0.005mm |
| 6 | Control system | Ruida control system--model 6332 |
| 7 | Guide rail | Taiwan HIWIN square rail |
| 8 | Motor | Step motor and drivers |
| 9 | Cutting thickness | 0-2 mm |
| 10 | Table structure | Mesa of the blade |
| 11 | Dust collector | 550W x air exhaust fan with tube ducts |
| 12 | Transmission way | Shanghai Fulong Belt drive |
| 13 | Min. shaping character | Character 2*2mm, English 1 x 1mm |
| 14 | Graphic format supported | PLT, DXF, BMP, AI, DSP |
| 15 | Software supported | CorelDraw, Photoshop, AutoCAD |
| 16 | Driving system | Step motor |
| 17 | Cooling system | Water pump/Water chiller |
| 18 | Water chiller | CW5000/CW5200 |
| 19 | Laser tube lifetime | RECI laser tube:10000h |
| 20 | Power supply | 220V±10% 50HZ or 110V±10% 60HZ |
| 21 | Operation temperature | 0 - 45°C |
| 22 | Operation humidity | 5 - 95% |
| 23 | Recommended spare part | Laser tube and lens |
| 24 |
Main configuration | 1X Laser tube |
| 1set X Mirror and lens |
| 1X Water chiller 1X EXHAUST FAN 1x exhaust fan smoke pipe, 1X water pipe |
| 1x USB cable 1x communication cable 1x CD(Ruida software english version) |
| 25 | Warranty | 1)All the machines will be full tested before shipment.
2)Laser tube 10000 hours' working time.
3)The total machine guarantee for 18 month. Laser tube and Lens for 6 Months.
4)24 hours technical support-- email, telephone or video online.
5)User-friendly English manual for machine using and maintaining. |

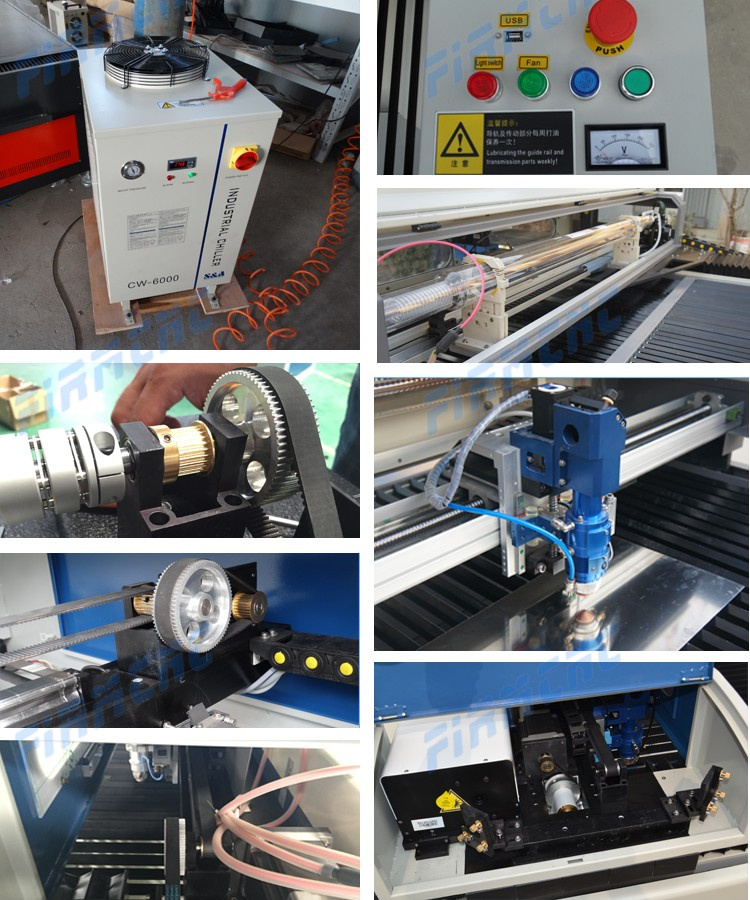

Main parts
Application
Widely used in advertising signs, sheet metal structure, high and low voltage cabinet making, t
extile machinery, kitchenware, automobiles, machinery, electric saws, precision parts, subway parts, metal crafts and so on
Materials. Various alloy sheet steel, carbon steel, copper, steel, aluminum, spring steel, galvanized plate, aluminum plate, titanium etc.
Company Information
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of laser machine appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on laser machine appliances.

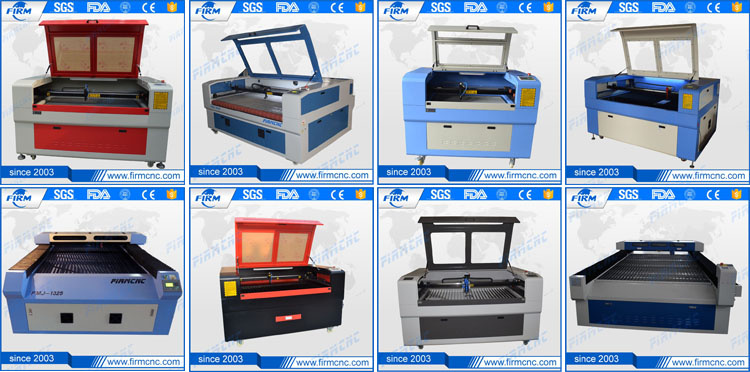

Other related laser machines for your reference
# Metal and nonmetal lase cutting machine
# Fabric laser cutting machine
# 3d mini laser engraving machine
After sale serices
1. 12 Months for Machine
2. 6 Months for laser tube
3. 6 Months for equipments outside, such as water chillrt, fan, air pump, etc.
4. Detailed manual and video to guide the user how to use the machine and maintenance, also supply the
specs settings for the speed and power to engrave or cut on various material.
5. Lifely and fast technical guide and solution within 24 hours by email and web camera.
6. The machine will be tested before delivery
Packaging & Shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information
FAQ
1.How to choose a suitable model ? processing materials? max cutting thickness?
# You just need to tell me your working area, such as lenght, width, then I can recommend suitable model for you.
metal laser cutting machine is mainly used to pocessing metal, stainless steel materials, standard co2 laser machine is mainly processing nonmetal materials.
such as wood, plywood, acrylic, board, MDF, plastic etc
2.Do you have operation manual and working video?
# Yes, we have. after confirm which machine do you need, then working video are shown for you.
3.Does your company can processing my samples?
4.If I bought machine, but don't know how to operation, what I can do?
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
6.Does your engineer do aftersale service at abroad? how much cost?
