| Price: | US $ 2300-3600/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | T/T,D/P,Western Union,Paypal,Money Gram |

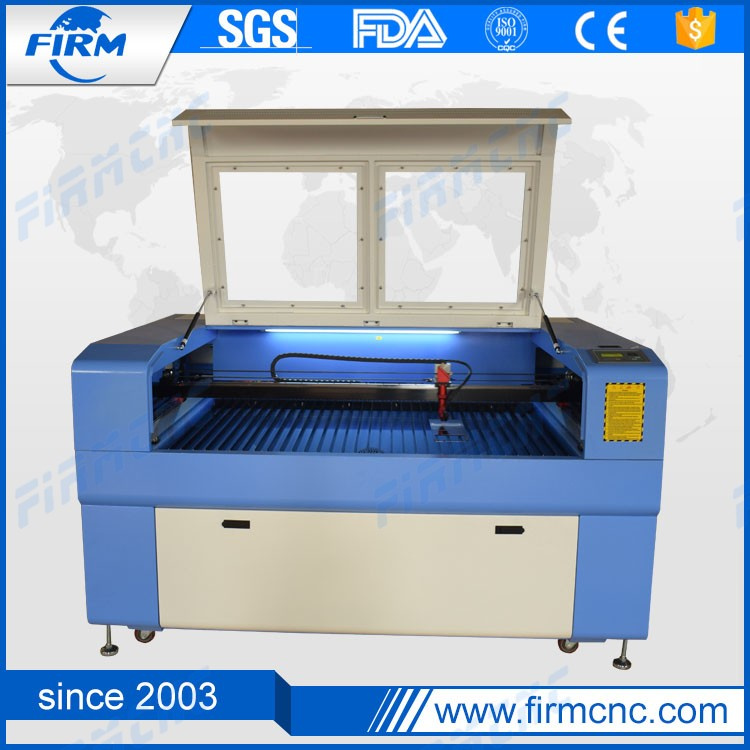

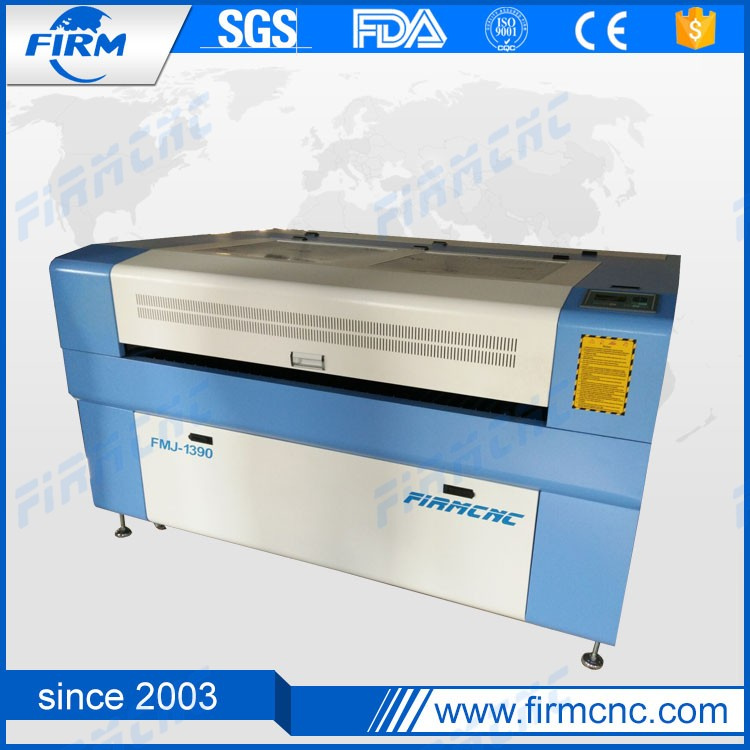

| Prod Model: | FMJ1390 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: | Wood Acrylic MDF CNC CO2 Laser Engraving Cutting M |
| Laser Type: | CO2 |
| Working Area: | 1200*900mm |
| Laser Power: | 40W-180W |
| Working Voltage: | 220V, 60Hz/ 380V, 50Hz |
| Driving System: | Stepper Motor |
| Warranty: | 1 Year |
| Controlling System: | Radcam Controlling System |
| Transmission: | Fulong Belt Transmission |
| Software: | Lasercut, Coredraw |
Application Materials :
Wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,
glass Acrylic, ABS Plastic, Carbon Composite, Cardboard, Cork, Mylar, Plastic and other nonmetal
materials.
Application industry :
Advertisement, arts and crafts, leather, toys, garments, model , building upholster, packaging and paper
industry, Vector Cutting, computerized embroidery and clipping, Raster Engraving, Signmaking, etc.

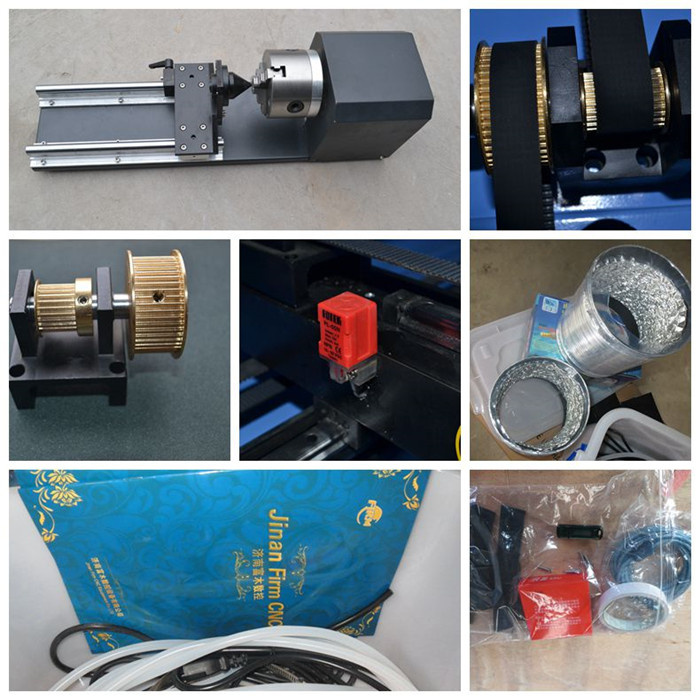

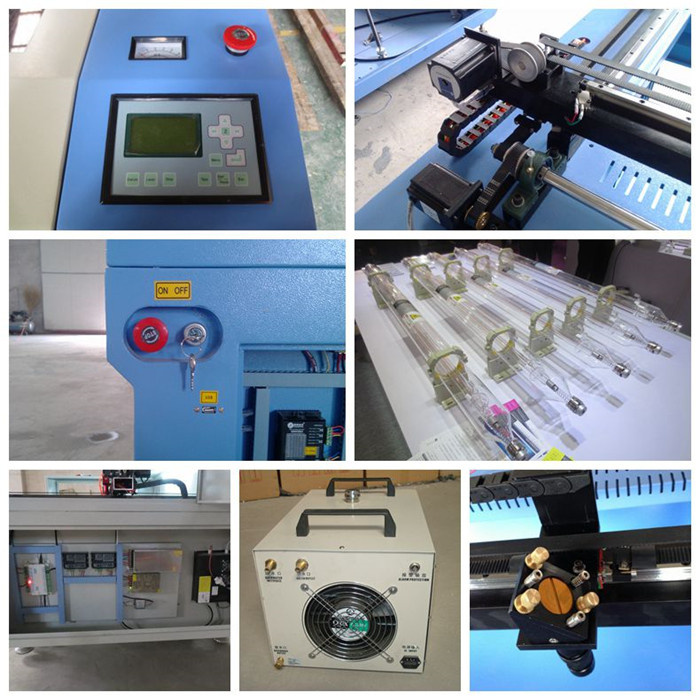

Detailed configuration:
A. Leadeshine stepper motor or servo motor
B. RD controlling system or Leetro controlling system
C. Sanghai Fulong belt transmission
D. Dual transmission of USB2.0
E. Chines,English, German LCD, Humanity button panels
F. Reci laser tube 80w 100w 130w 150w 180w or smaller and bigger power
G. Optical system uses laser Singapore imports all lenses
H. High strength stainless Rail cellular integration backplane
I. Chassis integration structure
J. Support U-download data
Standard accessories:
1) 1×Air pump for Air Assist ( for blowing off debris as the laser engrave or cut)
2) 1×Exhaust fans with Tube ducts (install inside machine)
3) 1×Water pump/Industrial chiller(cool the lase tube)
4) 1×Water protection(make sure the water cycle is normal)
5) 1×USB Cable (connecting PC and laser)
6) 1×DVD (including software, user manual, guiding videos etc)
7) 2×Power cables
8) 1×Tool box
Control system: | RD or Leetro controlling system |
Laser type: | Sealed CO2 glass laser tube |
Working area: | 1300*900mm |
Work table | Honeycomb table or blade table |
Laser power: | 60w/80w/100w/130w/150w/180w/260w |
Pass-thru doors: | Allow to cut extremely long materials(max thickness 40mm) |
Interface: | USB connection ( Work in Windows XP, 2000,Vista,7) |
Memory: | 64Mb Buffer Memory |
Driver system: | Stepper motor |
Auxiliary equipments: | Exhaust-fan, air-exhaust pipe |
Laser Tube life hours: | 10000 Hours |
Repeating precision: | ±0.05mm |
Moving system: | CNC controlling units |
Cooling mode: | Water-cooling and protection system |
Max speed: | 600mm/s for engraving, 300mm/s for cutting |
Working voltage: | AC110/220±10% 50/60Hz |
Whole power: | <1250W |
Operating temperature: | 0-45°C(32° - 113° F) |
Operating humidity: | 5%-95% |
Controlling software: | Original sunylaser software |
Graphic format supported: | BMP,PLT,AI,DXF,DST,JPG,CDR,HPGL,PNG,DSB,GIF, JPC,PGX,RAS,PNM,SKA,RAW etc |
Compatible software: | Auto CAD, CoreIDraw X2/X3/X4, photoshop etc |
Resolution: | 4000DPI |
Machine dimension: | 1950*1280*1150mm |
Packing dimension: | 2050*1400*1300mm |
Net weight: | 300kg |
Gross weight: | 370kg |
Packing: | Plywood case |
1.How long about the machine's guarantee?
2 years quality warranty and whole lifetime technical support
2.How can we install the machine?
All installation and operation user manuals and videos will be provided to you.
3.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal are available.
4.Do you Arrange Shipment For The Machines?
Yes, we can provide sea shipping and air shipping for our customers.
Please tell us your working, we will recommend you suitable model.
