CO2 Laser Cutter Engraver Cutting Engraving
| Price: |
US $ 3000-5000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
Product Specifications
| Prod Model: |
FMJ6090 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Control: |
CNC |
| Current: |
AC |
| Laser Type: |
CO2 |
| Usage: |
Plastic |
| Engraving Speed: |
0-64000mm/Min |
| Cutting Speed: |
0-36000mm/Min |
| Cooling Mode: |
Circulating-Water-Cooling and Protection System |
| Operating System: |
DSP off-Line Control System |
| Operating Temperature: |
5°c-40°c |
Product Description
Laser Engraving Cutting Machine for acrylic
This machine can cut and engrave on the acrylic, the max thickness can cut and engrave on the acrylic is: 20mm. We have many size of laser machine, as working size: 1300x900mm, 1300x2500mm, 600x900mm, 1400x1000mm 1600x1000mm and so on. Laser tube has 60w, 80w, 100w, 120w, 150w, using the Beijing RECI, or Chengdu Weegiant, having the honey nest table and the blade table.
Honey nest table fit for the soft materials, like leather, cloth, paper, fiber...
Blade table: Can withstand heavy materials, can hold 200kg, materials, suitable for cutting and engraving hard materials, like wood, acrylic and so on.
This machine is one Type of machine of Firm company, it is main working on the acrylic, double colour board, glass, crystal, marble, bowlder. Ceramic, wooden products, bamboo, cloth, leather, paper, plastic, rubber...
Have the up and down with rotary table.
Would be more clear if you could supply more information regarding the machine colour, machine size, what will you do using this machine...
Features
1. The imported linear guide way ensures the high precision and the long service.
2. The stepper motor guarantees cutting and engraving smooth. We also have the SEVEO, The motor can be choice. But price is higher than the stepper motor.
3. With red light positioning device accurately indicates the location of the processing of the laser head, eliminate the trouble about the manual positioning.
4. High quality laser tube provides the strong beam and long service life.
5. More scientific design and high strength steel-frame structure, which increase the fuselage strength more than 40% to prevent the machine from distortion during long time work.
6. The anti-pollution design improves the stability of the whole machine greatly.
7. Configure higher power laser tube. Beijing RECI LASER TUBE, can be over 10000 hours.

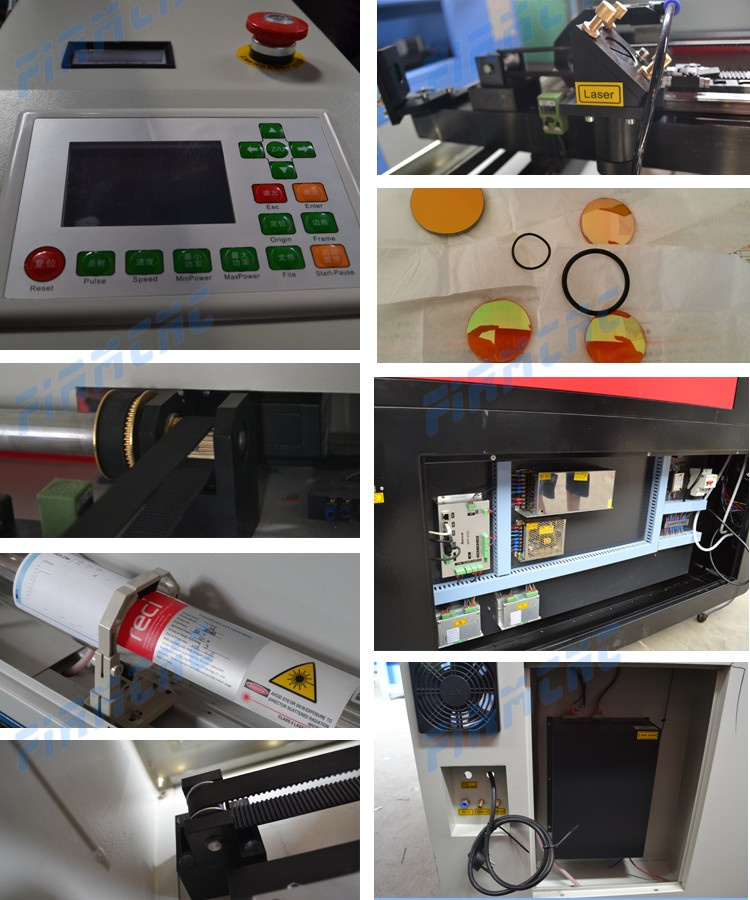

Main parts

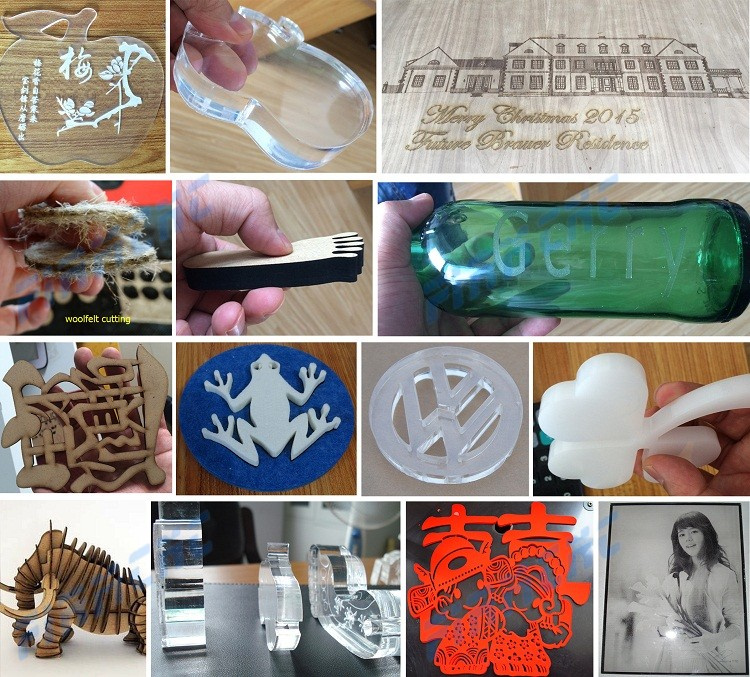

Samples

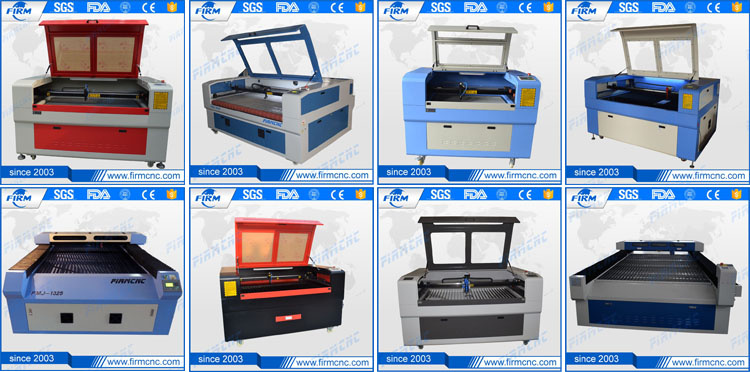

Ohter related laser machines

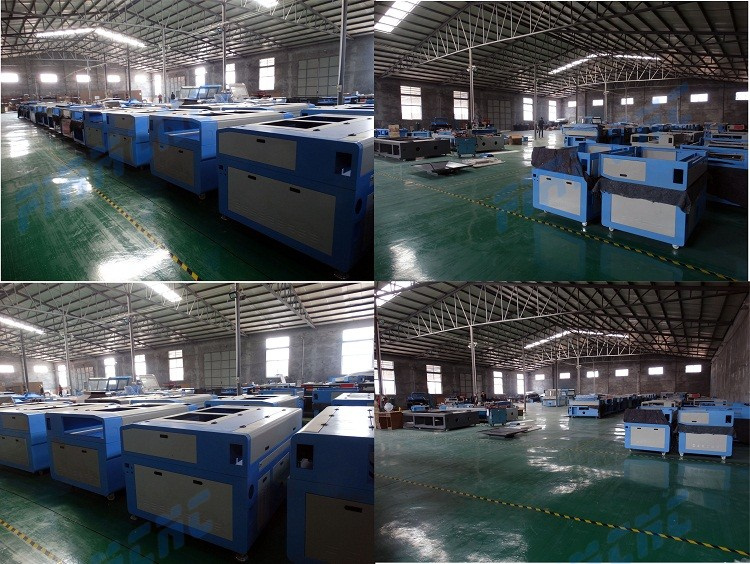

Company exhibition
Technical specification| Model | FMJ series |
| Engraving Area (mm)W*L | 900*600 | 1300*900 | 1400*1000 | 1300*2500 |
| Laser tube power | 60W 80W 100W 120W 130W 150W |
| Laser Type | CO2 sealed laser tube |
| Engraving Speed | 0-64000mm/min |
| Cutting Speed | 0-36000mm/min |
| Resetting positioning accuracy | ≤±0.01mm |
| Laser Output | 1-100%software setting |
| Cooling mode | Circulating-water-cooling and protection system |
| Machine control and drive | Speedy DSP controlling, stepper motor |
| Cutting Platform | knife-strip platform |
| Min. shaping character | Character2.0mm×2.0mm,English1.0mm×1.0mm |
| Power Supply | AC220V 50HZ |
| Operating system | DSP off-line control system |
| Dictate format | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las etc. |
| Operating Temperature | 5°C-40°C |
| Operating Humidity | 5-95%(Free of Condensed Water) |
| Compatible Software | CorelDraw ,AutoCAD transmit directly |
| Optional Spare Parts | Rotary system, Industrial Chiller, Infrared Locating System,
Laser Tube, Up-down clump |
| Recommended Spare Parts | Laser Tube |
Jinan Firm CNC Equipment Co., Ltd is located in Jinan city, Shandong province. We are one of the most professional and good reputation manufacturers of CNC router (router CNC, CNC wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China
Our main products are CNC router and laser machine, 5 axis machineing center, 4 axis machining center, 3 axis ATCcnc router, General 3 axis CNC router, CNC laser engraving and cutting machine, CNC plasma cutting machine. The application covers woodworking, advertising, Marble, Metal, Non-metal, MDF, plastic, etc. Our machines are widely sold in many countryes, European, American, Africa, Canada, England, and so on.
The aim of Jinan Firm CNC Equipment is to continuously upgrade the technique, to help our customers produce the best quality and high precision products, and offer the best after sale service.
Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service.
