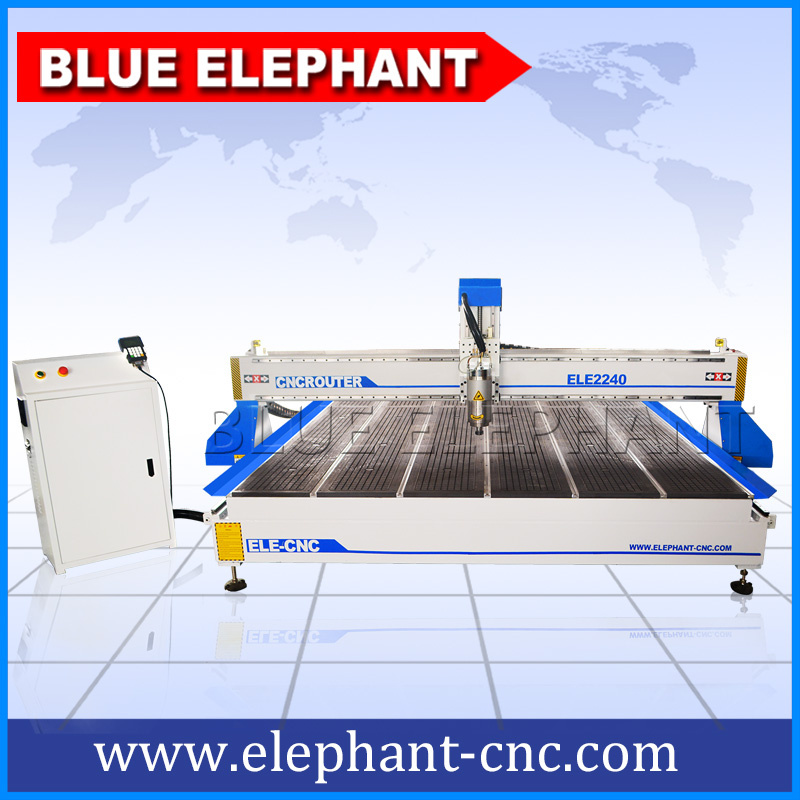

CNC Router 3 Axis Wood CNC Machine with Large Working Size 2200X4000mm
| Price: |
US $ 6500-9500set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
ELE2240 |
| Voltage: |
AC380V, 50Hz, 3pH (Option: 220V) |
| Working Area: |
2200*4000*200mm |
| Spindle: |
China Brand Changsheng Water Cooling Spindle |
| Motor: |
FL118 Stepper Motor |
| Driver: |
Yako 2608 Driver |
| Inverter: |
5.5kw Fuling Inverter |
| Table Surface: |
T-Slot and Vacuum Working Table |
| Rail: |
Sweden Abba #20 Linear Square Rail |
| Power(W): |
7kw |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
FDA |
Product Description
CNC Router 3 Axis Wood CNC Machine with Large Working Size 2200X4000mm
Introduction of large size cnc machine:1. With 2200*4000mm working area,bigeer working area2. With desk top body,don't need to connect legs3. DSP handle controller,don't need to connect computer4. 5.5KW water cooling spindle,bigger power for cutting and carvingParameters of large size cnc machine:| Description | Parameter |
| X,Y,Z Working Area | 2200*4000*200mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| Table Surface | Vacuum & T-slot Working Table |
| X, Y Structure | Helical Rack gear, Sweden ABBA Linear Square Rail 20# |
| Z Structure | Taiwan TBI Ball Screw, Sweden ABBA Linear Square Rail 20# |
| Spindle Power | 5.5KW Changsheng water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | FL118 stepper motor and YAKO 2608 driver |
| Inverter | 5.5kw Fuling Inverter |
| Lubrication system | Manual lubrication system |
| Working Voltage | AC380V/50Hz,3PH (Option: 220V) |
| Operating System | DSP A11 Control System (Options: Ncstudio /Mach3 Software) |
| Control box | Single-sided indenpended control box |
| Pump | water circulation vacuum pump (380V, 3Ph, 50Hz) |
| Optional | Japan Omron limit switch |
PS:All the working area and specifications can be customized according to your requests. Product details of large size cnc machine:
Features of large size cnc machine:
1. Effective working area: 2200*4000*200mm
2. 5.5KW water cooling spindle
3. DSP A11 control system
4. Stepper motor FL118 and YAKO 2608 driver
5. 5.5KW Fuling inverter
6. Helical rack
7. Taiwan TBI ball screw
8. Sweden ABBA square linear guide way for 20#
9. Artcam,Type3 software(one of them)
10. Vacuum & T-slot working table
11. Japan Omron limit switch
12. Working voltage: 380v 3phase 50HZ
Application:WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
Die Industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
Relief Sculpture and 3D Engraving & Cylindrical object Samples:
Our Service:1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.Welcome to our factory:
