| Price: | US $ 18000-26000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union,Paypal |

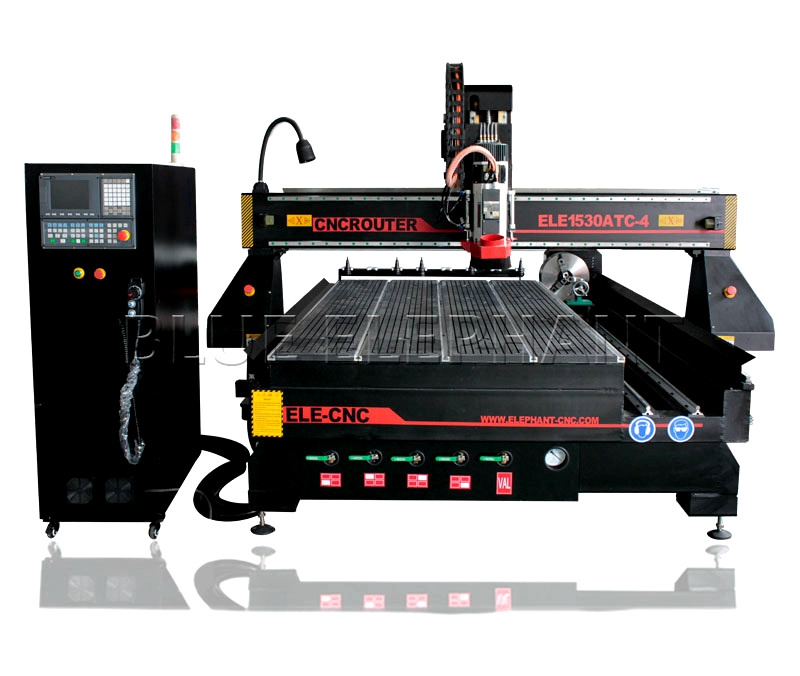

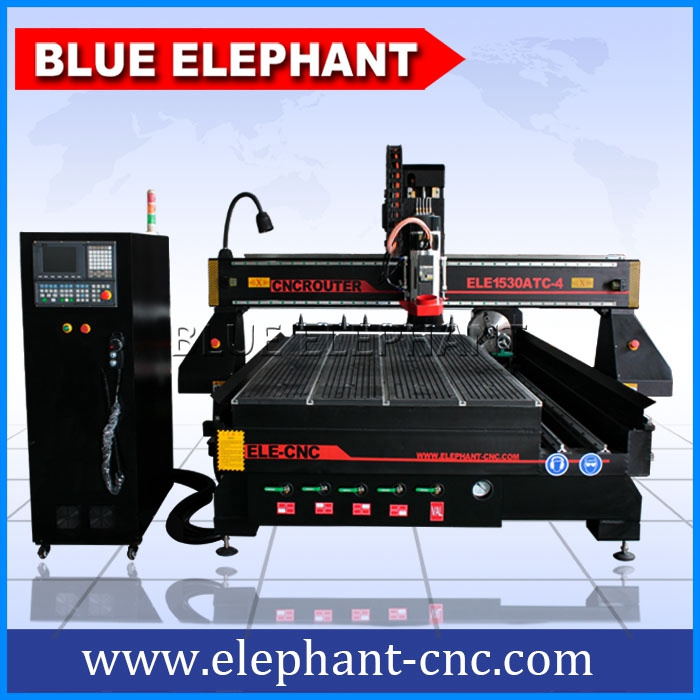

| Prod Model: | ELE1530ATC |
|---|---|
| Power(W): | 12.5kw |
| Voltage: | 380V, 3 Phase, 50/60Hz(Optional:220V) |
| Working Area: | 1500*3000*200mm |
| Control System: | Taiwan Syntec Control System |
| Spindle: | Italy Hsd Atc Air Cooling Spindle |
| Spindle Power: | 9kw |
| Spindle Speed: | 0-24000rpm |
| Motor: | 850W Japan Yaskawa Servo Motor |
| Driver: | Yaskawa Driver |
| Inverter: | 11kw Delta Inverter |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | SGS BV TUV |

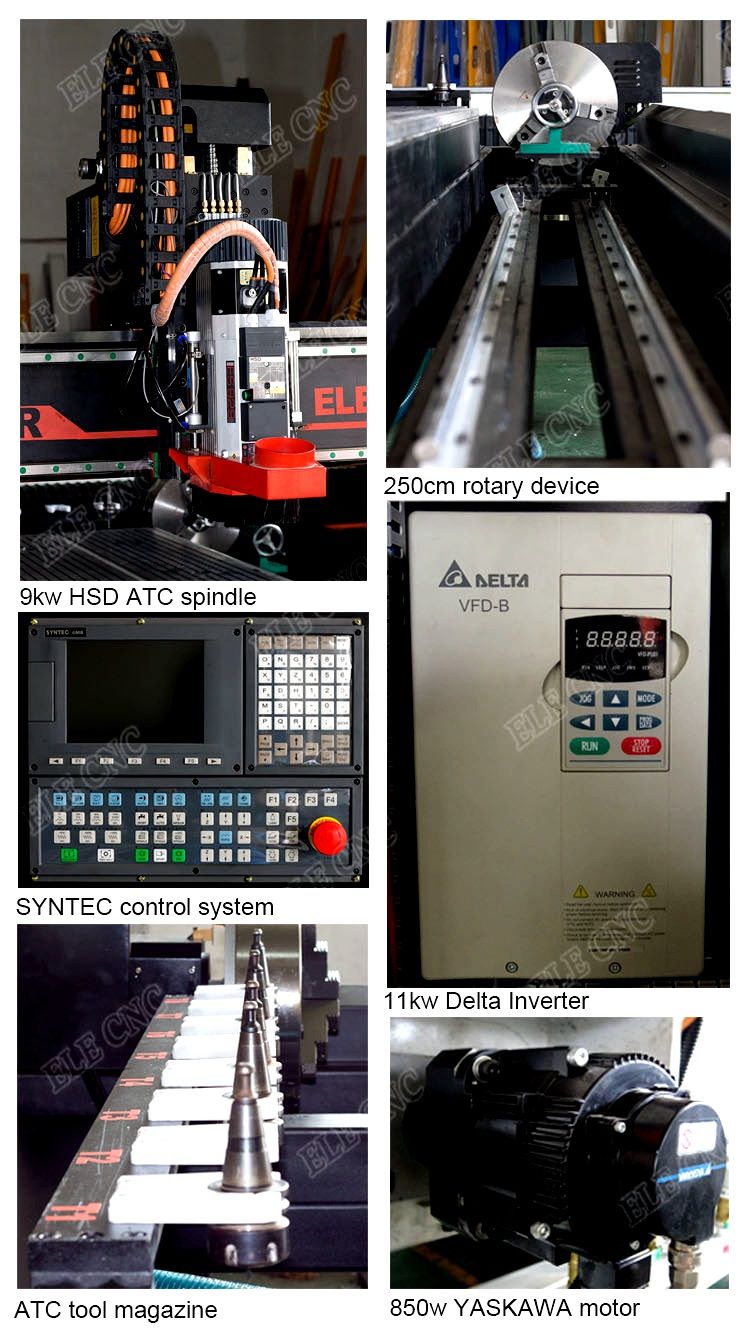

Features of 1530 atc cnc router:
Parameters of 1530 atc cnc router:
Description | Parameter |
X,Y,Z Working Area | 1500x3000x200mm |
Table Size | 1500×3000mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |
Table Surface | Vacuum and T-slot working table |
Frame | Welded Structure |
X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
Z Structure | Hiwin Rail Linear Bearings and TBI Ball Screw |
Max. Power Consumption | (Without Spindle) 3.2Kw |
Max. Rapid Travel Rate | 33000mm/min |
Max. Working Speed | 25000mm/min |
Spindle Power | 9kw Italy HSD ATC air cooling spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | 850W Japan YASKAWA servo motor |
Working Voltage | 380v, 3 phase, 50/60HZ (Option: AC220V/50/60Hz,3PH) |
Command Language | G Code |
Operating System | Taiwan SYNTEC control System |
Computer Interface | USB |
Rotary device | 300mm diameter*2500mm length |
Collet | ISO30 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
PS:All the working area and specifications can be customized according to your requests.
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
Applicantion:
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
5.Cylindrical object
Samples show:
