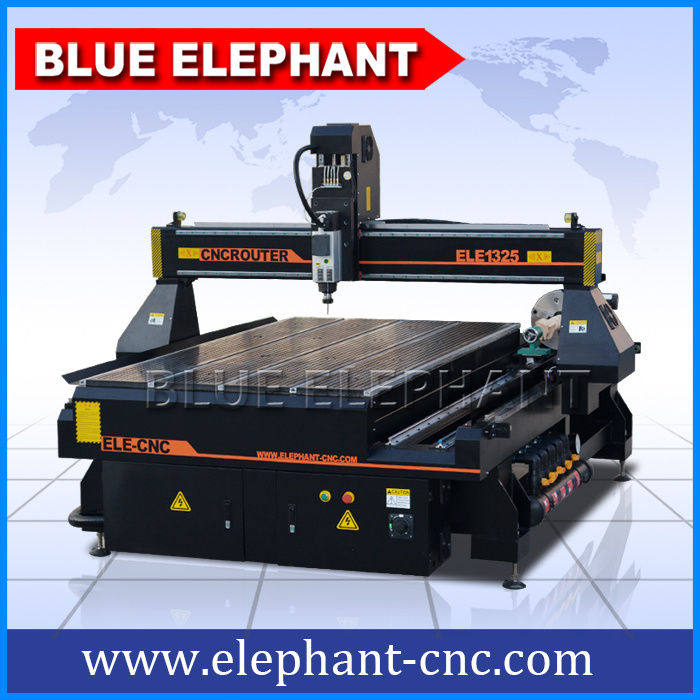

CNC Machine Manufacturers CNC Woodworking Machine with Rotary Device
| Price: |
US $ 7999-19999/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,D/P,Paypal,Money Gram |
Product Specifications
| Prod Model: |
ELE 1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
1325 CNC Router Machine |
| X,Y,Z Repositioning Accuracy: |
0.02mm |
| Spindle Power: |
4.5 Kw Italy Hsd Air Cooling Spindle |
| Command Language: |
G Code |
| Model Number: |
Ele-1530 |
| Max. Rapid Travel Rate: |
45000mm/Min |
| Voltage: |
AC380V/50/60Hz, 3pH (Option: 220V) |
| Max. Working Speed: |
30000mm/Min |
| Control System: |
Mach 3 |
| Dimension(L*W*H): |
3200X2100X1980mm |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS BV TUV |
Product Description
cnc machine manufacturers cnc woodworking machine with rotary device
Features:
1).4.5kw HSD air cooling spindle from Italy
2).5.5kw DELTA inverter from Taiwan
3).Original DSP 4 AXIS control system
4).Japan YASKAWA servo motor
5).vacuum pump
6).Vacuum and T-slot working table
7).with rotary device
Parameter of cnc router pantograph
Number |
Description |
Parameter |
1 |
X,Y,Z Working Area |
1300x2500x400mm |
2 |
Table Size |
1480×3050mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
4 |
X,Y,Z Repositioning Accuracy |
±0.03mm |
5 |
Table Surface |
Vacuum and T-slot working table |
6 |
Frame |
Welded Structure |
7 |
X, Y Structure |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 |
Z Structure |
Hiwin Rail Linear Bearings and Ball Screw |
9 |
Max. Power Consumption |
(Without Spindle) 3.2Kw |
10 |
Max. Rapid Travel Rate |
33000mm/min |
11 |
Max. Working Speed |
25000mm/min |
12 |
Spindle Power |
4.5kw Italy HSD air cooling spindle |
13 |
Spindle Speed |
0-18000RPM |
14 |
Drive Motors |
Japan YASKAWA servo motor |
15 |
Working Voltage |
380v, 3 phase, 50/60HZ
(Option: AC220V/50/60Hz,3PH) |
16 |
Command Language |
G Code |
17 |
Operating System |
Mach3 4axis control System |
18 |
Computer Interface |
USB |
19 |
Rotary device |
300mm diameter*2200mm length |
20 |
Collet |
ER25 |
21 |
X,Y Resolution |
<0.01mm |
22 |
Software Compatibility |
Type3/UcancameV9 Software, (Option: Artcam Software) |
23 |
Running Environment Temperature |
0 - 45 Centigrade |
24 |
Relative Humidity |
30% - 75% |

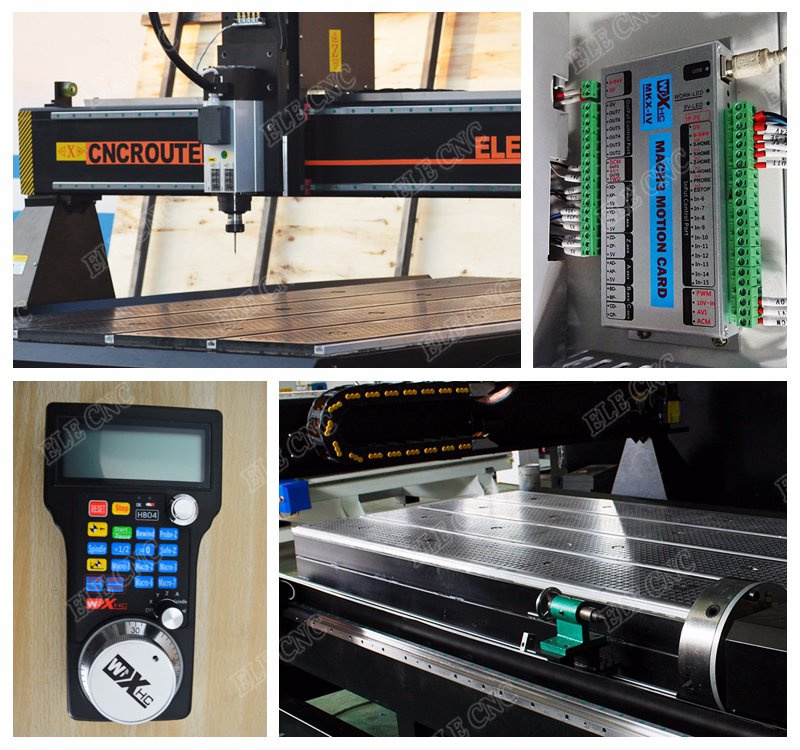

Main Parts:
Applications
1.WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors,interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.Relief sculpture and 3D engraving
5.Cylindrical objectRelated ProductsWe also have any other models. Such as ATC cnc machine, mini cnc machine, multi-head cnc machine, cnc machine with rotary.
It also can be cusmized according to your working area or processing material.
Customer Service
1. Small parts will be supplied to you for free, such as, software CD, dongle.
2. Any problem will be replied to you within 24 hours!
3. By video, solution manual in English, Email, skype, QQ, telephone etc.
4, We supply lifelong after-sale service under our professional's guide for free!
5, Free training in our factory.

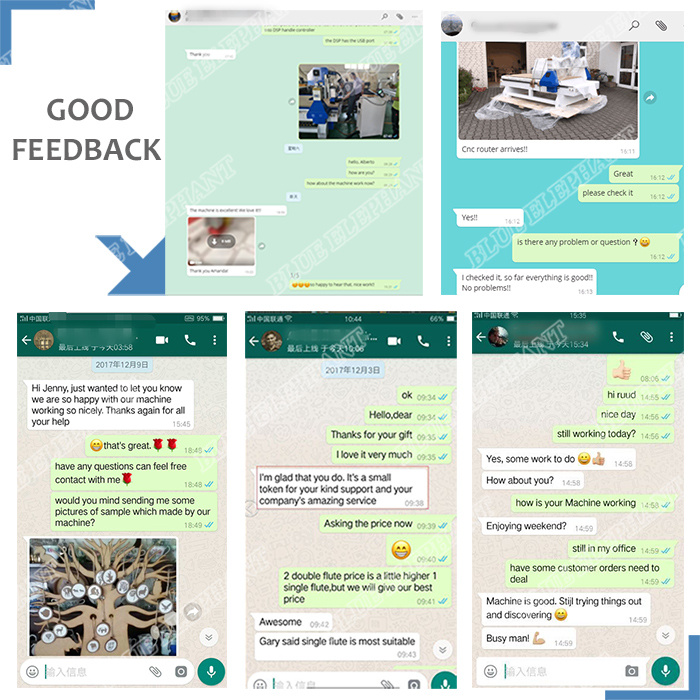

Customers Feedback
Company information

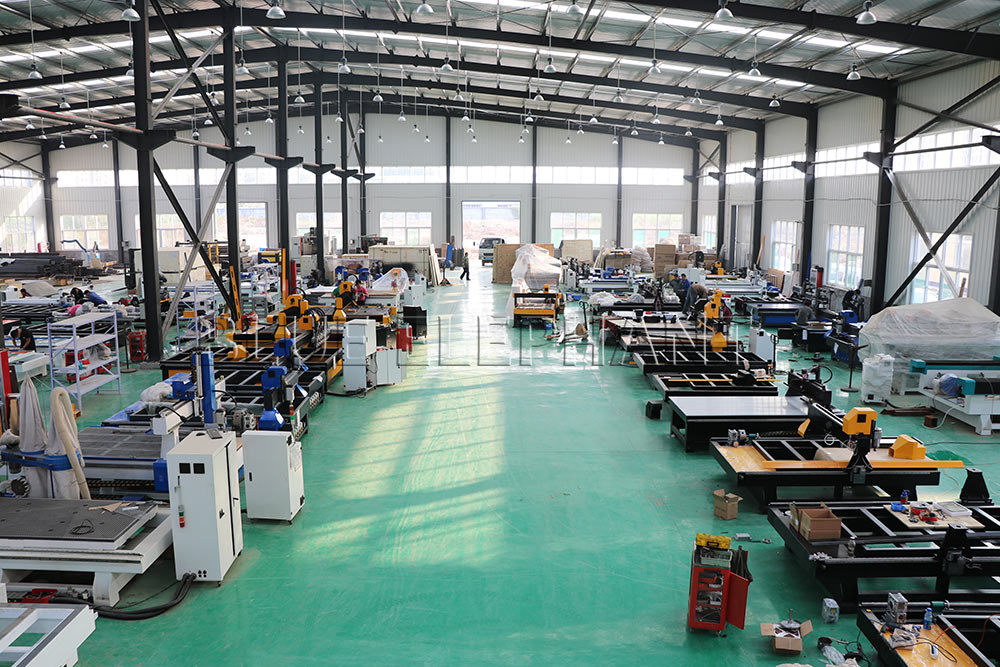

Jinan Blue Elephant CNC Machinery Co.,Ltd ,located in Jinan,Shandong,China.We have our own factory and CE Certification.
