Chinese New Cost -Effective Stone CNC Carving Engraving Relief Machine
| Price: |
US $ 3000-10000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Product Specifications
| Prod Model: |
FM1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area: |
1300*2500 |
| Carving Command: |
G Code |
| Max Engraving Speed: |
3000mm/Min |
| Spindle Power: |
3.0kw Water Cooling |
| Function: |
Lettering |
| Application Material: |
Blackstone |
| Automation: |
Manual |
| Control: |
CNC |
| Current: |
AC |
| Application: |
Stone Industry |
Product Description
Chinese New Cost -effective Stone Carving Engraving Relief MachineThis kind of machine is the main products of Jinan Firm CNC Equipment co, . Ltd which specialize in the produce of the machine. The material that the machine can process including tile, marble, granite, white marble, sandstone, glass, metals, 3D natural marble, artificial stone, tombstone, milestone, etc.

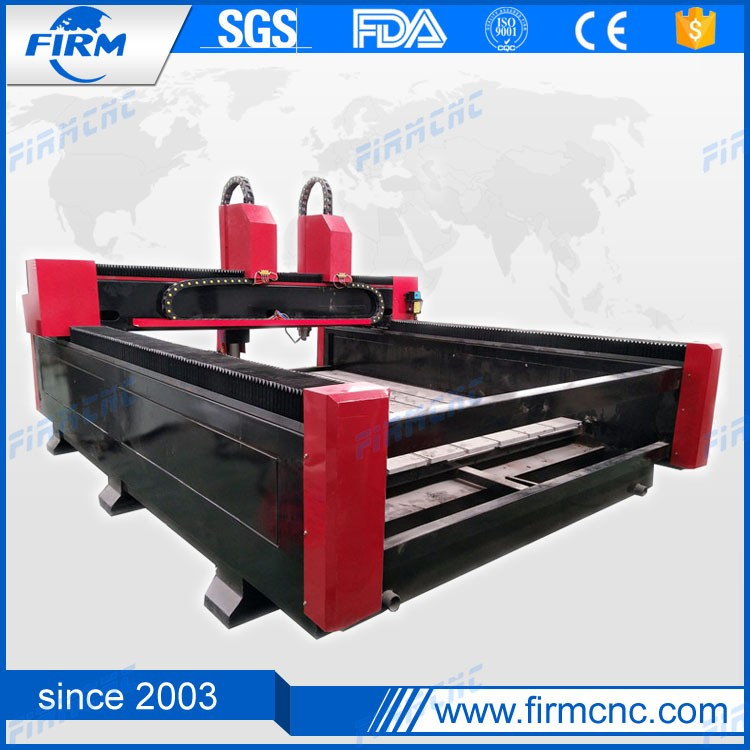

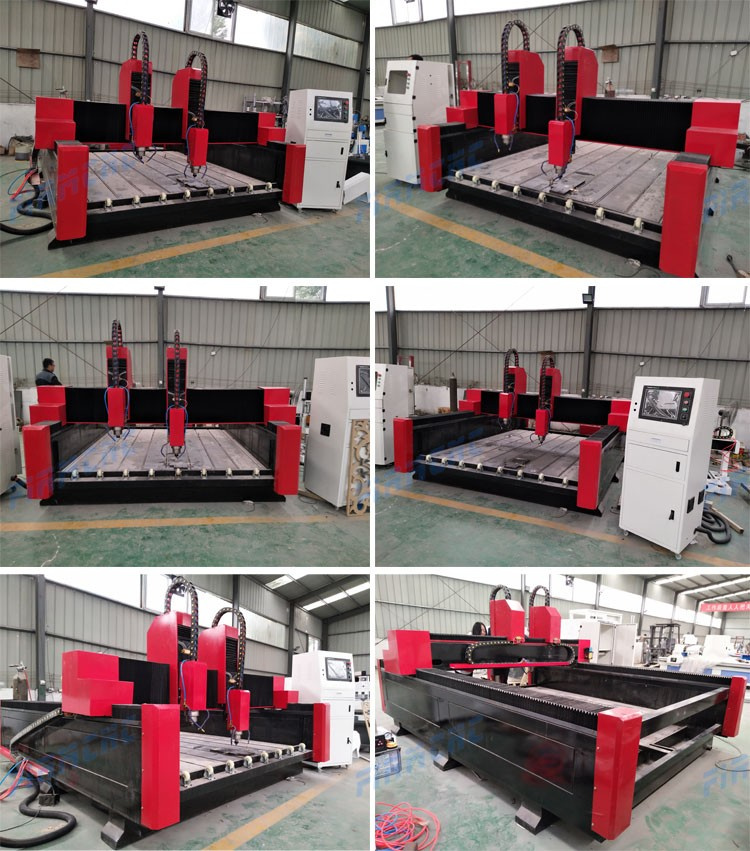

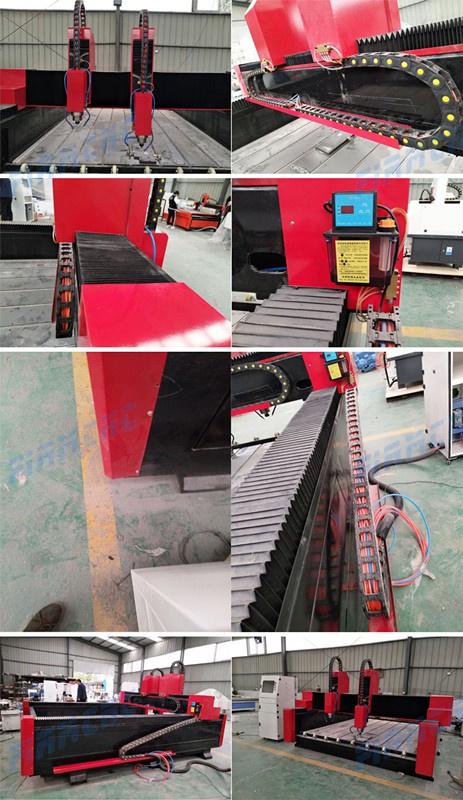

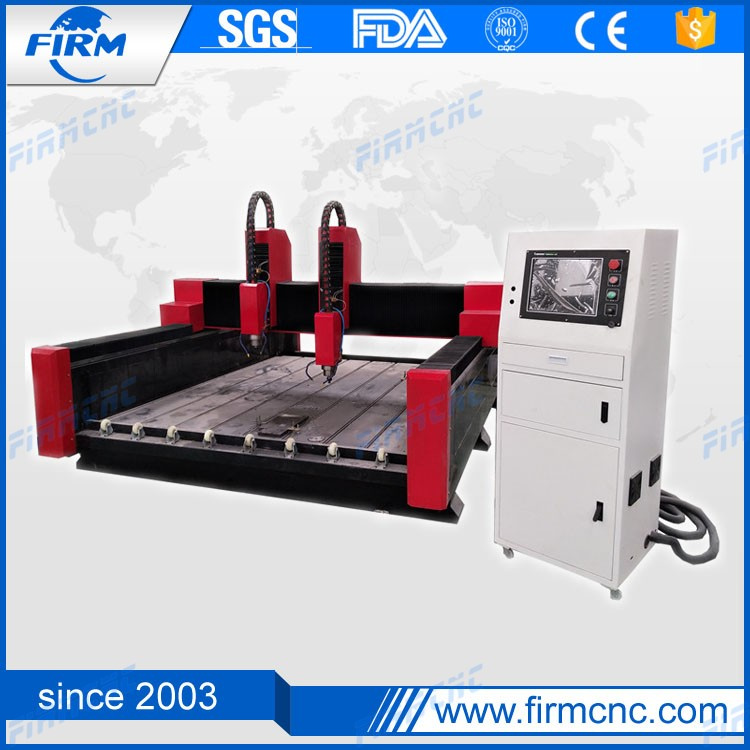

Description of the machine
1. Cast heavy-thickness square tube structure, solid without distortion.
2. Germany Ballscrew system for Z axis, high-efficiency wrking. Rack gear for X Y axis, high-speed with best rigidity.
3. Taiwan HIWIN Square orbits, ensure the machine's movement stable and smooth and long-life using.
4. Water-cooling spindle, can be working for a long term.
5. Broken-point memory, ensures the continuity of work when inciddent happens.
6. DSP Controller system, conveniently to operate.
7. Spindle power 3KW/4.5KW/6KW/7.5KW/8KW/9KW, fasting-speed & working-efficiency.
8. U flash interface.
9. Auto-oiling system. Extra time can be saved.
10. Heavy-thickness water-tank device, guarantee the marble materials under water-cooled function. Meantime also improve the blades life-time.
Techncial specification| NO. | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300* 2500* 200mm |
| 2 | Table Size | 1300* 2500mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy: | ±0.02mm |
| 5 | Table Surface | Aluminium profile--welded thick steel
Add water tank |
| 6 | Frame | Cast iron |
| 7 | X, Z Structure | High precision rack gear |
| 8 | Y Structure | Rail Linear Bearings o Ball Screw |
| 9 | Max. Rapid Travel Rate | 20000mm/min |
| 10 | Max. Working Speed | 10000mm/min |
| 11 | Spindle Power | 3.0 kw water cooled spindle
Equipped with water pipe |
| 12 | Spindle Speed | 0-24000RPM/min |
| 13 | Drive Motors | Step motors |
| 14 | Drivers | Leadshine drives |
| 15 | Inverter | Best Inverter |
| 16 | Working Voltage | 220V/ 380V three phase 50-60HZ |
| 17 | Command Language | G Code |
| 18 | Operating System | Mach3 controller (optional DSP or Ncstuido control) |
| 19 | Computer Interface | USB |
| 20 | Flash Memory | 512M |
| 21 | Collet | ER20 |
| 22 | X,Y Resolution | <0.01mm |
| 23 | Software Compatibility | ARTCAM/ Type3 software |
| 24 | Running Environment Temperature | 0 - 45 Centigrade |
| 25 | Relative Humidity | 30% - 75% |
| 27 | N.W. | 1300KG |
| 28 | G.W. | 1500KG |

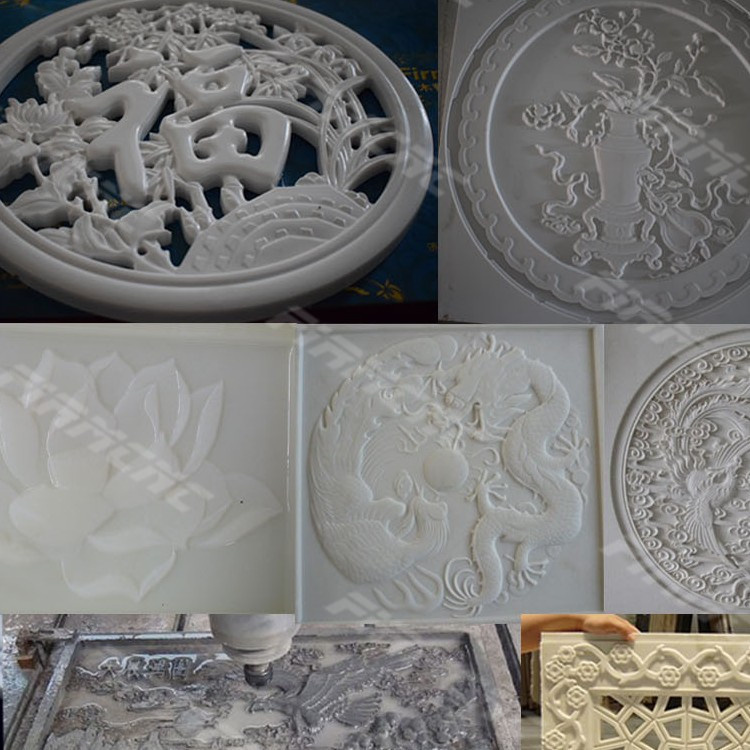

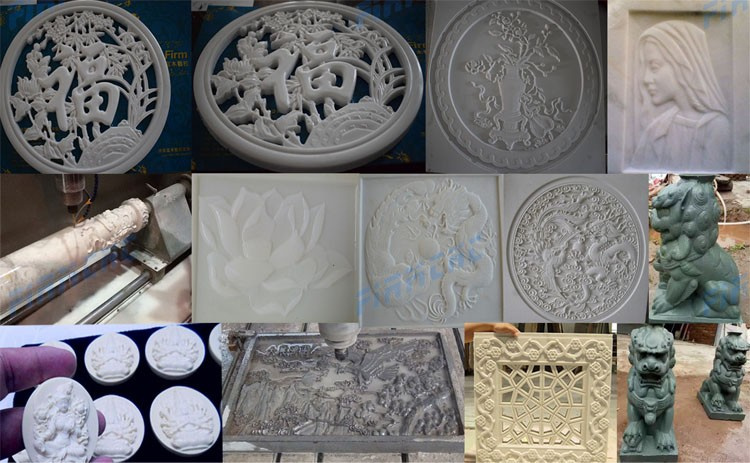

Application
Stone, marble, granite, Chinese black stone, bluestone, jade stone, crystal, glass, organic glass, Floor tile and ceramic tile, plastic,
chemical synthesis board, PVC board, bamboo ware, Aluminum-plastic panel, metal, etc., line carving, 2D engraving, 3D engraving, 3D relief, Cutting,
drilling, processing.
Our Services
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.

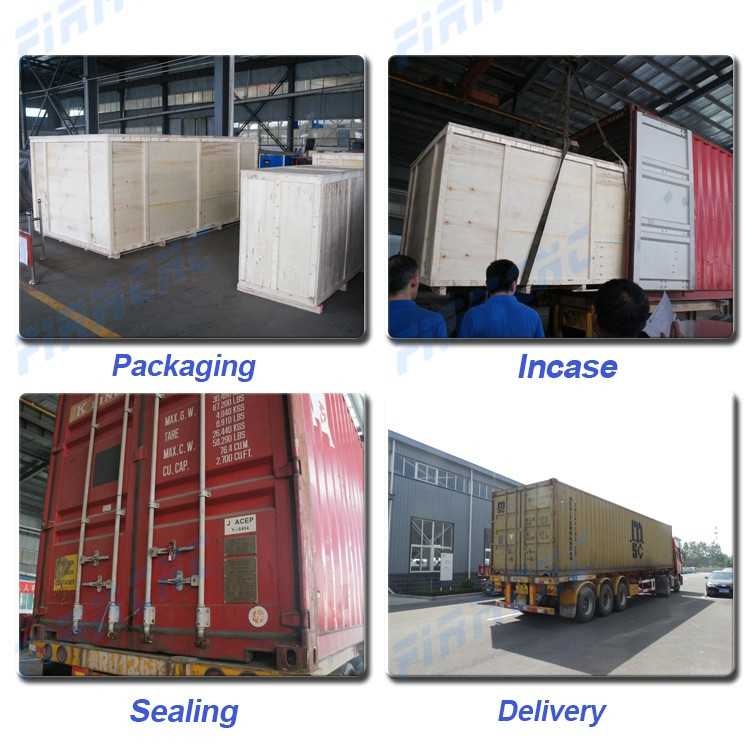

Packaging & Shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information
JINAN FIRM CNC EQUIPMENT CO.,LTD
A-505Jingliu Road, Huaiyin District, Jinan City, Shandong Province, China.
Tel: 0086-0531-69986330 Fax : 0086-0531-69986330
Website: http://firmcnc.en.alibaba.com/, http://firmcnc.en.made-in-china.com
www.firmcnc.com
Cell phone: +86-13954117091And the last I really want to tell you we also can produce the machine as your requested including the brand of the parts, the color of the machine body...
If there are any questions please let us to answer
Jinan Firm CNC Equipment Co., Ltd is located in Jinan city, Shandong province. We are one of the most professional and good reputation manufacturers of CNC router (router CNC, CNC wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China
Our main products are CNC router and laser machine, 5 axis machineing center, 4 axis machining center, 3 axis ATCcnc router, General 3 axis CNC router, CNC laser engraving and cutting machine, CNC plasma cutting machine. The application covers woodworking, advertising, Marble, Metal, Non-metal, MDF, plastic, etc. Our machines are widely sold in many countryes, European, American, Africa, Canada, England, and so on.
The aim of Jinan Firm CNC Equipment is to continuously upgrade the technique, to help our customers produce the best quality and high precision products, and offer the best after sale service.
Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service.
