| Price: | US $ 5000-9000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

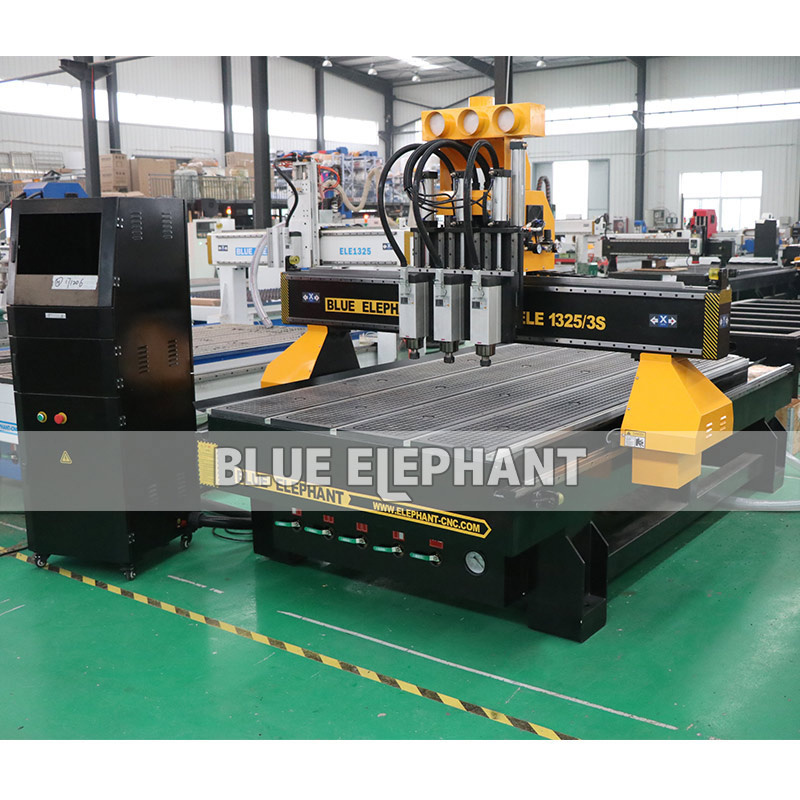

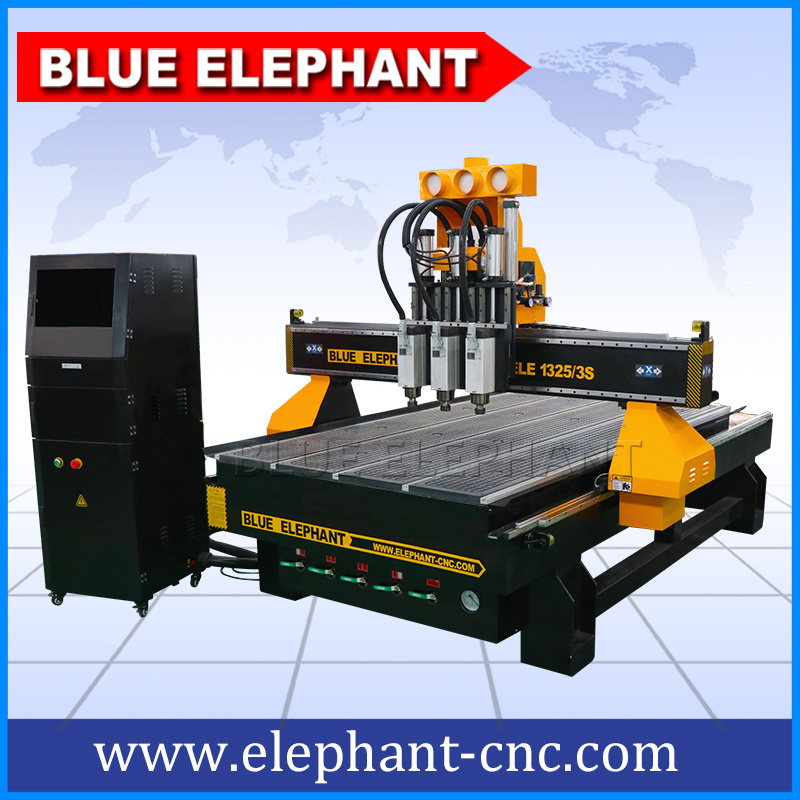

| Prod Model: | ELE1325-3S |
|---|---|
| Voltage: | 380V, 3pH, 60Hz |
| Spindle Power(W): | 3*3.5kw |
| Control System: | Ncpm95A-3L Control System |
| Inverter: | 3.7kw Fuling Inverter |
| Spindle: | 3*3.5kw Hqd Air Cooling Spindle |
| Effect Work Size: | 1300*2500*200mm |
| Table: | T-Slot & Vacuum Work Table |
| Motor: | FL118 Stepper Motor |
| Software: | Artcam Software |
| Driver: | Yako2811 Bigger and Stronger Driver |
| Spindle Layout: | Spindle Over |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | SGS BV TUV |
| Spindle Number: | Three Spindles |
Advantages:
Features:
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1300*2500*200mm |
2 | Table Size | 1300×2500mm |
3 | Table Surface | T-slot & vacuum work table |
4 | Frame | Welded Structure |
5 | X, Y Structure | Sweden SKF Group ABBA #20 linear guide for all axis Helical rack gear transmission for X,Y axis |
6 | Z Structure | Taiwan TBI ball screw for Z axis |
7 | Spindle Power | 3*3.5kw HQD air cooling spindle |
8 | Spindle Speed | 0-18000RPM |
9 | Drive Motors | FL118 stepper motor and YAKO2811 bigger and stronger driver |
10 | Working Voltage | 380v, 3 phase, 50/60HZ (Option: AC220V/50/60Hz,3PH) |
11 | Command Language | G Code |
12 | Operating System | NCPM95A-3L control system with computer control box |
13 | Computer Interface | USB |
14 | Collet | ER25 |
15 | Inverter | 3.7kw Fuling inverter |
16 | Running Environment Temperature | 0 - 45 Centigrade |
17 | Relative Humidity | 30% - 75% |
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
