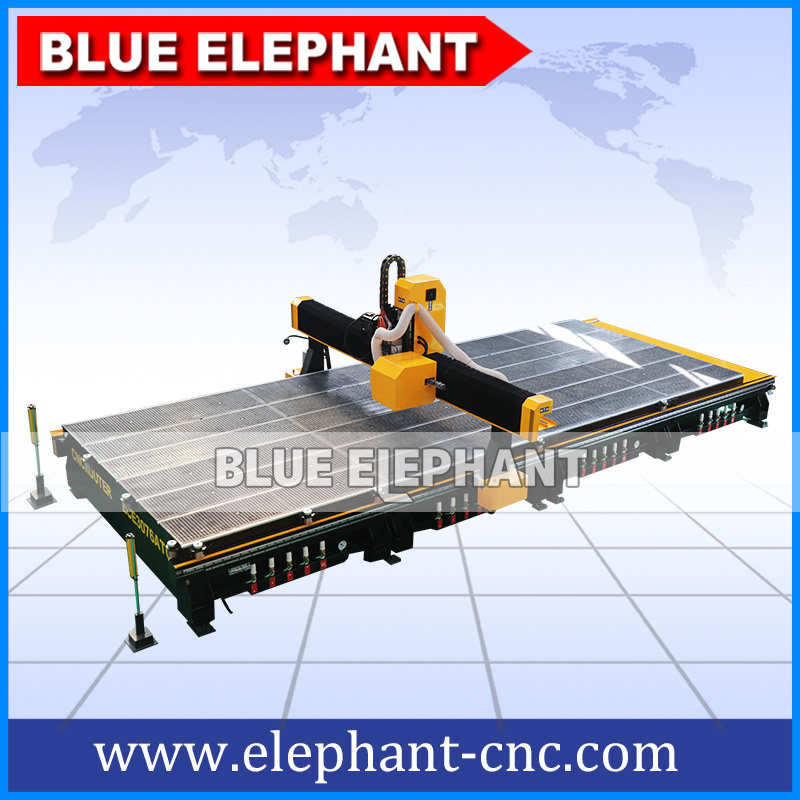

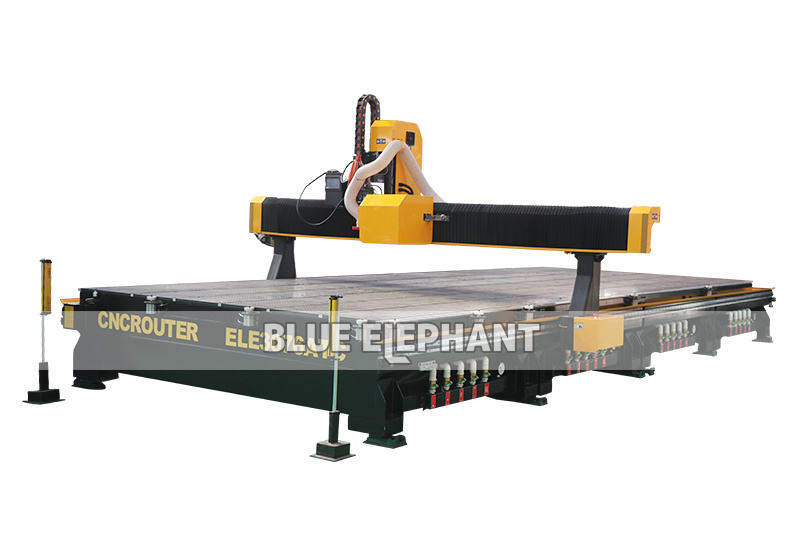

China Ele 3076 Furniture CNC Router for Woodworking Machine Sale

China ELE 3076 Furniture CNC Router for Woodworking Machine Sale

Features

• Effective working area 3000*7600*400mm;
• Italy 9kw HSD ATC air cooling spindle (24000rpm, ISO)ES951 Model;
• With ISO30 ----8 pieces;
• Taiwan Delta 11kw B inverter, Model--VFD110B43A;
• Syntec 6MD-H control system,With wireless control handle;
• Vacuum and T-slot working table;
• Japan YASKAWA 1300w motor and 1500w driver;
• Motor model---SGM7G-13AFC6C for Z ; Motor model---SGM7G-13AFC61 for X and Y
• Driver model---SGD7S-120A00A
• Japan Shimpo reducer;
• Sweden SKF ABBA ;7000mm----30mm linear guide way
• 3000mm and Z axis---25mm linear guide day;
• Taiwan TBI ball screw;
• Round cylinders for 10 pieces;
• Artcam software;
• For the short side 3000mm dust cover;

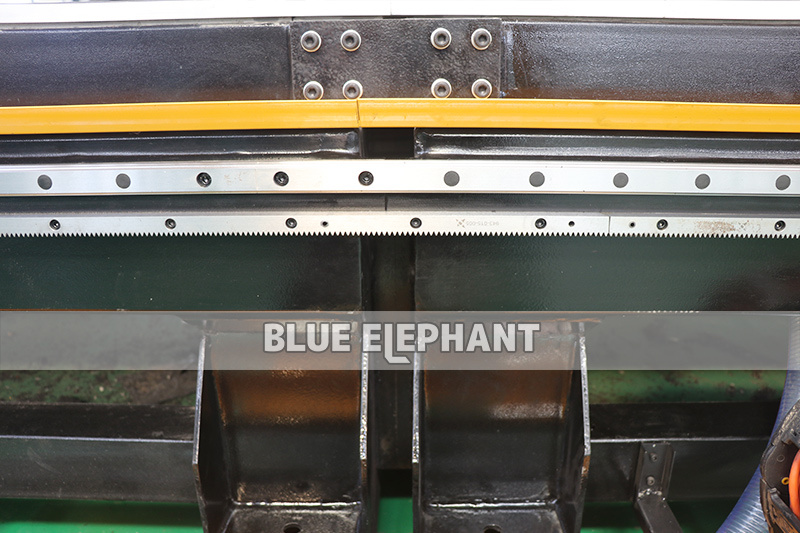

• German WMH brand Rack and Pinion;
• German Becker pump (KVT.3.140,4kw ) ---4 SETS;
• New type 1.5kw With 2 bags;Special design for the pipe support on the right side;
• Laser screening,On the longer side, 8m;
• Shanghai Cardiff brand wire, for high soft shield;

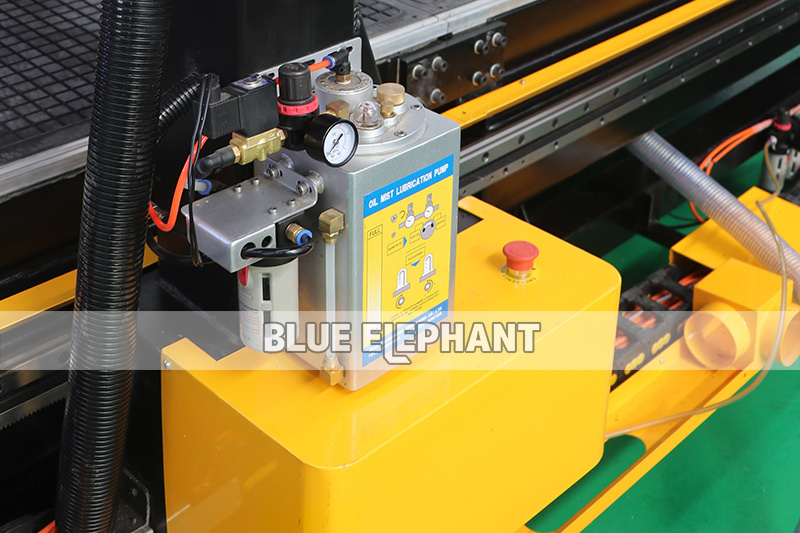

• Oil mist cooling sprayer ;
• Japan Omron limited switch;
• Scheider electric E-stop buttons;
• Heavy duty thicker and bigger welded steel frame;10~12mm Heavy duty Body
• Automatic lubrication System;
• G Code Command Language;
• USB Interface;
• for 35kw 415V change into 380V transformer;
• 18 months warranty;

Advantages

• Fast speed. Carousel type auto tool change with 8pcs tool magazine, adopt popular hsd air cooling spindle 9kw. and YASKAWA servo motor, max. Spindle speed can reach 24000RPM. Actually this type of large cnc router is featured with high configuration. Higher working efficiency can be promised.
• High stable. The transmission system is very higher than our common type, we use German WMH brand Rack and Pinion, 25mm and 30mm linear guide rail Sweden SKF ABBA brand. The working of cnc will be much higher stable, you will be very satisfied with smooth running
• Humanization design. In order to protect people body safety, except adding spindle cover for customer, we also design special laser screening system, which means that if someone come closer to the machine, it will stop immediately; Moreover, we design dust cover for x axis, which can help customer save much time for maintenance, it is useful for cnc longer time use
• Turnkey solution. As you can see that this machine is very very big, the whole machine is assembled by 4 parts, after customer received the assemble parts, they need to install them together. Our experienced engineer can be sent to customer area for installation, commission etc which according to customer requirements. You can enjoy our satisfied online/email/after-sale service after bought BLUE ELEPHANT CNC ROUTER.

Details




Technical parameters

Application

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.
